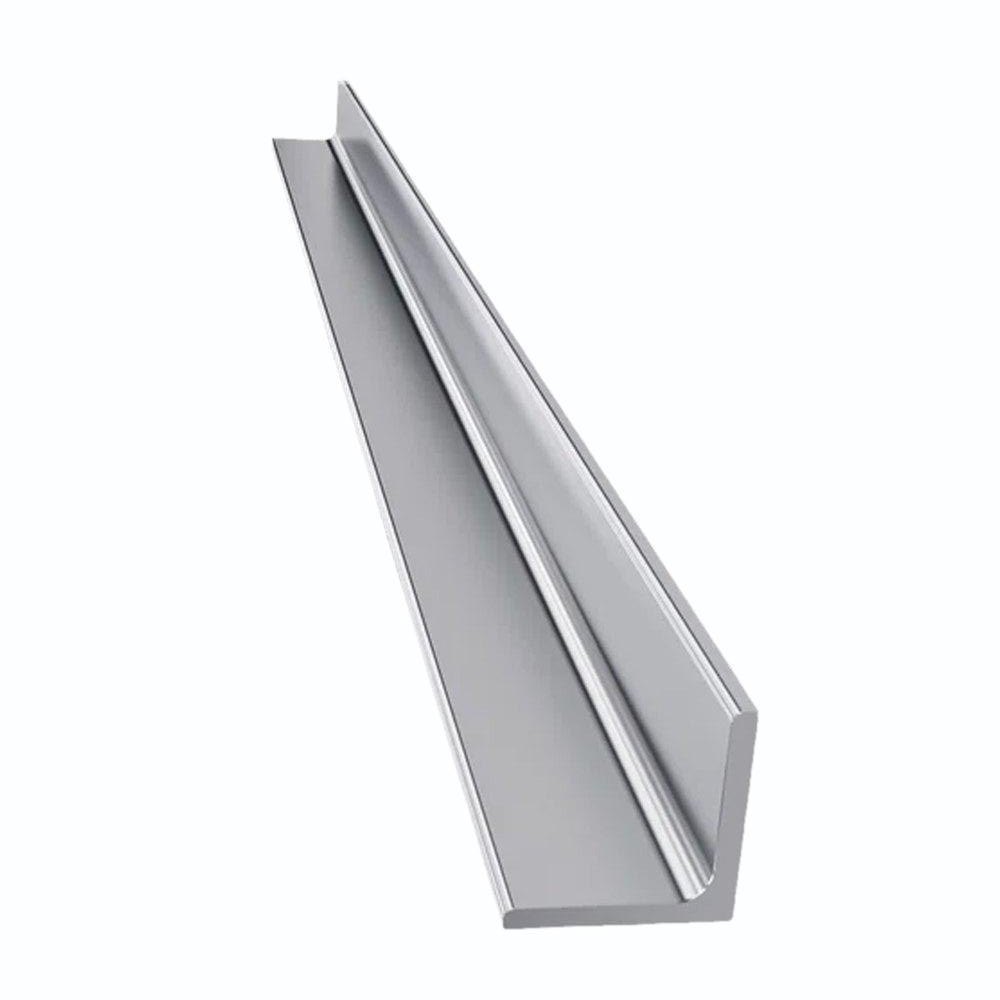

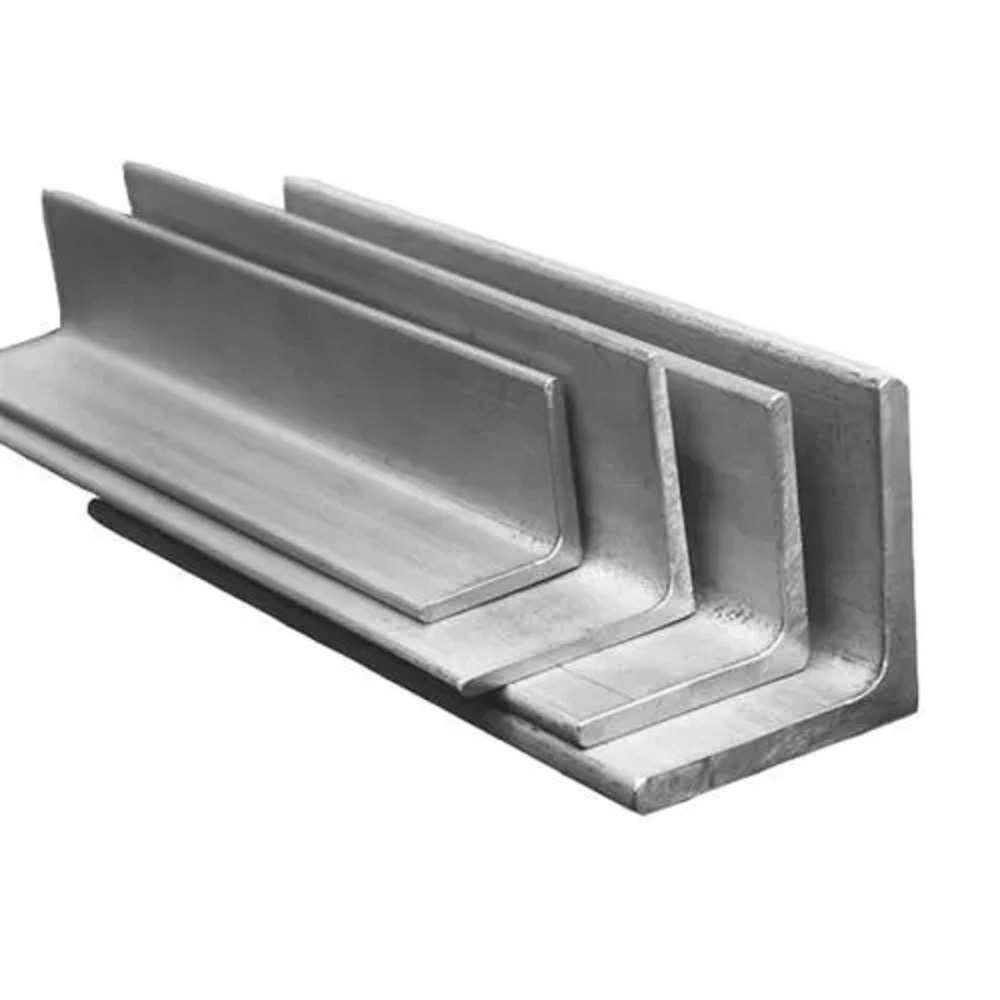

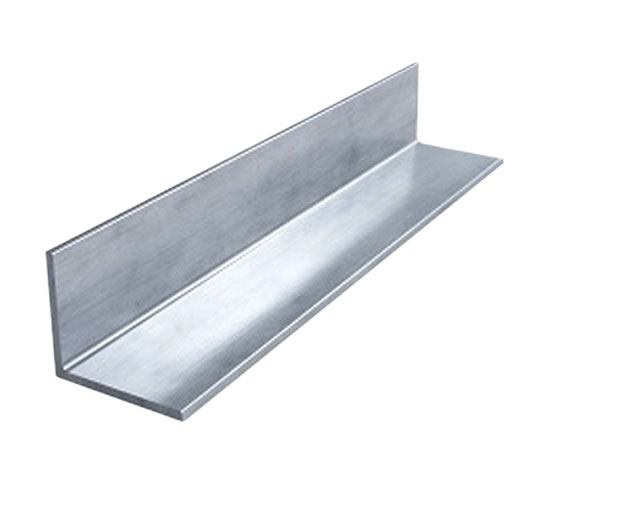

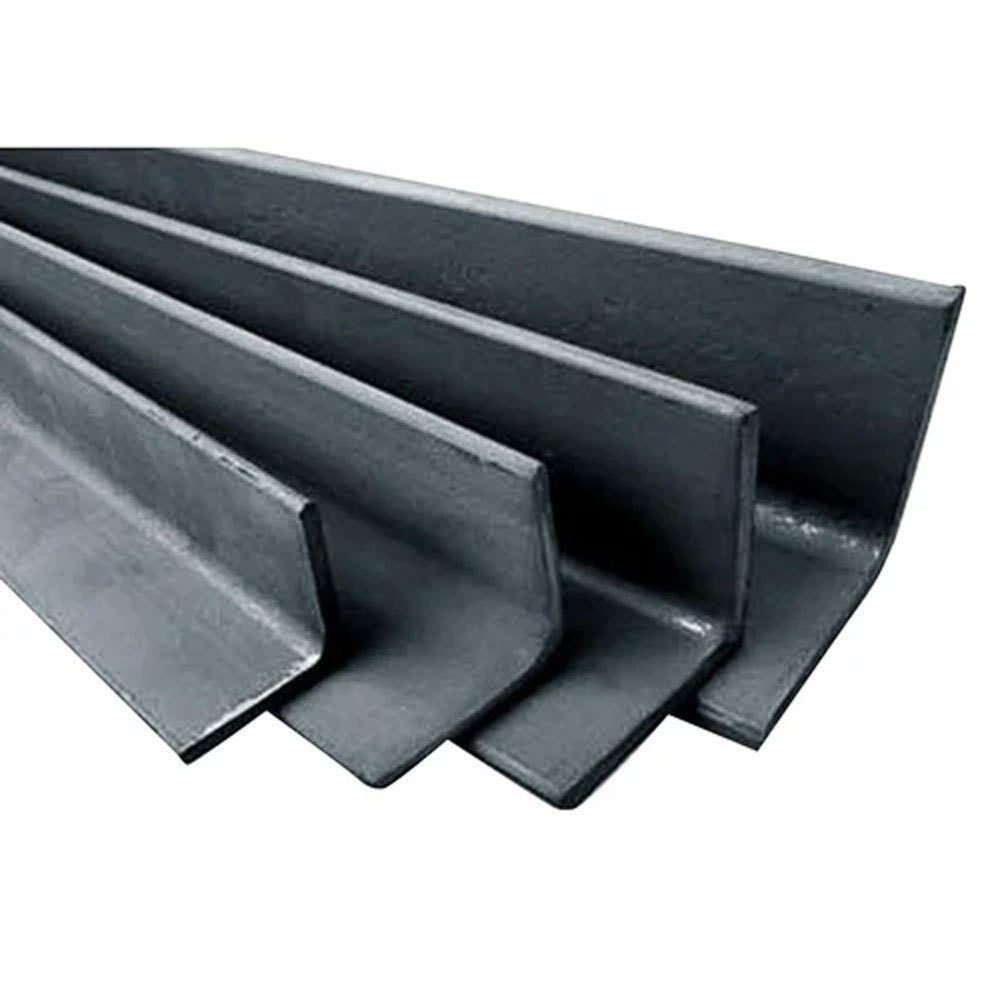

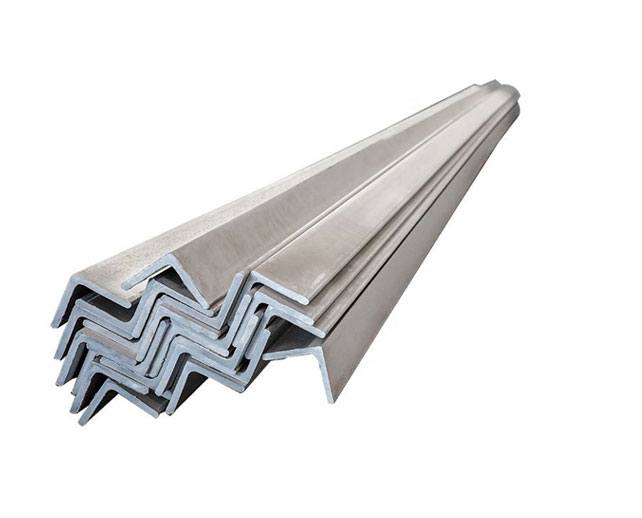

Duplex Steel S32205 Angle

Name: Duplex Steel S32205 Angle
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Duplex Steel S32205 Angle Specification

Hardness
max. 290 HB

Material Composition %
Cr 22%, Ni 5.7%, Mo 3.1%, N 0.17%, Mn 1.2%, Si 0.34%, C 0.02%, P 0.02%, S 0.001%, Fe Balance

Recyclable
100%

Heat Resistance
Yes

Size
Customizable (e.g., 40x40x5 mm, 50x50x6 mm, etc.)

Chemical Composition
Cr 21-23%, Ni 4.5-6.5%, Mo 2.5-3.5%, N 0.14-0.20%, Mn 2%, Si 1%, C 0.03%, S 0.02%, P 0.03%, Fe Balance

Tensile Strength
min. 620 MPa

Width
20 mm to 200 mm (custom sizes available)

Diameter
Not applicable (profile: angle bar)

Temper
Annealed / Solution Annealed

Coating Type
Uncoated / pickled (custom coating available on request)

Corrosion Resistant
Excellent (superior to standard stainless steels)

Product Form
Solid Angle Bar

Product Name
Duplex Steel S32205 Angle

Steel Type
Duplex Stainless Steel

Steel Product Type
Angle Bar

Grade
UNS S32205 (DIN 1.4462)

Thickness
3 mm to 20 mm (customized)

Shape
Angle (L Shape)

Steel Standard
ASTM A182 / A276 / A240

Surface
Hot rolled, pickled, or as specified

Composition
Fe-Ni-Cr-Mo-N

Application
Construction, bridges, Oil & Gas industries, Marine structures, Chemical and Petrochemical industries

Dimension (L*W*H)
Standard lengths (3m, 6m), cut-to-length available

Weight
Varies with size and length (contact supplier for exact weight)

Color
Metallic Silver / Grey

Material Grade
Duplex S32205

Finish Type
Mill finish, pickled

Usage
Structural support, frames, bracing, platforms, racks, piping supports

Custom Fabrication
Drilling, cutting, welding available

Edge Type
Square, sharp, or rounded as per requirement

Packing
Plastic wrapped/bundled, wooden cases on request

Yield Strength
450 MPa

Weldability
Excellent (requires suitable filler material)

Density
7.80 g/cm3

Elongation
25%

Impact Strength
High, improved vs. austenitic stainless steels

Magnetic Properties
Slightly magnetic due to duplex structure

Duplex Steel S32205 Angle Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Duplex Steel S32205 Angle About

Duplex Steel S32205 Angle is a structural section made from S32205 material, a type of duplex stainless steel with high strength, good corrosion resistance, and ease of welding. The microstructure of the duplex stainless steel is composed of two phases: austenite and ferrite, which are known to possess the favorable characteristics of both the austenitic and the ferritic stainless steels, hence the suitability of the material in industrial applications.

Superior Mechanical Performance

Duplex Steel S32205 Angles deliver high tensile (min. 620 MPa) and yield strength (450 MPa), along with excellent impact resistance-outperforming austenitic stainless steels. Their unique duplex microstructure offers both strength and ductility, ensuring structural reliability in demanding environments such as bridges and marine platforms.

Exceptional Corrosion and Heat Resistance

With a carefully balanced Fe-Ni-Cr-Mo-N composition, S32205 Angles provide excellent resistance to corrosion, even in harsh chemicals and saline environments. The material maintains strength and structure in continuous service up to 300C. Pickled and mill finishes further enhance resistance properties for long-lasting service.

Customizable and Fabrication Friendly

Customers can specify size (width: 20-200 mm; thickness: 3-20 mm), edge type (square, sharp, rounded), surface finish, and packaging type. Duplex S32205 Angles are easily drilled, cut, and welded-ensuring adaptability for bespoke structural needs. Annealed and solution annealed tempers ensure optimal machinability and workability.

FAQ's of Duplex Steel S32205 Angle:

Q: How does Duplex Steel S32205 Angle benefit construction and industry projects?

A: S32205 Angle offers high yield and tensile strength, excellent corrosion resistance, and superior impact strength, making it ideal for construction, Oil & Gas, marine, chemical, and petrochemical applications requiring long-lasting, reliable structural support.

Q: What process should be followed to weld Duplex Steel S32205 Angles?

A: Welding S32205 Angles requires suitable filler material designed for duplex steels to maintain the alloy's corrosion resistance and mechanical properties. Proper heat input and post-weld treatment are recommended for optimal joint integrity.

Q: When is it recommended to use custom fabrication for S32205 Angles?

A: Custom fabrication-such as drilling, cutting, or special edge requirements-should be requested when specific dimensions, shapes, or structural features are necessary. This ensures the angles fit precise design and engineering needs.

Q: Where can S32205 Angle Bars be effectively utilized?

A: They are extensively used in construction, bridges, offshore oil platforms, marine structures, chemical processing plants, and for structural bracing, platforms, racks, and piping supports due to their strength and corrosion resistance.

Q: What is the typical packing process for these steel angles during shipping?

A: Angles are commonly plastic wrapped and/or bundled to prevent surface damage. Wooden cases are available upon request for enhanced protection during long-distance or international transit.

Q: How does the duplex structure influence the magnetic and mechanical properties of S32205 Angles?

A: The duplex microstructure imparts slight magnetism and significantly improves mechanical strength and toughness compared to standard austenitic stainless steels, providing high durability in demanding applications.
