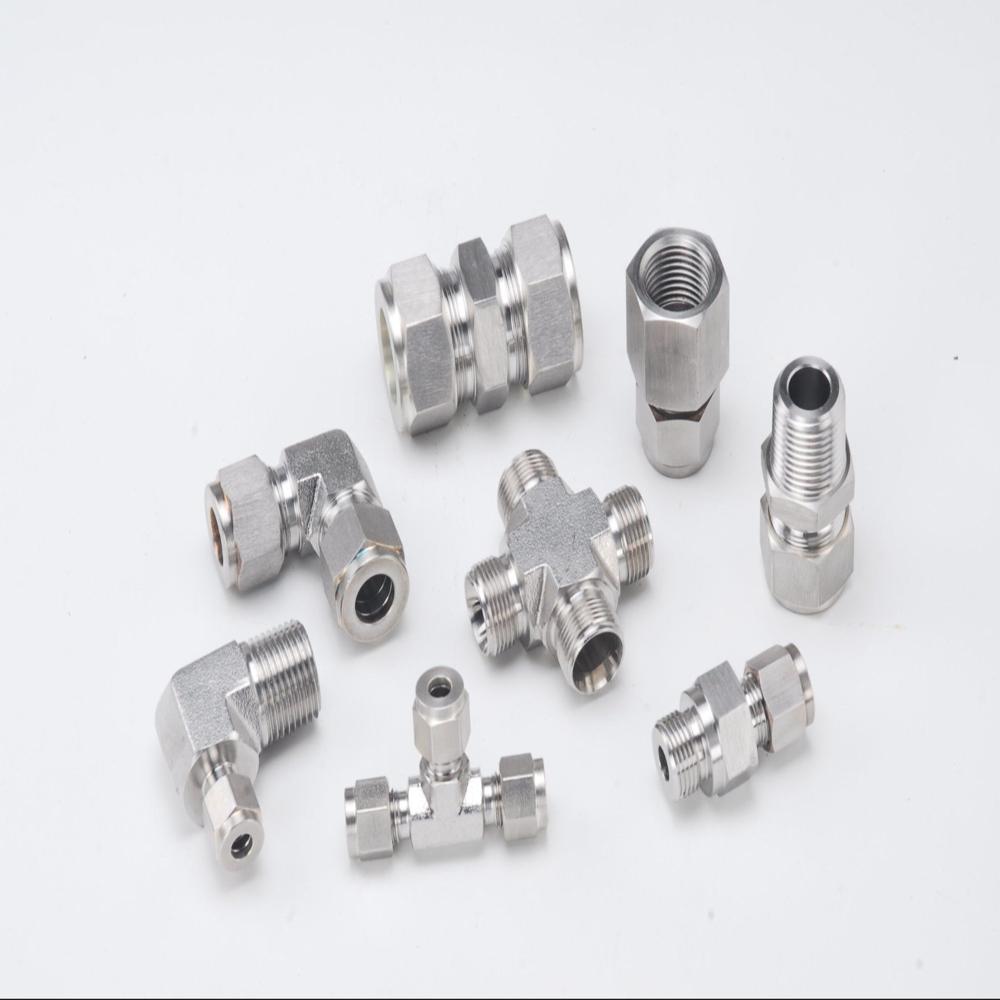

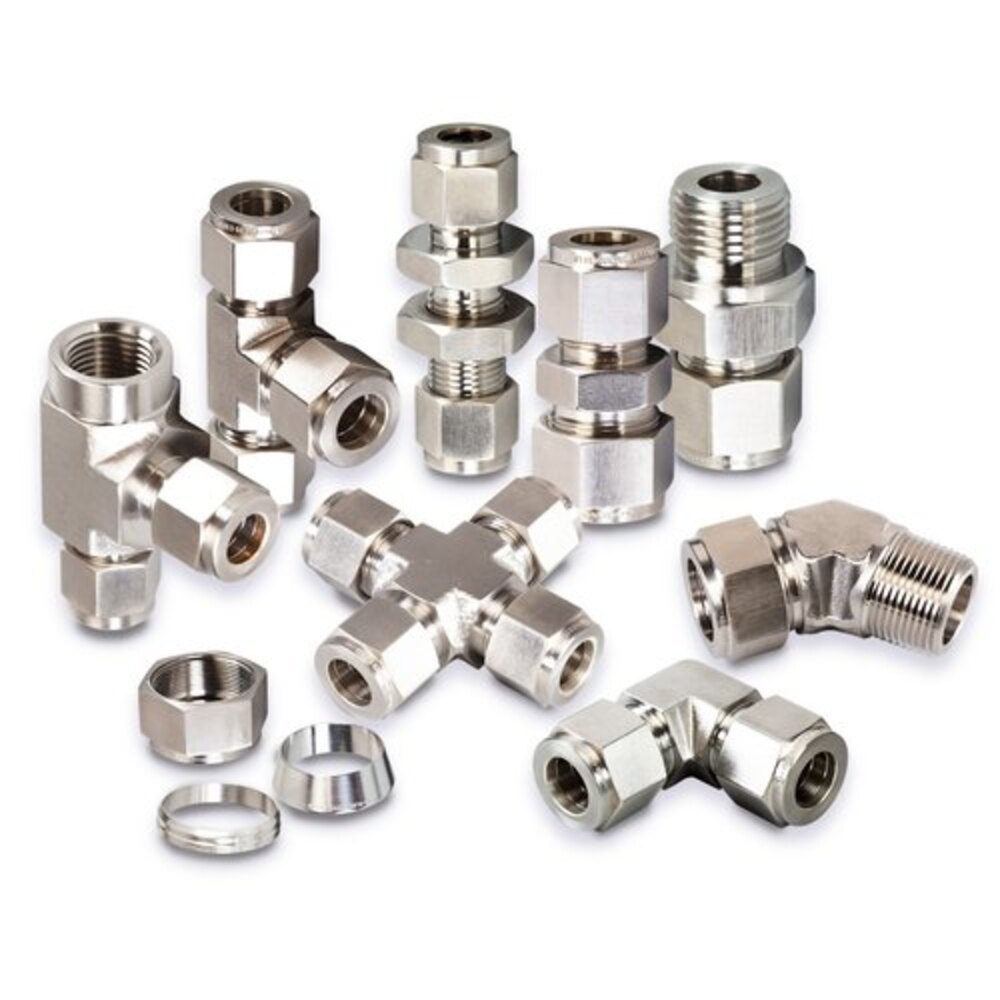

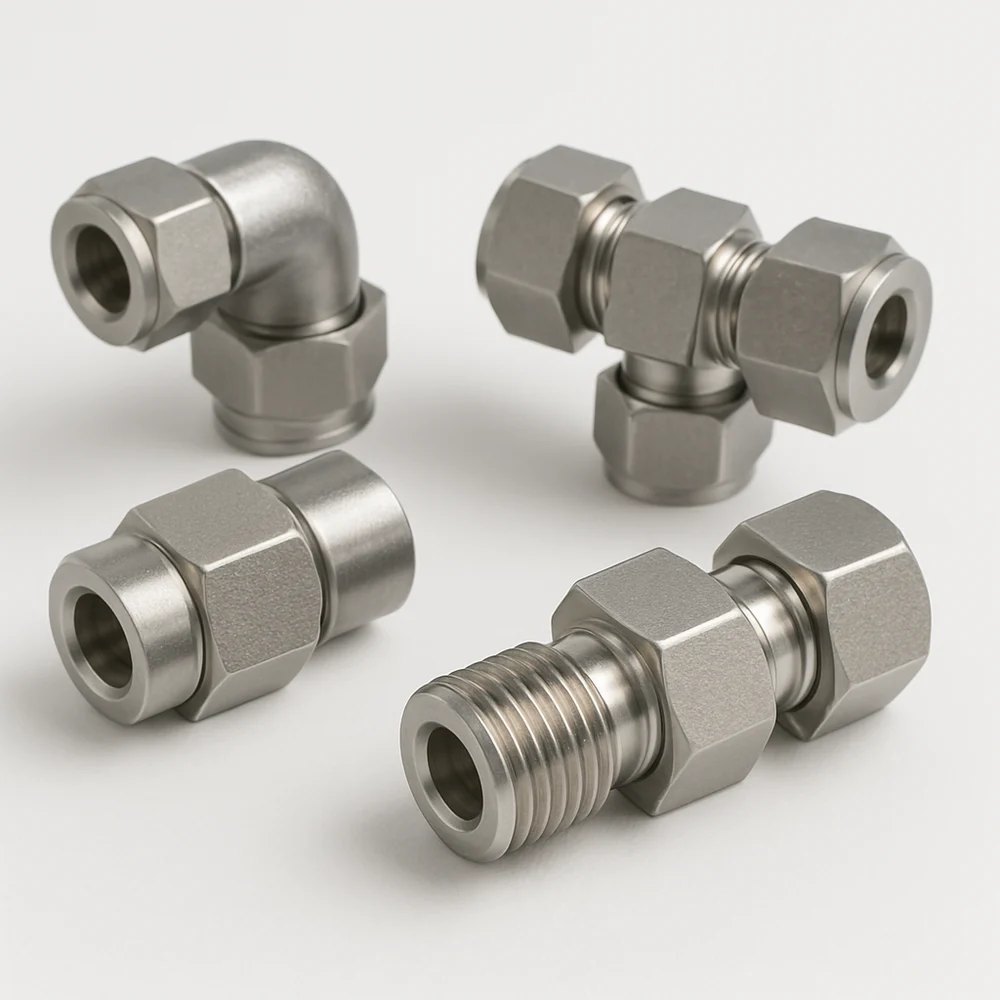

Duplex Steel UNS S31803 Instrumentation Fittings

Name: Duplex Steel UNS S31803 Instrumentation Fittings
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Duplex Steel UNS S31803 Instrumentation Fittings Specification

Temper
Annealed

Coating Type
Uncoated/Polished/Passivated

Recyclable
Yes

Material Composition %
Cr 21-23, Ni 4.5-6.5, Mo 2.5-3.5, N 0.08-0.2, Fe Balance

Tensile Strength
620 MPa min

Diameter
1/8 to 2 (as per requirement)

Corrosion Resistant
Yes, excellent in chloride and oxidizing environments

Width
Custom as per requirement

Heat Resistance
Yes

Hardness
290 HB max

Product Form
Fittings - Tee, Elbow, Union, Coupling, Connector, Cross, Adapter, Plug, Cap

Size
As per customer requirements, typically 1/8 to 2 NPT/BSP/BSPT/UNF

Product Name
Duplex Steel UNS S31803 Instrumentation Fittings

Steel Type
Duplex Stainless Steel

Steel Product Type
Instrumentation Fittings

Grade
UNS S31803 (Duplex 2205)

Thickness
As per standard or customized

Shape
Tee, Elbow, Union, Straight, Cross, Reducer (Instrumentation Fittings)

Steel Standard
ASTM A182, ASTM A276, ASTM A479

Surface
Bright, Polished, Smooth

Composition
22% Cr, 5-6% Ni, 3% Mo, Balance Fe, with trace Mn, Si, N

Application
Instrumentation, Hydraulic, Pneumatic, Process Control Systems

Dimension (L*W*H)
Customized, varies by fitting type

Weight
Variable depending on size and type

Color
Metallic Silver

Material Grade
S31803

Finish Type
Polished/Passivated

Usage
Leak-proof piping & instrumentation connections

Leak Tightness
High, suitable for vacuum and high-pressure applications

Magnetic Permeability
Low (due to duplex structure)

Packaging
As per export standard - shrink-wrapped, wooden box/carton packed

Operating Temperature Range
-50C to 300C

Pressure Rating
Up to 6,000 psi (varies with size and design)

Compliance
ROHS, PED 97/23/EC

Conductivity
Good electrical conductivity (due to metallic construction)

Thread Standards
NPT, BSP, BSPT, ISO, UNF, Metric

Rust Proof
Yes

Installation
Easy to assemble, requires no welding

Connection Type
Male/Female Threaded, Tube-to-Tube, Tube-to-Pipe, Compression End

Sealing Type
Metal-to-Metal & Elastomeric Seal

Brand Compatibility
Swagelok / Parker / Custom

Duplex Steel UNS S31803 Instrumentation Fittings Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
7 Days

Duplex Steel UNS S31803 Instrumentation Fittings About

Duplex Steel UNS S31803 Instrumentation Fittings are characterized by their lasting strength and increased resistance to corrosion. These components boast an impressive chemical composition of chromium, nickel, nitrogen, molybdenum, and manganese, each imparting its unique properties. Chromium provides superior corrosion resistance, while nitrogen boosts the steel's mechanical strength and austenitic microstructure. Molybdenum improves pitting resistance and further enhances the material's resistance to corrosion, making it ideal for use in high-pressure applications deemed prone to wear and tear.

Superior Corrosion and Pressure Performance

Engineered from Duplex Steel UNS S31803, these instrumentation fittings display excellent resistance to chloride-induced corrosion and oxidizing environments. Their robust design supports continuous operation up to 300C and withstands pressures up to 6,000 psi, ensuring safe and durable usage even in challenging industrial conditions.

Versatile Connection Types and Customization

These fittings accommodate an array of connection needs, from male/female threaded and tube-to-tube, to tube-to-pipe and compression end configurations. Customization is available for dimensions, thread standards, and shapes, ensuring compatibility with Swagelok, Parker, or bespoke systems while meeting exact project requirements.

Leak-Tight, Easy Installation Without Welding

Featuring advanced metal-to-metal and elastomeric sealing, the fittings provide leak-tight connections suitable for both vacuum and high-pressure scenarios. Thanks to their innovative design, installation is straightforward and requires no welding, minimizing downtime during assembly or maintenance.

FAQ's of Duplex Steel UNS S31803 Instrumentation Fittings:

Q: How are Duplex Steel UNS S31803 Instrumentation Fittings installed?

A: These fittings are designed for easy assembly and do not require welding. Connections can be made using standard tools, following the required torque specifications for the connection type and thread standard.

Q: What benefits does Duplex Steel S31803 offer for instrumentation fittings?

A: Duplex Steel S31803 provides exceptional strength, high corrosion resistance, and low magnetic permeability, making these fittings ideal for demanding environments, high-pressure systems, and instrumentation applications where reliability and durability are crucial.

Q: Where are these fittings commonly used?

A: They are widely used in industries like oil & gas, chemical processing, water treatment, pharmaceuticals, and any systems requiring secure, leak-proof instrumentation, hydraulic, pneumatic, or process control connections.

Q: What are the available connection and sealing types for these fittings?

A: Connection options include male/female threaded, tube-to-tube, tube-to-pipe, and compression ends. Sealing is achieved through metal-to-metal and elastomeric methods, offering high leak tightness even under vacuum or high-pressure conditions.

Q: Are Duplex Steel S31803 fittings suitable for high-temperature and corrosive environments?

A: Yes, these fittings maintain excellent corrosion resistance in chloride and oxidizing environments and withstand temperatures from -50C to 300C, ensuring dependable performance in harsh service conditions.

Q: Can these instrumentation fittings be customized for specific requirements?

A: Absolutely. Fittings can be tailored in size, thread type (NPT, BSP, BSPT, UNF, Metric, ISO), dimensions, width, shape, and finish to meet unique operational and system specifications.

Q: How does the packaging ensure safe delivery of the fittings?

A: Fittings are packed according to export standards in shrink-wrapped packaging and robust wooden boxes or cartons to protect against damage during transport, ensuring they arrive securely at their destination.
