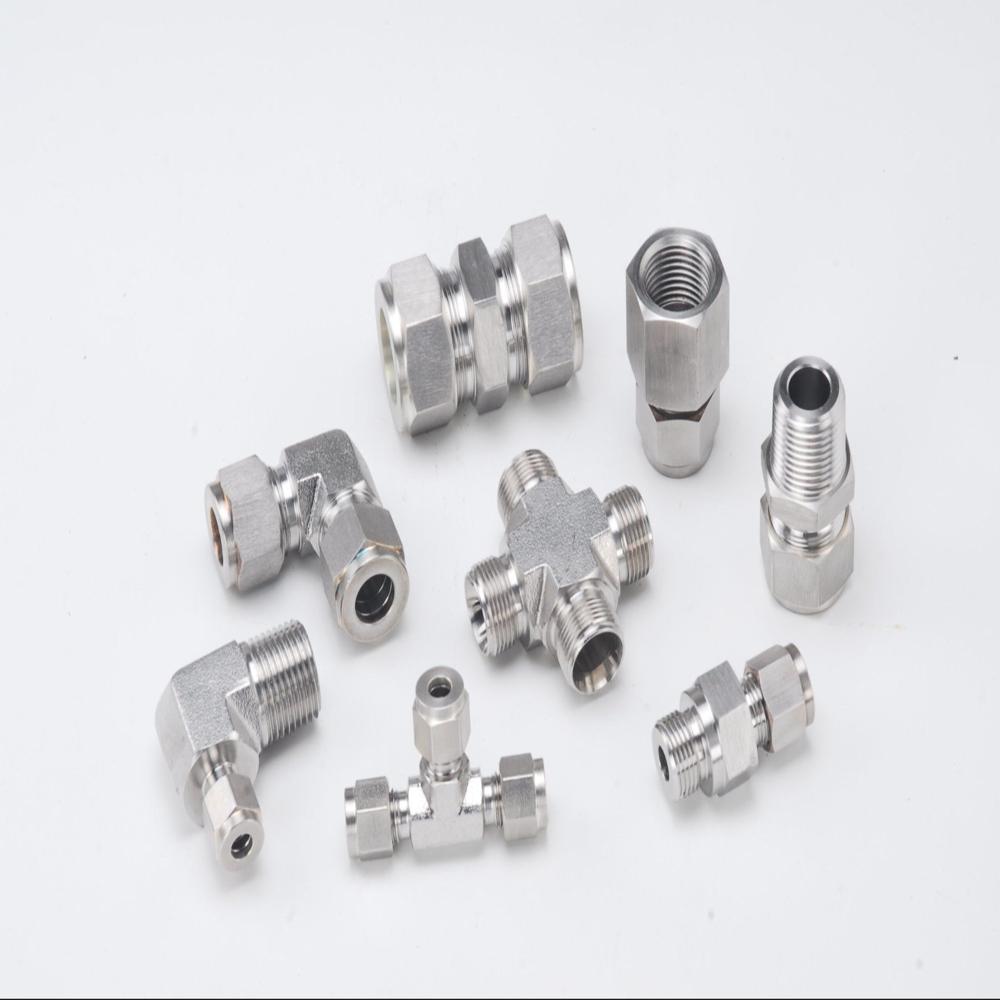

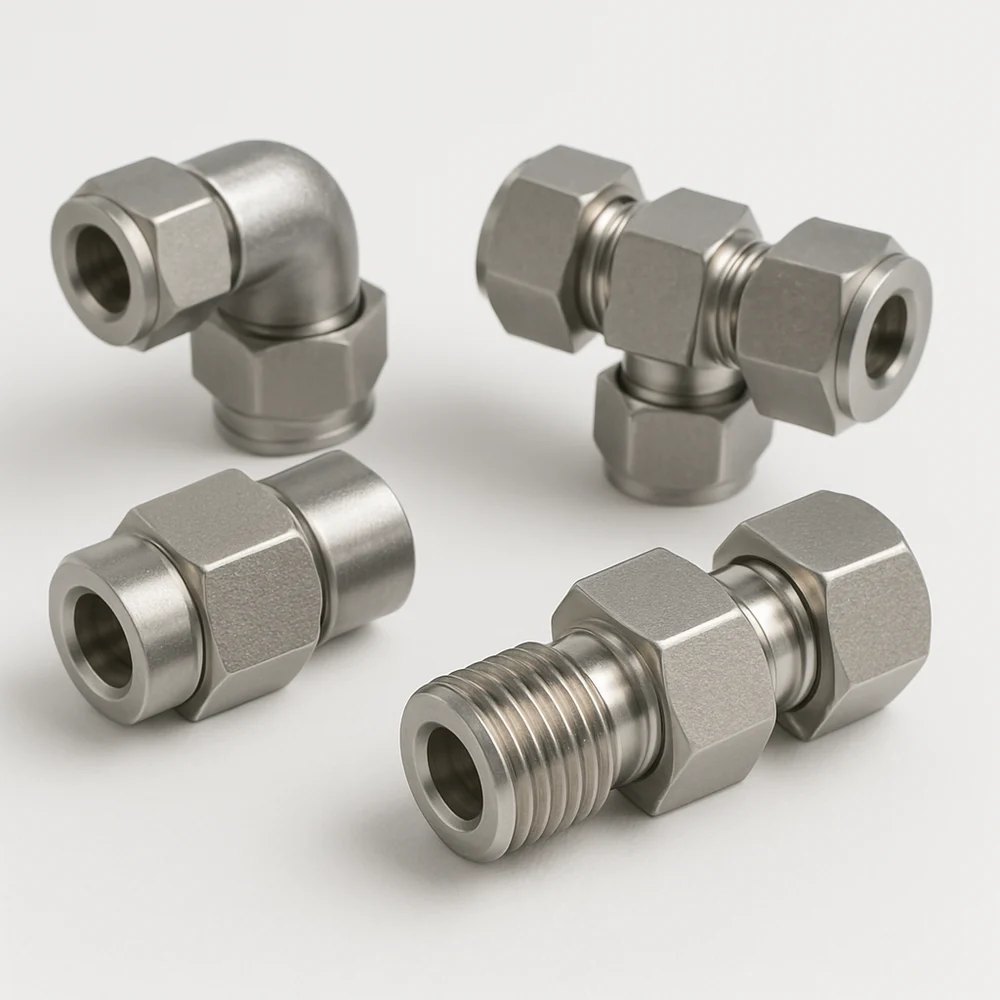

Duplex Steel UNS S32205 Instrumentation Fittings

Name: Duplex Steel UNS S32205 Instrumentation Fittings
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Duplex Steel UNS S32205 Instrumentation Fittings Specification

Coating Type
None/Optional as required

Corrosion Resistant
Excellent, pitting and crevice corrosion resistant

Hardness
290 HBW max (Brinell)

Material Composition %
Fe Balance, 22% Cr, 5% Ni, 3% Mo, 0.2% N, others

Tensile Strength
620 MPa min

Heat Resistance
Yes

Width
Custom/As per requirement

Diameter
1/16 to 2 (Nominal bore size)

Size
Custom/Standard sizes available

Product Form
Male/Female/Union/Elbow/Tee/Reducer, etc.

Recyclable
Yes

Temper
Solution Annealed

Product Name
Duplex Steel UNS S32205 Instrumentation Fittings

Steel Type
Duplex Stainless Steel

Steel Product Type
Fittings

Grade
UNS S32205, ASTM A182 F51

Thickness
Customized/As per Standard

Shape
Hexagonal/Customized

Steel Standard
ASTM, ASME, DIN, EN, JIS

Surface
Polished / Pickled / Passivated

Composition
Cr 22-23%, Ni 4.5-6.5%, Mo 3-3.5%, N 0.14-0.20%

Application
Instrumentation, Chemical, Petrochemical, Oil & Gas Industries

Dimension (L*W*H)
As per Drawing/Order

Weight
Varies as per size and type

Color
Metallic/Silver

Material Grade
Duplex S32205

Finish Type
Bright / Satin / Pickled

Usage
Tube to Tube/Tube to Pipe Connections, Process Piping

Maintenance
Low maintenance

Temperature Range
-50C to +250C

Ferrule Type
Single/Double Ferrule

Thread Standard
NPT/BSP/UNF as per customer needs

Connection Type
Threaded, Compression, Welded

Magnetic Permeability
Low

Design Standard
Meets international instrumentation fitting standards

Interchangeability
Compatible with international brands

Field Installable
Yes

Operating Pressure
Up to 6000 psi and above depending on design

Flare Angle
37 (as per requirement)

Leak Proof
Yes, with ferrule system

Packaging
Seaworthy export standard packing

ISO Certification
ISO 9001:2015

Duplex Steel UNS S32205 Instrumentation Fittings Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

About Duplex Steel UNS S32205 Instrumentation Fittings

Duplex Steel UNS S32205 Instrumentation Fittings comprise a unique blend of metals that ensure they can be utilized in various industries. This alloy is formed primarily of chromium (22-23%), nickel (4.5-6.5%), molybdenum (2.5-3.5%) and manganese (1.0-2.0%), alongside minor amounts of silicon, nitrogen and iron giving the alloy 201 an outstanding balance between mechanical strength and corrosion resistance. This composition makes them ideal for fittings used in the oil and gas industry and very popular in desalination systems. Also, their mechanical characteristics remain constant at temperatures over 800F, allowing them to retain their form during extreme conditions, making this alloy an invaluable tool for instrumentation fittings applications worldwide

High-Pressure Performance and Leak-Proof Design

Duplex Steel UNS S32205 fittings are engineered to deliver robust performance at pressures up to 6000 psi and above, depending on design requirements. Their single or double ferrule systems ensure a secure, leak-proof connection, even in demanding operational environments. This makes them highly reliable for applications where system integrity is vital, such as chemical and petrochemical industries, ensuring operational safety and efficiency.

Versatile Connection and Customization Options

Available in threaded, compression, and welded connections, these fittings cater to diverse needs, including custom and standard sizes. The fittings support multiple thread standards (NPT, BSP, UNF) and flare angles, and can be provided in various forms-male, female, union, elbow, tee, reducer, and more-to match piping layouts and customer requirements, ensuring maximum flexibility in instrumentation system design.

Certified Quality and Exceptional Durability

Manufactured under ISO 9001:2015 certified processes, Duplex Steel UNS S32205 fittings feature excellent tensile strength (min 620 MPa), low magnetic permeability, and maximum hardness of 290 HBW. Their superior corrosion resistance, even against pitting and crevice corrosion, ensures a long service life with minimal maintenance, making them a cost-effective choice for severe environments.

FAQ's of Duplex Steel UNS S32205 Instrumentation Fittings:

Q: How do Duplex Steel UNS S32205 Instrumentation Fittings ensure leak-proof connections?

A: These fittings utilize advanced single or double ferrule systems that create a secure, tight seal around the tube or pipe, ensuring leak-proof joints even at high operating pressures up to 6000 psi. This design significantly reduces the risk of leaks in critical applications.

Q: What are the main benefits of using Duplex Steel UNS S32205 fittings in industrial instrumentation?

A: The primary advantages include outstanding resistance to corrosion (including pitting and crevice), high tensile strength, suitability for harsh temperature conditions, low magnetic permeability, and very low maintenance needs. These benefits translate into increased reliability and lifespan for instrumentation systems.

Q: Where are these fittings commonly used?

A: Duplex Steel UNS S32205 Instrumentation Fittings are widely used in industries such as oil & gas, chemical processing, petrochemicals, and other sectors where robust corrosion resistance and high strength are required, especially for tube-to-tube or tube-to-pipe connections in process piping systems.

Q: What standards do these fittings comply with?

A: They conform to key global standards, including ASTM A182 F51, ASME, DIN, EN, and JIS. This ensures compatibility with international brands and interchangeability in global projects, meeting stringent instrumentation fitting regulations.

Q: Can these fittings be customized according to specific project requirements?

A: Yes, fittings are available in custom and standard sizes, variety of forms, and different thread standards (NPT/BSP/UNF). Additional options like flare angle, ferrule type, finish, and dimensions can also be tailored based on customer specifications or project needs.

Q: How easy is it to install and maintain these instrument fittings in the field?

A: They are designed for field installation, featuring a user-friendly ferrule system and compatibility with standard tools. The robust material and design require minimal maintenance while ensuring consistent performance over time.
