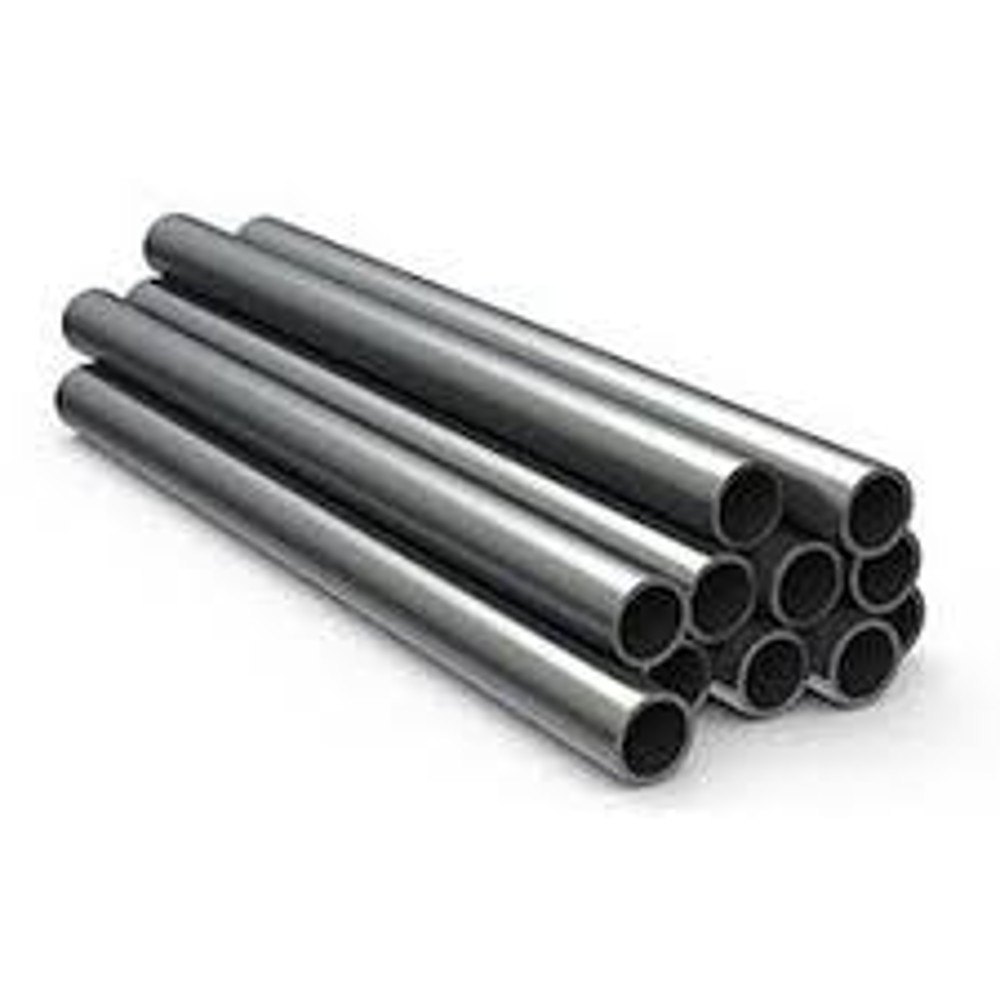

Hastelloy C22 Pipes

Name: Hastelloy C22 Pipes
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Hastelloy C22 Pipes Specification

Dimensions
Customizable as per requirement (OD: 6mm to 219mm, Wall Thickness: 0.5mm to 20mm)

Impurity Content (%)
<0.03% (as per ASTM B622/B619)

Product Type
Other

Alloy
Other

Shape
Other

Size
Range from 1/8 NB to 12 NB (as required)

Weight
Varies by size and length, as per specification

Application
Chemical Processing, Pharmaceuticals, Pollution Control, Pulp & Paper, Waste Treatment, Marine

Color
Metallic Silver Grey

Manufacturing Process
Cold Drawn / Hot Finished

Standard
ASTM B622, ASTM B619, ASTM B775, ASTM B829

Corrosion Resistance
Excellent resistance to oxidizing and reducing media

Length
Single/Double Random or as specified (max up to 12 meters)

Melting Point
1399 C

Material Condition
Annealed / Pickled

Tensile Strength
690 MPa (min)

Testing
Hydrostatic, Eddy Current, PMI, Intergranular Corrosion, Mechanical & Chemical Analysis

Yield Strength (0.2% Offset)
283 MPa (min)

Surface Finish
Polished, Pickled, Passivated

End Finish
Plain End, Beveled End, Threaded End

Elongation
min 40%

Hastelloy C22 Pipes Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

Hastelloy C22 Pipes About

Hastelloy C22 pipe is a nickel-chromium-molybdenum alloy pipe widely used in highly corrosive industrial environments. It is also referred to as alloy C22 pipe or UNS N06022; it contains 2022.5% chromium and 12.514.5% molybdenum, which provides it with high resistance to oxidising and reducing media. Industries such as chemical processing, oil and gas, pharmaceuticals, and desalination rely on Hastelloy C22 pipes for their long service life, weldability, and ability to handle both wet and dry corrosive conditions without failure.

Superior Corrosion Resistance

Hastelloy C22 Pipes stand out for their exceptional resistance to a broad spectrum of corrosive media, including oxidizing and reducing agents. This unique property makes them a preferred choice for industries exposed to aggressive chemicals and challenging operational conditions, such as chemical processing plants, pollution control equipment, and marine settings. Their durability translates into increased service life and lower maintenance requirements.

Customizable Dimensions and Finishes

These pipes are available in a wide range of outer diameters (6mm to 219mm), wall thicknesses (0.5mm to 20mm), and lengths-up to 12 meters or as specified. You can choose from several end finishes (plain, beveled, threaded) and surface treatments (polished, pickled, passivated) to best fit your application needs and installation requirements, ensuring both adaptability and aesthetic appeal.

Trusted Quality with Stringent Testing

Every batch of Hastelloy C22 Pipes is thoroughly tested to guarantee compliance and safety. Testing methods such as hydrostatic, eddy current, positive material identification (PMI), intergranular corrosion assessments, and thorough mechanical and chemical analyses assure that each pipe meets international standards. This rigorous attention to quality control ensures reliable performance for critical applications.

FAQ's of Hastelloy C22 Pipes:

Q: How are Hastelloy C22 Pipes manufactured?

A: Hastelloy C22 Pipes are produced using either a cold drawn or hot finished process, depending on the required specifications. Each pipe undergoes annealing and can be pickled or polished to achieve the desired surface quality and mechanical properties.

Q: What applications are best suited for Hastelloy C22 Pipes?

A: These pipes are ideal for corrosive environments, including chemical processing, pharmaceuticals, pulp & paper, pollution control, waste treatment, and marine industries. Their resistance to a wide range of aggressive media ensures reliable performance in demanding conditions.

Q: When should I opt for a particular end finish on Hastelloy C22 Pipes?

A: The choice of end finish-plain, beveled, or threaded-depends on your installation and connection requirements. Beveled ends are common for welding, threaded ends suit screw fittings, while plain ends are used for socket fittings or customized connections.

Q: What testing ensures the quality of Hastelloy C22 Pipes?

A: Each pipe is subjected to extensive testing, including hydrostatic pressure, eddy current testing, PMI, intergranular corrosion, as well as thorough mechanical and chemical analysis. This guarantees compliance with ASTM standards and industry reliability.

Q: Where can Hastelloy C22 Pipes be customized for unique dimensions?

A: Manufacturers and suppliers can provide pipes tailored to your specifications, offering outside diameters from 6mm to 219mm, wall thicknesses from 0.5mm to 20mm, and lengths up to 12 meters, based on your project and industry needs.

Q: What are the main benefits of using Hastelloy C22 Pipes over other alloys?

A: The primary advantages include superior corrosion resistance in mixed chemical environments, high mechanical strength (690 MPa tensile minimum), flexibility in customization, and reliability thanks to stringent quality testing as per global standards.

Q: How does the excellent corrosion resistance of Hastelloy C22 Pipes benefit industrial usage?

A: Outstanding corrosion resistance minimizes pipe deterioration and extends service life, reducing operational downtime and maintenance costs. This reliability is particularly valuable in environments where exposure to aggressive chemicals is routine.
