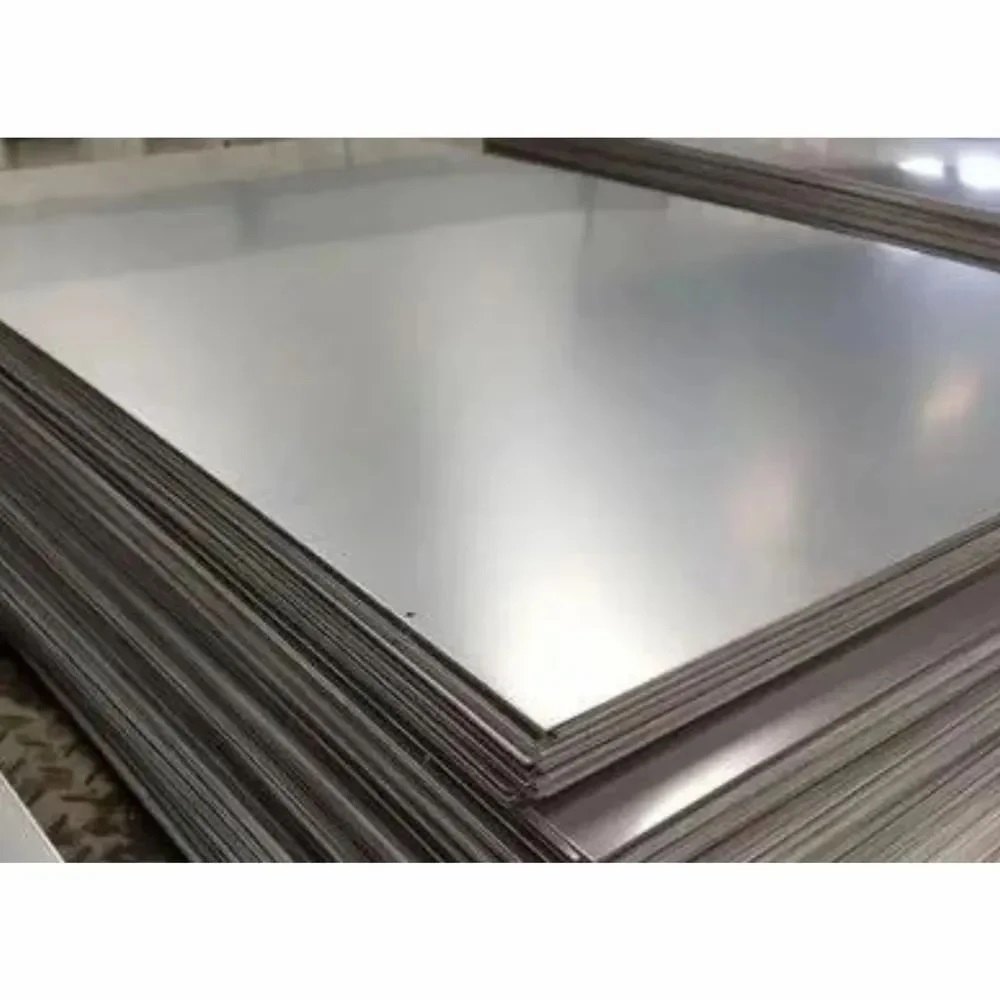

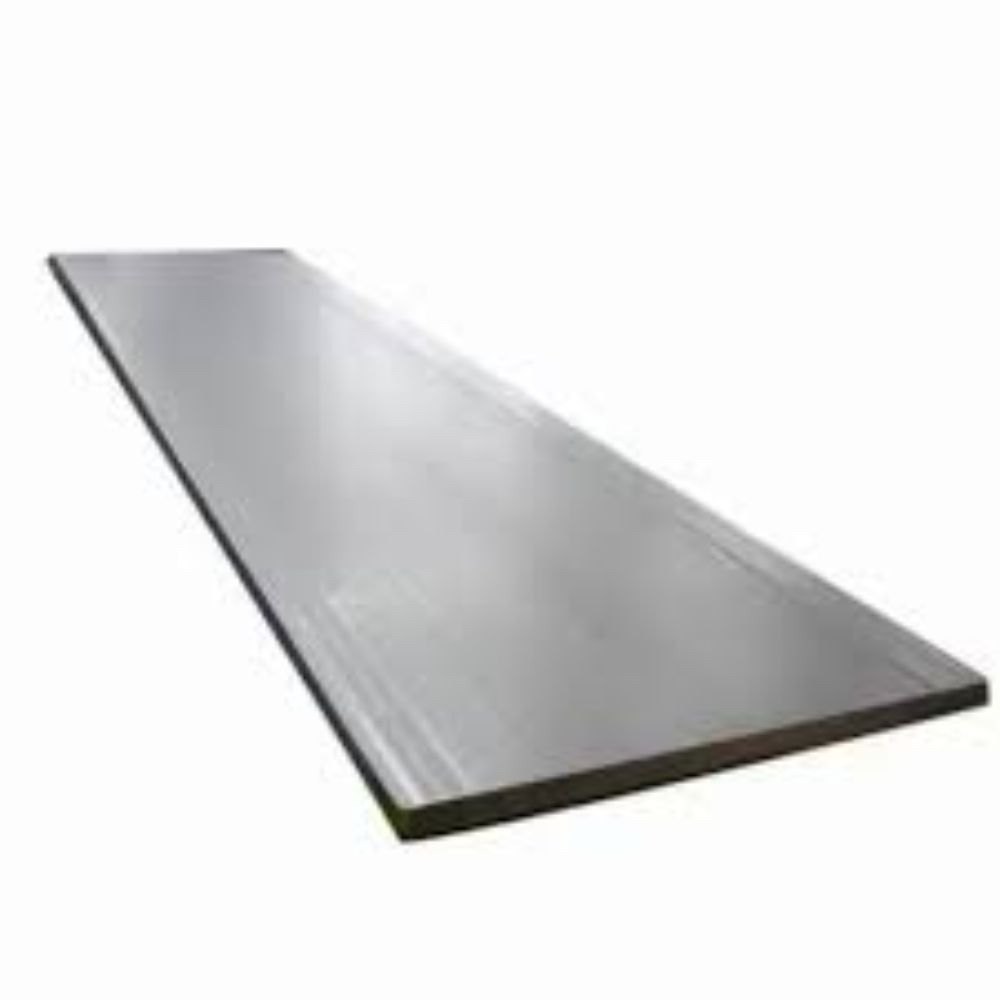

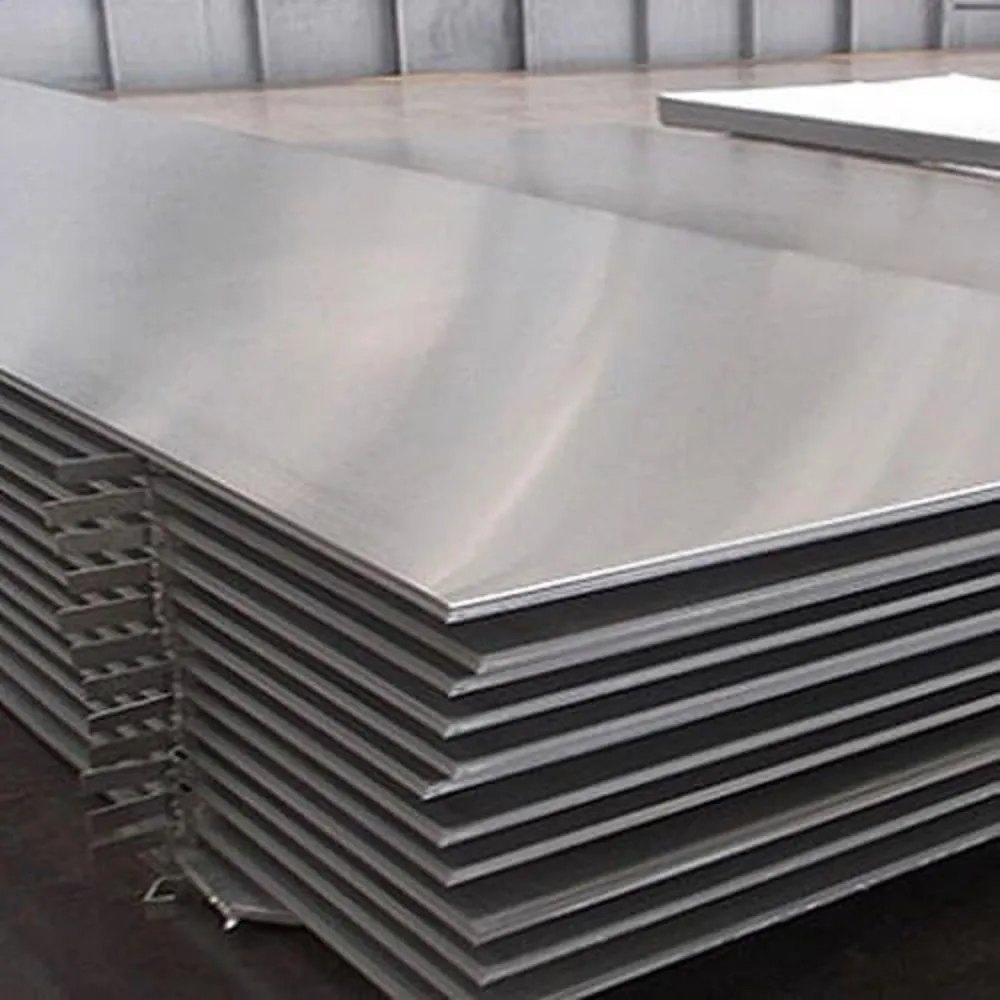

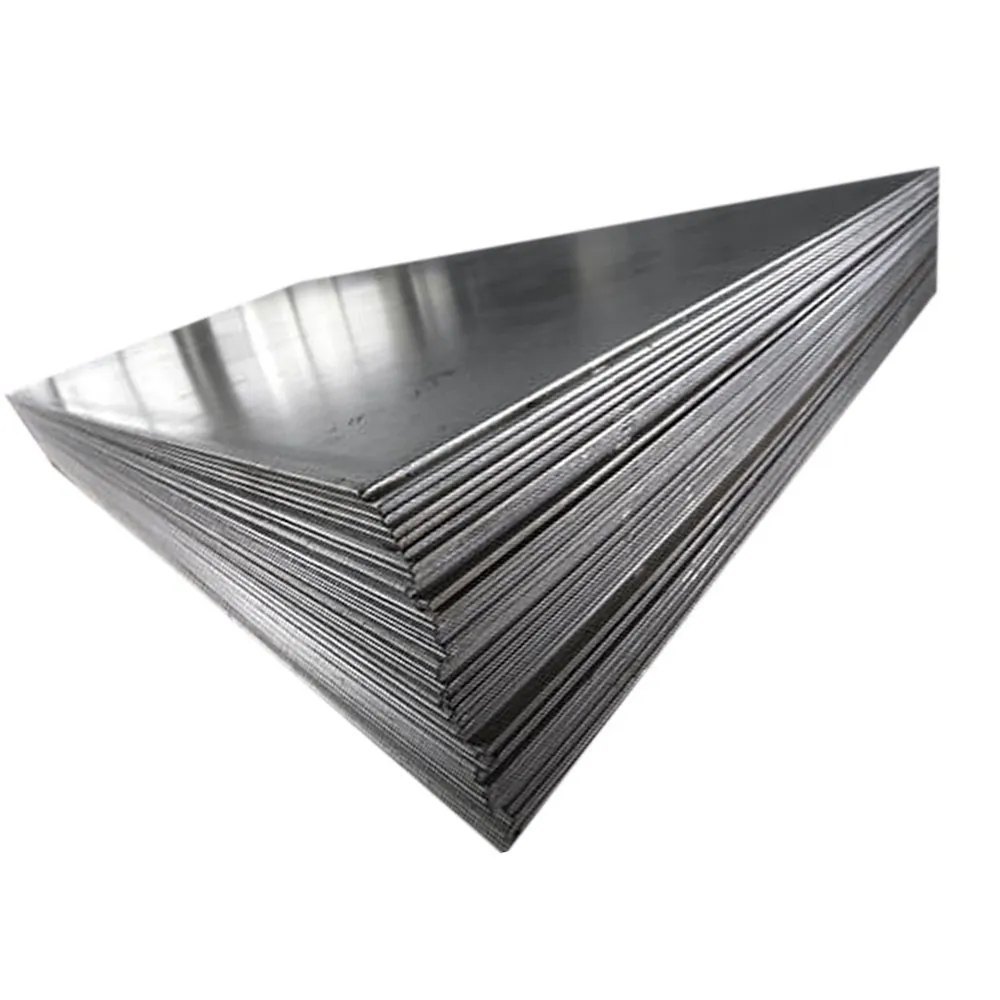

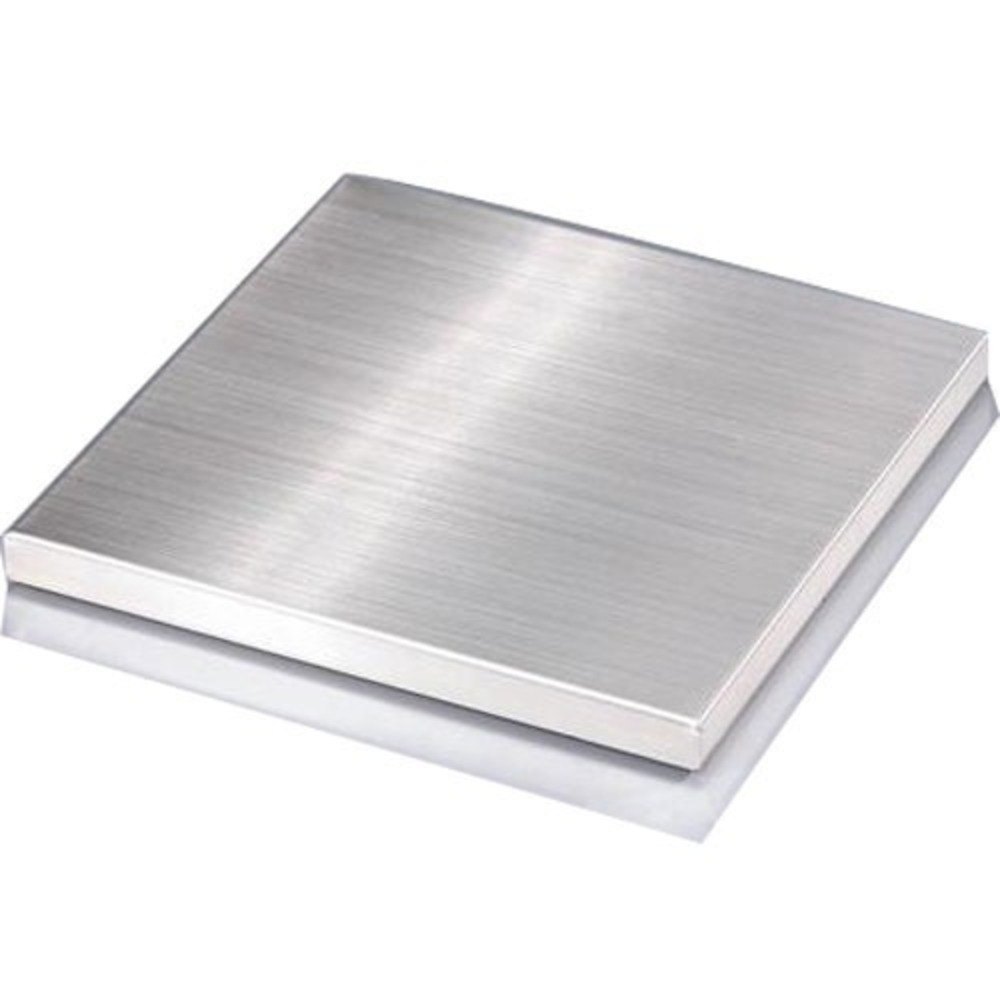

Hastelloy C22 Plates

Name: Hastelloy C22 Plates
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Hastelloy C22 Plates Specification

Dimensions
Thickness: 0.5 mm to 50 mm; Width: 1000 mm to 2500 mm; Length: up to 6000 mm (custom sizes available)

Impurity Content (%)
<0.01%

Product Type
Plates

Alloy
Hastelloy C22

Shape
Rectangular Plate

Size
Custom, Standard Sizes Available

Weight
Depends on dimensions; typically 8.9 g/cm3

Application
Chemical Processing, Pollution Control, Marine, Pulp & Paper, Oil & Gas

Color
Silver/Grey

Weldability
Excellent - Suitable for All Conventional Methods

Tensile Strength
690 MPa min

Form
Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate

Hardness
Rockwell B90 max

Corrosion Resistance
Excellent, Especially Against Oxidizing and Reducing Acids

Heat Treatment
Solution Annealed at 1121C (2050F)

Density
8.69 g/cm3

Grade
Alloy C22 (UNS N06022)

Surface Finish
Hot Rolled, Cold Rolled, 2B, BA, No.1, No.4

Elongation
45% min

Yield Strength
310 MPa min

Standard
ASTM B575 / ASME SB575

Hastelloy C22 Plates Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

About Hastelloy C22 Plates

Hastelloy C22 is a versatile nickel-chromium-molybdenum-tungsten alloy with exceptional corrosion resistance in harsh environments. Hastelloy C22 plates are a popular form of this alloy, widely used in various industries due to their unique properties.

Premium Corrosion Resistance for Demanding Environments

Hastelloy C22 plates deliver exceptional corrosion resistance, even in the harshest chemical processing, marine, pollution control, and oil & gas environments. Their advanced alloy composition ensures durability against both oxidizing and reducing acids, making them a top choice for critical applications. The plates can be supplied with a solution annealed finish, maximizing longevity and structural integrity.

Versatile Forms and Customizable Dimensions

Available in various forms such as plain, shim, perforated, and chequered plates, Hastelloy C22 can be customized in thicknesses from 0.5 mm up to 50 mm, widths from 1000 mm to 2500 mm, and lengths up to 6000 mm. Custom sizes are also available to fit specific project requirements, enabling seamless integration into existing processes and equipment.

Superior Mechanical and Physical Properties

Hastelloy C22 plates combine high tensile strength (minimum 690 MPa), excellent elongation (45% minimum), and a low impurity content. These mechanical features, alongside a density of 8.69 g/cm3 and a Rockwell hardness not exceeding B90, ensure they withstand mechanical and thermal stresses in demanding service conditions.

FAQ's of Hastelloy C22 Plates:

Q: How can Hastelloy C22 plates be utilized in industrial applications?

A: Hastelloy C22 plates are widely used in chemical processing, pollution control, marine, pulp & paper, and oil & gas industries due to their superior resistance to corrosion and ability to withstand harsh operating environments.

Q: What are the benefits of choosing Hastelloy C22 plates over other alloys?

A: Choosing Hastelloy C22 plates offers remarkable resistance against both oxidizing and reducing acids, excellent mechanical strength, superior weldability, and adaptability in various forms and sizes, ensuring longevity and reliable performance.

Q: Which processes are suitable for welding Hastelloy C22 plates?

A: All conventional welding methods, such as TIG, MIG, and arc welding, can be used effectively on Hastelloy C22 plates, thanks to their outstanding weldability and solution annealed finish, which minimizes sensitization.

Q: When is it recommended to select a specific surface finish for Hastelloy C22 plates?

A: Surface finishes like 2B, BA, No.1, and No.4 should be chosen based on the end-use; for instance, 2B and BA finishes suit equipment where a smooth, clean surface is preferred, while No.1 and No.4 finishes are suitable for components requiring enhanced durability.

Q: What is the typical process for manufacturing Hastelloy C22 plates?

A: Hastelloy C22 plates are produced through hot or cold rolling, followed by solution annealing at 1121C (2050F) to enhance their structural properties and corrosion resistance, and finally finished to the specified surface texture and dimensions.

Q: Where can custom sizes of Hastelloy C22 plates be ordered?

A: Custom-sized Hastelloy C22 plates are available directly from manufacturers, suppliers, exporters, or importers who deal with specialty alloys. Orders can be tailored to exact thickness, width, and length requirements to suit specific project needs.
