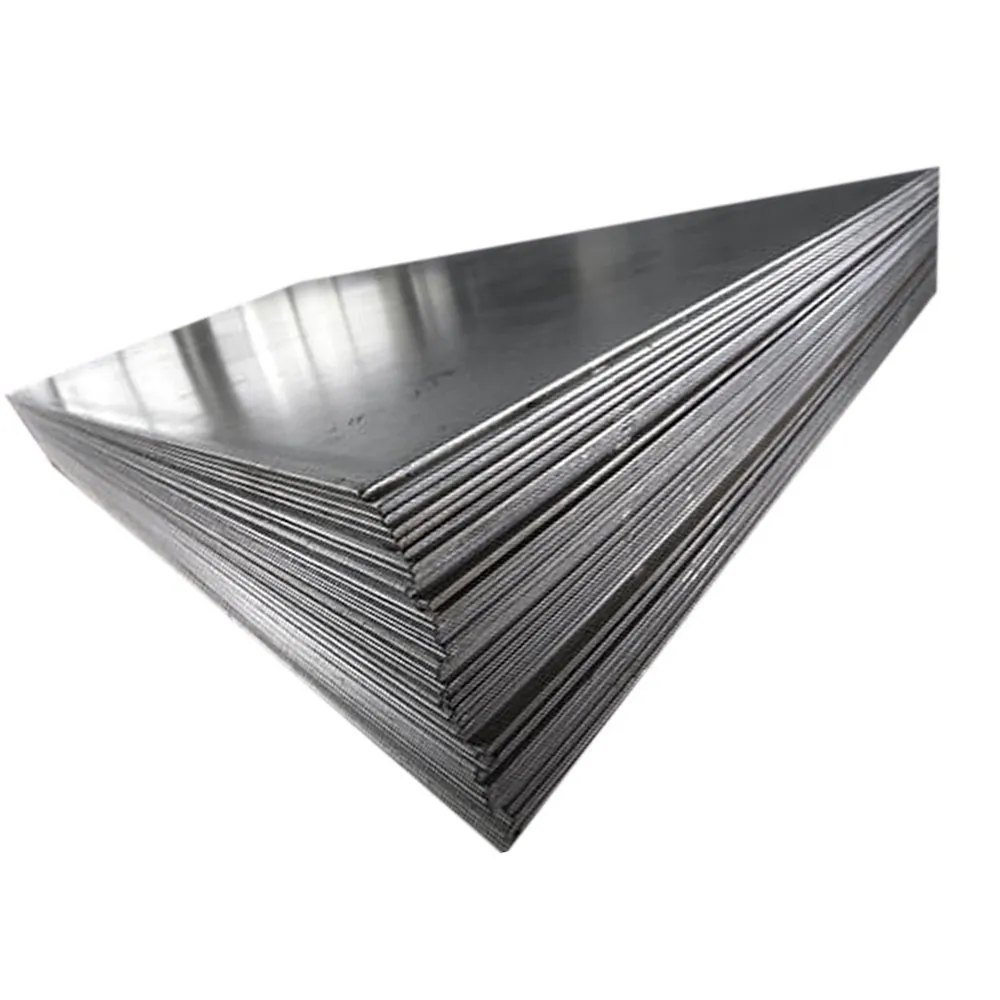

Hastelloy C22 Sheet

Name: Hastelloy C22 Sheet
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Hastelloy C22 Sheet Specification

Impurity Content (%)
<0.02%

Dimensions
Custom sizes available (thickness typically 0.5mm to 50mm, width up to 2500mm, length up to 6000mm)

Product Type
Sheet

Alloy
Hastelloy C22 (UNS N06022)

Shape
Flat Sheet/Plate

Size
Cut to size as per requirement

Weight
Varies as per size and thickness

Application
Chemical processing, Marine, Pollution control, Flue gas desulfurization, Power generation

Color
Metallic Silver-Grey

Melting Point
1399 - 1443 C

Hardness
Rockwell B90 Max

Elongation
45% min

Yield Strength
283 MPa min

Surface Finish
2B, BA, Mirror, No. 1 (Mill Finish)

Density
8.69 g/cm3

Corrosion Resistance
Excellent against oxidizing and reducing acids

Material Standard
ASTM B575, ASME SB575

Tensile Strength
690 MPa min

Formability
Good (easy to weld, machine, and fabricate)

Hastelloy C22 Sheet Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Hastelloy C22 Sheet

Hastelloy C22 sheet is an alloy made from nickel-chromium-molybdenum-tungsten, which is highly resistant to various corrosive agents. This alloy with the UNS N06022 number demonstrates high resistance to pitting, crevice corrosion, and stress corrosion cracking, and it has good stability and high mechanical properties. Hastelloy C22 is extensively applied in those industries where the materials ability to perform in highly corrosive chemical environments is paramount.

Superior Corrosion Resistance for Demanding Environments

Hastelloy C22 Sheet is renowned for its exceptional resistance against both oxidizing and reducing acids, making it ideal for applications where exposure to aggressive chemicals is frequent. Its robust alloy composition ensures longevity and reliability even in highly corrosive situations, such as chemical processing and marine environments. This makes it a preferred choice in industries prioritizing performance and safety.

Versatile Surface Finishes and Custom Sizing

Available in a variety of finishes-2B, BA, mirror, and No. 1 (mill)-Hastelloy C22 Sheet can be tailored for specific aesthetic or technical requirements. With thicknesses from 0.5mm up to 50mm, widths up to 2500mm, and lengths up to 6000mm, sheets are cut to size based on user specifications, ensuring flexibility to meet diverse project needs.

Outstanding Mechanical Properties for Structural Integrity

Hastelloy C22 Sheet demonstrates a fine balance of strength and formability, with a tensile strength of at least 690 MPa and a yield strength of no less than 283 MPa. Its high elongation (45% min) and low maximum hardness (Rockwell B90) facilitate efficient welding, machining, and fabrication, ensuring superior structural performance and versatility in demanding industrial settings.

FAQ's of Hastelloy C22 Sheet:

Q: How can Hastelloy C22 Sheet benefit applications in chemical processing or marine environments?

A: Hastelloy C22 Sheet is engineered for superior corrosion resistance against both oxidizing and reducing acids, making it highly reliable in harsh chemical and marine environments. Its robust alloy composition prevents deterioration, significantly reducing maintenance needs and enhancing the longevity of equipment.

Q: What surface finishes are available for Hastelloy C22 Sheets?

A: Hastelloy C22 Sheets are offered in multiple surface finishes such as 2B, BA, mirror, and No. 1 (mill finish). This range supports both functional and aesthetic requirements, allowing selection based on end-use, cleanliness, or visual appearance.

Q: When should I consider using Hastelloy C22 Sheet instead of standard stainless steel?

A: You should opt for Hastelloy C22 Sheet when the application involves exposure to aggressive chemicals, high chloride environments, or processes susceptible to severe corrosion. Its enhanced resistance and mechanical properties outperform many conventional stainless steels in these circumstances.

Q: Where are Hastelloy C22 Sheets commonly applied?

A: Common applications include chemical processing plants, marine industries, flue gas desulfurization systems, power generation facilities, and pollution control equipment. Its resilience makes it indispensable where components face constant exposure to corrosive agents.

Q: What is the typical process for cutting or fabricating Hastelloy C22 Sheets?

A: Hastelloy C22 Sheet is known for excellent formability and is easy to weld, machine, and fabricate using standard methods suited for high-performance alloys. The sheets can be cut to custom sizes as per specific project requirements with precision.

Q: How does the mechanical strength of Hastelloy C22 Sheet enhance its usage?

A: With a minimum tensile strength of 690 MPa and high elongation, the sheet offers superior load-bearing capabilities and flexibility during fabrication. This balances strength with ductility, enabling complex shapes and robust structures for demanding applications.
