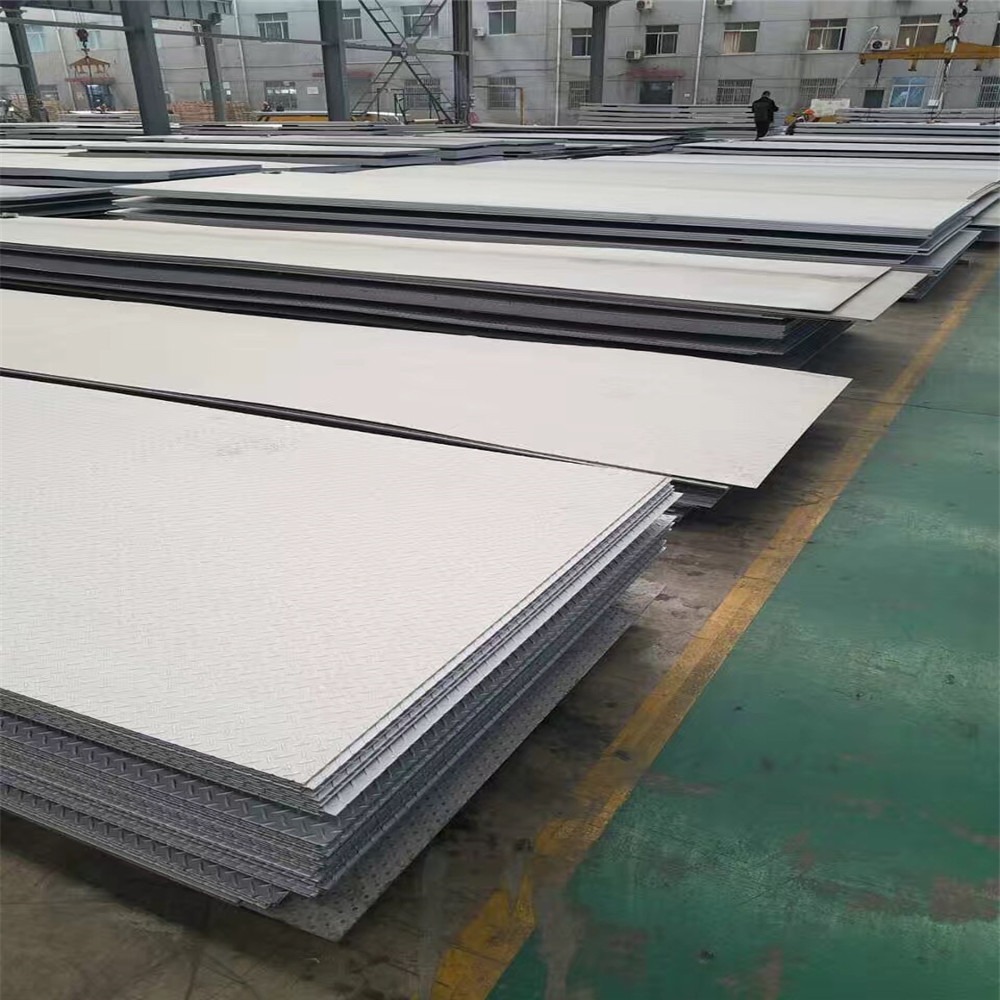

Inconel 603 Plates

Name: Inconel 603 Plates
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Inconel 603 Plates Specification

Application
Chemical industries, Power Generation, Aerospace, Heat Treatment, Furnace Components

Grade
Inconel 603

Tolerance
0.05 mm or as per specification

Shape
Plate/Sheet

Dimensions
Custom, as per requirement (Width: 1000mm - 2500mm, Length: 2000mm - 6000mm or cut to length)

Surface Treatment
Cold/Hot Rolled, Polished, Bright, Pickled

Material
Inconel 603 (Nickel-Chromium Alloy)

Type
Flat Plate

Standard
ASTM, ASME, AMS, DIN, EN, ISO

Thickness
0.5mm - 100mm

Technics
Rolled/Hot Rolled/Cold Rolled

Steel Type
Nickel Alloy

Elongation
30% min

Delivery Condition
As rolled, Annealed, or as customer request

Corrosion Resistance
Excellent resistance to oxidation and carburization at high temperature

Edge Type
Sheared / Mill Edge / Slit Edge

Tensile Strength
650 MPa min

Heat Treatment
Annealed

Melting Point
1354-1413C

Hardness
Rockwell B (HRB) 80-95 (typical)

Density
8.1 g/cm3

Yield Strength
275 MPa min

Finish
Smooth, Mill finish, Matt finish, Bright finish

Inconel 603 Plates Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Inconel 603 Plates About

Inconel 603 Plates are included in a range of nickel-chromium alloy materials, highly prized for their exceptional strength in high temperatures. This strength comes from its unique chemical composition, featuring Chromium (21-25%), Nickel (58-63%), Molybdenum (2.5-3.5%), Copper (1%), Iron (0.7%) and Aluminum (1.2%) as the significant elemental content constituents; while small amounts of Niobium, Titanium, Manganese, and Silicon are also regularly found in this blend. The principal features these materials offer are their superior resistance to creep deformation over an extensive temperature range, along with being both oxidation and corrosion resistant due to the low levels of sulfur and phosphorus present in the alloy mix, making Plates one of the most reliable metallic alloys available for a variety of industries today.

Premium Material Performance

Inconel 603 Plates are crafted from a nickel-chromium alloy known for remarkable resistance to oxidation, carburization, and corrosion, particularly in extreme temperature environments. This makes them indispensable for heat treatment plants, furnace components, and chemical processing, where superior durability and longevity are essential.

Customizable to Your Specifications

Available in a wide variety of dimensions, thicknesses, finishes, and edge types, Inconel 603 Plates can be tailored precisely to meet individual project needs. Whether you require widths from 1000mm to 2500mm or cut-to-length options, the flexibility in customization ensures compatibility with diverse industrial applications.

Reliable International Standards Compliance

Manufactured to adhere to ASTM, ASME, AMS, DIN, EN, and ISO standards, Inconel 603 Plates deliver assured quality and reliability. Rigorous manufacturing processes, including hot and cold rolling, along with export-grade packaging, guarantee safe delivery and consistent performance in global markets.

FAQ's of Inconel 603 Plates:

Q: How are Inconel 603 Plates manufactured for high temperature resistance?

A: Inconel 603 Plates are produced using advanced hot rolled or cold rolled techniques, which enhance the alloy's structural integrity and ensure excellent resistance against oxidation and carburization at temperatures up to 1200C (2200F). These processes adhere strictly to international standards such as ASTM and ASME.

Q: What applications benefit most from using Inconel 603 Plates?

A: Industries such as chemical processing, power generation, aerospace, and heat treatment benefit significantly from Inconel 603 Plates. Their outstanding resistance to high temperatures and corrosive environments makes them ideal for furnace components, reactors, and other demanding settings.

Q: When should I choose a specific surface finish or edge type for these plates?

A: The choice of surface finish-smooth, matte, or mirror-and edge type-mill, slit, or cut-depends on your application's technical and aesthetic requirements. For example, a mirror finish might be preferred for visible components, while mill or slit edges suit internal structural uses.

Q: Where are Inconel 603 Plates typically sourced or exported from?

A: These plates are manufactured, supplied, and exported globally by specialized suppliers and manufacturers who comply with international standards and provide export-worthy packaging to ensure safe delivery, such as wooden pallets and protective wrapping.

Q: What is the process for customizing dimensions and tolerances of Inconel 603 Plates?

A: Customization is achieved by specifying required width, length, thickness (ranging from 0.5mm to 100mm), and tolerances (as precise as 0.05mm). Manufacturers use precision cutting, slitting, and finishing techniques to meet clients' exact specifications.

Q: How does Inconel 603 offer a benefit over other metal plates in corrosion-prone environments?

A: Thanks to its superior nickel-chromium composition, Inconel 603 Plates exhibit excellent resistance to oxidation and carburization, outperforming standard steel plates. This translates to longer service life and less frequent replacement, especially in aggressively corrosive or high-heat environments.

Q: What packaging and delivery assurances are provided for Inconel 603 Plates?

A: To ensure product protection during transit, Inconel 603 Plates are packed in export-quality seaworthy packaging, including sturdy wooden pallets and weather-resistant wrapping, safeguarding against physical and environmental damage during shipping.
