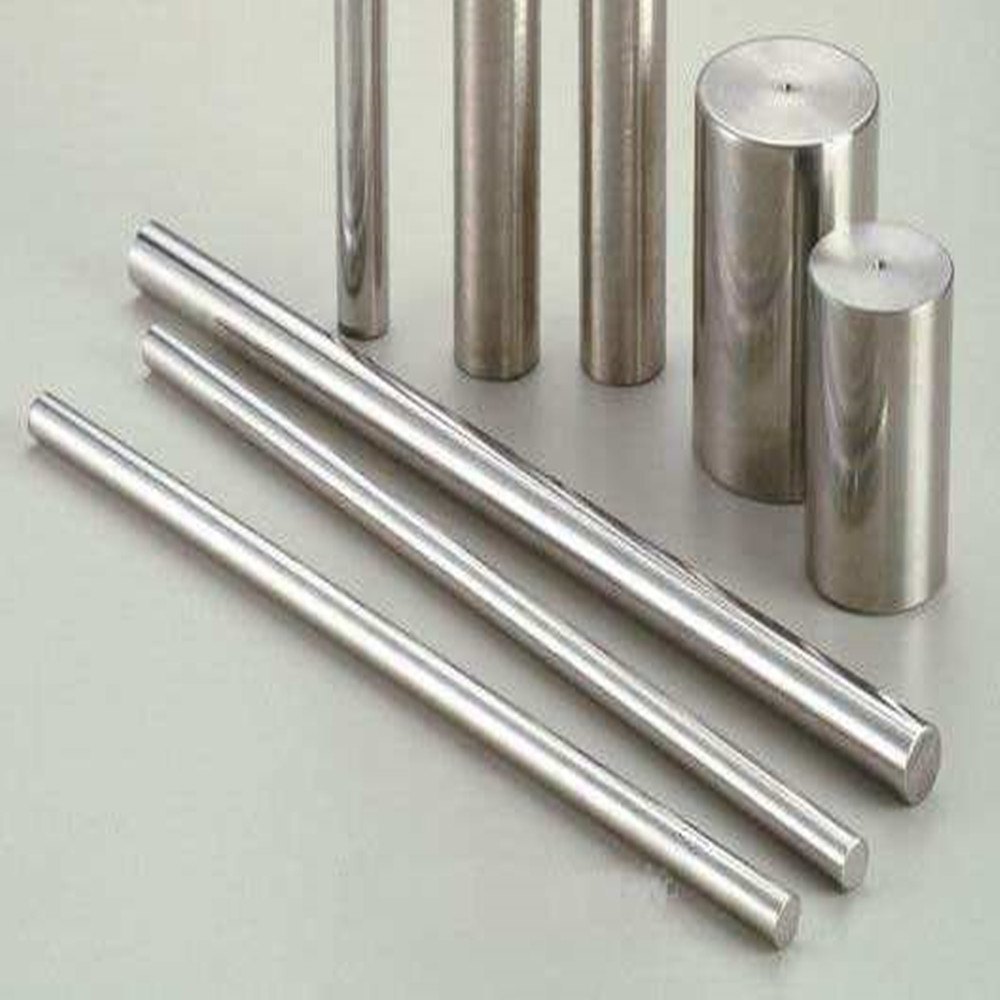

Inconel 625 Bars

Name: Inconel 625 Bars
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Get a Price/Quote

MOQ : 1 Kilograms

Inconel 625 Bars Specification

Technics
Cold Drawn, Hot Rolled, Peeled

Surface Treatment
Bright, Polished, Pickled

Material
Inconel 625 (Nickel-Chromium-Molybdenum alloy)

Standard
ASTM B446, ASME SB446

Dimensions
Diameter: 5mm to 500mm, Length: up to 6000mm or as required

Steel Type
Nickel Alloy

Grade
Inconel 625

Type
Bar, Rod

Application
Aerospace, Chemical Processing, Marine, Power Generation

Thickness
As per diameter specification (5mm - 500mm)

Tolerance
H8, H9, H10 or as required

Shape
Round

Magnetic Properties
Non-magnetic

Yield Strength (0.2% Offset)
414 MPa min

Heat Treatment
Solution Annealed

Density
8.44 g/cm3

Ultimate Tensile Strength
827 MPa min

Elongation
30% min

Corrosion Resistance
Excellent resistance to pitting, crevice corrosion, and intergranular attack

Finish
Smooth/Shiny

Delivery Condition
Straightened and cut to length

Melting Point
1290 - 1350C

Hardness
Rockwell B 90 max

Inconel 625 Bars Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Inconel 625 Bars About

Inconel 625 is a nickel-chromium-molybdenum alloy renowned for its exceptional corrosion resistance, high strength, and durability at elevated temperatures. Inconel 625 Bars, available in various forms such as round, square, hex

Exceptional Strength and Corrosion Resistance

Inconel 625 Bars combine high ultimate tensile strength ( 827 MPa) and substantial yield strength ( 414 MPa) with excellent ductility. Their advanced nickel-chromium-molybdenum composition enables outstanding resistance to pitting, crevice, and intergranular corrosion-even in harsh chemical and marine environments. These properties make Inconel 625 a premier material choice for components exposed to extreme stress, corrosive substances, or high temperatures.

Versatile Industry Applications

With its smooth or polished finish and non-magnetic properties, Inconel 625 Bars are extensively used in sectors ranging from aerospace to chemical processing, marine engineering, and power generation. Their reliability under severe mechanical and corrosive conditions means they are routinely chosen for manufacturing critical components such as fasteners, shafts, and reactor parts that demand prolonged lifespan and low maintenance.

Precision Manufacturing and Sizing

Manufactured through cold drawn, hot rolled, or peeled processes, these bars are available in diameters from 5mm to 500mm and lengths up to 6000mm (or custom sizes). Adhering to ASTM B446 and ASME SB446 specifications, strict dimensional tolerances-H8, H9, or H10-are maintained as required. Each bar undergoes straightening and precise cutting, ensuring they are supplied ready for immediate fabrication or installation.

FAQ's of Inconel 625 Bars:

Q: How are Inconel 625 Bars typically processed to achieve their final properties?

A: Inconel 625 Bars are manufactured using cold drawing, hot rolling, or peeling processes, followed by solution annealing to improve strength and corrosion resistance. The surface is finished (bright, polished, or pickled), then the bars are straightened and cut to specified lengths for optimal performance and ease of use.

Q: What advantages does Inconel 625 offer for applications in marine and chemical processing industries?

A: Inconel 625's nickel-chromium-molybdenum alloy composition provides excellent resistance to pitting, crevice, and intergranular corrosion, even in aggressive marine or chemical environments. This ensures a longer service life, reduced maintenance, and reliable performance under harsh conditions.

Q: When should Inconel 625 Bars be selected over other nickel alloys?

A: Select Inconel 625 Bars when superior strength at elevated temperatures, outstanding corrosion resistance, and high ductility are required-such as in aerospace, marine, or chemical applications, where other alloys may suffer from rapid degradation or mechanical failure.

Q: Where are Inconel 625 Bars commonly exported or supplied for use?

A: Inconel 625 Bars are exported and supplied worldwide to industries like aerospace, power generation, chemical processing, and marine engineering. They are sourced from manufacturers, suppliers, exporters, importers, and traders adhering to international quality standards.

Q: What dimensions and standards do Inconel 625 Bars conform to?

A: The bars are available in diameters ranging from 5mm to 500mm and lengths up to 6000mm, with thickness according to diameter. They are manufactured in accordance with ASTM B446 and ASME SB446 standards and supplied with precise tolerances such as H8, H9, or H10 as required.

Q: How does the non-magnetic property of Inconel 625 Bars benefit industrial applications?

A: Being non-magnetic, Inconel 625 Bars are ideal for environments sensitive to magnetic interference, such as electronic assemblies, specific aerospace components, and instrumentation in chemical and power generation plants, ensuring operational reliability and safety.
