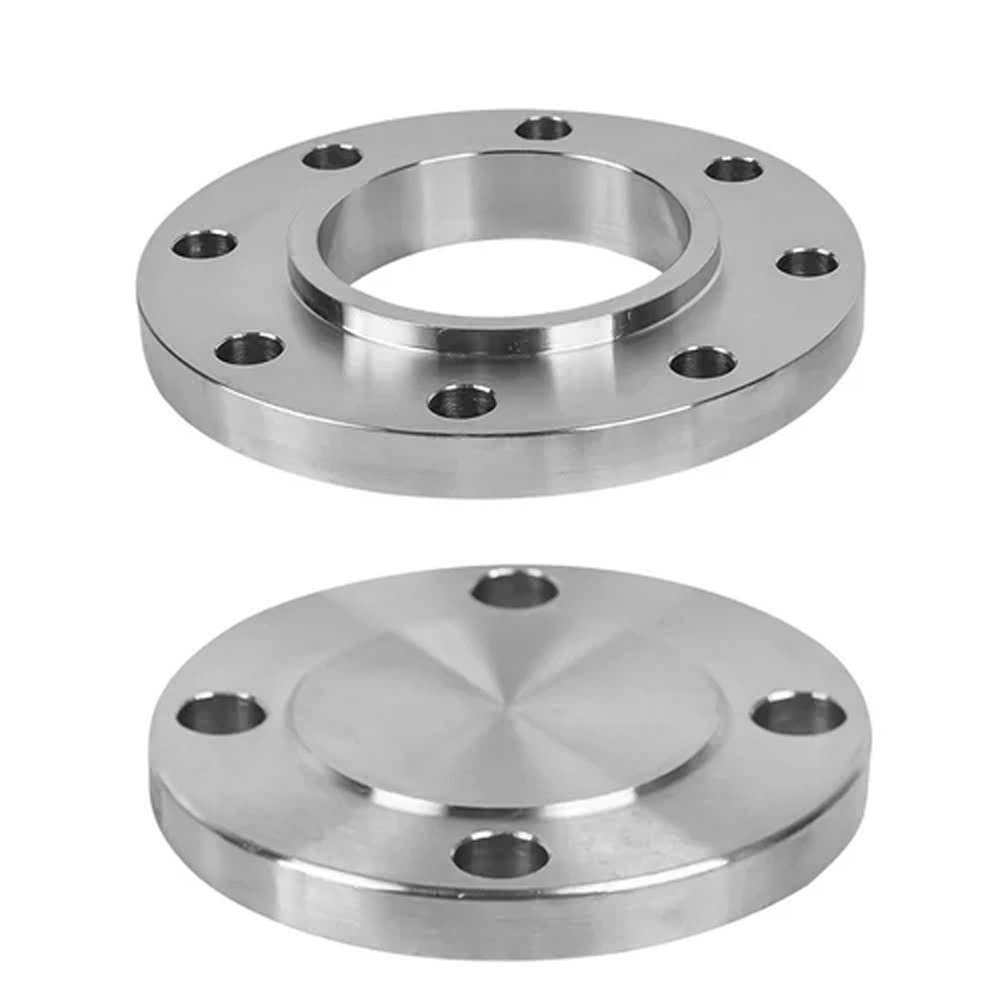

Inconel 625 Flanges

Price 500.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Kilograms

Inconel 625 Flanges Specification

Surface Treatment
Smooth/Polished/Shot Blasted

Steel Type
Nickel-Based Super Alloy

Grade
Inconel 625

Shape
Round/Circular

Application
Chemical Processing, Petrochemical, Marine, Power Generation, Aerospace, Oil & Gas

Dimensions
1/2 to 60 (DN15 - DN1500)

Technics
Forged

Type
Slip On, Blind, Weld Neck, Socket Weld, Lap Joint, Threaded

Tolerance
As per applicable standard

Standard
ASTM B564, ASME SB564, EN, DIN, JIS, ANSI, MSS, BS, ISO

Material
Inconel 625 (Nickel-Chromium Alloy)

Thickness
Sch 10s, Sch 40s, Sch 80s, Sch 160, Or As Required

Pressure Rating
150#, 300#, 600#, 900#, 1500#, 2500#

Temperature Range
-196C to 982C

Density
8.44 g/cm3

Corrosion Resistance
Excellent, resistant to chloride-ion stress-corrosion cracking and pitting

Hardness
Rockwell B88 max

Finish
Bright/Matte

Melt Point
1290-1350C

Connection Type
Welded, Bolted

Inconel 625 Flanges Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Inconel 625 Flanges About

Inconel 625 is a high-performance nickel-chromium-molybdenum alloy known for its exceptional corrosion resistance, high strength, and excellent fabricability. Inconel 625 flanges, manufactured from this alloy, play a crucial role in various industries where resistance to aggressive environments and elevated temperatures is essential. This article delves into the properties of Inconel 625 Flanges, its applications, and the manufacturing process of Inconel 625 flanges.

Exceptional Corrosion Resistance

Inconel 625 flanges are specially formulated to withstand aggressive environments that would cause other metals to fail. Their resistance to chloride-ion stress corrosion cracking and pitting ensures durability, even in harsh chemical and marine applications. This feature reduces maintenance costs and lengthens service life, making them a preferred choice for safety-critical installations.

Flexible Pressure and Temperature Capabilities

Designed for versatility, these flanges accommodate a wide pressure range (150# to 2500#) and withstand extreme temperatures from -196C to 982C. Their robust construction maintains mechanical integrity under both cryogenic and high-heat conditions, supporting a broad range of industrial and engineering requirements.

Compliance with International Standards

Manufactured to meet multiple global standards including ASTM B564, ASME SB564, EN, DIN, JIS, ANSI, and more, Inconel 625 flanges are suitable for international projects. Thanks to precise thicknesses (Sch 10s to Sch 160) and dimensional tolerances, customers can trust consistent quality and regulatory compliance, wherever the flanges are used.

FAQ's of Inconel 625 Flanges:

Q: How are Inconel 625 flanges typically used in industry?

A: Inconel 625 flanges are widely implemented in chemical processing, oil and gas, petrochemical, power generation, marine, and aerospace sectors due to their exceptional resistance to corrosion, high pressure, and extreme temperatures.

Q: What pressure ratings are available for Inconel 625 flanges?

A: These flanges come in pressure ratings of 150#, 300#, 600#, 900#, 1500#, and 2500#, ensuring compatibility with a wide range of piping systems and applications.

Q: When should I choose Inconel 625 flanges over carbon steel or stainless steel?

A: Inconel 625 is preferable when a project requires outstanding corrosion resistance-especially in environments exposed to chloride ions, high salinity, or fluctuating temperatures that could compromise other materials.

Q: Where can Inconel 625 flanges be installed?

A: They can be installed in pipelines, pressure vessels, heat exchangers, offshore platforms, and critical process systems where durability and chemical resistance are paramount.

Q: What is the connection process for these flanges?

A: Inconel 625 flanges are available with welded or bolted connections, including slip-on, blind, weld neck, socket weld, lap joint, and threaded types, providing flexibility for integration into existing lines or new installations.

Q: What are the benefits of using Inconel 625 flanges in high-temperature applications?

A: Their ability to function from -196C up to 982C, coupled with excellent mechanical stability, ensures reliability and safety under thermal stress, minimizing the risk of joint failure or leakage.

Q: How does the manufacturing process ensure the quality of Inconel 625 flanges?

A: These flanges are produced using advanced forging methods, adhering to strict standards (such as ASTM B564 and ASME SB564), and are subject to rigorous inspection for dimensional accuracy, material integrity, and surface finish.
