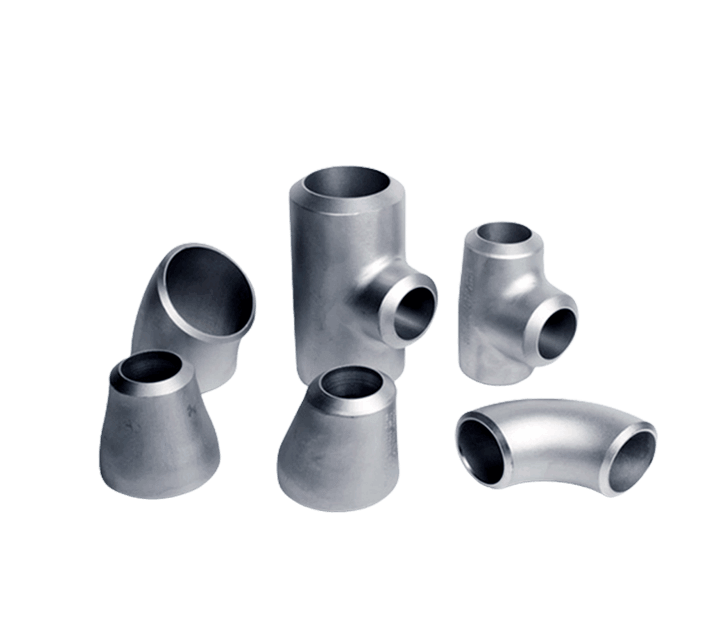

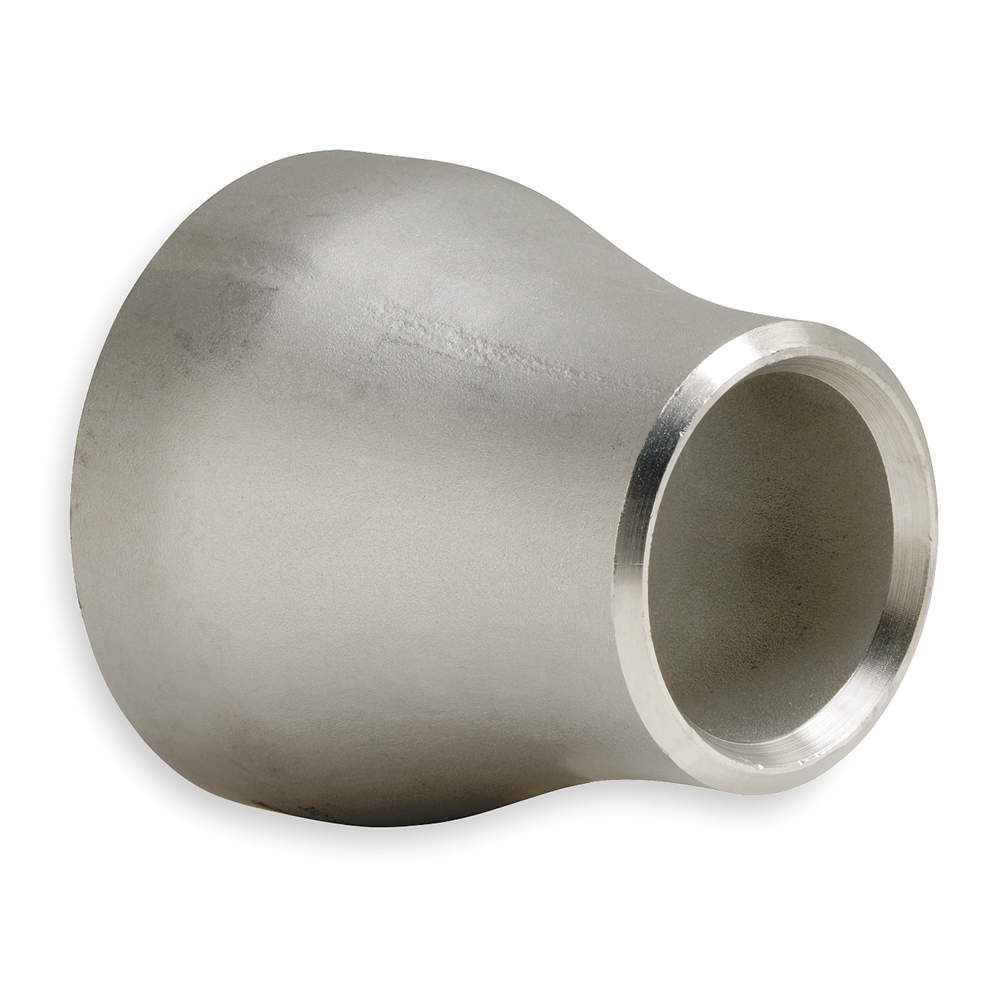

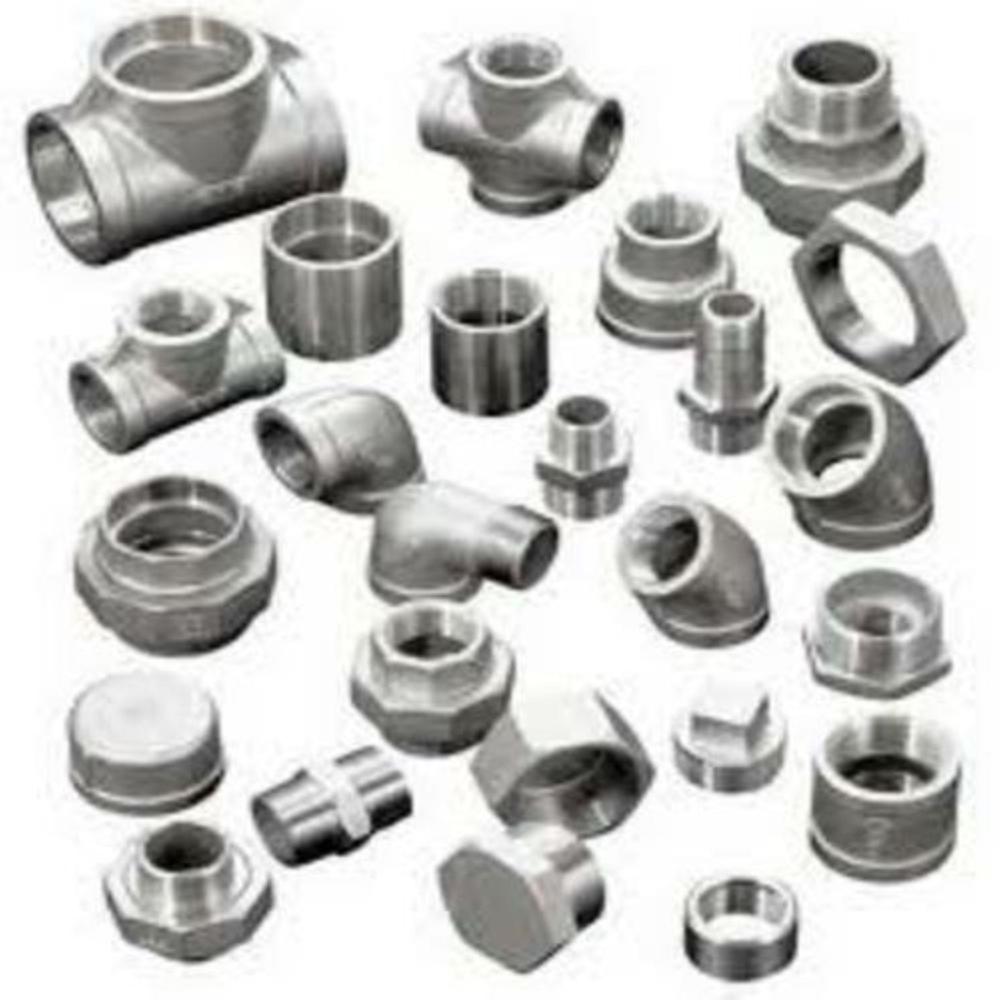

Inconel 625 Pipe Fittings

Name: Inconel 625 Pipe Fittings
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Inconel 625 Pipe Fittings Specification

Application
Oil & Gas, Petrochemical, Power Plant, Marine, Chemical Processing, Aerospace

Material
Inconel 625 (Nickel-Chromium Alloy)

Standard
ASTM B366 / ASME SB366

Tolerance
+/-0.5 mm

Type
Seamless / Welded / Fabricated

Thickness
Sch 10S, Sch 40S, Sch 80S, Sch 160S, Sch XXS

Dimensions
ANSI/ASME B16.9, B16.28, MSS-SP-43

Technics
Forged / Heat Treated

Surface Treatment
Pickled, Sand Blasting, Polished

Steel Type
Nickel Alloy

Grade
UNS N06625

Shape
Elbow, Tee, Reducer, Cross, Cap, Coupling, Union

Testing
Ultrasonic, Radiography, Hydrostatic, PMI, Visual & Dimensional Inspection

Temperature Range
-196C to 982C (-320F to 1800F)

Corrosion Resistance
Excellent resistance to pitting, crevice corrosion, and chloride-induced stress corrosion cracking

Connection
Threaded (NPT/BSP), Socket Weld, Butt Weld

Features
High strength, Non-magnetic, Exceptional weldability, Oxidation resistance

End Connection
Plain End, Beveled End, Screwed End

Finish
Bright, Matt, Polished, Pickled

Pressure Rating
Class 150, 300, 600, 900, 1500, 2500 LB or custom

Inconel 625 Pipe Fittings Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Inconel 625 Pipe Fittings About

Inconel 625 is a nickel-based super alloy known for its exceptional resistance to corrosion and oxidation, making it ideal for use in harsh environments, particularly those involving high temperatures and corrosive substances. Inconel 625 pipe fittings, fabricated from this alloy, offer outstanding performance and durability in various industrial applications.

Exceptional Corrosion Resistance

Inconel 625 Pipe Fittings offer outstanding resistance to a diverse array of corrosive environments. This makes them ideal for deployment in oil & gas, petrochemical, marine, and chemical processing sectors where exposure to aggressive media is common.

Wide Range of Sizes and Connection Types

With seamless options up to 24" NB and welded/fabricated variants extending to 48" NB, these fittings cater to multiple project specifications. Choose from buttweld, socket weld, and threaded connections for flexible installation and adaptability.

Reliable Performance Under Extreme Conditions

Engineered to maintain mechanical integrity from -196C to 815C, Inconel 625 Pipe Fittings handle intense temperature fluctuations and high-pressure ratings (Class 2000-9000 LBS). Each fitting undergoes comprehensive testing, including ultrasonic and hydrostatic inspections, for assured quality.

FAQ's of Inconel 625 Pipe Fittings:

Q: How are Inconel 625 Pipe Fittings typically installed?

A: Depending on the connection type-Buttweld, Socket Weld, or Threaded-these fittings are welded or screwed onto the piping system. The method chosen is influenced by system design, pressure requirements, and ease of maintenance.

Q: What benefits do Inconel 625 Pipe Fittings offer in industrial applications?

A: These fittings deliver excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, making them especially valuable in oil & gas, power plants, marine, and chemical industries exposed to aggressive media.

Q: When should seamless versus welded/fabricated fittings be used?

A: Seamless fittings are optimal for critical pressure and structural applications due to their superior mechanical integrity, while welded/fabricated fittings offer a cost-effective choice for larger diameters where seamless options aren't readily available.

Q: Where can Inconel 625 Pipe Fittings be utilized?

A: They are widely used in oil and gas, petrochemical, power generation, marine, chemical processing, and aerospace industries, wherever durability, corrosion resistance, and reliability are paramount.

Q: What testing processes are performed on these fittings?

A: Inconel 625 Pipe Fittings are subjected to rigorous tests such as ultrasonic and hydrostatic testing, Positive Material Identification (PMI), and visual inspection to ensure compliance with quality standards and performance expectations.

Q: How are these pipe fittings packed and shipped?

A: To safeguard against transit damage, the fittings are packed in standard export packaging such as sturdy wooden cases or pallets, ensuring they reach global destinations intact.

Q: What standards and tolerances govern the manufacture of Inconel 625 Pipe Fittings?

A: They comply with ASTM B366 and ASME SB366 material standards, with dimensional specifications aligning to ANSI/ASME B16.9, B16.28, and MSS-SP-43, and offer a manufacturing tolerance of +/-0.5 mm for precise fitment.
