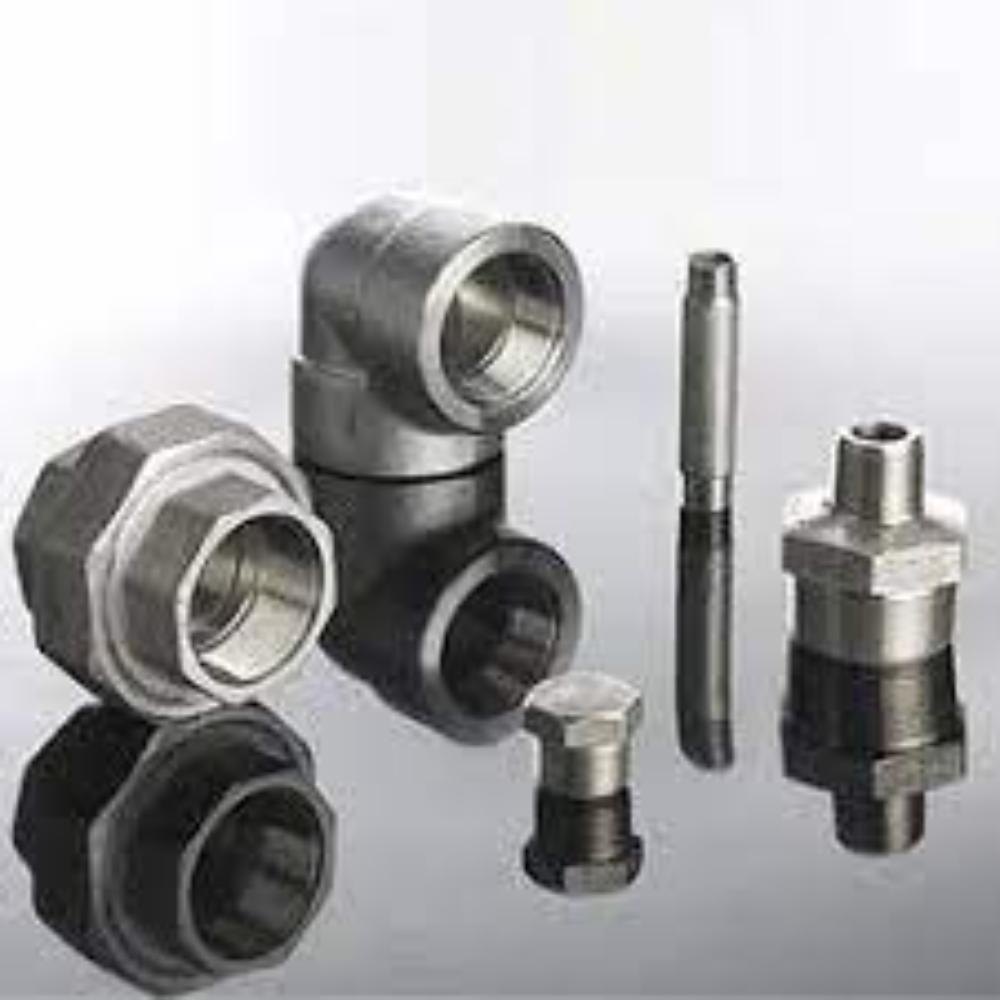

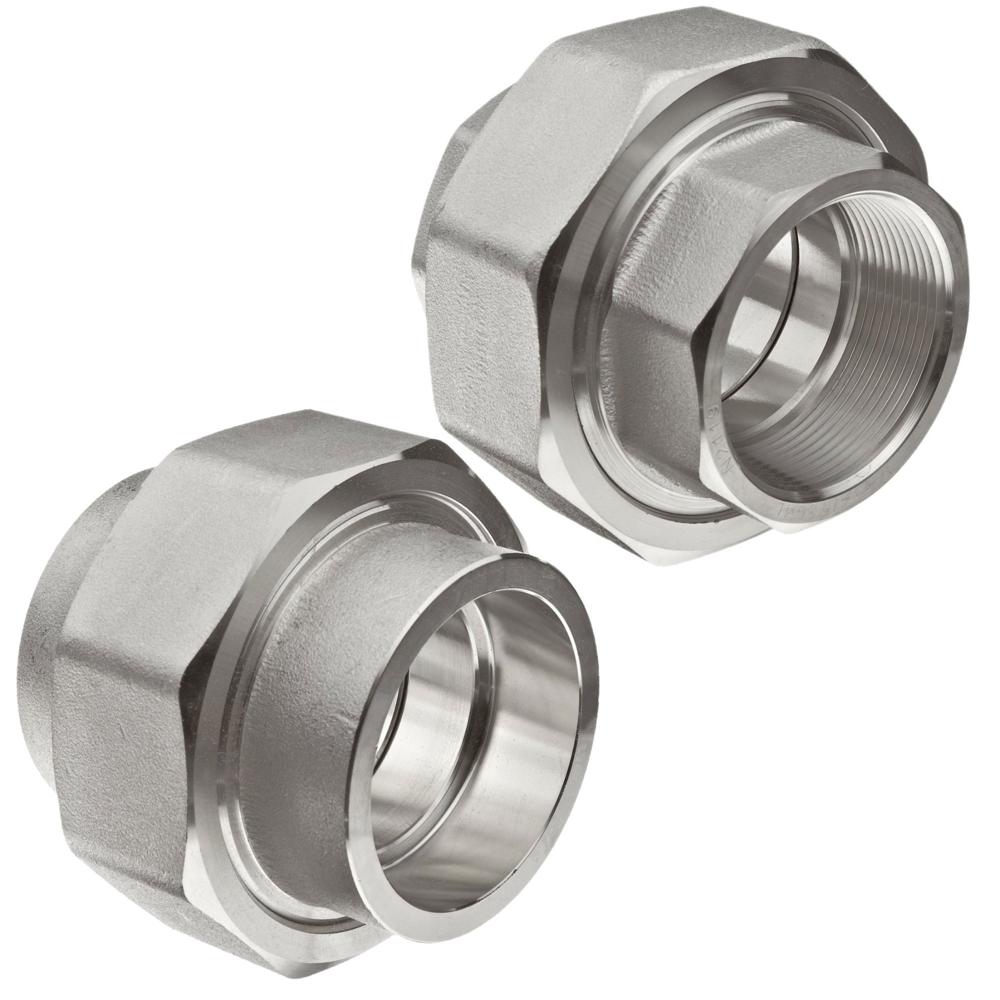

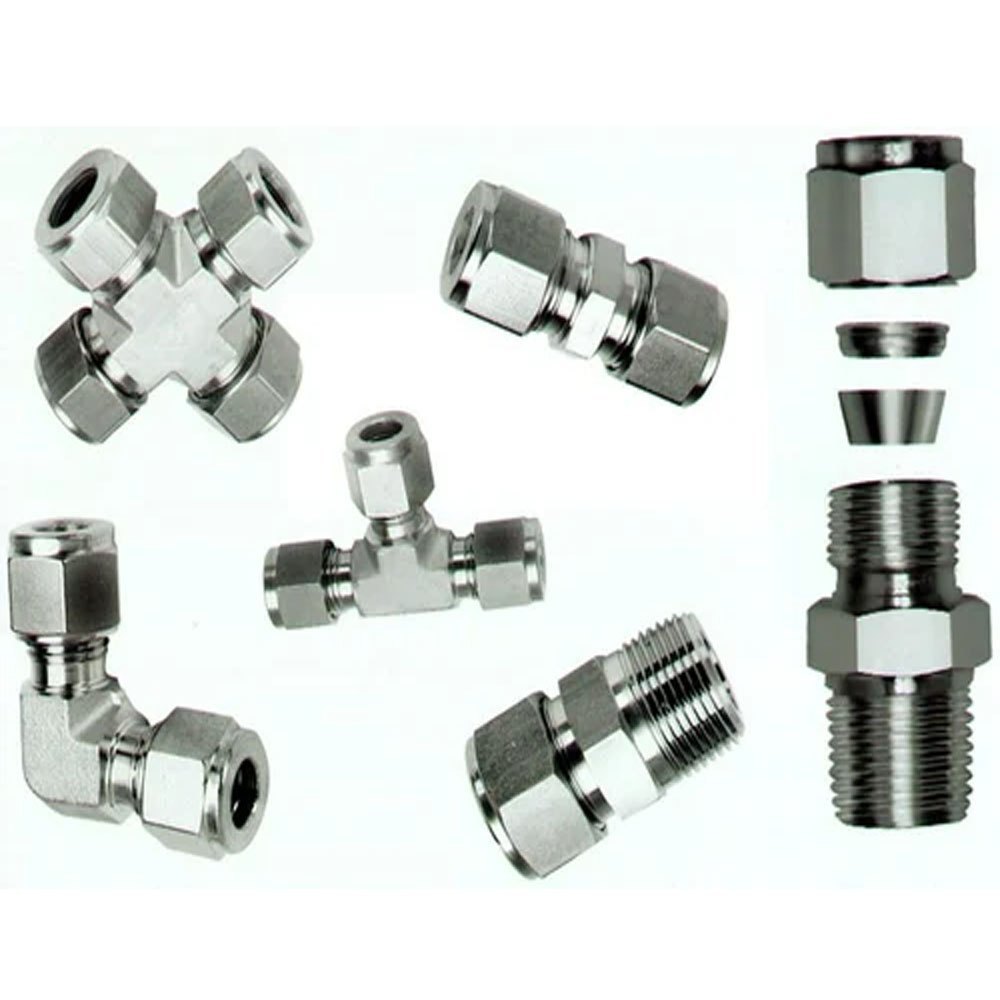

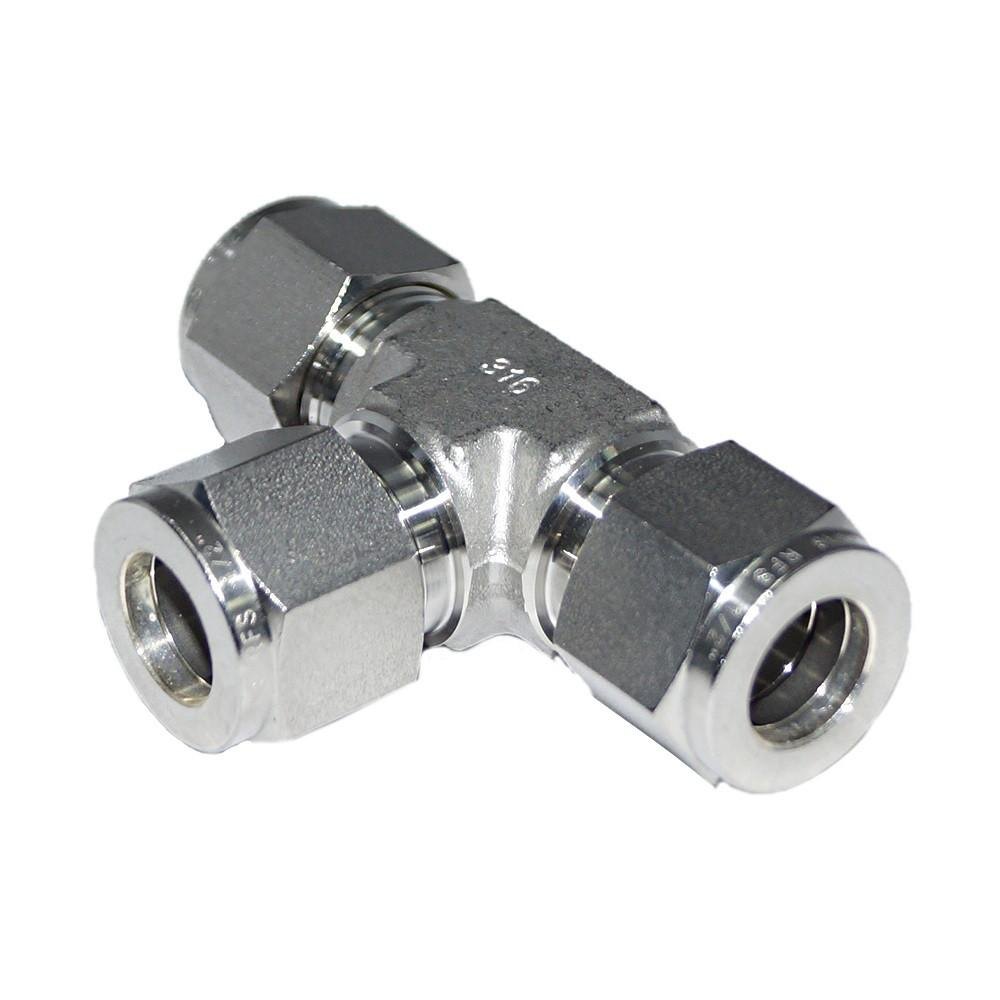

Inconel 690 Instrumentation Fittings

Name: Inconel 690 Instrumentation Fittings
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Kilograms

Inconel 690 Instrumentation Fittings Specification

Material
Inconel 690 (Alloy 690, UNS N06690)

Standard
ASTM, ASME, DIN, EN, BS, JIS

Thickness
As per client requirement

Grade
Inconel 690

Shape
Straight, Elbow, Tee, Cross, Union, Reducer

Technics
Forged/Precision Machined

Tolerance
0.01 mm

Surface Treatment
Polished/Passivated, Silver/ Nickel / Electroplated finish

Application
Instrumentation systems, Hydraulic & Pneumatic applications, Chemical processing, Oil & Gas, Petrochemical, Power Plant, Water treatment

Dimensions
1/8 to 2 (Threaded/NPT/BSP), Custom sizes available

Type
Instrument Tube Fittings, Compression Fittings, Ferrule Fittings, Male/Female Connectors, Elbows, Tees, Unions, Bulkheads, Reducers

Steel Type
Nickel-based superalloy

Temperature Range
-196C to +870C

Corrosion Resistance
Excellent resistance to oxidation and carburization

Connection
Threaded, Compression, Welded

Pressure Rating
Up to 6000 psi (or as specified)

Testing
100% Hydrostatic and Pneumatic tested

End Connections
NPT, BSP, BSPT, Metric and custom options

Marking
Grade, Size, Heat Number

Inconel 690 Instrumentation Fittings Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Inconel 690 Instrumentation Fittings About

Inconel 690 Instrumentation Fittings are widely used in the petroleum and chemical industries due to their superior resistance to various corrosive conditions. This is mainly because of its high chemical composition, containing chromium, nickel, iron, and molybdenum. The precise composition of these materials makes the metal combination resistant to oxidization at higher temperatures while maintaining superior strength thanks to the presence of nickel and molybdenum alongside iron. With such sturdy chemical components, Inconel 690 Instrumentation Fittings are optimized for long life expectancy and perform robustly against damaging elements such as seawater or caustic chemicals.

Versatile Connections and End Types

These Inconel 690 fittings support multiple connection options including threaded, compression, and ferrule types. End types such as male, female, tube, flange, and weld allow integration with diverse instrumentation setups. Whether straight, elbow, or tee shapes are required, the range addresses specific system design needs.

Exceptional Performance in Harsh Environments

Engineered for applications requiring high strength and durability, Inconel 690 instrumentation fittings deliver outstanding corrosion and oxidation resistance at temperatures reaching 600C. Their robust design protects system integrity, especially in challenging oil & gas, petrochemical, and power plant operations.

Certified Quality and Leak-Proof Assurance

All fittings are crafted under strict standards-ASTM, ASME, DIN, EN, BS, and JIS. Each piece undergoes rigorous 100% leak-proof testing and features precise dimensions and tolerances for a reliable fit. Finished with a polished or electroplated surface, fittings are packed securely for safe export and handling.

FAQ's of Inconel 690 Instrumentation Fittings:

Q: How are Inconel 690 Instrumentation Fittings tested for leak-proof performance?

A: Every Inconel 690 Instrumentation Fitting is individually tested to ensure 100% leak-tight performance. This includes pressure and integrity checks in accordance with international standards, guaranteeing reliable operation in both hydraulic and pneumatic systems.

Q: What applications are ideal for these fittings?

A: These fittings are well-suited for instrumentation systems used in chemical processing, oil & gas, petrochemical plants, power generation, and water treatment, where high temperature and corrosive environments demand superior resistance and durability.

Q: When should I choose Inconel 690 over other materials?

A: Select Inconel 690 when your application involves elevated temperatures (up to 600C) or highly corrosive media. The alloy offers exceptional oxidation and corrosion resistance, ensuring long-term reliability in extreme conditions.

Q: Where can Inconel 690 Fittings be installed?

A: These fittings can be installed in a variety of setups, including industrial piping, instrumentation panel assemblies, and as connectors in hydraulic or pneumatic systems, wherever exceptional mechanical and chemical stability is required.

Q: What connection and thread standards are available?

A: Inconel 690 fittings are compatible with NPT, BSPT, BSPP, Metric, UNF, and ISO thread standards, and are available in sizes ranging from 1/8" to 2", with custom sizes fabricated on request.

Q: How does the surface treatment benefit the fittings?

A: Polished, passivated, and electroplated finishes not only provide a bright, smooth appearance but also enhance the resistance to corrosion, ensuring longevity and ease of maintenance in aggressive environments.

Q: What is the process for ordering custom sizes or shapes?

A: Custom sizes, thickness, and shapes can be requested by providing your specifications. The fittings are then precision-machined to meet the required tolerances, ensuring a perfect fit for specialized instrumentation applications.
