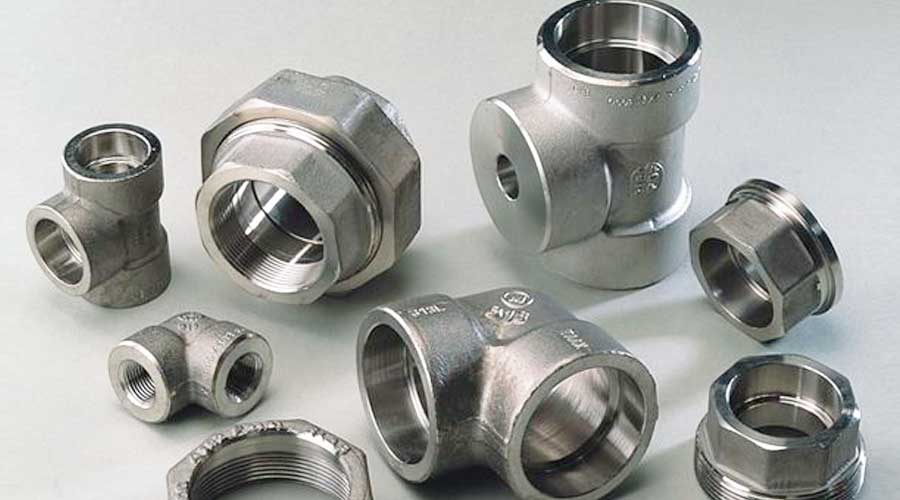

Inconel 718 Forged Fittings

Name: Inconel 718 Forged Fittings
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Kilograms

Inconel 718 Forged Fittings Specification

Technics
Forged, Machined

Shape
Tee, Elbow, Coupling, Union, Cap, Plug, Bushing, Cross, Reducer, Nipple

Material
Inconel 718 (UNS N07718)

Tolerance
0.5mm or as per standard/specification

Type
Socket Weld Fittings, Threaded Fittings

Standard
ASTM B564, ASME SB564, ANSI B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95

Grade
Inconel 718

Application
Oil & Gas, Petrochemical, Power Generation, Aerospace, Chemical Processing, Heat Exchangers

Thickness
Sch 10S, 40S, 80S, 160S, XXS or as required

Dimensions
ASME/ANSI B16.11 & BS 3799, Size: 1/8 NB to 4 NB (Socketweld & Screwed)

Steel Type
Nickel-Chromium Alloy

Surface Treatment
Solution Annealed, Polished, Pickled, Sand Blasted

Hardness
Rockwell B100 - C35

Pressure Rating
Class 2000/3000/6000/9000 LBS

Corrosion Resistance
Excellent, resistant to pitting and crevice corrosion

Melting Point
1260-1336C

Finish
Bright Annealed / Customized as per request

Density
8.19 g/cm3

End Connections
Beveled Ends, Plain Ends, Threaded Ends

Temperature Range
-253C to 705C

Connection Type
Socket Weld (SW), Screwed (NPT, BSPT, BSPP)

Inconel 718 Forged Fittings Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Inconel 718 Forged Fittings About

Inconel 718 forged fittings are made from a nickel-chromium alloy, known for its impressive high strength, excellent corrosion resistance, and superb weldability. These fittings are engineered to withstand extreme environments, maintaining their structural integrity and performance under high temperatures and pressures.

Superior Performance in Extreme Environments

Inconel 718 Forged Fittings excel in harsh and corrosive settings, maintaining strength and integrity even at temperatures ranging from -253C to 705C. Their high Rockwell hardness (B100 - C35) and resistance to pitting and crevice corrosion make them ideal for oil & gas, petrochemical, and power generation sectors where reliability is critical.

Diverse Connection Types and Pressure Ratings

These fittings can be configured with Socket Weld or Screwed end connections, compatible with NPT, BSPT, or BSPP threads. With pressure ratings up to Class 9000 LBS and customizable thickness (Sch 10S to XXS), they are suited for high- and low-pressure pipelines, ensuring safe and leak-proof connections.

Compliance and Customization Options

Inconel 718 fittings adhere to industry standards such as ASTM B564, ASME SB564, ANSI B16.11, and BS 3799. They are offered in varied shapes-elbow, tee, plug, reducer, and more-with end finishes like beveled, plain, or threaded, and surface treatments that include solution annealed, polished, pickled, or sand blasted, ensuring fit-for-purpose solutions.

FAQ's of Inconel 718 Forged Fittings:

Q: How do Inconel 718 Forged Fittings ensure corrosion resistance in harsh environments?

A: Inconel 718 provides excellent resistance to pitting, crevice corrosion, and oxidation thanks to its nickel-chromium alloy composition and bright annealed or customized finishing. This makes the fittings suitable for challenging conditions in chemical processing, oil & gas, and seawater applications.

Q: What are the available connection types and pressure ratings for these fittings?

A: The fittings are available in Socket Weld (SW) and Screwed configurations, compatible with NPT, BSPT, and BSPP threads. They support pressure ratings from Class 2000 up to 9000 LBS, offering versatility for both high- and low-pressure systems.

Q: Where can Inconel 718 Forged Fittings be used?

A: These fittings are engineered for applications in oil & gas, petrochemical processing, power generation, aerospace, heat exchangers, and general chemical industries, especially where reliability under extreme temperatures and corrosive environments is required.

Q: What standards and sizes do these forged fittings comply with?

A: Inconel 718 Forged Fittings conform to ASTM B564, ASME SB564, ANSI B16.11, and BS 3799. Sizes range from 1/8 NB to 4 NB for socket weld and screwed types, with thickness options including Sch 10S, 40S, 80S, 160S, XXS, or as required.

Q: What is the manufacturing process of these Inconel 718 fittings?

A: They are produced through forging and precision machining to achieve high structural integrity. Surface treatments like solution annealing, polishing, pickling, or sand blasting are applied as per customer requirements to enhance performance and longevity.

Q: What are the benefits of using Inconel 718 over other alloys?

A: Inconel 718 stands out for its high strength across a broad temperature range, superior corrosion resistance, excellent fatigue life, and the ability to maintain mechanical properties in demanding operations, leading to longer service life and reduced maintenance.
