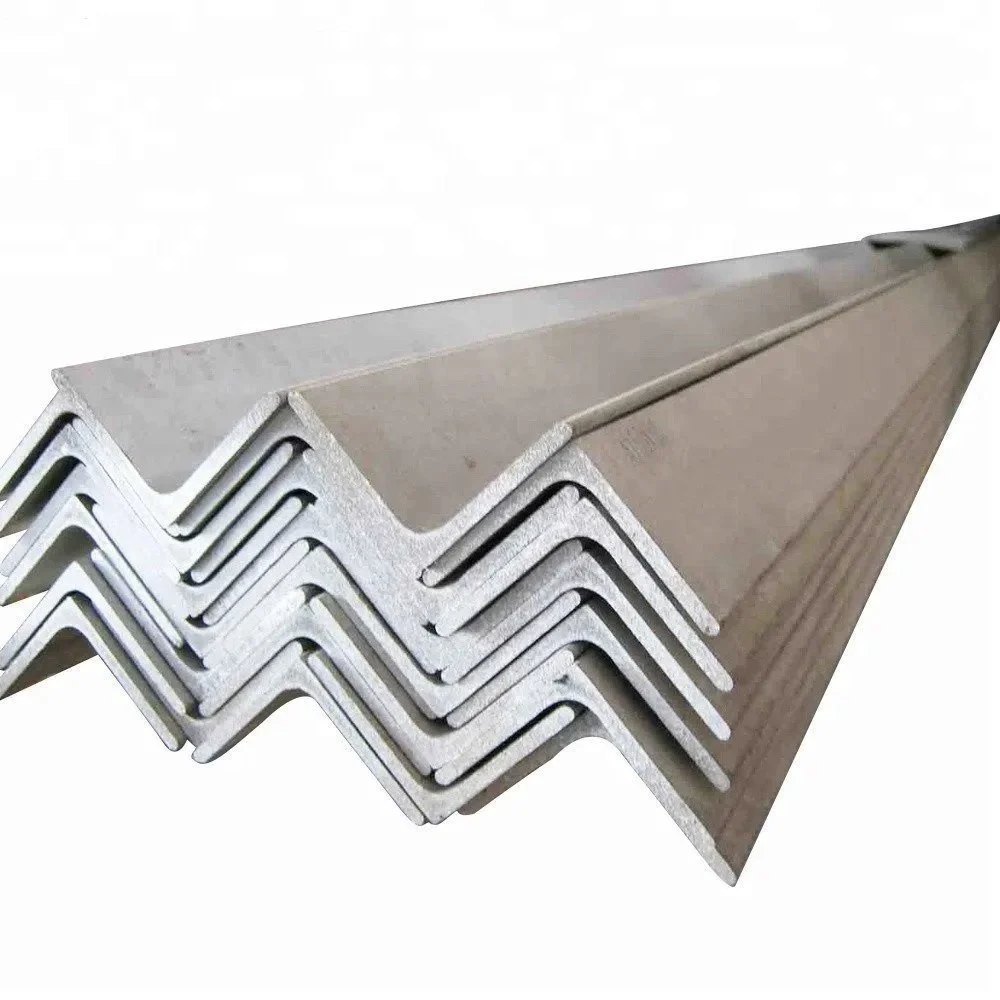

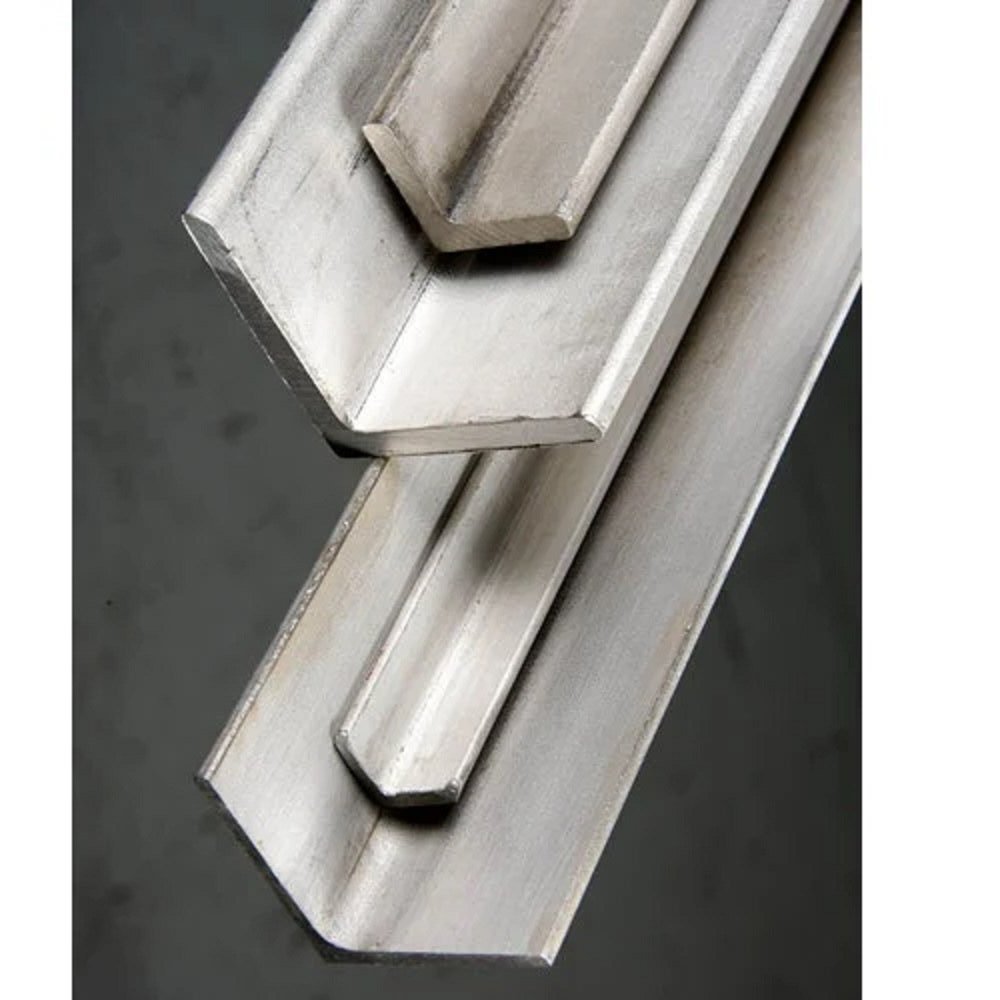

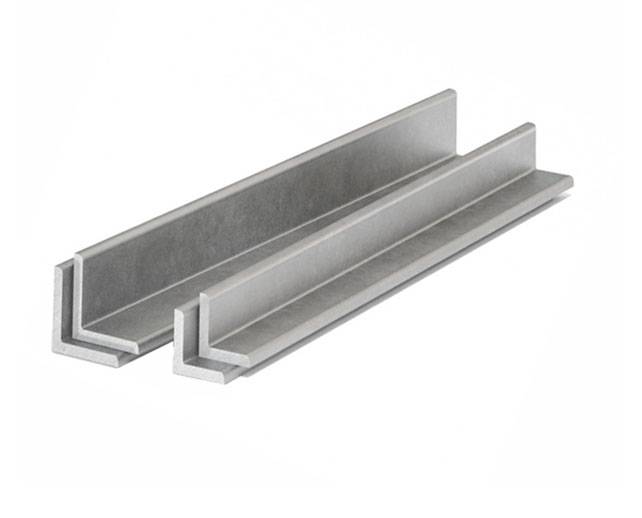

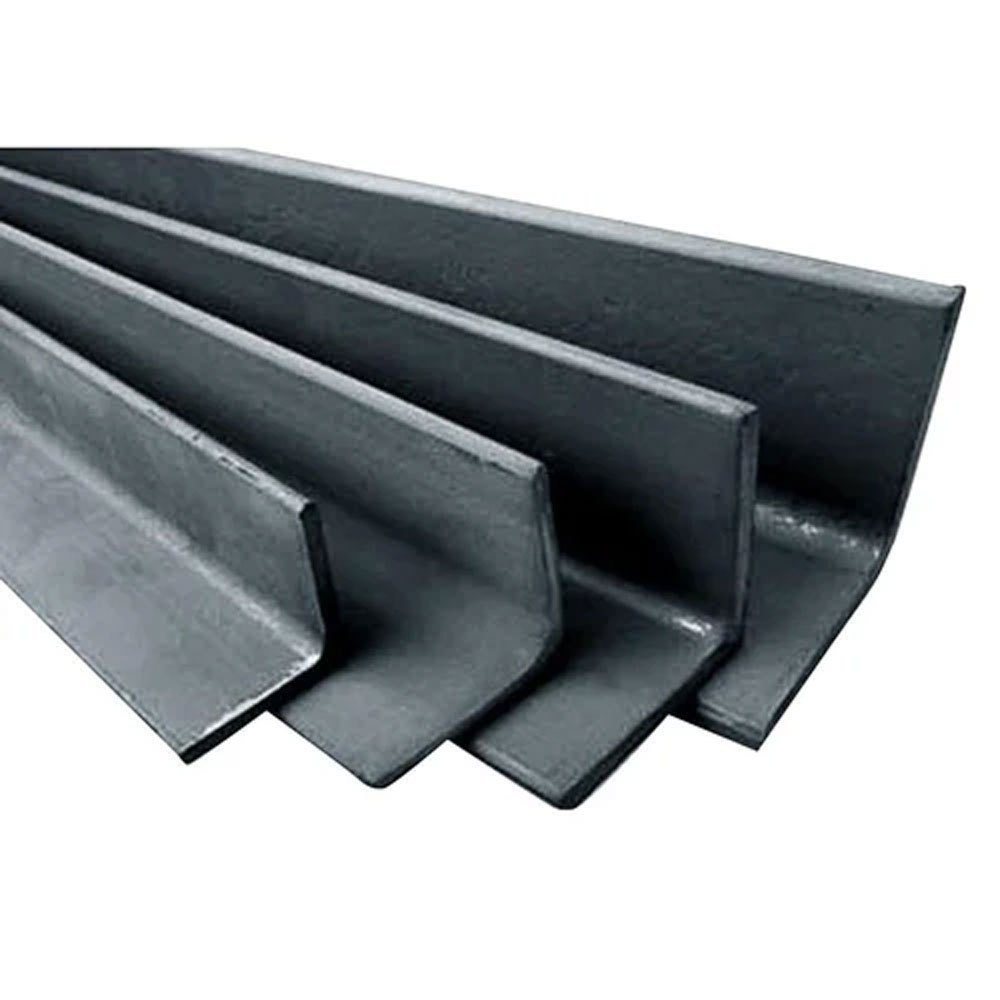

Inconel 825 Angle

Name: Inconel 825 Angle
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Inconel 825 Angle Specification

Material
Inconel 825 (Nickel-Iron-Chromium alloy)

Dimensions
Custom, Available in 20mm to 100mm leg length, 3mm to 12mm thickness

Technics
Hot rolled, Cold drawn

Thickness
3mm to 12mm

Grade
Inconel 825

Application
Chemical industry, Oil & Gas, Nuclear, Acid production, Marine, Heat exchangers

Type
Hot Rolled Angle Bar

Steel Type
Nickel Alloy

Surface Treatment
Pickled, Polished, Hot Rolled

Standard
ASTM B564, ASME SB564, EN 2.4858

Shape
Angle (L-shape)

Tolerance
0.2mm

Yield Strength
220 MPa

Tensile Strength
550 MPa

Length
6 meters, custom length available

Density
8.14 g/cm3

Packing
Standard export seaworthy packing

Elongation
30%

Melting Point
1370C - 1400C

Corrosion Resistance
Excellent in acids, alkalis, and chloride environments

Hardness
180-200 HB

Finish
Mill finish, Satin finish available

Edge Type
Sharp edges as standard, rounded edges on request

Inconel 825 Angle Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Inconel 825 Angle About

Inconel 825 Angle is a structural section, a Nickel-Iron-Chromium alloy with high resistance to various corrosive atmospheres. This alloy also has good mechanical properties at room and elevated temperatures and can be used in many industries, especially chemical processing and oil.

Corrosion Resistance and Durability

The Inconel 825 Angle is specially designed for use in harsh chemical, marine, and oil & gas environments. Its excellent resistance to acids, alkalis, and chloride ensures long-term structural integrity, making it ideal for heat exchangers, acid production, and nuclear applications. This durability reduces maintenance needs and enhances service life in corrosive conditions.

Custom Sizing & Superior Finishes

Choose from standard 6-meter lengths or request custom sizes tailored to your project requirements. Available leg lengths range from 20mm to 100mm, and thicknesses from 3mm to 12mm, allowing for broad application flexibility. Finishes include mill or satin, with options for pickled, polished, or hot rolled surfaces, ensuring both functional and aesthetic compatibility.

Global Standards for Quality Assurance

Manufactured in compliance with ASTM B564, ASME SB564, and EN 2.4858, the Inconel 825 Angle maintains rigorous quality and dimensional tolerances (up to 0.2mm). Standard export seaworthy packing ensures safe delivery, while the product's versatility suits exporters, importers, manufacturers, and suppliers seeking reliable nickel alloy solutions.

FAQ's of Inconel 825 Angle:

Q: How is the Inconel 825 Angle typically used in industrial applications?

A: Inconel 825 Angle is widely utilized in industries such as chemical processing, oil & gas extraction, acid production, nuclear facilities, marine structures, and heat exchangers due to its excellent corrosion resistance and mechanical properties.

Q: What are the available dimensions and can custom sizes be ordered?

A: Standard Inconel 825 Angle is supplied in 6-meter lengths with leg lengths from 20mm to 100mm and thicknesses between 3mm and 12mm. Custom lengths and dimensions are available upon request to accommodate specific project requirements.

Q: What surface treatments and finishes are offered for this angle bar?

A: The Inconel 825 Angle can be supplied with mill finish as standard. Satin finish, as well as pickled, polished, or hot rolled surface treatments, are available to match both functional and aesthetic preferences.

Q: Where does the Inconel 825 Angle deliver value in harsh environments?

A: Thanks to its superior resistance to acids, alkalis, and chloride environments, Inconel 825 Angle is an excellent choice for settings exposed to aggressive or corrosive substances, reducing maintenance costs and improving long-term reliability.

Q: What standards does the Inconel 825 Angle comply with?

A: It is manufactured in accordance with the international standards ASTM B564, ASME SB564, and EN 2.4858, assuring consistent quality, dimensional accuracy, and material performance.

Q: How are the edges and finishes customizable for specific projects?

A: Sharp edges are standard, but rounded edges can be provided on request. Finishes may also be tailored to client needs, with options for both surface texture and appearance.
