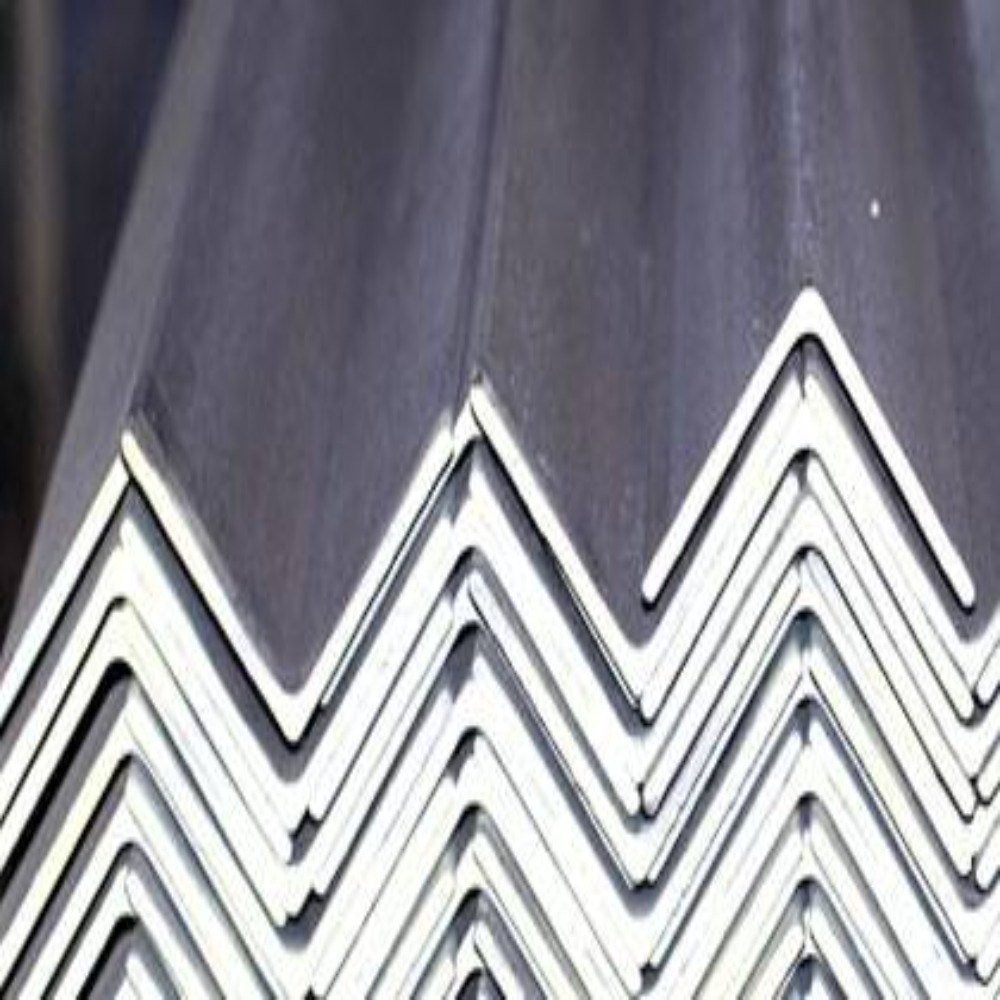

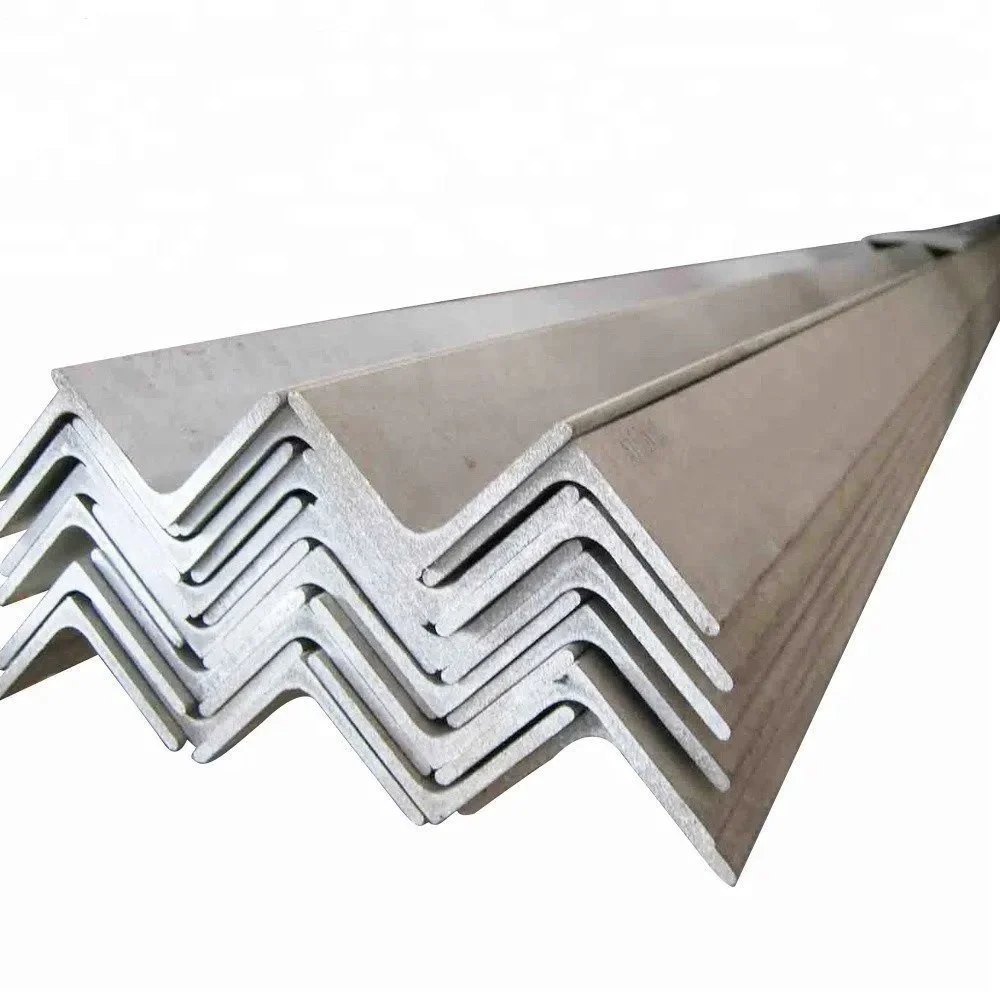

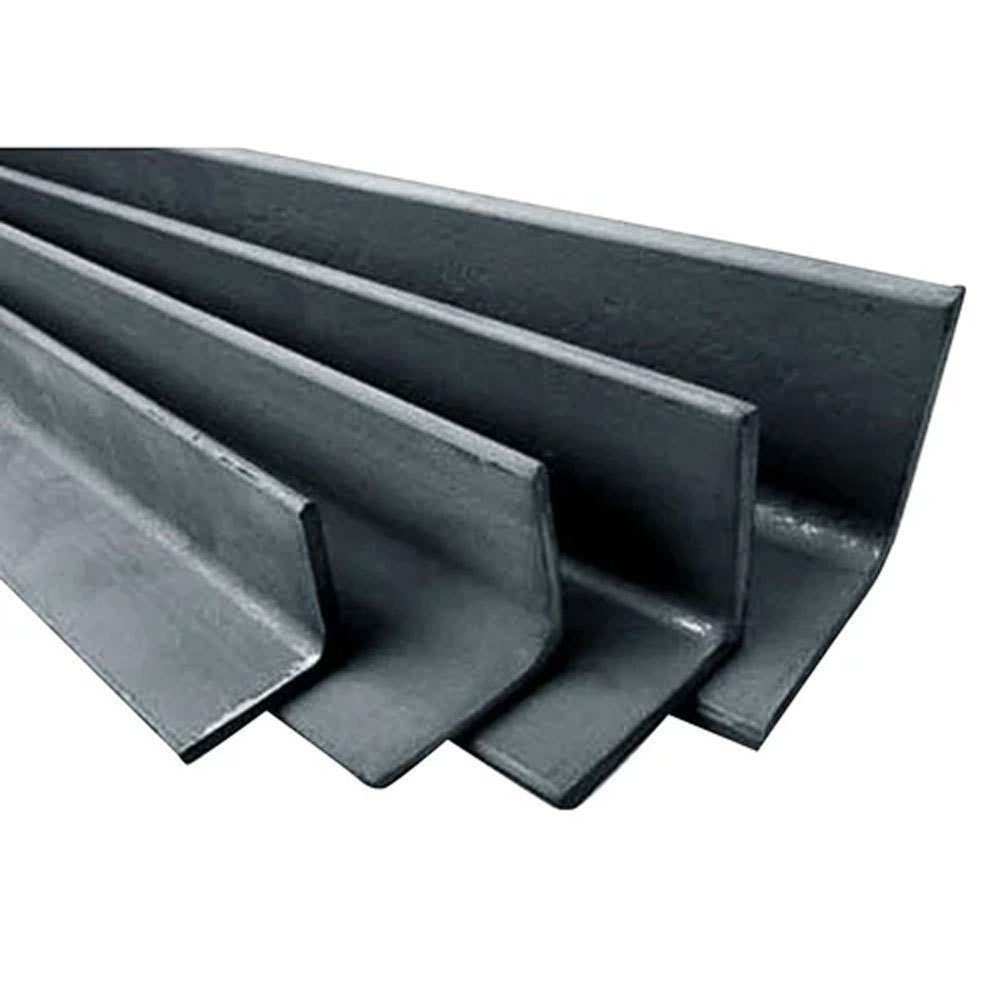

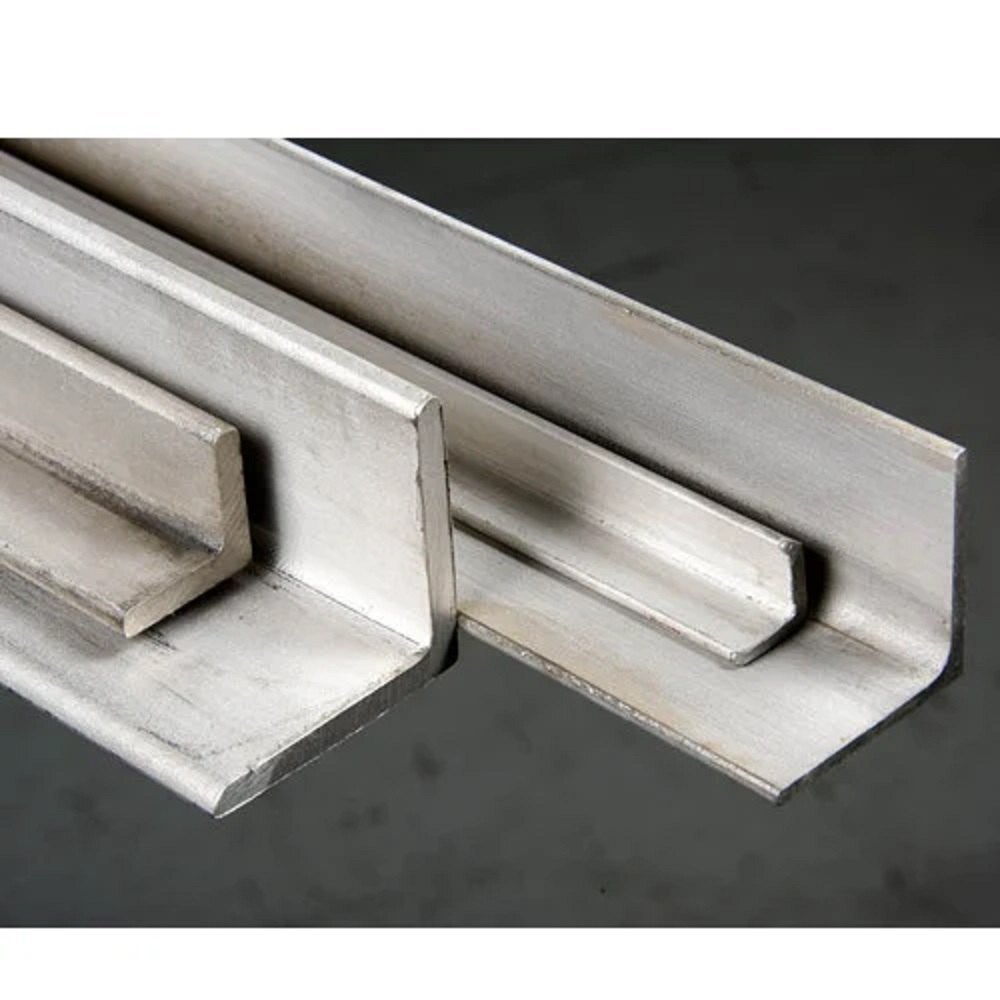

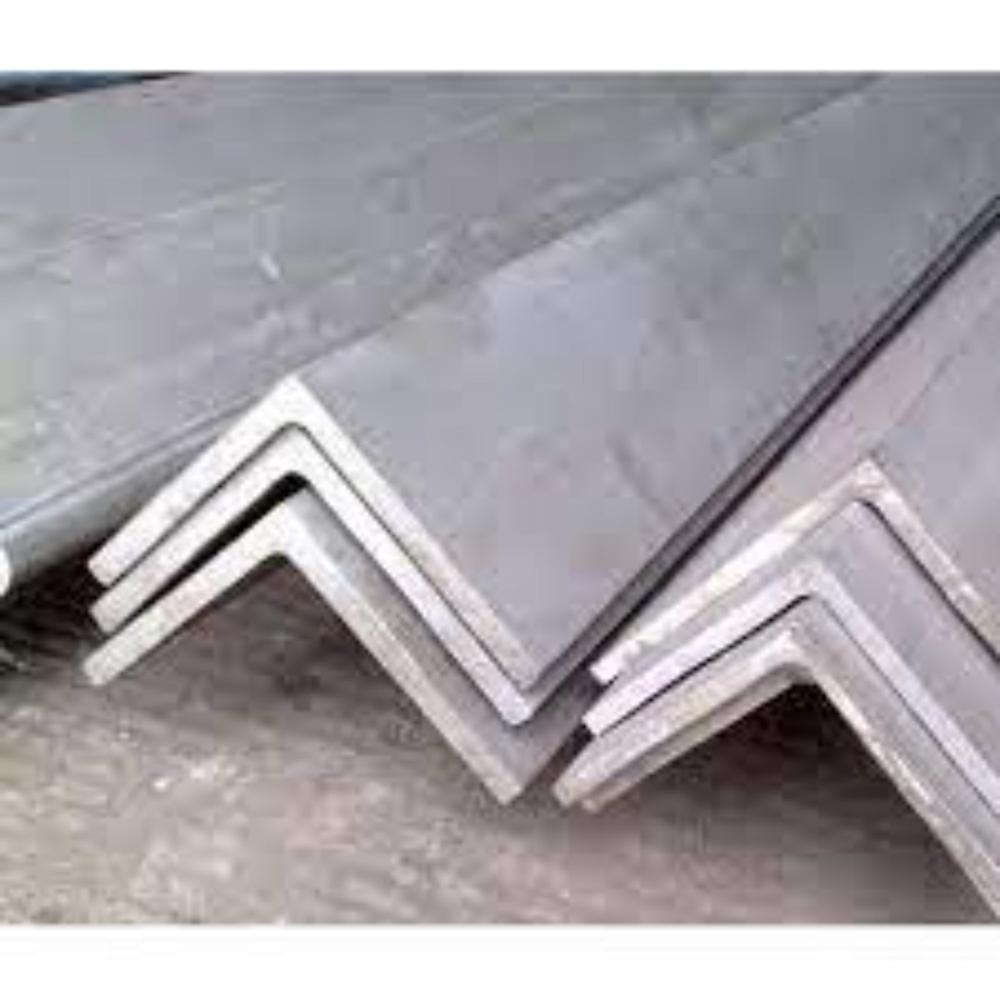

Monel 400 Angle

Name: Monel 400 Angle
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Monel 400 Angle Specification

Purity
Nickel Min. 63%, Copper 28-34%

Grade
Monel 400

Surface
Smooth, Polished, Mill Finish

Width
10 mm to 100 mm or as required

Hardness
67 HRB (Annealed)

Standard
ASTM B160/B164/B564/B366, ASME SB-160/SB-164/SB-564/SB-366

Temper
Annealed/Quarter Hard/Half Hard as required

Thickness
3 mm to 20 mm or as required

Strength
Tensile Strength 480 MPa min, Yield Strength 170 MPa min

Material
Monel 400

Alloy
Nickel-Copper Alloy

Shape
Other

Moisture
Nil (Non-hygroscopic)

Chemical Composition
Nickel (63% min), Copper (28-34%), Iron (2.5% max), Manganese (2% max), Carbon (0.3% max), Silicon (0.5% max), Sulphur (0.024% max)

Application
Marine Engineering, Chemical Processing, Oil & Gas, Heat Exchangers

Dimension (L*W*H)
Custom/As required, standard 5-6 meters length

Color
Metallic Silver

Density
8.80 g/cm3

Edge Type
Square, Sharp Edge

Magnetic Properties
Non-magnetic at room temperature

Melting Point
1300C

Packaging Type
Wooden box/bundles with HDPE wrapping

Thermal Conductivity
21.8 W/m.K at 20C

Delivery Condition
As rolled/Annealed

Fabrication
Easily welded, hot & cold worked

Corrosion Resistance
Excellent in seawater and most acids & alkalis

Finish
Pickled, Polished, Shot blasted

Monel 400 Angle Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Monel 400 Angle About

Monel 400 Angle is a structural member produced from Monel 400, a nickel-copper alloy with high corrosion resistance and andity. This alloy is very useful in areas of high corrosion, and it has been applied in many industries because of its high performance and flexibility.

Exceptional Corrosion Resistance

Monel 400 Angle offers outstanding resistance to corrosion in seawater, most acids, and alkalis, making it highly reliable in aggressive environments. Its high nickel and copper content ensures long-term durability and low maintenance costs for marine and industrial installations.

Versatile Fabrication and Finishes

Thanks to its excellent formability, Monel 400 Angle can be welded, hot or cold worked, and supplied in various tempers. Finish options such as pickled, polished, and shot blasted enhance both aesthetics and performance, allowing customization based on specific project requirements.

Comprehensive Application Range

Suitable for marine engineering, chemical processing, oil & gas, and heat exchangers, this angle provides high strength and consistent quality. With compliance to ASTM and ASME standards and customizable sizes, Monel 400 Angle addresses diverse industry needs.

FAQ's of Monel 400 Angle:

Q: How is Monel 400 Angle fabricated for industrial applications?

A: Monel 400 Angle can be easily fabricated using welding as well as hot and cold working processes. Its ductile nature and availability in various tempers (annealed, quarter hard, half hard) make it suitable for shaping and joining in industrial projects.

Q: What makes Monel 400 Angle exceptionally resistant to corrosion?

A: The high proportion of nickel (minimum 63%) and copper (28-34%) in Monel 400 Angle grants it superior resistance to seawater, acids, and alkalis. This chemical composition makes it a preferred choice in marine and chemical processing operations.

Q: Where is Monel 400 Angle commonly used?

A: Monel 400 Angle is widely used in marine engineering, chemical processing, oil & gas installations, and heat exchangers where durability and corrosion resistance are essential. Its robustness also suits offshore and coastal construction.

Q: What are the typical packaging and delivery conditions for Monel 400 Angle?

A: Monel 400 Angle is packaged securely in wooden boxes or bundles, wrapped with HDPE to prevent moisture and physical damage during transit. It is supplied either as rolled or annealed, depending on required specifications.

Q: What benefits does Monel 400 Angle offer over standard carbon steel angles?

A: Compared to carbon steel, Monel 400 Angle provides far superior corrosion resistance, especially in saline and acidic environments. It is also non-magnetic at room temperature and maintains high mechanical strength, translating to a longer service life in harsh conditions.

Q: How can customers specify the dimensions and finish of Monel 400 Angle for their projects?

A: Customers can request custom dimensions, including thickness (3-20 mm), width (10-100 mm), and length (typically 5-6 meters or as needed). Available finishes include pickled, polished, shot blasted, and different edge types, ensuring the angle matches precise project requirements.
