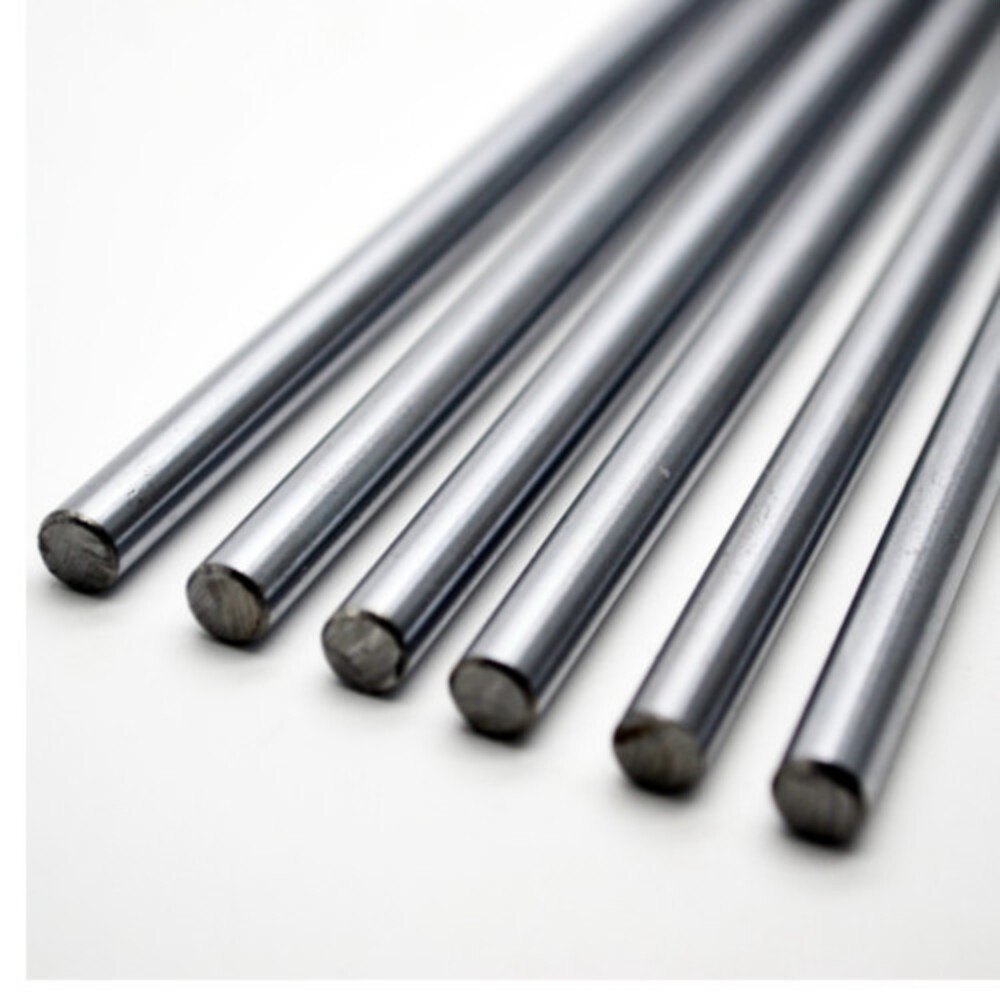

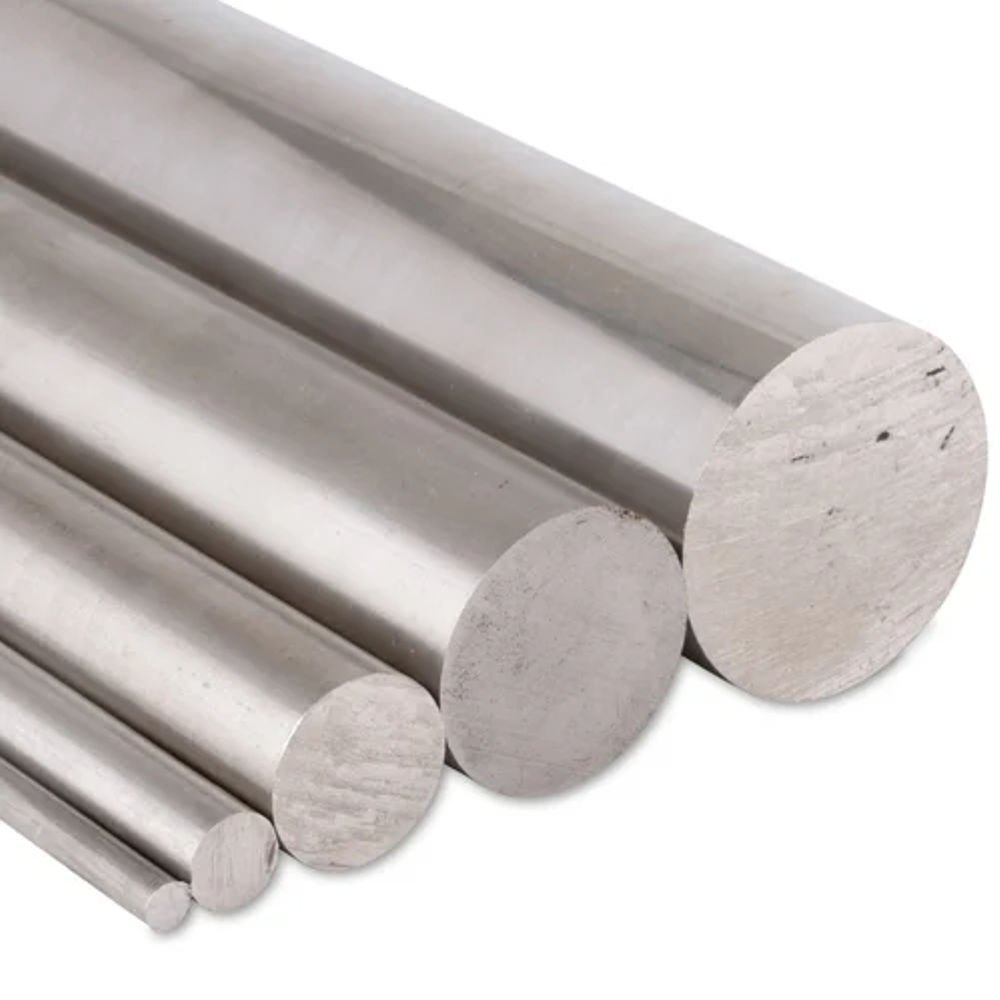

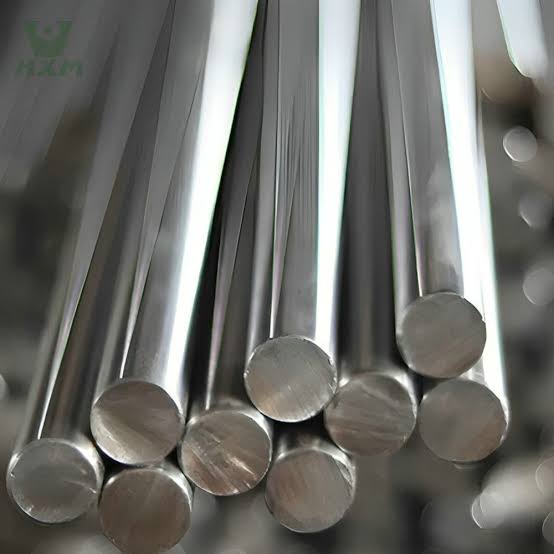

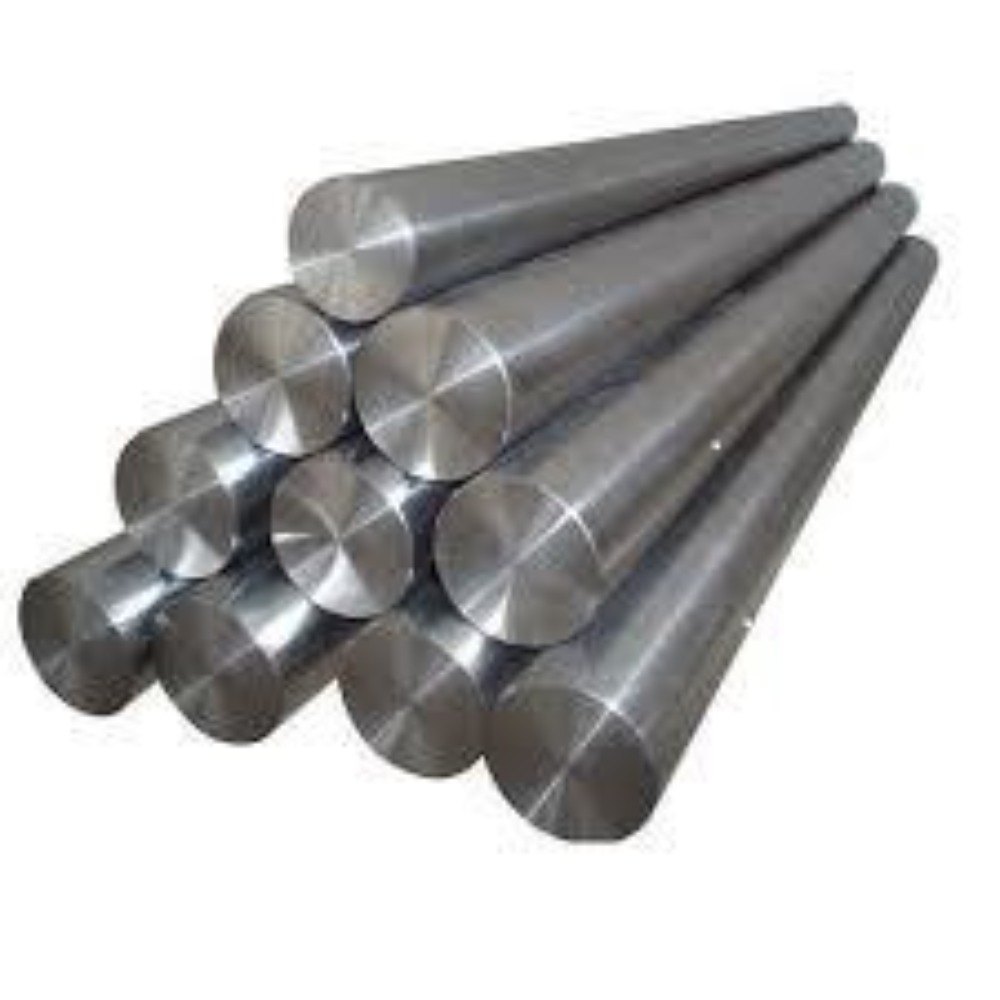

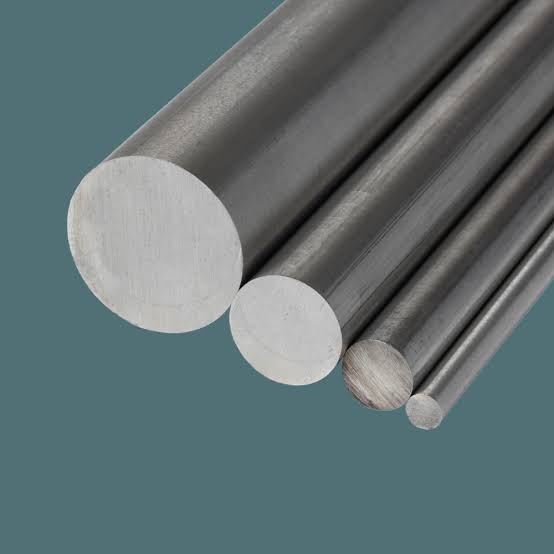

Monel 400 Bars
Monel 400 Bars
Monel 400 Bars
Monel 400 Bars
Monel 400 Bars
Monel 400 Bars
Monel 400 Bars
Monel 400 Bars
Monel 400 Bars
Monel 400 Bars
Monel 400 Bars
Monel 400 Bars

Monel 400 Bars

Price 500.00 INR/ Kilograms

MOQ : 1 Kilograms

Monel 400 Bars Specification

  • Thickness
  • Custom as per requirement
  • Hardness
  • Rockwell B75 - B90
  • Standard
  • ASTM B164, ASME SB164
  • Strength
  • Ultimate Tensile Strength 550 MPa min
  • Surface
  • Bright, Polished, Black, Peeled
  • Grade
  • Monel 400
  • Temper
  • Annealed / Cold Worked
  • Width
  • Standard Diameter Size: 3 mm - 350 mm
  • Purity
  • >99%
  • Product Type
  • Bar Rod
  • Material
  • Solid Monel 400
  • Alloy
  • Nickel-Copper Alloy
  • Shape
  • Bar (Round, Hex, Square)
  • Chemical Composition
  • Nickel (Min 63%), Copper (28-34%), Iron (Max 2.5%), Manganese (Max 2.0%), Silicon (Max 0.5%), Carbon (Max 0.3%)
  • Application
  • Aerospace, Fasteners, Shafts, Fittings
  • Dimension (L*W*H)
  • Custom as per requirement (Length up to 6 meters typical)
  • Color
  • Silver/Grey metallic
  • Finish
  • Smooth, Machined, As Rolled
  • Yield Strength (0.2% offset)
  • 170 MPa min
  • Melting Point
  • 1300C - 1390C
  • Modulus of Elasticity
  • 179 GPa
  • Packaging
  • Wooden Box, Bundle, Custom as required
  • Corrosion Resistance
  • Excellent in marine and chemical environments
  • Elongation
  • Minimum 30% in 50 mm
  • Density
  • 8.8 g/cm3
  • Workability
  • Good (hot and cold working possible)
  • Magnetic Permeability
  • Very low (Non-magnetic at room temperature)


Monel 400 Bars Trade Information

  • Minimum Order Quantity
  • 1 Kilograms
  • Delivery Time
  • 7 Days


Monel 400 Bars About

Monel 400 bars are preferred because of their features and mechanical properties. They are mainly composed of nickel and copper and contain lesser amounts of iron, manganese, carbon, and silicon.

Exceptional Corrosion Resistance

Monel 400 Bars exhibit remarkable resistance to corrosion, making them ideal for harsh marine and chemical exposure. The unique nickel-copper alloy composition ensures long-lasting performance even in highly corrosive environments, greatly reducing maintenance needs and extending service life across varied applications.


Versatile Machining & Workability

Thanks to their excellent hot and cold workability, Monel 400 Bars can be tailored for a wide range of industrial uses. Whether you require annealed or cold-worked temper, these bars can be formed, machined, or finished to precise dimensions, accommodating custom specifications and complex design requirements.


Diverse Applications and Custom Options

Monel 400 Bars are valued in aerospace, fastener manufacturing, shaft production, and fittings due to their reliable strength and non-magnetic properties. They are available in multiple cross-sections, finishes, and diameter sizes from 3 mm to 350 mm, with packaging customized to client needs, ensuring safe and efficient delivery.

FAQ's of Monel 400 Bars:


Q: How are Monel 400 Bars commonly used in industry?

A: Monel 400 Bars are widely utilized in sectors like aerospace, marine engineering, and chemical processing. Their exceptional resistance to corrosion and mechanical durability make them preferred for fasteners, shafts, fittings, and specialized aerospace components.

Q: What benefits does Monel 400 offer over other metal bars?

A: Monel 400 Bars deliver superior corrosion resistance in marine and chemical environments, are non-magnetic at room temperature, and maintain high strength even in harsh service conditions, ensuring longevity and reliability where alternative materials may fail.

Q: What is the process for fabricating Monel 400 Bars into finished parts?

A: Monel 400 Bars can be fabricated through both hot and cold working, followed by machining for precise tolerances. They are available annealed or cold worked, allowing flexibility depending on required mechanical properties and end-use applications.

Q: Where do Monel 400 Bars demonstrate the greatest corrosion resistance?

A: These bars excel in environments involving seawater, acidic and alkaline conditions, making them highly effective in marine and chemical processing setups where resistance to pitting, stress corrosion, and oxidation is critical.

Q: What standard specifications do Monel 400 Bars meet?

A: Monel 400 Bars are manufactured as per ASTM B164 and ASME SB164 standards, ensuring their suitability and reliability for demanding engineering and industrial applications worldwide.

Q: How are Monel 400 Bars packaged and supplied?

A: Packaging options for Monel 400 Bars include sturdy wooden boxes, bundled arrangements, or custom packaging as required by the client, ensuring safety and integrity during storage and transport.
