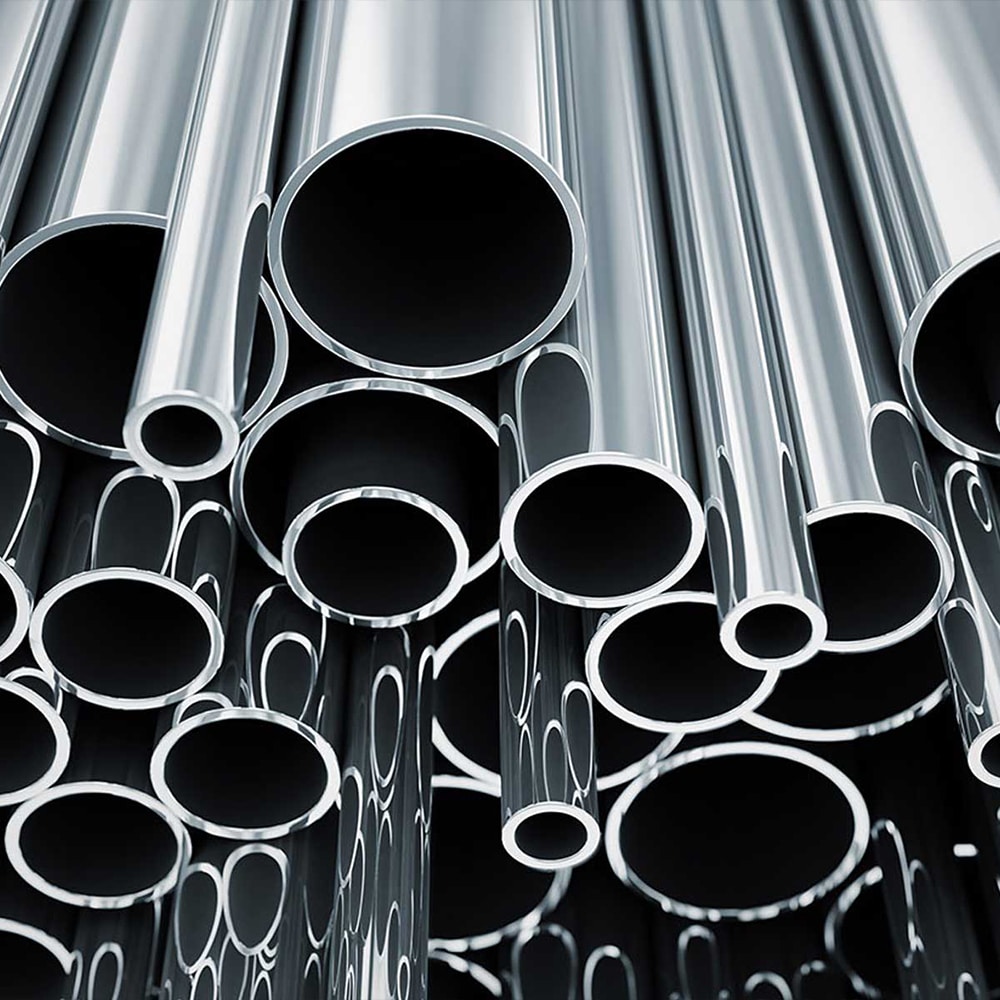

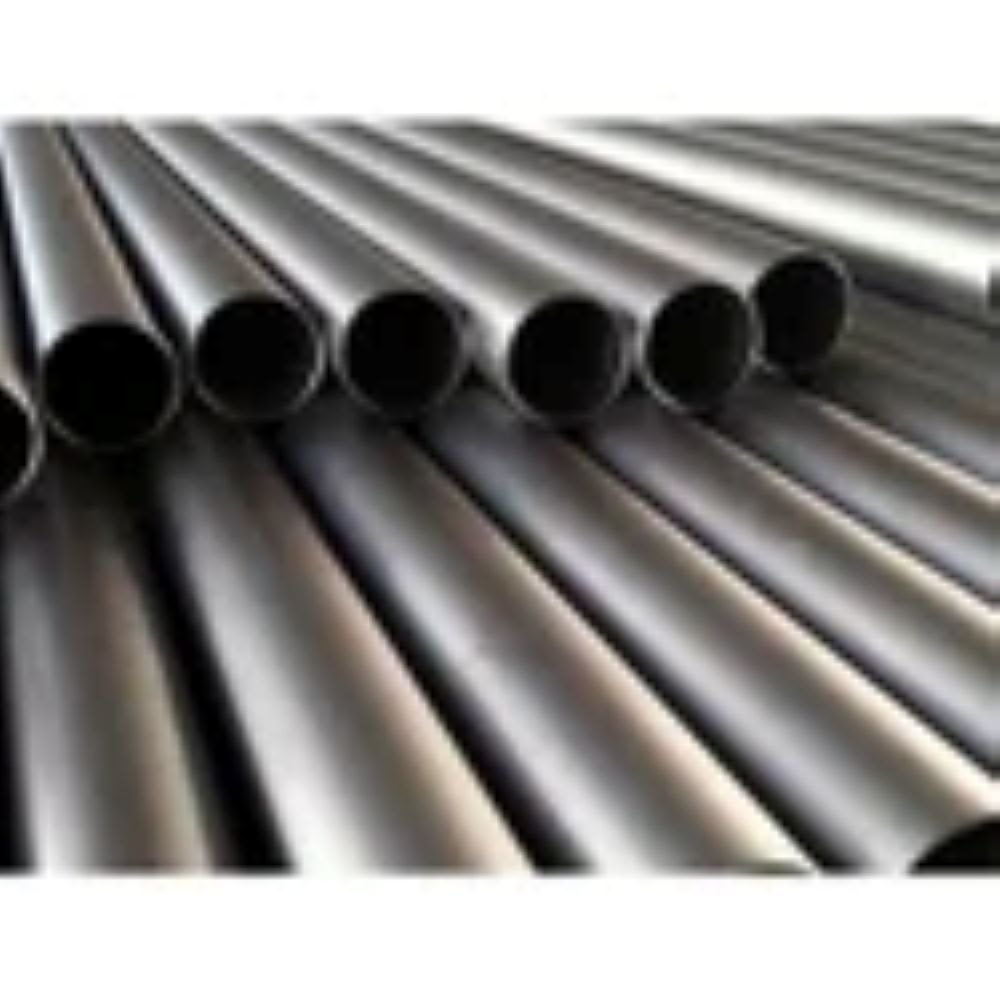

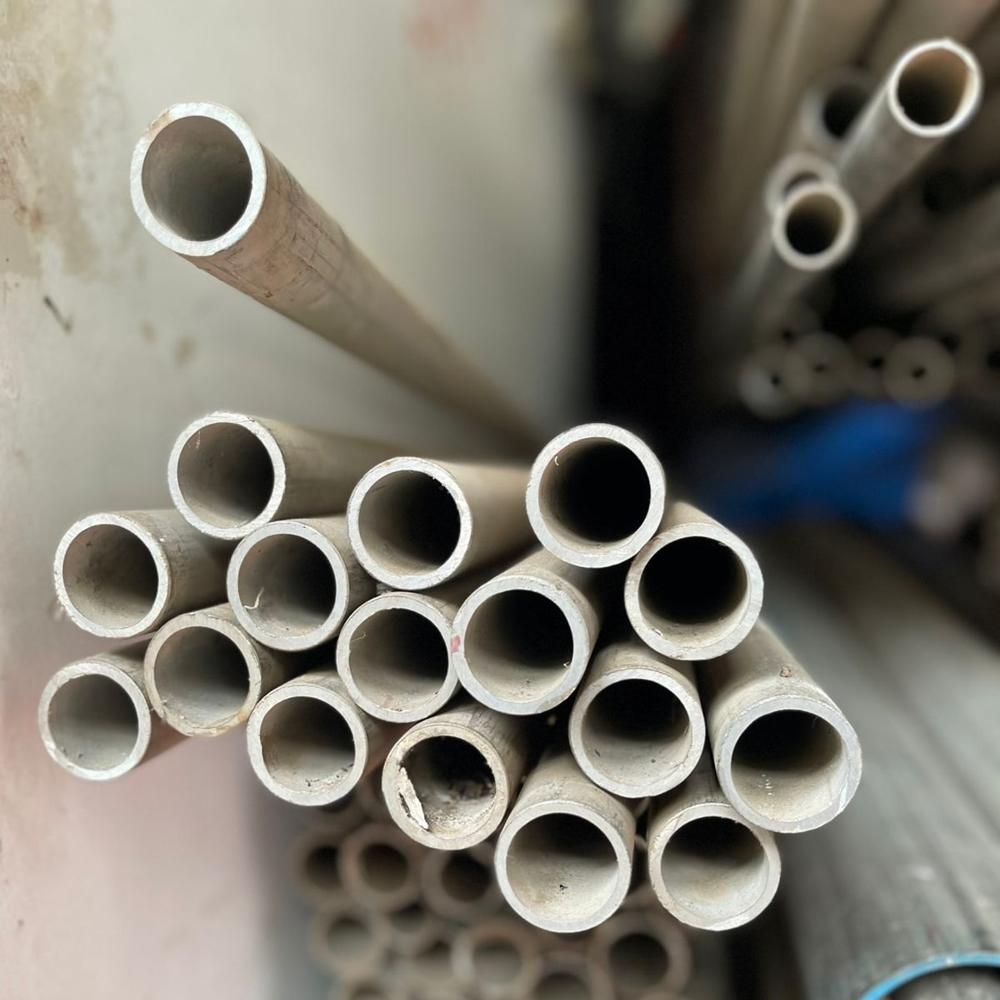

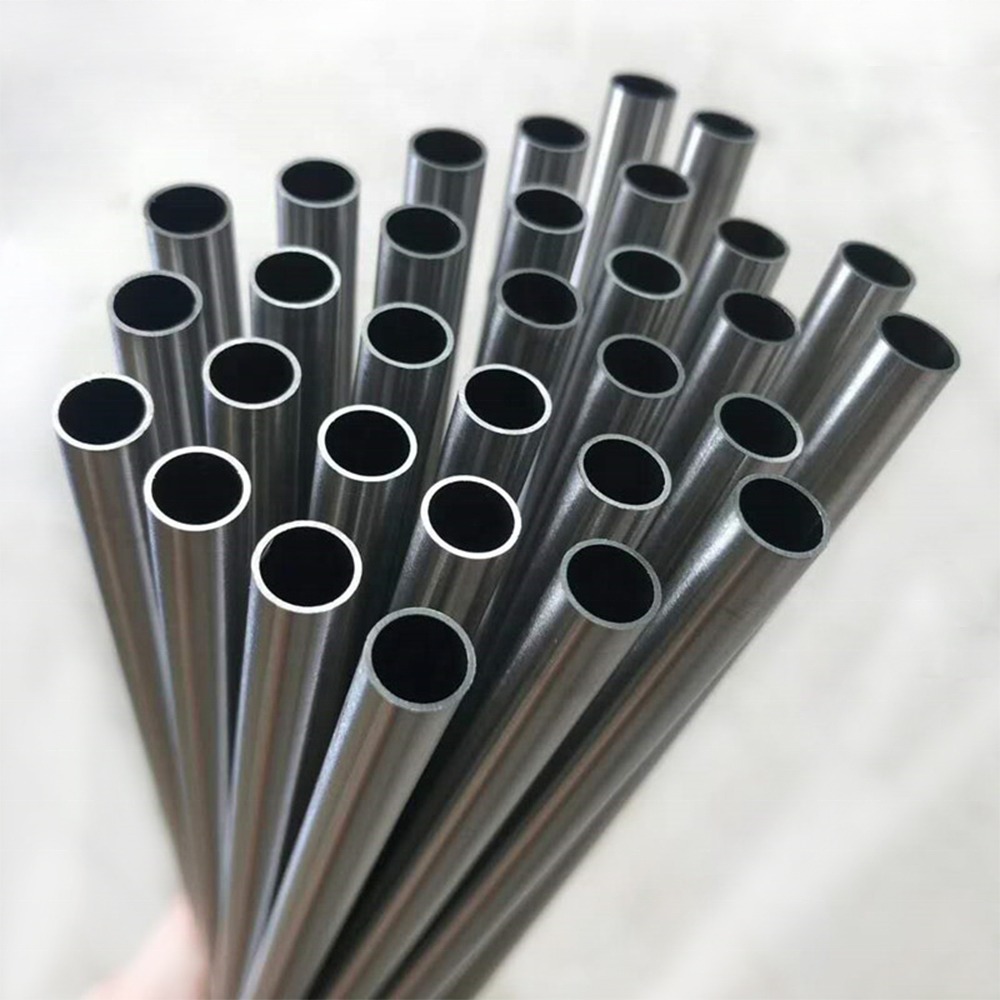

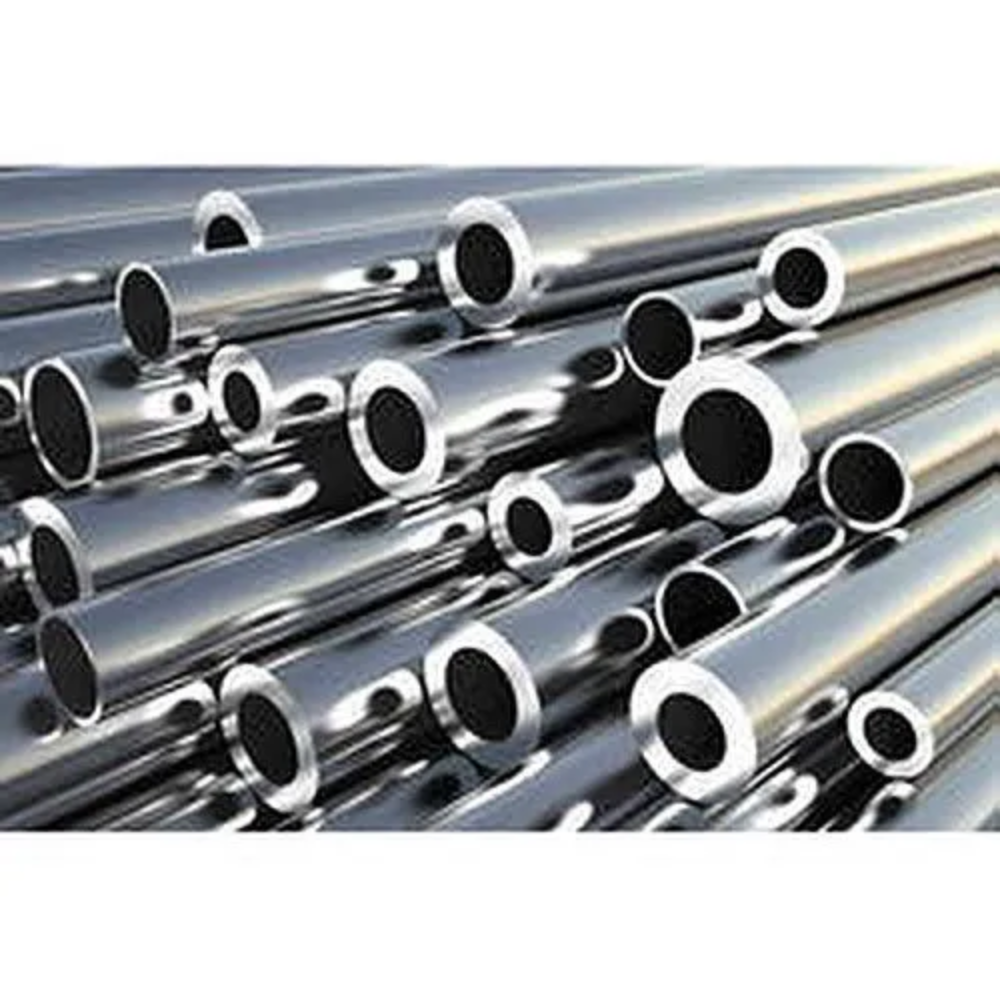

Monel K500 Tubing

Name: Monel K500 Tubing
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Monel K500 Tubing Specification

Purity
High Purity Nickel-Copper Alloy

Standard
ASTM B163, ASTM B165, ASTM B775, ASTM B730

Thickness
0.5 mm to 6 mm

Width
Not Applicable (Round Tube)

Surface
Smooth, Polished

Grade
Monel K500

Strength
Yield Strength: 760 MPa (110,000 psi)

Hardness
Rockwell B88 (Annealed), C35 (Aged)

Temper
Annealed or Aged

Product Type
Seamless & Welded Tubing

Material
Monel K500

Alloy
Nickel-Copper Alloy

Shape
Round Tubing

Moisture
Moisture Free Surface

Chemical Composition
Nickel: 63%, Copper: 27-33%, Aluminum: 2.3-3.15%, Titanium: 0.35-0.85%, Iron: max 2.0%

Application
Corrosive Environment, High Strength Applications

Dimension (L*W*H)
Customizable (e.g., Length as required, Outer Diameter: 6 mm to 100 mm)

Color
Silver/Grey Metallic

Density
8.44 g/cm3

Manufacturing Method
Welded or Seamless

Melting Range
1315-1350C

Service Temperature
Up to 480C (896F)

End Connections
Plain End, Beveled End, or Threaded

Elongation
23% (in 50mm)

Corrosion Resistance
Excellent resistance to seawater and chemical environments

Tensile Strength
965 MPa (140,000 psi)

Magnetic Properties
Non-magnetic (Annealed), Slightly Magnetic (Aged)

Monel K500 Tubing Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Monel K500 Tubing About

Monel K500 tubing is preferred and widely used due to its high strength and corrosion resistance in harsh conditions. It is a nickel copper tubing with small additions of iron and titanium; it is very reliable and highly resistant.

Superior Corrosion Resistance

Monel K500 Tubing stands out for its exceptional ability to withstand both seawater and harsh chemical environments. This makes it a top-tier choice for industries demanding robust corrosion resistance, such as marine engineering, chemical processing, and oil & gas extraction. Its high purity nickel-copper composition not only provides lasting protection against corrosion but also prolongs service life in challenging settings.

High Strength and Durability

The distinctive strength profile of Monel K500 Tubing, marked by a tensile strength of 965 MPa and yield strength of 760 MPa, ensures reliable performance in structurally demanding scenarios. Hardness levels (Rockwell B88 when annealed, C35 when aged) along with controlled elongation contribute to the tubing's excellent mechanical stability, enabling use in high-stress, high-pressure applications.

Flexible Manufacturing and Customization

Available in both seamless and welded forms, Monel K500 Tubing allows manufacturers to cater to varied project requirements. End connections-plain, beveled, or threaded-further enhance installation flexibility. The tubing can be custom-ordered in a range of diameters (6 mm to 100 mm) and thicknesses (0.5 mm to 6 mm), meeting specialized needs across a multitude of industries.

FAQ's of Monel K500 Tubing:

Q: How is Monel K500 Tubing manufactured?

A: Monel K500 Tubing is produced using either welded or seamless methods, adhering to standards such as ASTM B163, B165, B775, and B730. The process ensures high structural integrity and customization in terms of diameter, thickness, and length, making it ideal for varied industrial applications.

Q: What benefits does Monel K500 Tubing offer over standard stainless steel tubes?

A: Monel K500 Tubing delivers superior corrosion resistance, especially in seawater and chemical settings, along with higher tensile and yield strengths. Its non-magnetic property (in annealed condition) and durability at service temperatures up to 480C give it an advantage in high-strength, corrosive applications.

Q: Where is Monel K500 Tubing typically used?

A: This tubing is commonly deployed in environments with aggressive corrosion challenges, such as marine engineering, offshore platforms, chemical processing plants, and oil & gas pipelines, where both high strength and lasting integrity are essential.

Q: When is it preferable to use seamless versus welded Monel K500 Tubing?

A: Seamless Monel K500 tubing is recommended for applications requiring maximum pressure tolerance and uniform strength throughout the tube, while welded tubes are suitable for less demanding systems or when cost efficiency is a priority.

Q: What are the available end connection options for Monel K500 Tubing?

A: Monel K500 Tubing can be supplied with plain ends, beveled ends, or threaded ends, ensuring compatibility with different joining techniques and system requirements.

Q: What is the process for customizing Monel K500 Tubing dimensions?

A: Customers can specify required lengths and choose from an outer diameter range of 6 mm to 100 mm and wall thickness from 0.5 mm to 6 mm. Manufacturers and suppliers tailor the tubing to match precise project specifications.
