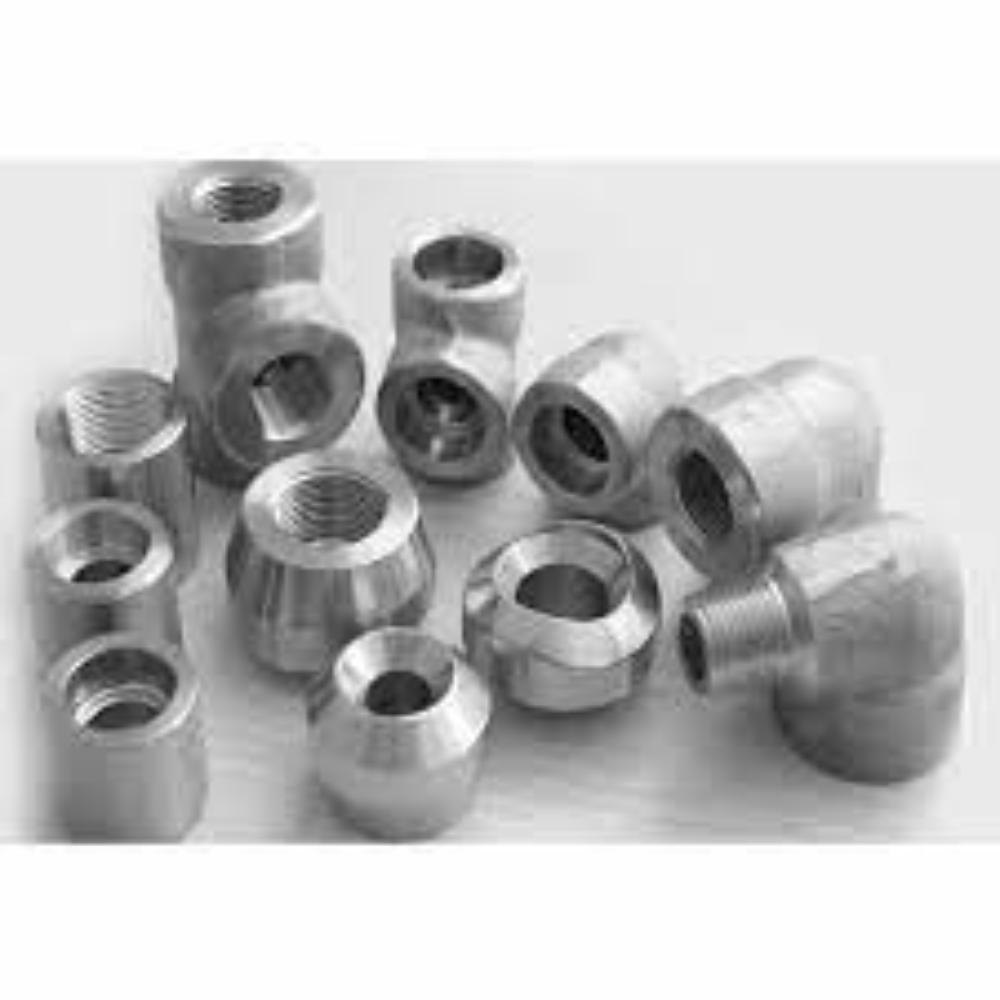

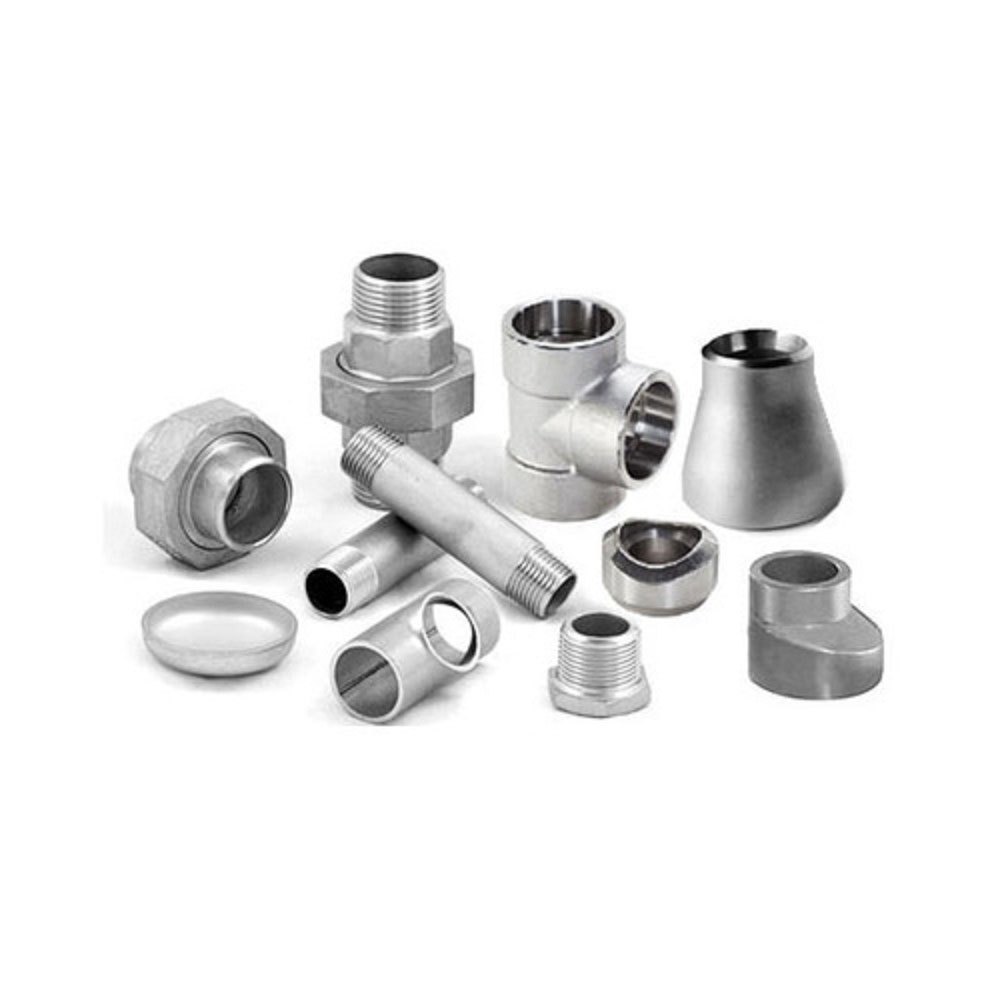

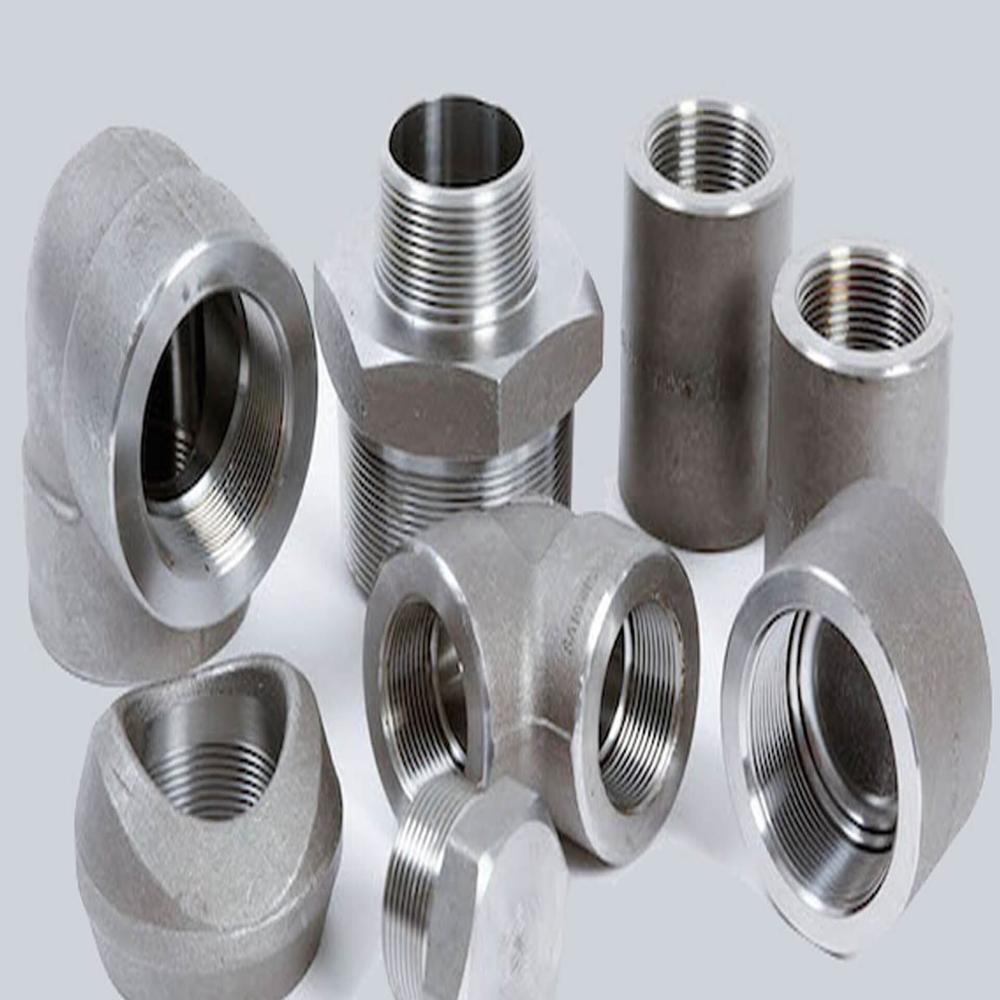

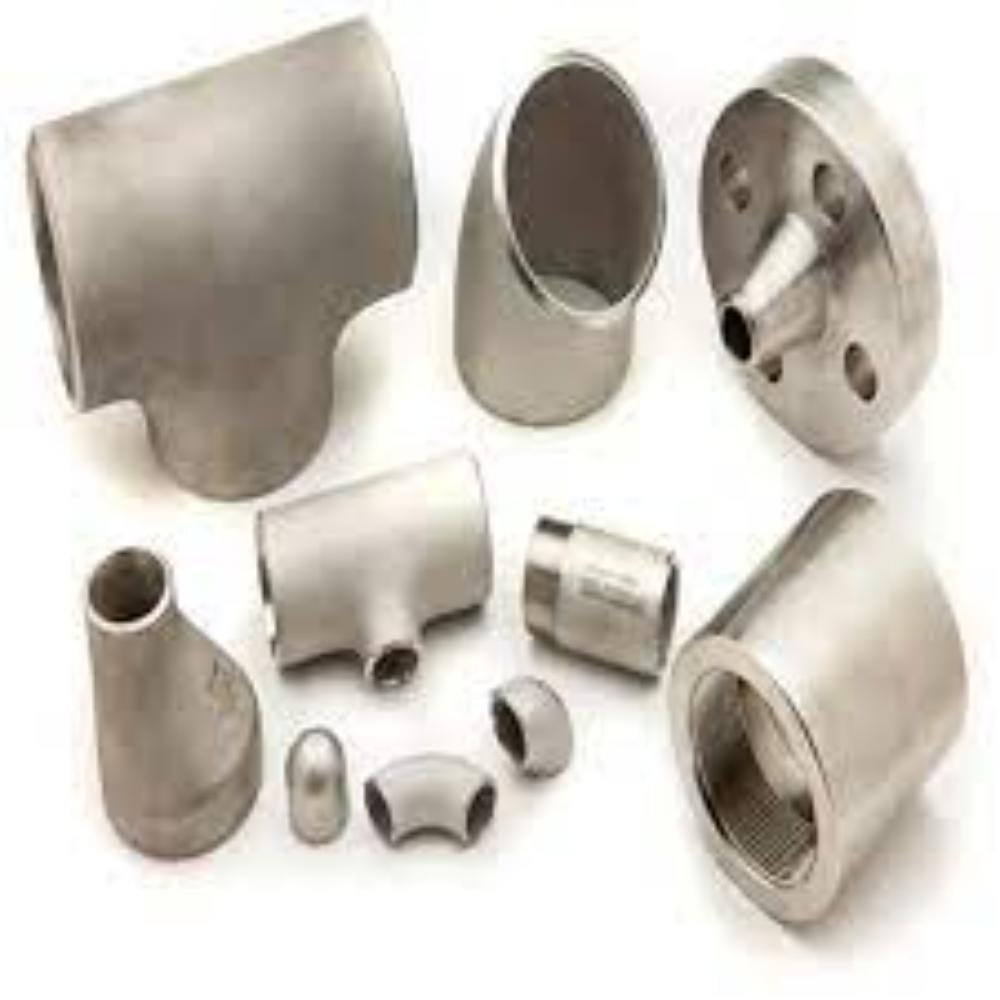

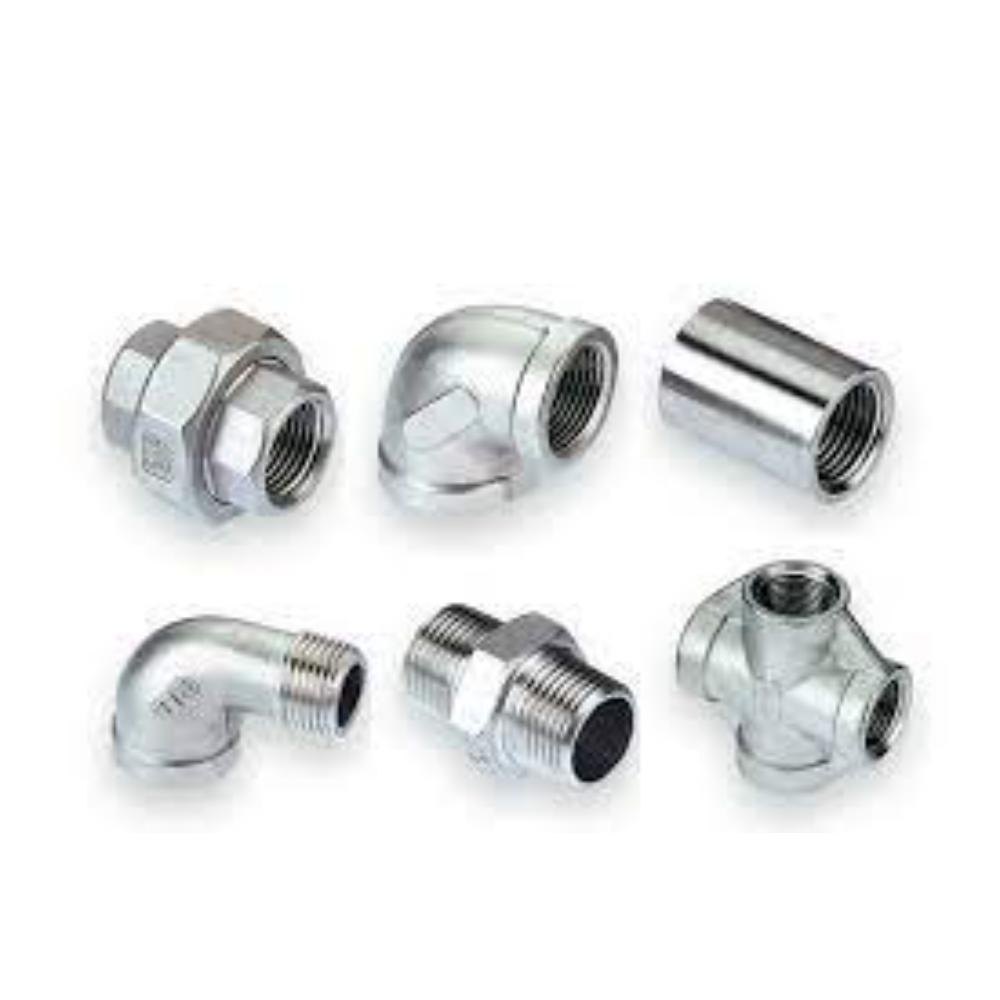

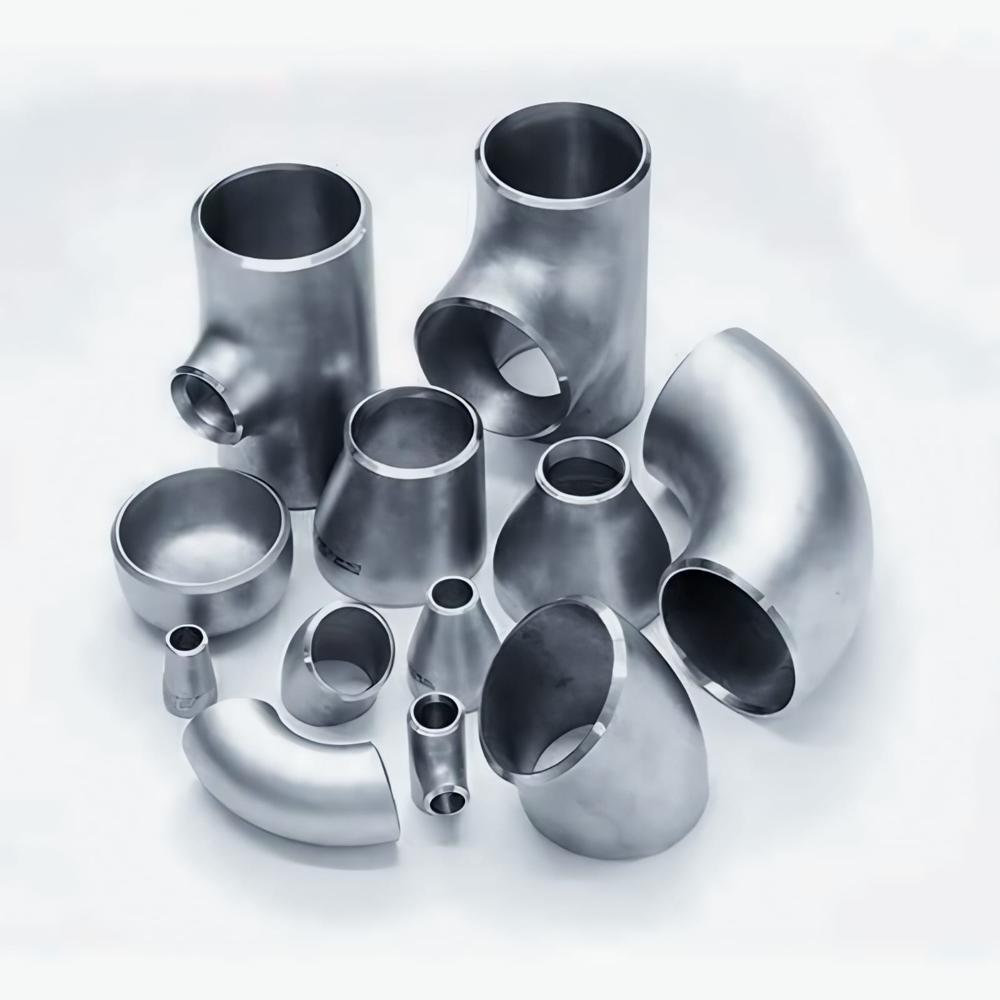

Super Duplex Steel 2507 Forged Fittings

Name: Super Duplex Steel 2507 Forged Fittings
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Super Duplex Steel 2507 Forged Fittings Specification

Hardness
max. 32 HRC (Rockwell C)

Tensile Strength
min. 795 MPa

Heat Resistance
Yes

Temper
Annealed

Width
As per client requirement / standard sizes

Product Form
Forged Fittings - threaded & socket weld

Size
As per ASME/ANSI B16.11 and custom sizes

Material Composition %
Cr 24-26, Ni 6-8, Mo 3-5, N 0.24-0.32

Diameter
1/8 NB to 4 NB (threaded & socket weld)

Corrosion Resistant
Excellent to pitting, crevice, and stress corrosion

Coating Type
None / Uncoated

Recyclable
Yes

Chemical Composition
Cr 24-26%, Ni 6-8%, Mo 3-5%, N 0.24-0.32%, Mn 1.2%, Si 0.8%, P 0.035%, S 0.02%, C 0.03%, Fe balance

Product Name
Super Duplex Steel 2507 Forged Fittings

Steel Type
Super Duplex Stainless Steel

Steel Product Type
Forged Fitting

Grade
2507 (UNS S32750 / UNS S32760)

Thickness
SCH 10, SCH 20, SCH 40, SCH 80, SCH 160, SCH XXS, or as specified

Shape
Tee, Elbow, Coupling, Union, Cross, Plug, Cap, Nipple

Steel Standard
ASTM A182 / ASME SA182

Surface
Bright, Clean, Pickled, Sandblasted, Polished

Composition
Duplex microstructure of austenite and ferrite

Application
Petrochemicals, Oil & Gas, Chemical processing industries, Marine applications, Paper & Pulp industry, Power plants, Heat exchangers, Offshore industries

Dimension (L*W*H)
Standard and custom as per requirements

Weight
Varies by fitting type and size

Color
Silvery metallic

Material Grade
Super Duplex 2507

Finish Type
Machined / Polished

Usage
Pipe fittings for high pressure & corrosive environments

Magnetic Properties
Ferritic-Austenitic structure provides moderate magnetic properties

Temperature Range
-50C to +315C

Pressure Rating
Class 2000/3000/6000/9000 lbs

Thread Standard
NPT, BSP, BSPT

Compliance
NACE MR0175/ISO 15156, PED 2014/68/EU

Testing
Hydrostatic Testing, PMI, Ultrasonic, Radiography upon request

Connection Type
Socket Weld / Screwed (Threaded)

Manufacturing Process
Closed Die Forging

Super Duplex Steel 2507 Forged Fittings Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Super Duplex Steel 2507 Forged Fittings About

Super Duplex Steel 2507 Forged Fittings, known for their exceptional combination of strength and corrosion resistance, have been revolutionizing industries across the globe. At the heart of these high-performing fittings lies their unique chemical composition, featuring a well-balanced mix of elements. Primarily a two-phase, 50-50 ferritic-austenitic stainless steel alloy, the 2507 variant boasts a high chromium and molybdenum content, significantly enhancing its corrosion resistance.

Superior Corrosion Resistance

Super Duplex Steel 2507 Forged Fittings excel in harsh chemical and marine environments. Their duplex microstructure delivers optimal resistance to pitting, crevice, and stress corrosion, outperforming many conventional stainless steels. Superior resilience ensures an extended service lifespan and reliability when used in aggressive media or saline conditions.

Exceptional Mechanical Strength

With a minimum tensile strength of 795 MPa and hardness up to 32 HRC, these fittings are designed to withstand high pressure and mechanical demands. They are available with pressure ratings up to 9000 lbs and can function efficiently across a wide working temperature range from -50C to 300C, making them well-suited for critical and high-stress applications.

Versatile Fitting Solutions

Offered in several configurations-such as elbows, tees, crosses, couplings, and more-Super Duplex Steel 2507 Forged Fittings cater to diverse piping needs. Threaded and socket weld end connections, various thicknesses, and adaptable sizes according to ASME/ANSI B16.11 or custom requirements ensure the right solution for every project.

FAQ's of Super Duplex Steel 2507 Forged Fittings:

Q: How are Super Duplex Steel 2507 Forged Fittings tested for quality and integrity?

A: These fittings can undergo stringent testing such as dye penetrant and hydrostatic testing upon request or as per project specifications, ensuring defect-free surfaces and leak-free performance even in demanding environments.

Q: What pressure ratings are available for these forged fittings?

A: Super Duplex 2507 forged fittings come with rated pressures of 2000 lbs, 3000 lbs, 6000 lbs, and 9000 lbs, supporting high-pressure applications in oil & gas, marine, and chemical plants.

Q: When should I choose NPT, BSP, or BSPT thread types for these fittings?

A: Thread types should be selected based on your system design and regional standards. NPT is common in North America, while BSP and BSPT are often used in Europe and Asian markets. The manufacturer can provide any thread type as per request.

Q: Where are Super Duplex 2507 forged fittings typically used?

A: These fittings are widely applied in industries such as petrochemicals, oil & gas, marine processing, pulp and paper, heat exchangers, and offshore operations due to their superb strength and corrosion resistance.

Q: What are the benefits of using Super Duplex 2507 forged fittings compared to standard stainless steel options?

A: Super Duplex 2507 provides enhanced resistance to pitting and crevice corrosion, higher tensile strength, and better performance under fluctuating temperatures, offering longer service life and reduced maintenance in aggressive environments.

Q: How can I ensure the fittings conform to my specific dimensions and surface finish requirements?

A: Fittings can be manufactured to both standard sizes (as per ASME/ANSI B16.11) and custom dimensions. Surface options include bright, clean, pickled, sandblasted, or polished finishes, tailor-made to client requirements.
