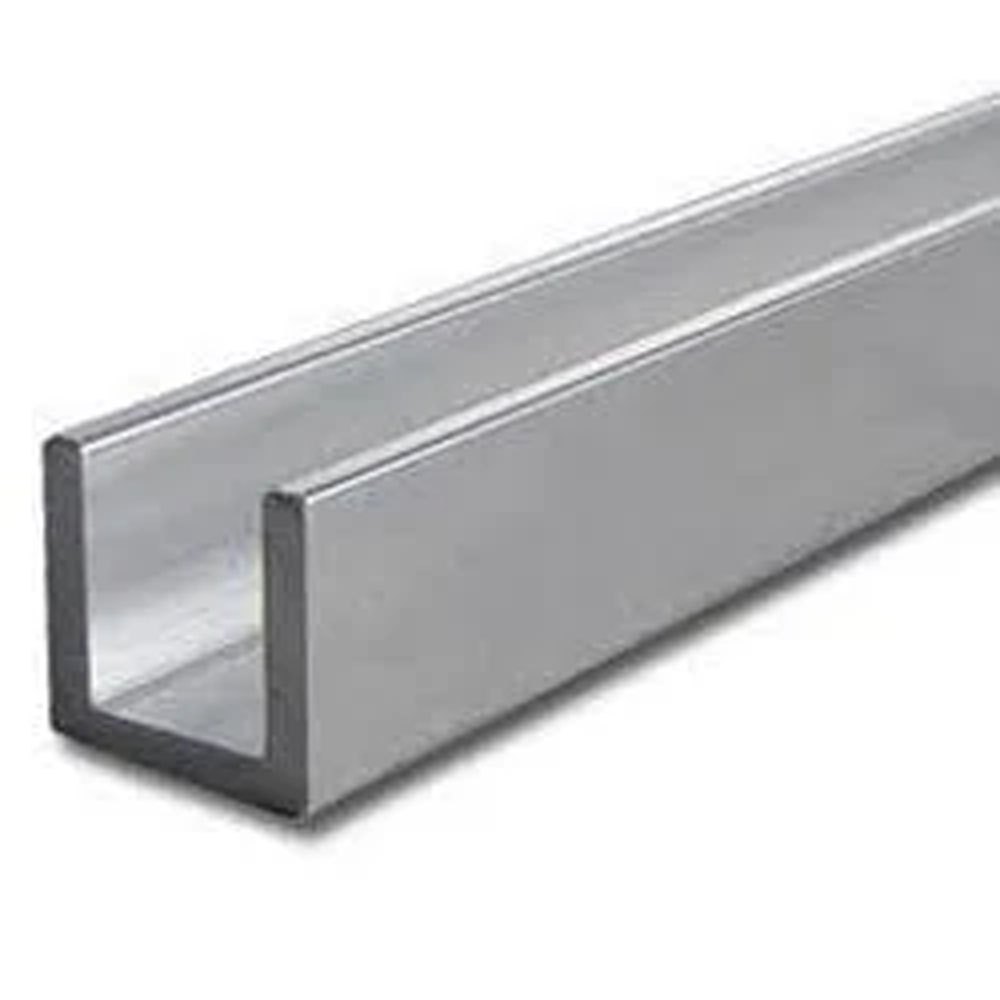

Super Duplex Steel S32550 Channels

Name: Super Duplex Steel S32550 Channels
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Super Duplex Steel S32550 Channels Specification

Product Form
Channel

Diameter
N/A (Channel)

Material Composition %
Cr 24-26%, Ni 4.5-6.5%, Mo 2.9-3.9%, N 0.08-0.20%

Chemical Composition
Cr 24-26%, Ni 4.5-6.5%, Mo 2.9-3.9%, Mn 1.5%, Si 0.80%, C 0.03%, S 0.020%, P 0.035%, N 0.08-0.20%

Recyclable
Yes

Heat Resistance
Yes

Width
20 mm to 500 mm, customizable as per requirements

Hardness
290 HB (Brinell)

Corrosion Resistant
Yes, excellent resistance to pitting and crevice corrosion

Size
20 mm to 500 mm width x 3 mm to 50 mm thickness

Coating Type
Uncoated, Passivated Surface Available

Tensile Strength
Minimum 750 MPa

Temper
Annealed / Pickled

Product Name
Super Duplex Steel S32550 Channel

Steel Type
Super Duplex Stainless Steel

Steel Product Type
Structural Channel

Grade
S32550 (1.4507/Super Duplex)

Thickness
3 mm to 50 mm

Shape
U Channel

Steel Standard
ASTM A276, ASTM A479, EN 10088, ASME SA276

Surface
Pickled, Hot Rolled, Polished

Composition
Duplex stainless steel with increased Chromium, Nickel, Molybdenum, and Nitrogen content

Application
Construction, Chemical Processing, Marine, Oil & Gas

Dimension (L*W*H)
Customizable, standard length 6m or as required

Weight
Varies with size and length, approx. 2-30 kg/meter

Color
Metallic Silver

Material Grade
S32550

Finish Type
Mill Finish, Custom Finish on Request

Usage
Support structures, Frames, Beams, Bracing

Yield Strength
550 MPa

Edge Condition
Slit Edge, Mill Edge

Magnetic Properties
Slightly magnetic due to duplex structure

Impact Strength
High (Charpy V-Notch tested)

Production Process
Hot Rolled / Cold Formed

Delivery Condition
Straightened, with or without protective packing

Minimum Order Quantity
As per supplier policy

Density
7.8 g/cm3

Available Lengths
Up to 12 meters or customized

Weldability
Good, but requires proper procedures

Elongation
25% (in 50 mm gauge length)

Standard Tolerance
As per ASTM standards or customized

Super Duplex Steel S32550 Channels Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Super Duplex Steel S32550 Channels About

Super Duplex Steel S32550 Channel is a high-performance alloy widely measured for its extraordinary features, such as high tensile strength, impeccable corrosion resistance, and durability. Due to its high tensile strength and ability to endure high-temperature conditions, it is effective in structural and fabrication applications, hence serving its users well in terms of efficiency and durability.

Exceptional Mechanical Performance

S32550 Super Duplex Steel Channels deliver impressive mechanical capabilities, featuring a modulus of elasticity of 200 GPa, yield strength of 550 MPa, and minimum tensile strength of 750 MPa. Their remarkable impact strength holds strong even at sub-zero temperatures, making them suitable for critical engineering projects that demand reliability and durability.

Superior Corrosion Resistance

Engineered with high levels of chromium, nickel, molybdenum, and nitrogen, S32550 channels offer outstanding protection against pitting and crevice corrosion. This makes them a top choice for harsh environments, including marine and chemical processing sectors, where material longevity and resistance to aggressive elements are essential.

Flexible Customization for Diverse Projects

Available in a wide range of widths (20-500 mm), thicknesses (3-50 mm), and standard or custom lengths (6m, 12m, or cut-to-size), S32550 channels can be tailored to specific project requirements. Options for square edge or custom profile, annealed or pickled temper, and various surface finishes provide greater flexibility for design and application needs.

FAQ's of Super Duplex Steel S32550 Channels:

Q: How is the Super Duplex Steel S32550 Channel typically used in industry?

A: Super Duplex Steel S32550 Channels are commonly used as support structures, frames, beams, and bracing in construction, marine, oil & gas, and chemical processing industries owing to their superior strength and corrosion resistance.

Q: What are the benefits of choosing S32550 channels over conventional stainless steel channels?

A: S32550 channels provide higher tensile and yield strength, excellent resistance to pitting and crevice corrosion, remarkable impact strength at low temperatures, and superior durability, which make them ideal for demanding environments where reliability is crucial.

Q: Can Super Duplex Steel S32550 Channels be custom fabricated for specific project needs?

A: Yes, these channels can be custom cut to desired lengths, widths (20 mm to 500 mm), thicknesses (3 mm to 50 mm), and edge profiles to meet specific design and application requirements.

Q: What is the recommended welding process for S32550 channels?

A: S32550 channels exhibit good weldability and should be welded using suitable filler metals compatible with duplex stainless steels. Proper welding techniques are recommended to preserve corrosion resistance and mechanical properties.

Q: When should you consider using S32550 channels for structural support?

A: S32550 channels are particularly suitable when high strength, superior corrosion resistance, and excellent performance at low temperatures are required, such as in marine, offshore, chemical, or oil and gas infrastructure.

Q: Where do S32550 channels excel in terms of environmental performance?

A: These channels display superior performance in aggressive environments, such as those exposed to seawater, chlorides, or harsh chemicals, due to their advanced duplex microstructure and alloying elements that combat corrosion effectively.

Q: What maintenance and finish options are available for S32550 channels?

A: S32550 channels are supplied uncoated but can feature pickled, hot-rolled, polished, or custom finishes. Passivated surfaces are available to further enhance corrosion resistance, lowering maintenance requirements over the product lifespan.
