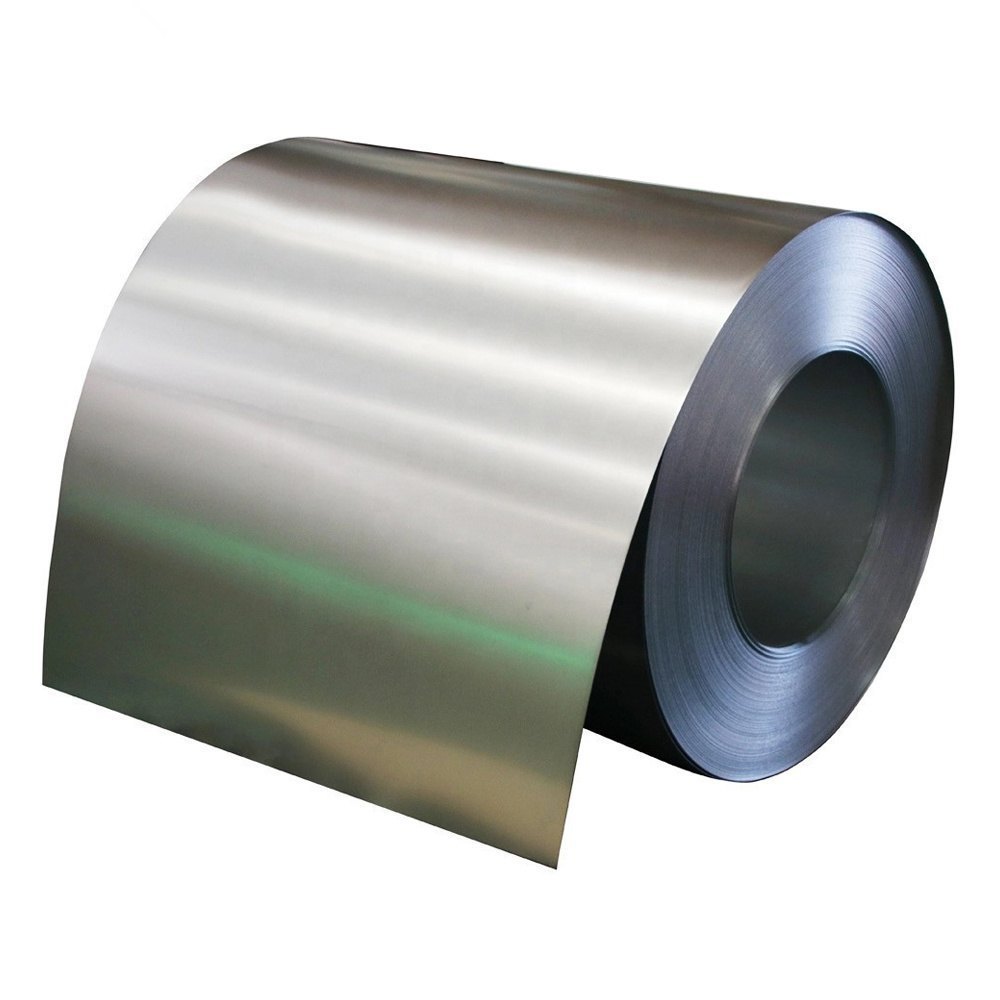

Super Duplex Steel S32750 Foil

Name: Super Duplex Steel S32750 Foil
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Super Duplex Steel S32750 Foil Specification

Temper
Soft, Half Hard, Hard, Quarter Hard, Spring Hard

Corrosion Resistant
Excellent resistance to pitting, crevice and general corrosion

Recyclable
Yes

Tensile Strength
Min. 800 MPa

Width
10 mm to 1500 mm

Heat Resistance
Yes

Chemical Composition
Cr 24-26%, Ni 6-8%, Mo 3-5%, N 0.24-0.32%, W 0.5%, Mn 1.2%, C 0.03%, Si 0.8%, P 0.035%, S 0.02%, Fe Bal.

Hardness
Max. 290 HB

Diameter
As per order (for coil form)

Material Composition %
Cr 24-26%, Ni 6-8%, Mo 3-5%, N 0.24-0.32%, Fe Balance

Size
Custom sizes available

Product Form
Coil, Sheet, Rolls

Coating Type
No external coating, natural finish

Product Name
Super Duplex Steel S32750 Foil

Steel Type
Super Duplex Stainless Steel

Steel Product Type
Foil

Grade
S32750

Thickness
0.01 mm to 3 mm

Shape
Foil Roll

Steel Standard
ASTM A240 / ASME SA240

Surface
Bright, Matte, 2B, BA Finish

Composition
Duplex stainless steel alloyed with molybdenum and nitrogen

Application
Chemical processing, marine, oil and gas, desalination, heat exchangers

Dimension (L*W*H)
Customizable

Weight
As per requirement

Color
Metallic Silver

Material Grade
Super Duplex S32750

Finish Type
Polished, Matte, 2B, BA

Usage
Engineering, process equipment, pressure vessels, pipelines

Density
7.8 g/cm3

Weldability
Good, suitable for all standard welding techniques

Yield Strength
Min. 550 MPa

Forming Capability
Excellent, can be cut, shaped, or formed

Elongation
Min. 15%

Magnetic Properties
Slightly magnetic

Super Duplex Steel S32750 Foil Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Super Duplex Steel S32750 Foil About

Super Duplex Steel S32750 Foil is a high-performance material used for a variety of applications due to its strength and corrosion resistance. It affords better protection against the formation of pitting, crevice corrosion as well and stress corrosion cracking which is fit for the harsh industrial environment.

Exceptional Corrosion Resistance

Super Duplex Steel S32750 Foil provides superior protection against pitting, crevice, and general corrosion, even in aggressive chemical environments. It is particularly effective in chloride- and saline-rich applications, making it a reliable choice for marine, desalination, and oil and gas facilities, ensuring long service life and reduced maintenance costs.

Versatility in Applications and Processing

Due to its excellent forming capability and weldability, S32750 Foil is suitable for complex fabrication processes. It can be cut, shaped, rolled, or welded with standard techniques, allowing custom solutions for pressure vessels, pipelines, and heat exchangers. Various tempers and finishes accommodate specific project requirements.

Tailored Dimensions and Finishes

Available in widths from 10 mm to 1500 mm and thicknesses between 0.01 mm and 3 mm, the foil can be supplied in custom sizes, coils, sheets, or rolls. Surface finishes include bright, matte, 2B, and BA, ensuring both functional and aesthetic suitability for engineering, process equipment, and other specialized uses.

FAQ's of Super Duplex Steel S32750 Foil:

Q: How can Super Duplex Steel S32750 Foil be processed and formed?

A: Super Duplex Steel S32750 Foil offers excellent forming capability. It can be efficiently cut, shaped, bent, or rolled, and is also supplied in a variety of tempers ranging from soft to spring hard. This flexibility allows it to be tailored for complex engineering and manufacturing applications.

Q: What are the main benefits of using S32750 Foil in corrosive environments?

A: The S32750 grade delivers outstanding resistance to pitting, crevice, and general corrosion, making it especially valuable in environments exposed to chlorides, seawater, or harsh chemicals. Its composition, which includes high chromium, molybdenum, and nitrogen, ensures reliability and longevity in challenging applications.

Q: When should I choose S32750 Foil over conventional stainless steel foils?

A: Choose S32750 Foil when you need higher strength, improved corrosion resistance, and performance in offshore, marine, chemical processing, or desalination plants, where standard stainless steels may not suffice. Its enhanced mechanical and corrosion resistance attributes are designed for demanding settings.

Q: What standard welding techniques can be used with this foil?

A: Super Duplex Steel S32750 Foil features good weldability and is compatible with all standard welding techniques, including TIG, MIG, and manual methods. These processes maintain its strength and corrosion resistance, provided suitable filler materials are used.

Q: Where is Super Duplex Steel S32750 Foil commonly used?

A: This foil is widely used in chemical processing, marine applications, oil and gas exploration, desalination plants, and heat exchangers. Its ability to withstand harsh environments makes it ideal for engineering components, pressure vessels, and pipelines requiring strength and corrosion resistance.

Q: What are the available finishes and sizes for S32750 Foil?

A: S32750 Foil is available in polished, matte, 2B, and BA finishes, with customizable dimensions (width: 10 mm to 1500 mm; thickness: 0.01 mm to 3 mm). It can also be provided as coils, sheets, or rolls to meet specific project needs.
