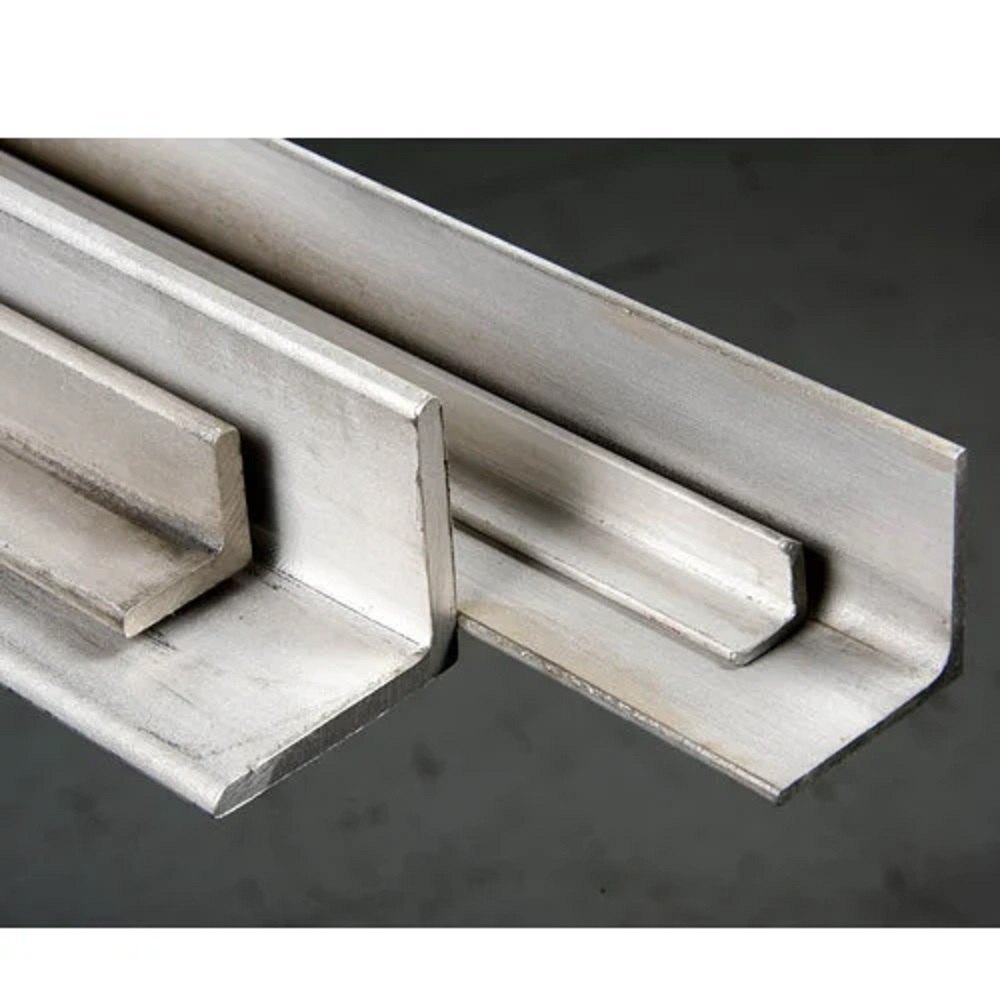

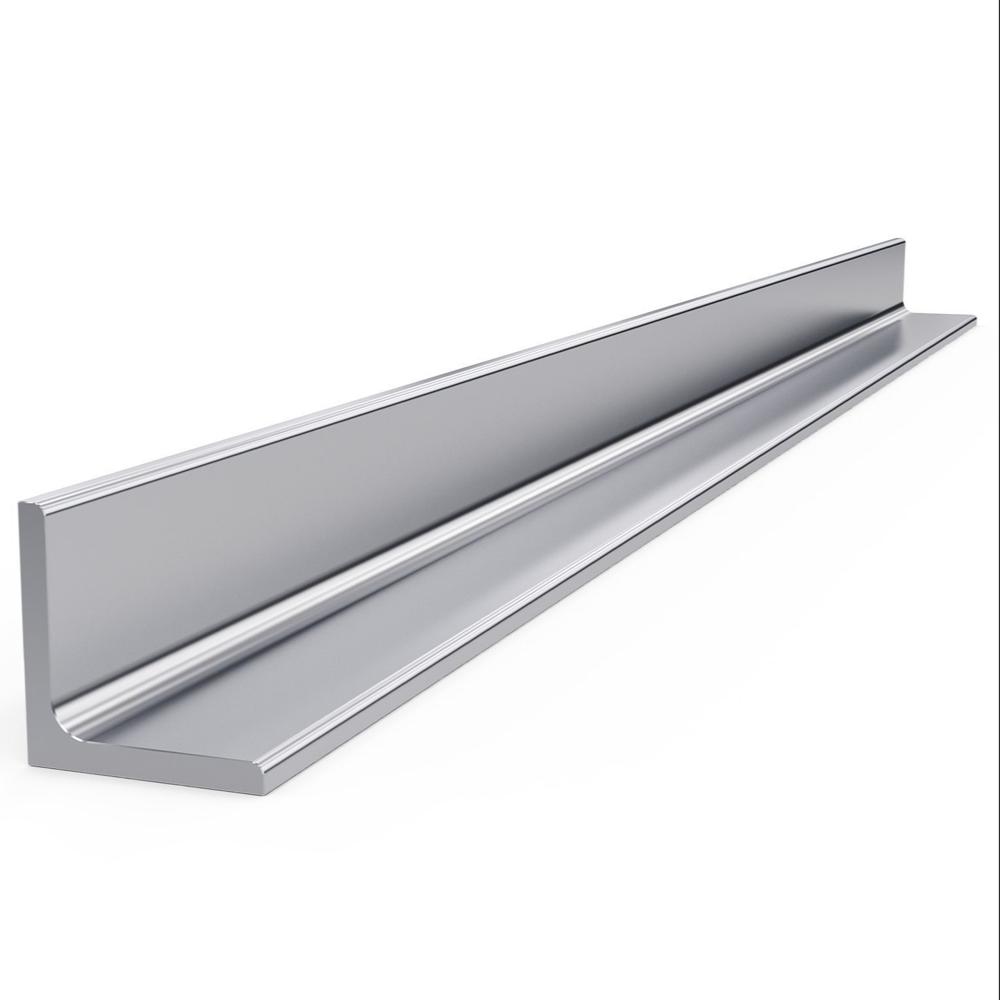

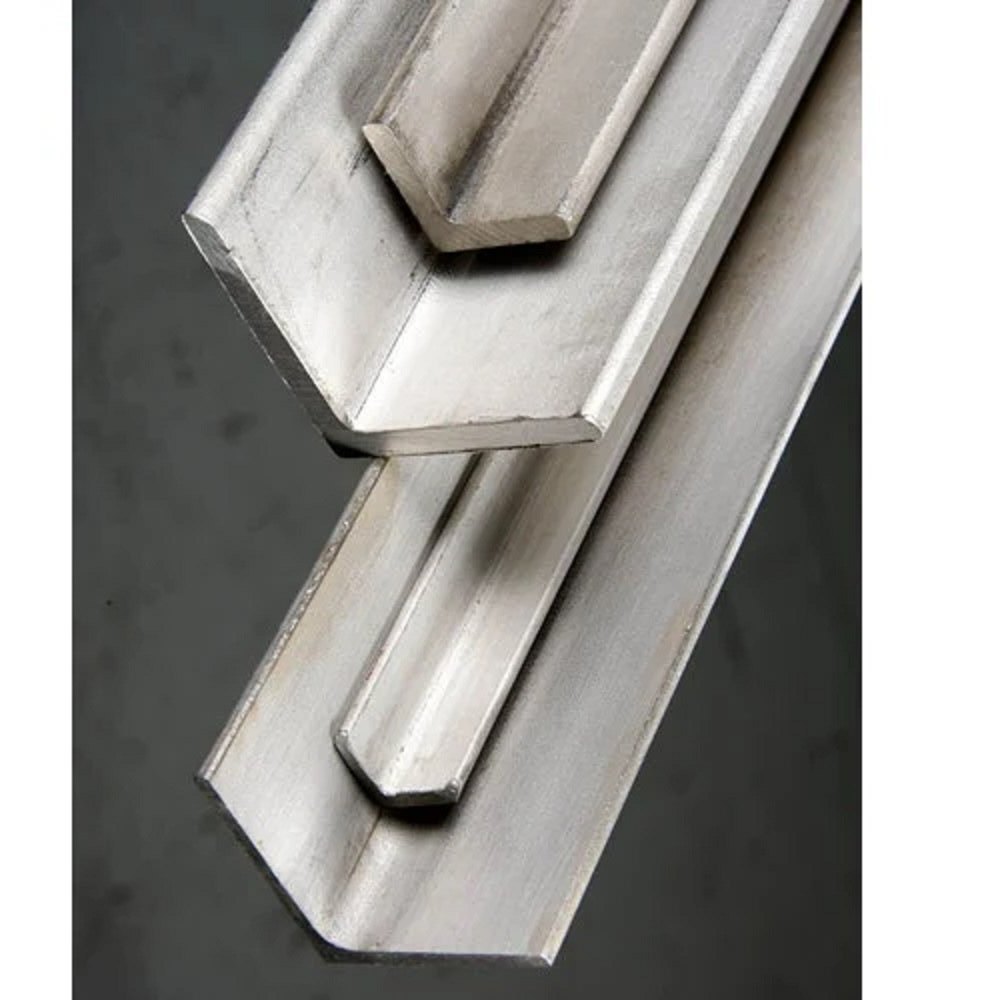

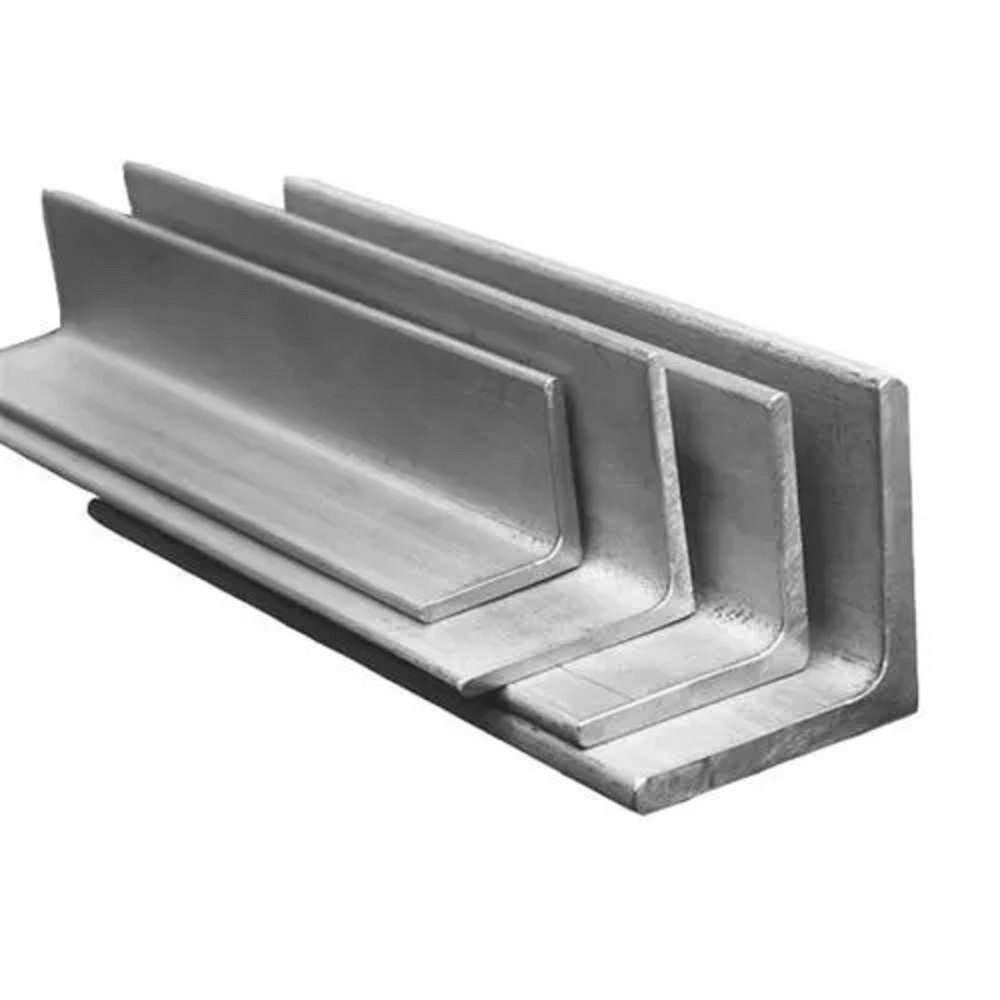

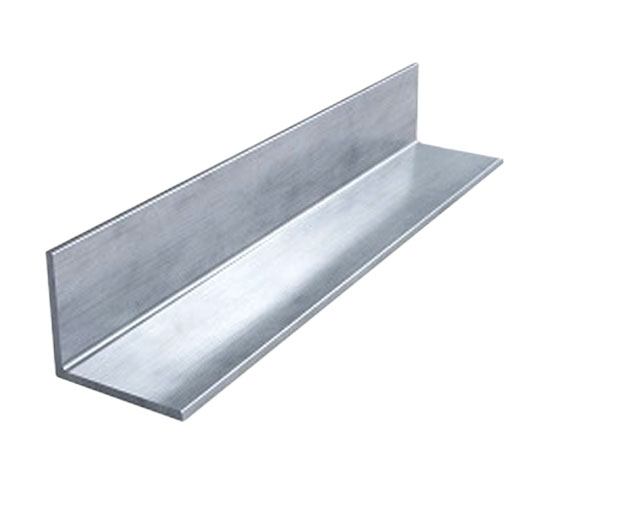

Super Duplex Steel S32760 Angle

Name: Super Duplex Steel S32760 Angle
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Super Duplex Steel S32760 Angle Specification

Chemical Composition
Cr 24-26%, Ni 6-8%, Mo 3-4%, N 0.2-0.3%, Mn max 1%, Si max 1%

Coating Type
Uncoated/Available with custom coating on request

Width
20 mm to 200 mm

Diameter
N/A (Angle bar, reference by width/thickness)

Temper
Annealed

Heat Resistance
Yes

Hardness
Max 290 HB

Corrosion Resistant
Excellent (High resistance to pitting and crevice corrosion)

Recyclable
Yes

Size
Standard or Custom Sizes

Material Composition %
Cr 24-26%; Ni 6-8%; Mo 3-4%; N 0.2-0.3%; others balance

Tensile Strength
750 MPa minimum

Product Form
Angle/Bar

Product Name
Super Duplex Steel S32760 Angle

Steel Type
Super Duplex Stainless Steel

Steel Product Type
Structural Angle

Grade
S32760

Thickness
3 mm to 20 mm

Shape
Angle / L-Shape

Steel Standard
ASTM A276, ASTM A182

Surface
Pickled, Hot Rolled, Cold Drawn or Polished

Composition
Super Duplex Alloy

Application
Construction, Chemical Processing, Petrochemical, Offshore Platforms, Marine Applications

Dimension (L*W*H)
Custom, e.g., 40mm x 40mm x 6mm, Length up to 6m

Weight
Variable as per dimension, e.g., approx. 6.78 kg/m

Color
Metallic Silver / Grey

Material Grade
S32760

Finish Type
Mill Finish or Polished

Usage
Load Bearing, Support Frameworks, Bracing

Magnetism
Slightly magnetic due to duplex structure

Machinability
Good, but high-strength requires rigid tools

Elongation
15% min

Available Forms
Angles, Flats, Channels, Beams

Weldability
Excellent (suitable for all conventional methods)

Impact Strength
>54 Joules at -46C

Salt Spray Resistance
High (suitable for marine environments)

Density
7.8 g/cm3

Storage Condition
Dry, covered storage preferred to avoid surface contamination

Super Duplex Steel S32760 Angle Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Super Duplex Steel S32760 Angle About

Super Duplex Steel S32760 Angle is a structural part produced from S32760 super duplex stainless steel, which has high strength, superior resistance to corrosion and good weldability. This Super Duplex Steel has a microstructure composed of austenitic and ferritic phases, which are the best characteristics of stainless steel.

Exceptional Strength and Durability

Super Duplex Steel S32760 Angle boasts a superior combination of high yield strength (550 MPa) and excellent elongation (minimum 25%), making it ideal for load-bearing and support framework applications. Its maximum hardness of 290 HB and high impact strength ensure longevity and resilience against brittle fracture, even in challenging environments.

Corrosion and Heat Resistance

Engineered with a balanced chemical composition featuring Cr 24-26%, Ni 6-8%, and Mo 3-4%, S32760 Angles offer outstanding resistance to pitting and crevice corrosion. This characteristic guarantees reliable performance in corrosive settings like marine, chemical, or offshore applications, with stable heat resistance up to 300C.

Versatile Applications and Customization

Available in standard or custom dimensions, with thicknesses ranging from 3 to 20 mm and lengths up to 6 meters, Super Duplex Steel S32760 Angles are suitable for a broad range of structural tasks. Whether for bracing, load bearing, or construction frameworks, these L-shaped angles adapt to project-specific demands with ease.

FAQ's of Super Duplex Steel S32760 Angle:

Q: How does Super Duplex Steel S32760 Angle benefit construction and offshore projects?

A: This angle offers high yield and tensile strength, excellent corrosion and impact resistance, and adaptability to custom sizes. These properties make it ideal for use in construction frameworks, bracing, offshore platform structures, and marine applications where durability and safety are paramount.

Q: What is the recommended process for welding Super Duplex Steel S32760 Angle?

A: Super Duplex Steel S32760 Angle demonstrates excellent weldability when suitable filler metals are used. Standard practices like TIG or MIG welding can be applied, and it's important to control heat input to preserve corrosion resistance and mechanical properties.

Q: Where is Super Duplex Steel S32760 Angle typically utilized?

A: This product is commonly used in sectors such as construction, marine, chemical processing, petrochemical, and offshore platforms. Its structural integrity and corrosion resistance make it suitable for harsh, corrosive, and demanding environments.

Q: What customization options are available for Super Duplex Steel S32760 Angles?

A: Clients can select from a variety of sizes, dimensions, lengths (up to 6 meters), thicknesses (3-20 mm), and finishes. Custom coating options are also available upon request to meet specific project requirements.

Q: How does the chemical composition of S32760 Angle enhance its corrosion resistance?

A: The elevated contents of chromium (24-26%), nickel (6-8%), molybdenum (3-4%), and nitrogen (0.2-0.3%) work synergistically to provide high resistance to pitting and crevice corrosion, making it suitable for aggressive environments.

Q: What are the surface finish options for these angles?

A: Super Duplex Steel S32760 Angles are available in mill finish, pickled, hot rolled, cold drawn, or polished surfaces. Special finishes or coatings can be supplied upon request to cater to specific aesthetic or performance needs.
