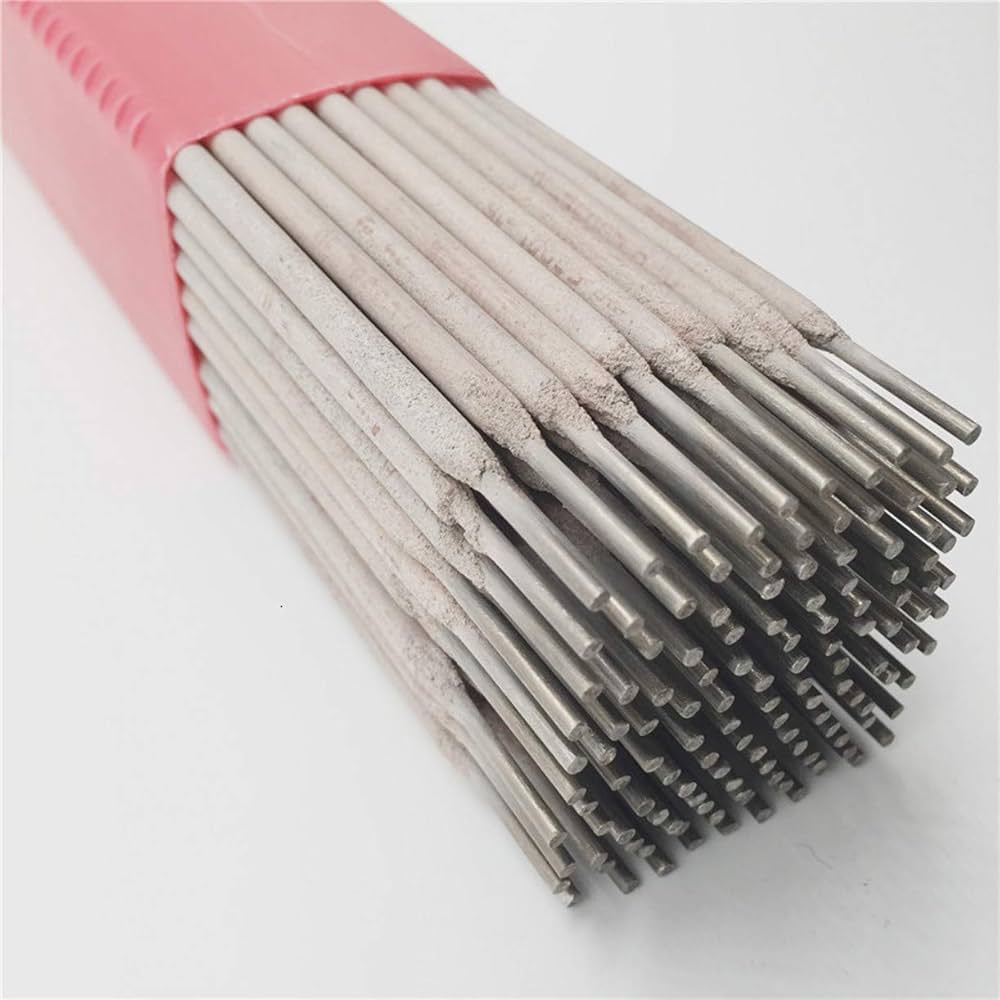

Super Duplex Steel UNS S32760 Electrodes

Send Inquiry

Request To Call Back

Super Duplex Steel UNS S32760 Electrodes

Name: Super Duplex Steel UNS S32760 Electrodes
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Super Duplex Steel UNS S32760 Electrodes Specification

Chemical Composition
Chromium (24-26%), Nickel (6-8%), Molybdenum (3-4%), Nitrogen (0.2-0.3%), Copper (0.5-1%)

Diameter
2.5mm, 3.2mm, 4.0mm, 5.0mm

Size
As required (standard: 350-450mm Length, 2.5-5.0mm Diameter)

Tensile Strength
>800 MPa

Corrosion Resistant
Excellent pitting and chloride-induced corrosion resistance

Heat Resistance
Yes

Recyclable
Yes

Width
As per requirement

Hardness
Rockwell B90-100 (Base metal as-welded)

Temper
Annealed

Material Composition %
Cr 24-26%, Ni 6-8%, Mo 3-4%, N 0.2-0.3%, Cu 0.5-1%

Coating Type
Basic (Low Hydrogen)

Product Form
Rod (Electrodes)

Product Name
Super Duplex Steel UNS S32760 Electrodes

Steel Type
Super Duplex Stainless Steel

Steel Product Type
Welding Electrodes

Grade
UNS S32760

Thickness
2.5mm, 3.2mm, 4.0mm, 5.0mm (customizable)

Shape
Round Rods (Electrodes)

Steel Standard
ASTM A240 / ASME SA240

Surface
Coated (Flux Covered)

Composition
Super Duplex Alloy with enhanced pitting and crevice corrosion resistance

Application
Welding of super duplex stainless steels, offshore, petrochemical, and chemical process industries

Dimension (L*W*H)
Length: 350mm - 450mm, Diameter: 2.5mm - 5.0mm

Weight
Typically 4-5 kg per packet, customizable

Color
Silver/Grey with white flux coating

Material Grade
UNS S32760

Finish Type
Bright finish under flux

Usage
Arc welding, marine and offshore fabrication, process piping, heat exchangers

Typical Weld Metal Ferrite Content (FN)
35-55 FN

Elongation %
> 25%

Welding Position
All position welding

Intergranular Corrosion
Resistant per ASTM A262 Practice E

Impact Toughness
> 60J at -40C

Flux Type
Low hydrogen and rutile flux combination

Ordering Information
Packed in moisture-resistant boxes, 5kg/box or as per request

Preheat Requirement
Not usually required for thin sections

Hydrogen Content
< 5 ml/100g weld metal

Storage Condition
Dry, below 150C before use

Manufacturing Technique
Solid core with flux coating

ISO Certification
ISO 3581 / ISO 14343

Crack Resistance
Excellent

Super Duplex Steel UNS S32760 Electrodes Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Super Duplex Steel UNS S32760 Electrodes About

Super Duplex Steel UNS S32760 electrodes boast an impressive chemical composition that offers exceptional properties. UNS S32760 chemical composition robust alloy is primarily composed of iron, chromium, nickel, and molybdenum, all working harmoniously to grant the final material a remarkable combination of corrosion resistance, strength, and durability. Enhanced with nitrogen, these electrodes exhibit increased mechanical strength, enabling them to withstand extremely demanding conditions. Moreover, elements such as tungsten and copper within Super Duplex Steel UNSS32760 electrodes provide added resilience against harsh acids and chlorides, making them an indispensable asset in numerous applications, including chemical processing plants, oil and gas industries, and marine engineering solutions. Entirely encapsulated in their innovative chemical composition, these electrodes are a superior choice for those seeking advanced performance in challenging environments.

Exceptional Corrosion Resistance

Super Duplex Steel UNS S32760 Electrodes are engineered for resistance to aggressive environments, offering superior pitting and crevice corrosion resistance due to their robust alloy composition. This makes them an ideal choice for applications exposed to seawater and harsh chemicals.

High Mechanical Strength and Impact Toughness

With a tensile strength exceeding 800 MPa and outstanding Charpy V-notch impact values at -50C, these electrodes ensure weld integrity and toughness even in the most demanding conditions. Their durability is proven in both cryogenic and moderate heat environments.

Certified Quality and Standards Compliance

These electrodes conform to internationally recognized standards such as AWS A5.4 E2594-16 and EN ISO 3581-A E25 9 4 N L B 42, guaranteeing consistency and reliability. Each batch is rigorously tested for diffusible hydrogen content, arc stability, and precise mechanical properties.

FAQ's of Super Duplex Steel UNS S32760 Electrodes:

Q: How should I use Super Duplex Steel UNS S32760 Electrodes for optimal welding results?

A: For best results, use these electrodes with arc welding processes suited for super duplex stainless steels. Maintain recommended amperage settings and ensure the base material is clean. The basic (low hydrogen) coated electrodes produce very stable arcs with minimal spatter, delivering clean and strong welds.

Q: What are the main benefits of choosing UNS S32760 Electrodes for my welding projects?

A: The main advantages include exceptional corrosion resistance, excellent mechanical properties (tensile strength >800 MPa, superior impact strength), and stable weldability. They are especially beneficial for critical applications in marine, offshore, and chemical processing environments.

Q: When is it appropriate to select these electrodes over standard stainless steel options?

A: Choose Super Duplex Steel UNS S32760 Electrodes when projects demand enhanced pitting and crevice corrosion resistance, such as in offshore platforms, desalination plants, and harsh chemical environments, where conventional stainless electrodes may not provide sufficient durability.

Q: Where are UNS S32760 Electrodes most commonly used?

A: They are widely used in offshore structures, marine fabrication, process piping, heat exchangers, and chemical and petrochemical plants due to their reliability and ability to withstand corrosive environments.

Q: What is the process for ordering and customizing Super Duplex Steel UNS S32760 Electrodes?

A: You can place orders starting from a minimum quantity of 5 kilograms. Electrode lengths (350-450 mm) and diameters (2.5-5.0 mm) can be customized. Specify your size and packaging requirements when contacting the manufacturer, supplier, or trader.

Q: How does the sealed plastic box/carton packaging benefit the product?

A: Sealed packaging protects the electrodes from moisture absorption and contamination, ensuring the coating's integrity and stable welding performance until use.

Q: What standards do these electrodes conform to, and why is this important?

A: Super Duplex Steel UNS S32760 Electrodes meet AWS A5.4 E2594-16 and EN ISO 3581-A E25 9 4 N L B 42 specifications, which means they have been tested and verified for consistent chemical composition, mechanical properties, and welding quality, ensuring international acceptance and reliability.
