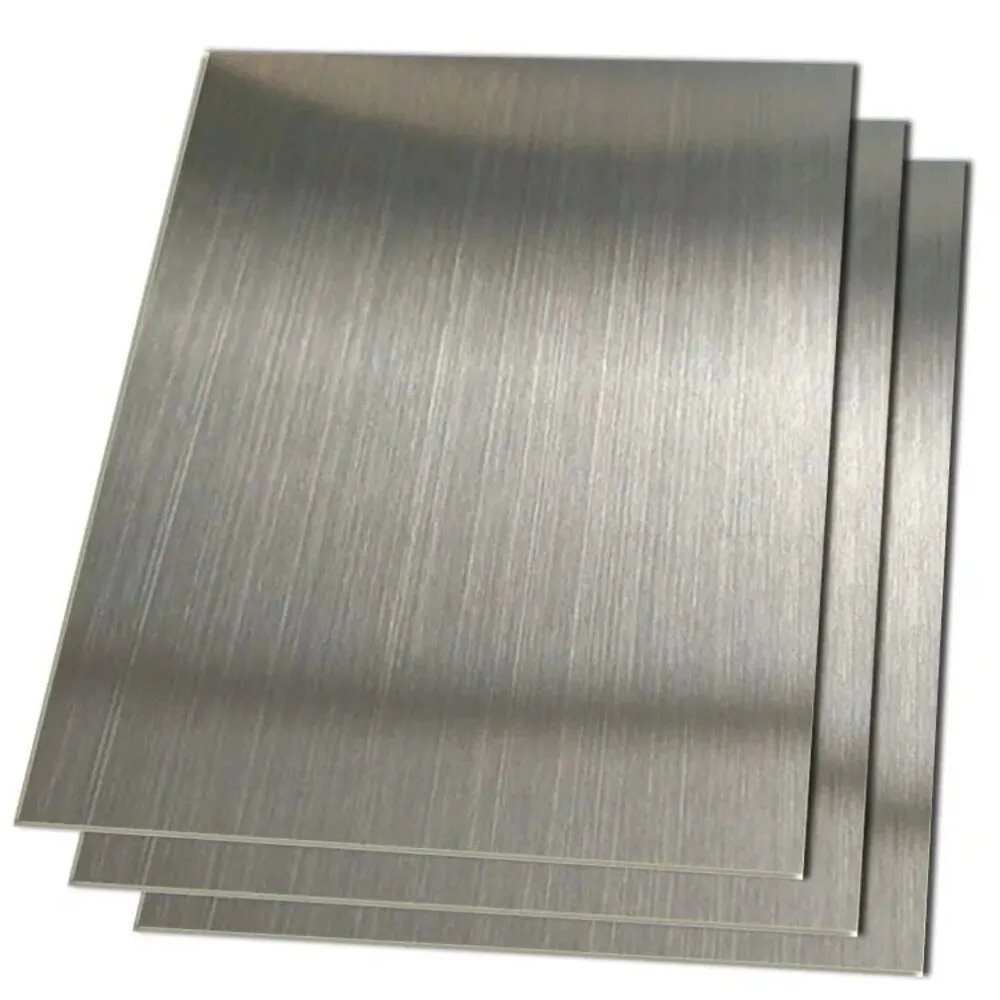

Titanium Gr 12 Plates

Name: Titanium Gr 12 Plates
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Titanium Gr 12 Plates Specification

Hardness
Rockwell B 80-90

Thickness
0.5 mm up to 50 mm or as required

Thermal Conductivity
13.4 W/m-K

Tensile Strength
Ultimate: 480 MPa min, Yield: 345 MPa min

Product Type
PLATES

Types of Alloy
Titanium Alloys

Material
Titanium

Shape
Plate

Strength
High Strength-to-Weight Ratio

Resistance
Excellent Corrosion Resistance (especially to acids and alkalis), Good Weldability

Grade
GR 12

Melting Point
1632C (2970F)

Density
4.51 Gram per cubic centimeter(g/cm3)

Chemical Composition
Ti (balance), 0.8-1.8% Ni, 0.2-0.4% Mo, max 0.30% Fe, max 0.25% O, max 0.03% C, max 0.015% N, max 0.015% H

Color
Metallic Silver / Gray

Module of Elasticity
105 GPa

Formability
Excellent

Condition
Annealed, Pickled, Polished available

Length
up to 6000 mm or as per requirement

Application
Chemical Processing, Power Generation, Marine, Heat Exchangers, Desalination Plants

Standard Specifications
ASTM B265 / ASME SB265

Width
up to 2000 mm or custom sizes

Machinability
Fair

Elongation
18% min

Surface Finish
Bright, Matt, Brushed

Titanium Gr 12 Plates Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

About Titanium Gr 12 Plates

Due to their unique chemical composition, Titanium GR12 Plate exhibits a magnificent blend of strength, durability, and lightweight properties. Primarily containing titanium and a combination of alloying elements such as molybdenum and nickel, these plates have remarkable resistance to corrosion and high temperatures. Aside from providing exceptional stability, molybdenum and nickel enhance the mechanical attributes of Titanium GR12, making it an ideal choice for various industries, including aerospace, marine, and chemical applications. Furthermore, these plates inherit titanium's biocompatibility, paving the way for their usage in medical implants and prosthetics. These impressive features can be attributed to the meticulously engineered chemical composition of Titanium GR12 Plates.

Superior Mechanical and Chemical Properties

Titanium Gr 12 plates distinguish themselves with their unique combination of strength, ductility, and corrosion resistance. Able to withstand harsh acids and alkalis, these plates are suitable for applications where long service life and integrity are essential. With a minimum tensile strength of 480 MPa and elongation of at least 18%, Gr 12 offers a reliable and versatile material solution.

Designed for Demanding Industrial Applications

Each plate is engineered for use in critical sectors like chemical processing, marine environments, power plants, and desalination facilities. The excellent formability and fair machinability enable customization for virtually any project, allowing for versatility in fabrication while maintaining strength and resistance properties.

FAQ's of Titanium Gr 12 Plates:

Q: How are Titanium Gr 12 plates typically used in industry?

A: Titanium Gr 12 plates are commonly employed in sectors such as chemical processing, power generation, marine engineering, and desalination plants. Their high corrosion resistance, strength-to-weight ratio, and excellent formability make them ideal for fabricating equipment like heat exchangers, pressure vessels, piping, and marine components.

Q: What benefits do Titanium Gr 12 plates offer over other alloys?

A: These plates deliver exceptional corrosion resistance, particularly against acids and alkalis, alongside a high strength-to-weight ratio. Additionally, their good weldability, fair machinability, and durability in challenging environments distinguish them from other alloys, making them a reliable choice for demanding applications.

Q: When should I choose Titanium Gr 12 plates for my project?

A: Select Titanium Gr 12 plates when your project requires a balance of excellent corrosion resistance, mechanical strength, and ease of fabrication. They are especially valuable in settings exposed to aggressive chemicals, seawater, or high-temperature conditions where other materials may fail.

Q: What surface finishes are available for Titanium Gr 12 plates?

A: Titanium Gr 12 plates can be supplied with bright, matt, or brushed surface finishes. Additionally, annealed, pickled, and polished conditions are available, enabling further customization according to specific application or appearance requirements.

Q: Where are Titanium Gr 12 plates manufactured and supplied?

A: These plates are manufactured, exported, imported, and supplied globally by specialized companies with expertise in titanium alloys. They are available through certified manufacturers, suppliers, traders, and export-import businesses catering to a variety of industrial needs.

Q: What is the process for customizing Titanium Gr 12 plate sizes?

A: You can request custom sizes for both width (up to 2000 mm) and length (up to 6000 mm or as per requirement), as well as thicknesses ranging from 0.5 mm to 50 mm or more. Manufacturers will process plates according to specified dimensions, surface finish, and condition to suit your application.
