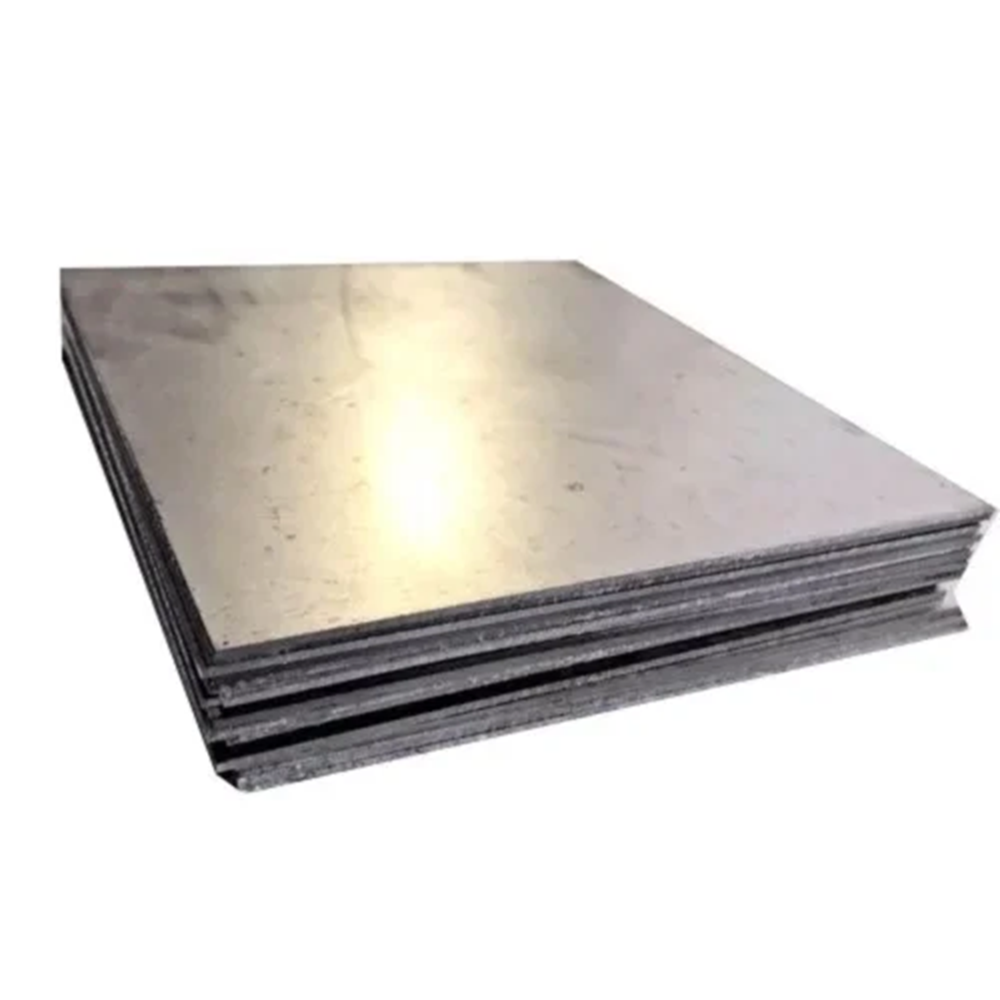

Titanium Gr 2 Plates

Name: Titanium Gr 2 Plates
Brand: Skyland Metal & Alloys Inc.
Price: 200.0 INR
Availability: InStock

Price 200.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Titanium Gr 2 Plates Specification

Hardness
80-95 HRB

Thermal Conductivity
16.4 W/mK

Tensile Strength
345-450 MPa

Thickness
0.5 mm - 100 mm (customizable)

Product Type
PLATES

Types of Alloy
Titanium Alloys

Material
Titanium

Shape
Plate

Strength
Medium

Resistance
Excellent corrosion resistance

Grade
GR 2

Melting Point
1665C

Density
4.51 Gram per cubic centimeter(g/cm3)

Chemical Composition
Ti: Balance, Fe: 0.30% max, O: 0.25% max, C: 0.08% max, N: 0.03% max, H: 0.015% max

Color
Silver-Gray

Elongation at Break
20% min

Surface Finish
Hot Rolled, Cold Rolled, Pickled, Polished

Yield Strength (0.2% offset)
275 MPa min

Weldability
Good

Density at 20C
4.51 g/cm3

Modulus of Elasticity
102 GPa

Applications
Chemical processing, aerospace, medical, marine, desalination

Forming
Excellent formability

Length
up to 6000 mm (customizable)

Width
up to 2000 mm (customizable)

Standard
ASTM B265, ASME SB265

Titanium Gr 2 Plates Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

About Titanium Gr 2 Plates

Titanium Gr 2 Plates are widely recognized for their excellent combination of strength, lightweight, and outstanding corrosion resistance. These plates, made from commercially pure titanium, offer exceptional durability and superior resistance to oxidation and chemical environments, making them ideal for a variety of applications across industries. Known for their biocompatibility, these plates are often used in medical devices, aerospace components, marine equipment, and chemical processing.

Versatile Applications Across Industries

Titanium Gr 2 Plates have become the preferred choice in demanding industries such as aerospace, chemical processing, marine, desalination plants, and medical equipment production. Their outstanding corrosion resistance and medium strength make them suitable for environments exposed to harsh chemicals and saline conditions, ensuring longevity and performance in critical applications.

Comprehensive Customization and Surface Finishes

Available in a variety of surface finishes-including hot rolled, cold rolled, pickled, and polished-Titanium Gr 2 Plates can be tailored to specific customer requirements. Both width (up to 2000 mm) and length (up to 6000 mm) are fully customizable, supporting a vast range of engineering and architectural projects. This adaptability extends the usability of these plates in numerous sectors.

FAQ's of Titanium Gr 2 Plates:

Q: How does the corrosion resistance of Titanium Gr 2 Plates benefit my application?

A: Titanium Gr 2 Plates exhibit excellent corrosion resistance, especially in environments exposed to chemicals or seawater. This property significantly extends the lifespan of equipment, reduces maintenance frequency, and lowers the risk of material failure, thereby ensuring reliable and long-term performance in harsh settings.

Q: What surface finishes are available for Titanium Gr 2 Plates, and how are they selected?

A: These plates are offered with hot rolled, cold rolled, pickled, and polished surface finishes. The choice of finish depends on specific application requirements-polished surfaces offer enhanced aesthetics and smoothness for medical or architectural uses, while hot rolled and pickled finishes are ideal for structural and industrial applications demanding durability.

Q: When should Titanium Gr 2 Plates be used instead of other titanium alloys?

A: Titanium Gr 2 Plates are ideal when a balance between medium strength, excellent formability, and superior corrosion resistance is needed. Their unique properties make them suitable for chemical processing, marine, and medical environments where higher grades might offer unnecessary strength at increased cost.

Q: What are the key benefits of using Grade 2 Titanium plates in aerospace and medical fields?

A: In aerospace, Titanium Gr 2 Plates deliver a combination of light weight, durability, and high corrosion resistance, crucial for performance and safety. In medical applications, their biocompatibility, excellent formability, and non-reactive nature make them suitable for implants, surgical instruments, and devices.

Q: Where are Titanium Gr 2 Plates manufactured and supplied according to international standards?

A: Manufacturers and suppliers of Titanium Gr 2 Plates adhere to international standards like ASTM B265 and ASME SB265, ensuring consistent quality and global compatibility. These plates are widely available through exporters, importers, and traders serving both local and international markets.

Q: How are Titanium Gr 2 Plates processed and formed into customized sizes?

A: Titanium Gr 2 Plates are easily processed through modern forming techniques due to their excellent formability. They can be hot or cold rolled, cut, welded, and finished according to custom specifications for width, length, and thickness to meet diverse application needs.
