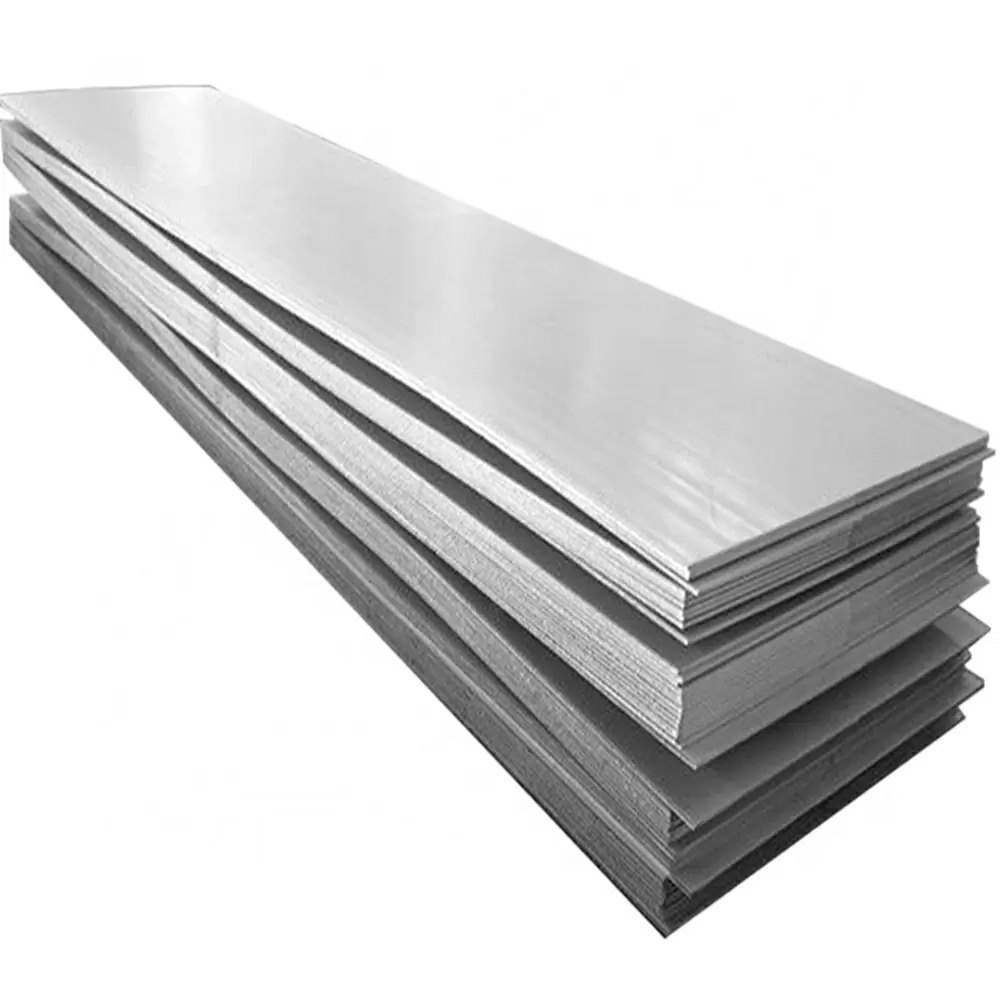

Titanium Gr 2 Sheet

Name: Titanium Gr 2 Sheet
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Titanium Gr 2 Sheet Specification

Thickness
0.5 mm to 50 mm

Thermal Conductivity
21.9 W/mK

Tensile Strength
345 MPa (min)

Hardness
Rockwell B70

Product Type
sheet

Types of Alloy
Titanium Alloys

Material
Titanium

Shape
Plate

Strength
Moderate Strength (Yield: 275 MPa min)

Resistance
Excellent corrosion resistance in oxidizing and mildly reducing environments

Grade
gr 2

Melting Point
1665C

Density
4.51 Gram per cubic centimeter(g/cm3)

Chemical Composition
Ti: 99.2% min, O: 0.25% max, N: 0.03% max, C: 0.08% max, H: 0.015% max, Fe: 0.30% max

Color
Silver Gray

Width Range
Up to 2000 mm

Length Range
Up to 6000 mm

Weldability
Excellent

Formability
Good

Fatigue Strength
160 MPa

Surface Finish
Cold Rolled, Hot Rolled & Annealed/Pickled

Density (lb/in3)
0.163 lb/in3

Poisson's Ratio
0.34

Modulus of Rigidity
42 GPa

Elongation
20% (min)

Application
Chemical Processing, Aerospace, Medical, Marine, Power Generation

Modulus of Elasticity
103 GPa

Standard
ASTM B265, ASME SB265

Specific Heat Capacity
0.52 J/gK

Non-magnetic
Yes

Titanium Gr 2 Sheet Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

About Titanium Gr 2 Sheet

Titanium Gr 2, or commercially pure titanium, is a widely used titanium alloy because of its excellent corrosion resistance, formability, and weldability. Titanium Gr 2 sheet is a commercially pure titanium alloy with a high strength-to-weight ratio and high corrosion resistance. It is used in almost all fields of industries where these properties are important.

Outstanding Chemical Composition and Strength

Titanium Gr 2 Sheet stands out with its exceptional purity, boasting a titanium content of at least 99.2%. It maintains moderate strength, with a minimum yield strength of 275 MPa and tensile strength reaching 345 MPa. These attributes, paired with a minimum elongation of 20%, allow for dependable performance in structurally demanding environments.

Highly Resistant to Corrosion in Diverse Environments

Thanks to its inherent corrosion resistance, Titanium Gr 2 Sheet excels in both oxidizing and mildly reducing conditions. This makes it a preferred material for use in chemical processing plants, marine engineering, and other environments where exposure to corrosive substances is routine.

Exceptional Formability and Weldability

One of the major advantages of Titanium Gr 2 Sheet is its excellent formability and weldability. This enables manufacturers to shape, cut, and join the material with ease, supporting a wide spectrum of fabrication requirements for industries ranging from aerospace to power generation.

FAQ's of Titanium Gr 2 Sheet:

Q: How is the Titanium Gr 2 Sheet primarily used across different industries?

A: Titanium Gr 2 Sheet is widely employed in chemical processing, aerospace, marine, power generation, and medical applications because of its moderate strength, light weight, and outstanding corrosion resistance. Its excellent formability and weldability further expand its utility in fabricating complex components.

Q: What surface finishes are available for the Titanium Gr 2 Sheet?

A: The available surface finishes for Titanium Gr 2 Sheet include cold rolled, hot rolled, and annealed/pickled. These finishing options enhance both the performance and appearance of the sheet, catering to specific industrial demands.

Q: When should Titanium Gr 2 Sheet be chosen over other grades?

A: Titanium Gr 2 Sheet is the material of choice when moderate strength, high corrosion resistance, and excellent weldability are essential. It is especially suited for use in environments where exposure to aggressive chemicals or saline conditions occurs frequently, and where non-magnetic properties are required.

Q: Where can Titanium Gr 2 Sheet be sourced from?

A: Titanium Gr 2 Sheet is supplied globally by exporters, importers, manufacturers, and traders specializing in titanium and its alloys. It is available in a range of thicknesses, widths, and lengths as per international ASTM B265 and ASME SB265 standards.

Q: How does the chemical composition benefit the sheet's performance?

A: With a minimum of 99.2% titanium and stringent limits on impurities such as oxygen, nitrogen, carbon, hydrogen, and iron, the chemical composition ensures superior corrosion resistance, ductility, and reliability, making it suitable for critical and high-performance applications.

Q: What are the key benefits of using this titanium grade for fabrication?

A: Key benefits include its non-magnetic nature, low density (4.51 g/cm3), high strength-to-weight ratio, and ability to maintain mechanical properties at elevated temperatures. Its excellent weldability and formability also reduce manufacturing complexity and cost.
