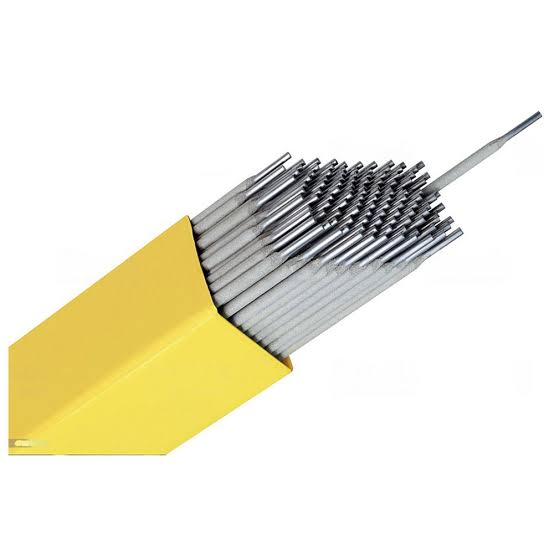

Inconel 718 Electrodes
Inconel 718 Electrodes
Inconel 718 Electrodes
Inconel 718 Electrodes
Inconel 718 Electrodes
Inconel 718 Electrodes
Inconel 718 Electrodes
Inconel 718 Electrodes
Inconel 718 Electrodes
Inconel 718 Electrodes

Inconel 718 Electrodes

Price 500.0 INR/ Kilograms

MOQ : 1 Kilograms

Inconel 718 Electrodes Specification

  • Surface Treatment
  • Cleaned, flux coated
  • Tolerance
  • 0.01mm
  • Material
  • Inconel 718 (Nickel-Chromium alloy)
  • Steel Type
  • Nickel-based Superalloy
  • Technics
  • Hot Rolled, Drawn
  • Standard
  • AWS A5.11 / ASME SFA5.11
  • Thickness
  • 2.5mm, 3.15mm, 4.0mm, 5.0mm
  • Grade
  • Inconel 718
  • Type
  • Welding Electrode
  • Application
  • Aerospace, Oil & Gas, Power Generation, Chemical Processing
  • Dimensions
  • 2.5mm to 5mm diameter, length 350mm to 450mm
  • Shape
  • Rod / Electrode
  • Corrosion Resistance
  • Excellent resistance to pitting, crevice and intergranular corrosion
  • Melting Point
  • 1260C - 1336C
  • Hardness
  • Rockwell C36 min
  • Coating Type
  • Rutile or Basic (depending on application)
  • Heat Treatment Capability
  • Can be heat-treated for enhanced mechanical properties
  • Operating Temperature
  • -196C to 704C
  • Packaging
  • Vacuum sealed or moisture-resistant boxes, 5kg & 10kg packs
  • Weld Metal Recovery
  • Approximately 95%
  • Tensile Strength
  • Up to 1240 MPa


Inconel 718 Electrodes Trade Information

  • Minimum Order Quantity
  • 1 Kilograms
  • Delivery Time
  • 7 Days


Inconel 718 Electrodes About

Inconel 718 Electrodes are primarily used for welding in aluminum, nickel, and steel alloys. With superior arc stability and low spatter rates, these electrodes provide welders with a reliable and consistent result. Developed with unique properties such as high strength at elevated temperatures, strong corrosion resistance, and excellent fatigue endurance, Inconel 718 Electrodes are the go-to choice for welding professionals around the world. Furthermore, the electrodes remain malleable, which makes them useful in post-weld operations such as grinding, peening, or cutting. Whether used in aerospace or medical applications, 718 Inconel Electrodes are an invaluable tool for any welder.

Superior Performance in Various Industries

Inconel 718 electrodes are highly regarded in sectors like aerospace and chemical processing, owing to their ability to endure extreme temperatures and pressures. Their exceptional resistance to oxidation and corrosion makes them a go-to choice where durability and reliability are essential, ensuring longevity and safety during welding applications.


All-Position Welding for Enhanced Flexibility

Engineered to support all welding positions (1G, 2G, 3G, 4G), these electrodes provide versatility on complex assemblies and repairs. The special rutile coating aids in stable arc performance and smooth weld finishes, allowing technicians to meet rigorous quality standards with confidence.

FAQ's of Inconel 718 Electrodes:


Q: What are the main benefits of using Inconel 718 Electrodes for welding?

A: Inconel 718 Electrodes offer exceptional corrosion resistance, especially to pitting and crevice corrosion, alongside high tensile strength and the ability to perform across a wide temperature range (-250C to 700C). This makes them ideal for critical, high-stress applications where longevity and reliability are crucial.

Q: How should Inconel 718 Electrodes be stored and handled before use?

A: For best results, these electrodes should be kept in their original hermetically sealed packages or cardboard boxes until use. Proper storage prevents moisture pickup and preserves the special flux coating, ensuring consistent welding performance.

Q: Which industries typically utilize Inconel 718 Electrodes?

A: These electrodes are widely used in aerospace, oil & gas, power generation, and chemical processing industries due to their robust qualities and ability to withstand harsh conditions and aggressive chemical environments.

Q: In what welding positions can Inconel 718 Electrodes be used?

A: They are designed for all-position welding, including flat, horizontal, vertical, and overhead (1G, 2G, 3G, 4G). This versatility enables welders to handle a variety of fabrication and repair tasks with ease.

Q: What welding process is recommended for using these electrodes?

A: Inconel 718 Electrodes are primarily intended for use with the Shielded Metal Arc Welding (SMAW) process, allowing for strong, reliable joints in nickel-based superalloy components.

Q: What sizes and thicknesses are available for Inconel 718 Electrodes?

A: These electrodes are available in diameters ranging from 2.5mm to 5mm, lengths between 350mm and 450mm, and typical thicknesses of 2.5mm, 3.15mm, 4.0mm, and 5.0mm, accommodating diverse welding needs.
