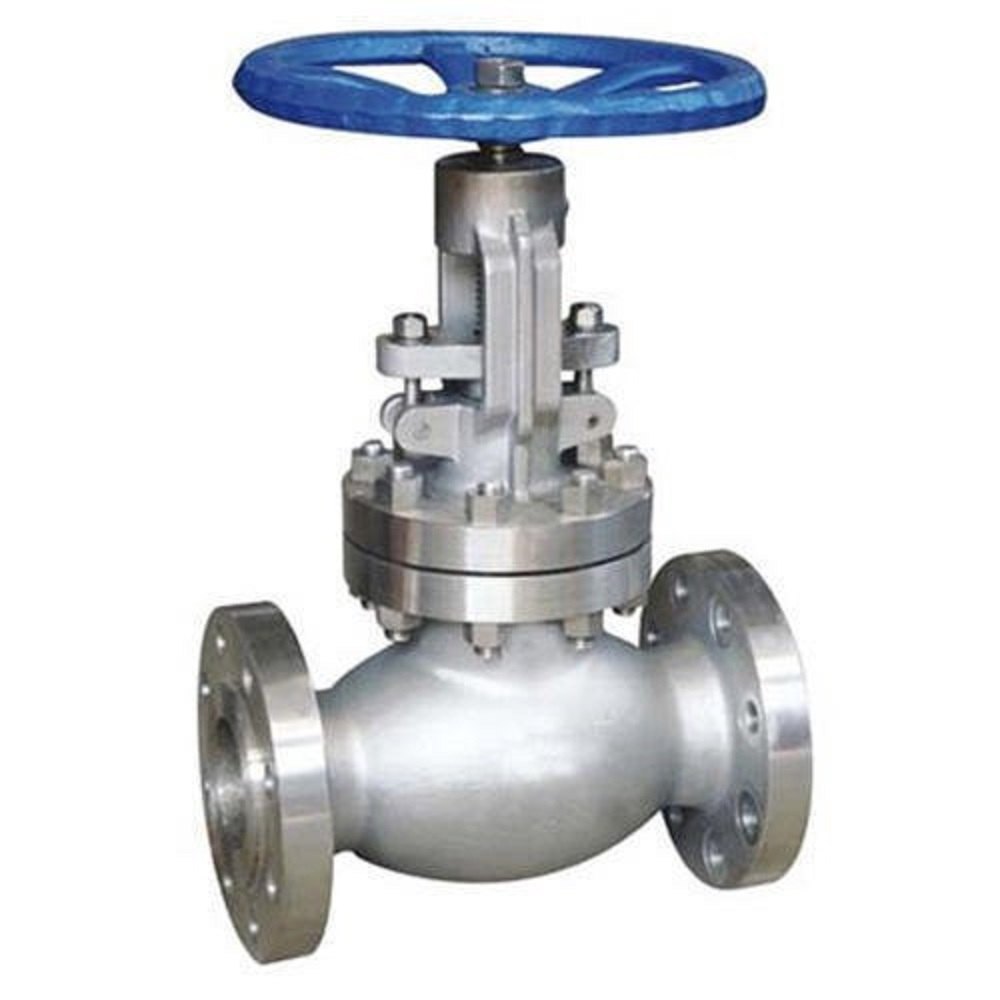

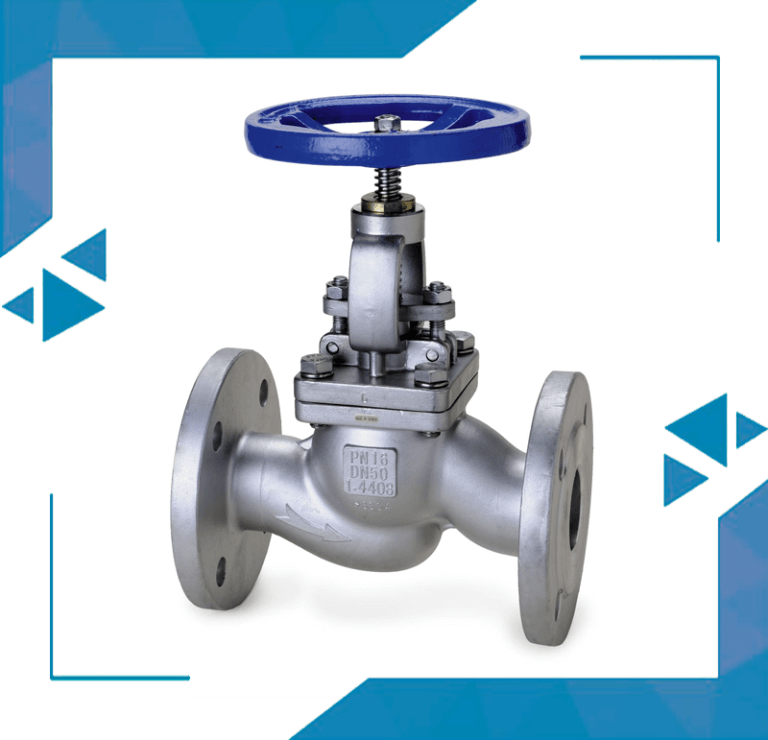

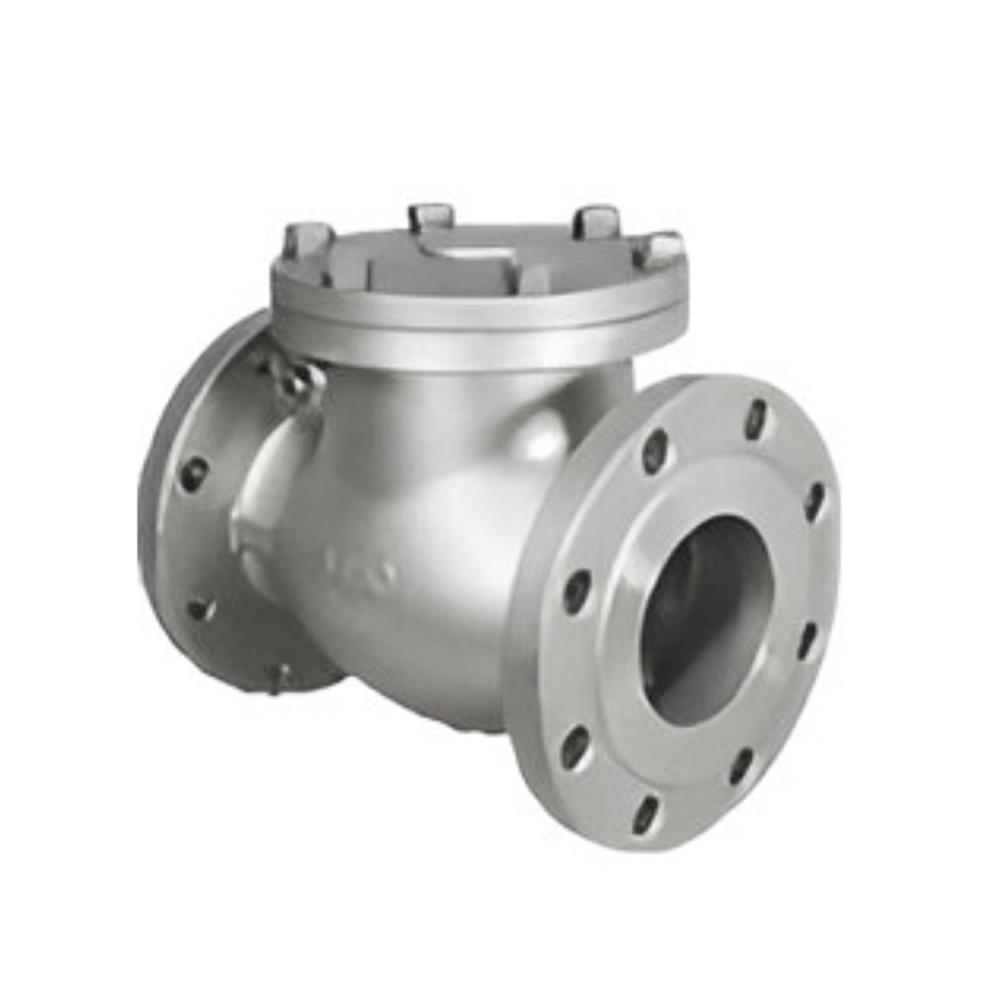

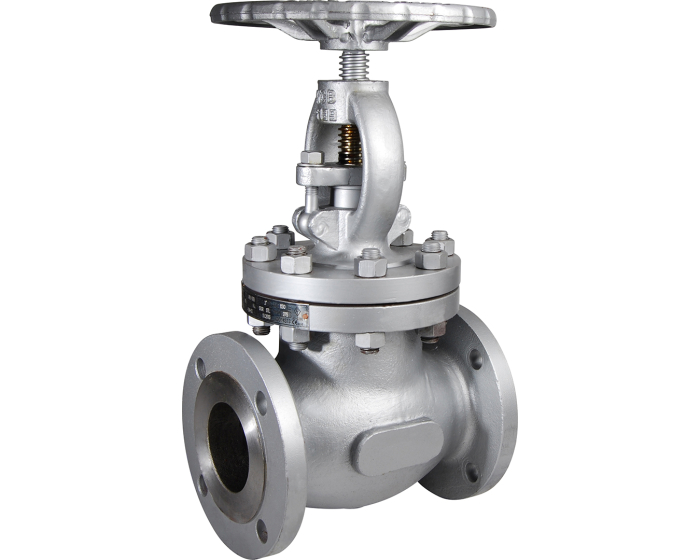

Inconel 718 Valves

Name: Inconel 718 Valves
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Inconel 718 Valves Specification

Tolerance
0.01 mm or as specified

Surface Treatment
Polished, Pickled, Passivated

Dimensions
DN15 - DN600 or 1/2 to 24 (custom sizes available)

Thickness
As per specifications or custom requirements

Steel Type
Nickel-Cr based Superalloy

Shape
Round Flanged Valve Body

Application
Oil & Gas, Aerospace, Chemical Processing, Marine, Power Generation

Technics
Forged, Cast, Precision Machined

Grade
Inconel 718

Material
Inconel 718 (Alloy 718)

Standard
ASTM B564 / ASME SB564, MSS-SP-44, API 600, API 602, EN 10213

Type
Gate Valve, Globe Valve, Check Valve, Ball Valve

Operating Pressure
Up to 6000 PSI (414 bar) depending on size and design

Design Features
Blow-out proof stem, bolted bonnet, anti-friction bearing, compact construction

Certificates
EN 10204 3.1, NACE MR0175/ISO 15156 compliance

Actuation
Manual, Pneumatic, Electric, Hydraulic

Testing
100% Hydrostatic and Pneumatic Testing

Leakage Class
API 598 or as per customer specification

Corrosion Resistance
Excellent resistance to oxidation and corrosion in harsh environments

Operating Temperature
-196C to 700C

Sealing Material
Metal-to-Metal, PTFE, Graphite on request

Media
Suitable for liquids, gases, corrosive chemicals

Connection Ends
Flanged, Butt Weld, Socket Weld, Threaded

Inconel 718 Valves Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Inconel 718 Valves About

inconel 718 valves are high-quality valves that are produced from nickel-chromium alloy and they are used as a result of emergent strength and corrosion resistance in severe services. They are durable and through the architectural designs used.

Exceptional Performance in Extreme Conditions

These Inconel 718 valves are built to maintain leak-free performance and structural stability under high pressures and wide temperature variations. The material's composition ensures excellent longevity, even when handling corrosive chemicals or in marine atmospheres. All valves undergo rigorous hydrostatic and pneumatic testing, guaranteeing reliability for demanding industrial applications.

Flexible Construction and Customization

Offered in a range of sizes (DN15-DN600 or 1/2''-24'') and designs, these valves accommodate various media and installation needs. Custom thickness, connection ends, and sealing materials, such as PTFE or graphite, can be specified. Blow-out proof stem, bolted bonnet, anti-friction bearings, and compact construction deliver enhanced operational safety and usability.

Quality Assurance and Certifications

Each valve is manufactured and tested in accordance with international standards, including API, ASTM, MSS, and EN. Certified to EN 10204 3.1 and compliant with NACE MR0175/ISO 15156, these valves are delivered with complete documentation, making them suitable for critical applications where quality and traceability are mandatory.

FAQ's of Inconel 718 Valves:

Q: How are Inconel 718 valves tested for reliability?

A: Each valve undergoes 100% hydrostatic and pneumatic testing to ensure it meets stringent performance and leakage standards. Testing complies with API 598 or customer-specific requirements, helping to guarantee leak-tight operation even under extreme conditions.

Q: What makes Inconel 718 valves suitable for high-pressure and corrosive environments?

A: Constructed from Inconel 718, a nickel-chromium superalloy, these valves exhibit exceptional resistance to oxidation and corrosion, and can safely function at pressures up to 6000 PSI and temperatures ranging from -196C to 700C, making them ideal for corrosive and high-stress environments.

Q: When should I use metal-to-metal, PTFE, or graphite sealing in these valves?

A: The selection of sealing material depends on application requirements. Metal-to-metal is used for high-temperature, abrasive service. PTFE offers superior chemical resistance at moderate temperatures, while graphite seals are chosen for high-temperature, corrosive media, and enhanced sealing performance.

Q: Where are Inconel 718 valves commonly installed?

A: These valves are frequently employed in oil & gas facilities, chemical plants, power generation sites, offshore marine environments, and aerospace industries where durability, safety, and reliability are paramount.

Q: What are the actuation options and their benefits for Inconel 718 valves?

A: Actuation methods available include manual, pneumatic, electric, and hydraulic. Pneumatic and electric actuation offer remote and rapid operation-ideal for automated systems. Manual actuation provides precise control while hydraulic actuation is suited for heavy-duty, high-torque applications.

Q: How does certification like EN 10204 3.1 benefit the end user?

A: Certification assures the user that the valves meet recognized international quality standards, with full material traceability and compliance with customer and industry specifications. This is especially valuable for safety-critical and regulated industries.

Q: What is the typical process involved in ordering custom Inconel 718 valves?

A: Customers can specify valve type, size, thickness, body and seal materials, surface treatment, and connection ends. The manufacturer reviews requirements, provides engineering support, and ensures production and testing to match all technical and certification needs.
