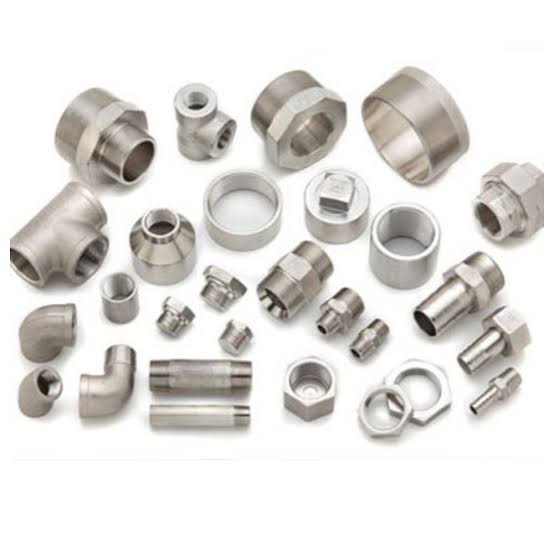

Monel 400 Forged Fittings

Name: Monel 400 Forged Fittings
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.00 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Monel 400 Forged Fittings Specification

Grade
Monel 400

Purity
99% min (Nickel-Copper Alloy)

Hardness
60-170 HB

Standard
ASTM B564, ASME SB564

Width
Standard sizes or customizable as per requirement

Temper
Annealed or as required

Surface
Smooth/Polished

Strength
Ultimate Tensile Strength: 480 MPa (min), Yield Strength: 170 MPa (min)

Thickness
3mm to 30mm (as per requirement)

Product Type
Forged Fittings

Material
Monel 400

Alloy
Nickel-Copper Alloy

Shape
Elbow, Tee, Coupling, Cap, Union, Plug, Bushing, Nipple, Cross

Moisture
Nil (industrial grade, dry finish)

Chemical Composition
Nickel: 63% min, Copper: 28-34%, Iron: 2.5% max, Manganese: 2% max, Silicon: 0.5% max, Carbon: 0.3% max, Sulphur: 0.024% max

Application
Petrochemical, Oil & Gas, Marine, Chemical Processing, Power Generation, Pulp & Paper

Dimension (L*W*H)
Custom or standard dimensions, as required

Color
Silver/Grey metallic

End Type
Beveled, Plain, Threaded

Wall Thickness
Sch 10s, Sch 40s, Sch 80s, Sch 160, XXS

Connection Type
Socket Weld, Threaded (NPT/BSP)

Packaging
Wooden Boxes, Carton Boxes, as per requirement

Working Temperature Range
up to 550C (1022F)

Corrosion Resistance
Excellent resistance to seawater and acidic environments

Testing
Hydrostatic Test, PMI Test, Hardness Test, IGC Test, Ultrasonic Test

Manufacturing Method
Forged, Heat Treated, Machined

Pressure Class
2000/3000/6000/9000 lbs

Monel 400 Forged Fittings Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Monel 400 Forged Fittings About

Monel 400 Forged Fittings are widely used in industries because they are important piping system components. They are known for their good characteristics and are made from nickel copper alloy. These fittings are manufactured using modern technology to improve quality and reliability in harsh working conditions.

Superior Corrosion Resistance for Demanding Environments

Monel 400 Forged Fittings are engineered to withstand the corrosive effects of seawater and acidic conditions. Their excellent chemical stability and resistance make them highly suitable for marine, oil & gas, chemical, and power plants where material integrity is paramount. The smooth, polished surface further enhances their protection against harsh operating environments.

Versatile Design and Pressure Ratings

These fittings come in multiple shapes including elbows, tees, couplings, caps, and more, accommodating a wide range of pipeline layouts. Connection options such as Socket Weld and Threaded (NPT/BSP) are available, supporting various installation preferences. Pressure ratings up to 9000 lbs ensure safe operation in high-pressure systems.

Quality Assurance and Customization

Manufactured through forging, heat treatment, and precise machining, each fitting is rigorously tested using methods like hydrostatic, PMI, hardness, IGC, and ultrasonic tests. Sizes, wall thickness, and dimensions can be customized to client requirements, and each batch is packed securely in wooden or carton boxes to ensure safe delivery world-wide.

FAQ's of Monel 400 Forged Fittings:

Q: How are Monel 400 Forged Fittings manufactured?

A: Monel 400 Forged Fittings are produced through a process involving forging, followed by heat treatment to improve mechanical properties, and machining to achieve precise dimensions and shapes. This manufacturing approach ensures superior strength, durability, and consistent quality required for critical industrial applications.

Q: What are the main benefits of using Monel 400 Forged Fittings?

A: These fittings offer outstanding corrosion resistance to seawater, acids, and alkalis, making them ideal for harsh operating environments. Their high mechanical strength, excellent ductility, and broad temperature tolerance up to 550C (1022F) provide long-lasting performance with minimal maintenance.

Q: When should I use Socket Weld or Threaded (NPT/BSP) connection types?

A: Socket Weld connections are best suited for high-pressure or high-temperature applications requiring a robust and leak-proof joint. Threaded (NPT/BSP) fittings offer ease of installation and removal, making them ideal for systems that require frequent maintenance or adjustments.

Q: What are the typical applications of Monel 400 Forged Fittings?

A: Common applications include petrochemical plants, oil & gas refineries, marine and offshore structures, chemical processing facilities, pulp & paper industries, and power generation. The fittings' resistance to aggressive chemicals and seawater ensures safe and efficient operation in these sectors.

Q: How are Monel 400 Forged Fittings tested for quality and reliability?

A: Each fitting undergoes rigorous quality testing such as hydrostatic tests to verify pressure tightness, Positive Material Identification (PMI) to confirm alloy composition, hardness testing, Intergranular Corrosion (IGC) tests, and ultrasonic inspection for structural soundness. These tests ensure fittings meet industry standards ASTM B564/ASME SB564.

Q: Where can these fittings be customized and how are they packaged?

A: Monel 400 Forged Fittings can be customized in size, shape, wall thickness, and surface finish to meet project-specific requirements. For safe transportation, they are packed in sturdy wooden or carton boxes, with packaging tailored to customer specifications or export norms.
