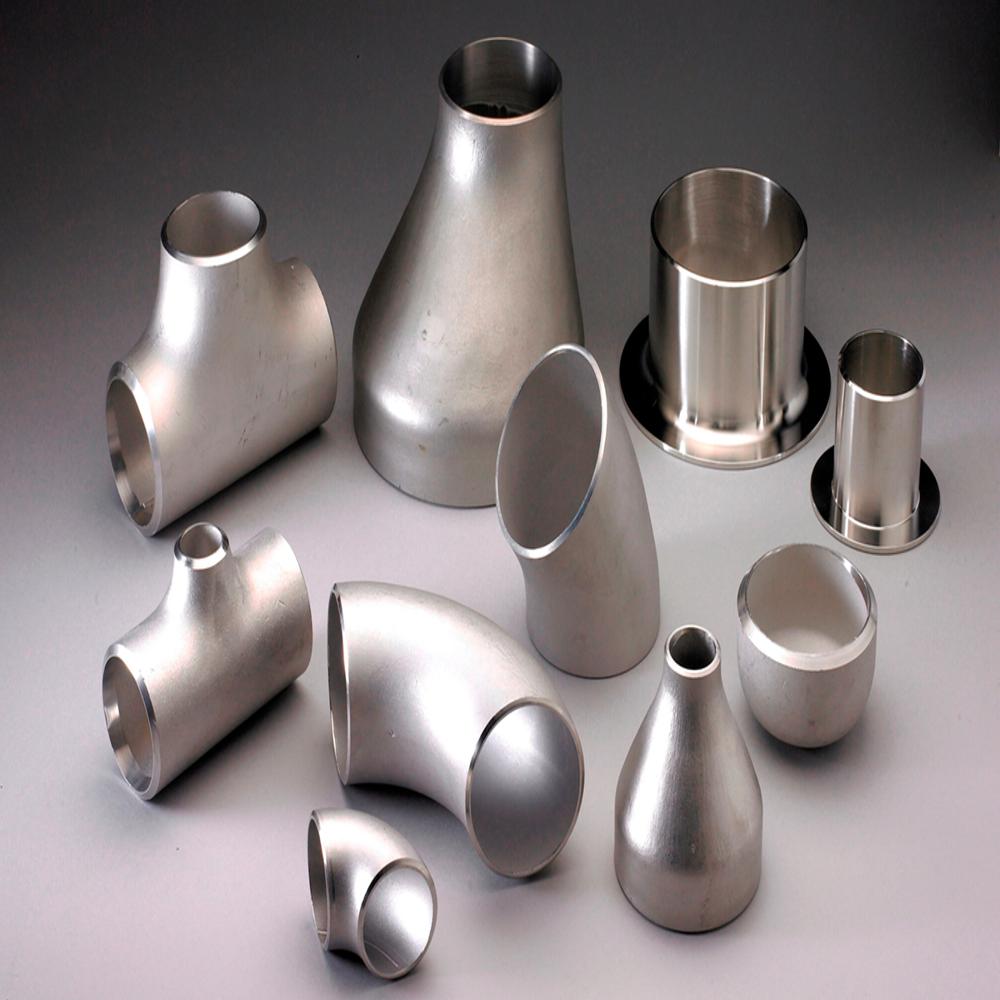

Monel 400 Pipe Fittings

Name: Monel 400 Pipe Fittings
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Monel 400 Pipe Fittings Specification

Connection Type
Buttweld / Threaded / Socket Weld

Diameter
DN15-DN600

Coating Type
None / Custom coated on request

Tensile Strength
480 MPa min

Yield Strength
170 MPa min

Sealing Type
Metal-to-metal or gasket (on request)

Bend Radius
1D, 1.5D, 2D or as required

Temperature Range
-196C to 600C

Flexibility
Rigid

Tolerance
0.5 mm

Thread Type
NPT / BSP / BSPT (on request)

Product Type
Pipe Fittings

Material
Monel 400 (Nickel-Copper Alloy)

Connection
Butt Weld, Socket Weld, Threaded

Shape
Elbow, Tee, Reducer, Cap, Stub End, Nipple, Coupling, Cross

Standard
ASTM B366 / ASME SB366

Surface Treatment
Polished / Pickled / Annealed

Outer Diameter
1/2 NB to 24 NB (as per specification)

Section Shape
Round

Length
Custom / as required

Thickness
Sch10 to Sch160 / 1.6 mm to 20 mm or as required

Color
Silver / Metallic

Usage
Pipe connection, fluid transfer, industrial application

Rated Pressure
Class 150 to 2500

Material Grade
UNS N04400

Application
Chemical, Petrochemical, Marine, Oil & Gas, Power Plants

Corrosion Resistance
Excellent in reducing environments

Heat Treatment
Annealed

Packaging
Wooden Cases / Palletized / Bubble wrapping

Elongation
35% min

Magnetic Permeability
Slightly magnetic at room temperature

Density
8.80 g/cm3

Certificates
EN 10204 3.1 / 3.2

Dimensional Form
Seamless / Welded

Hardness
Rockwell B 75 max

Monel 400 Pipe Fittings Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Monel 400 Pipe Fittings About

Monel 400 pipe fittings are very essential in the systems used for the handling of fluids. They are valued for their outstanding characteristics and the high degree of mechanical performance. These are mainly composed of nickel and copper and afford special benefits in settings where the more standard materials may corrode.

Exceptional Corrosion Resistance

Monel 400 Pipe Fittings stand out for their excellent performance in reducing environments, making them a reliable choice where corrosion could compromise standard alloys. Their inherent resistance equips them to handle aggressive mediums, extending equipment life and reducing maintenance costs in industries like chemical processing and marine engineering.

Precision Engineering & Quality Assurance

Each fitting is produced to rigorous standards such as ASTM B366/ASME SB366, with strict tolerances of 0.5 mm and multiple surface treatments including polished, pickled, and annealed finishes. Certifications like EN 10204 3.1/3.2 guarantee traceability and quality, meeting the exacting demands of global industries.

Versatile Design and Customization

Available in a wide range of shapes-elbows, tees, reducers, caps, and more-these fittings can be seamlessly integrated into various piping systems. Custom lengths, diameters (DN15-DN600), and pressure ratings ensure versatility for projects in chemical, marine, oil & gas, and power sectors.

FAQ's of Monel 400 Pipe Fittings:

Q: How are Monel 400 Pipe Fittings typically used in industrial settings?

A: Monel 400 Pipe Fittings are primarily utilized for pipe connections and fluid transfer in chemical, petrochemical, marine, oil & gas, and power plant applications. Their superior corrosion resistance and mechanical strength make them suitable for harsh environments where standard fittings may fail.

Q: What manufacturing process is used for Monel 400 Pipe Fittings?

A: These fittings are produced through seamless or welded processes and can undergo surface treatments such as polishing, pickling, or annealing. Each fitting is carefully manufactured to meet ASTM B366/ASME SB366 standards, ensuring precise dimensions and robust performance.

Q: When should Monel 400 Pipe Fittings be chosen over other types?

A: Monel 400 fittings are ideal when applications involve highly corrosive or reducing environments and wide temperature ranges (from -196C up to 600C). They are also preferred for their durability, high tensile strength (minimum 480 MPa), and outstanding elongation (35% min), ensuring dependable operation under demanding conditions.

Q: Where can these fittings be sourced or installed?

A: Monel 400 Pipe Fittings are available through reputable exporters, importers, manufacturers, suppliers, and traders worldwide. They are installed wherever fluid transfer, pipe connection, and structural integrity are required-especially in chemical plants, marine environments, refineries, and nuclear facilities.

Q: What are the benefits of using Monel 400 Pipe Fittings in piping systems?

A: The primary benefits include exceptional longevity due to superior corrosion resistance, minimal maintenance needs, high operational safety across a broad temperature and pressure range, and compatibility with multiple connection types (butt weld, socket weld, threaded). Customization options further ensure optimal integration into complex systems.

Q: How are Monel 400 Pipe Fittings packaged and delivered?

A: To ensure safe transit and protection, these fittings are typically packaged in wooden cases, securely palletized, or bubble wrapped. This packaging safeguards the products against damage during shipment and handling.

Q: What certification and standard compliance can purchasers expect?

A: Each fitting is provided with EN 10204 3.1 or 3.2 certification for quality assurance. Compliance with international standards (ASTM B366/ASME SB366) ensures high reliability and suitability for critical industrial applications.
