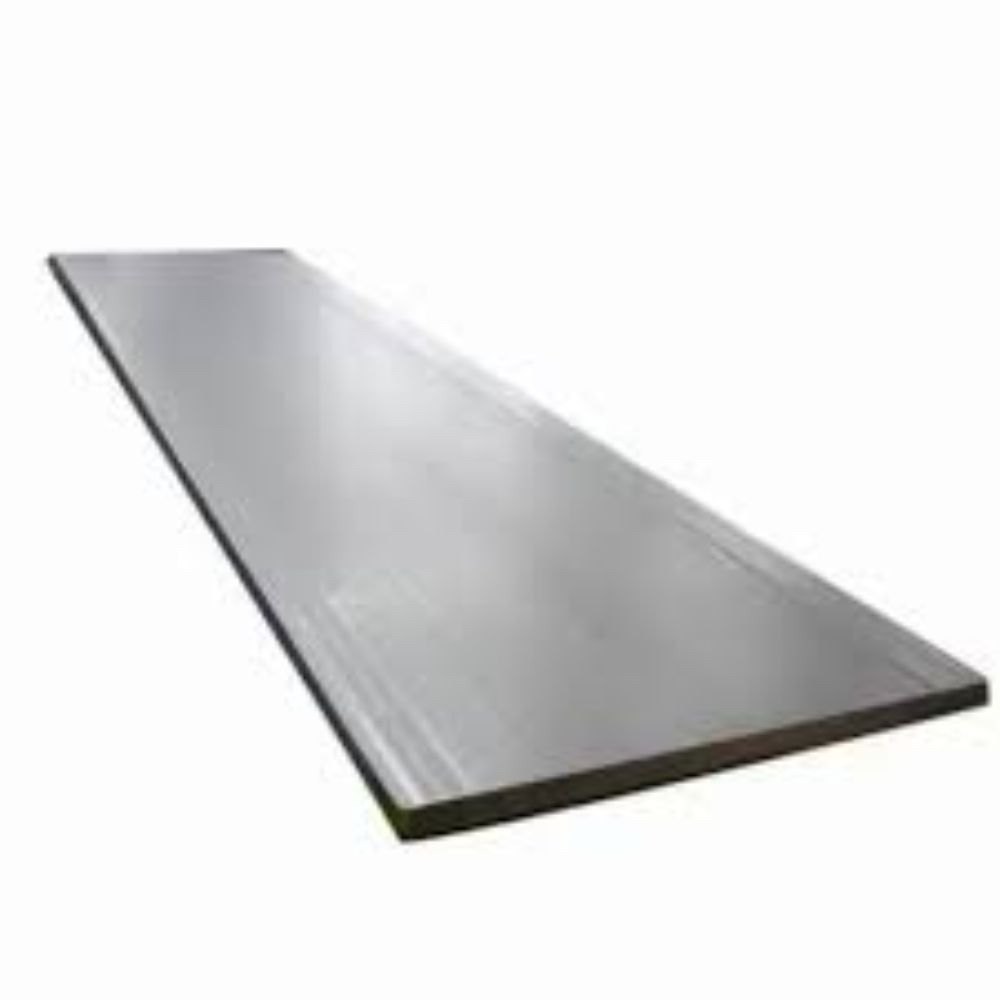

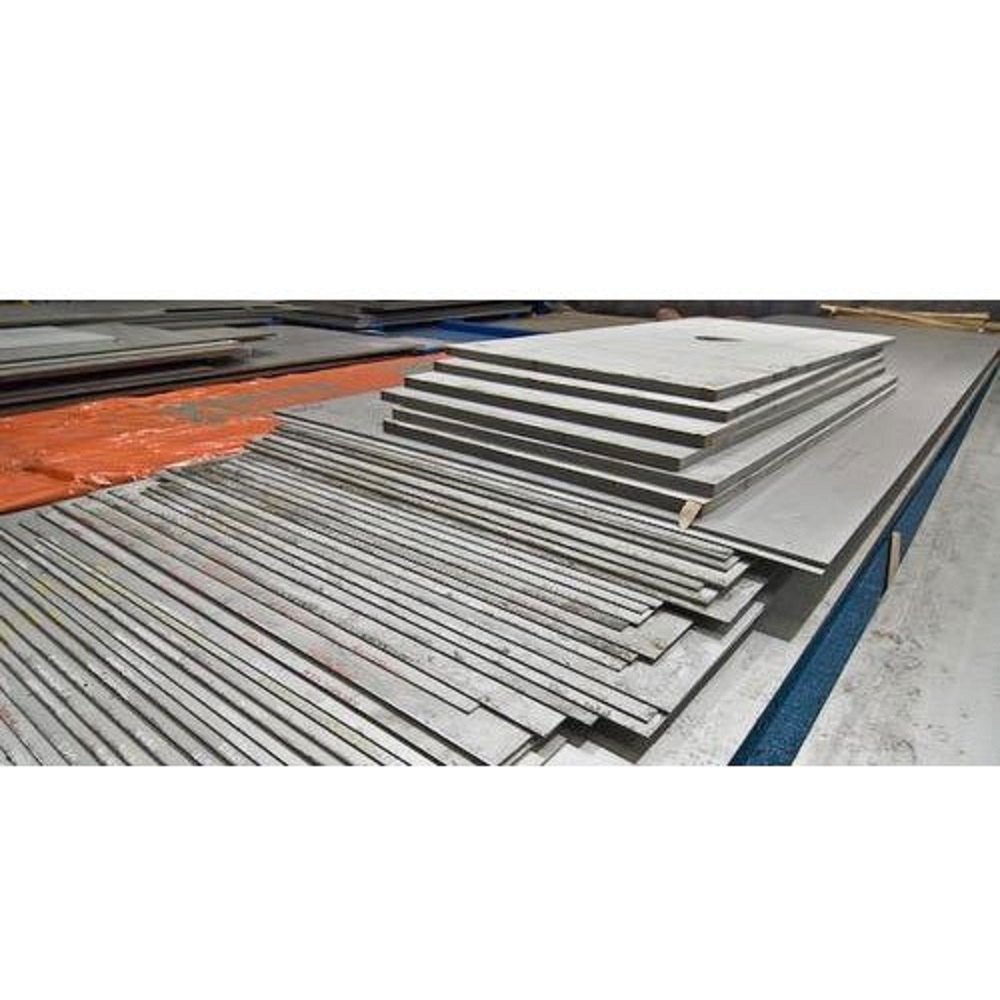

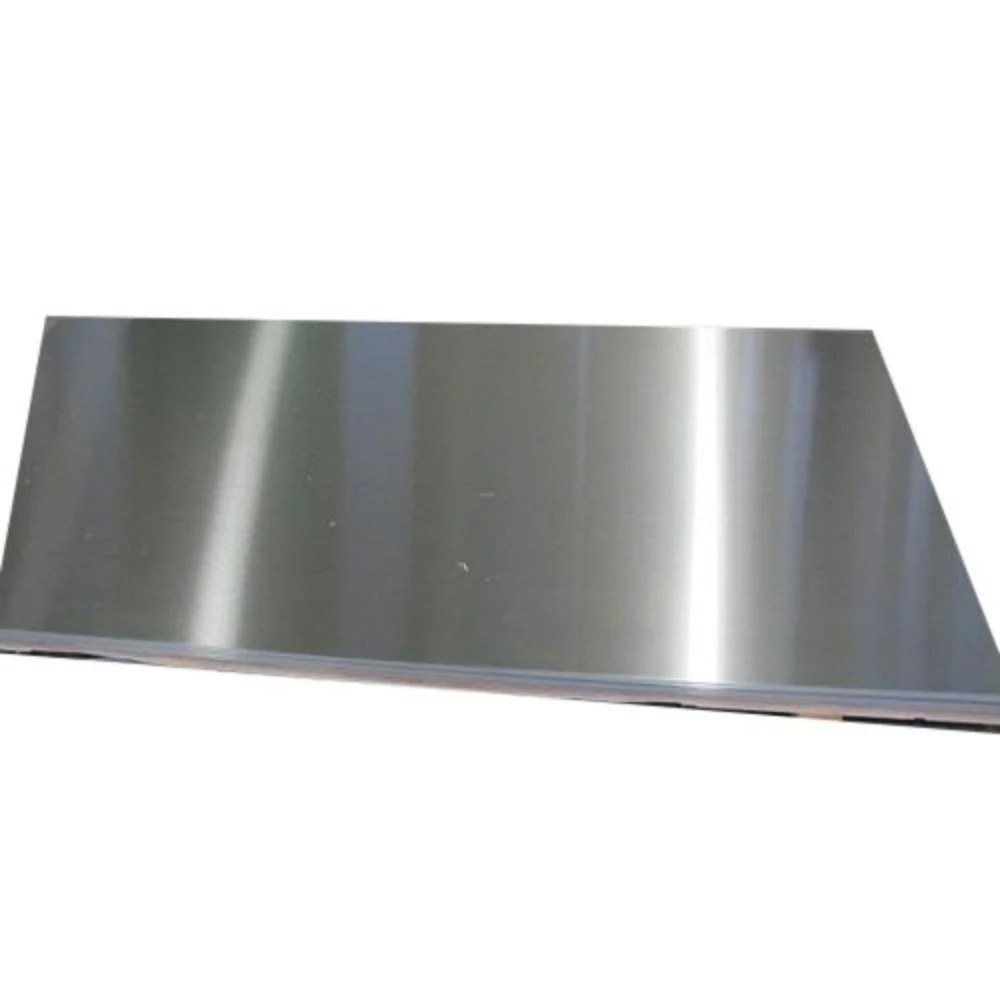

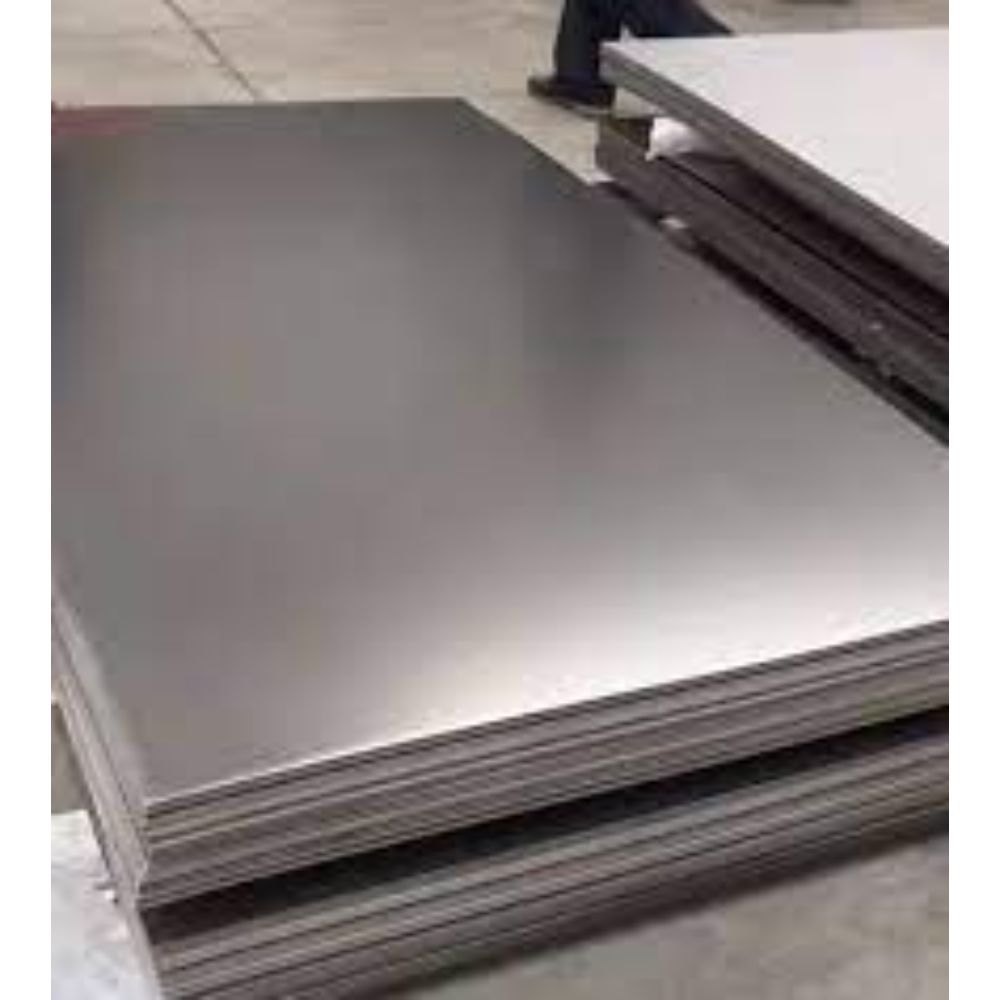

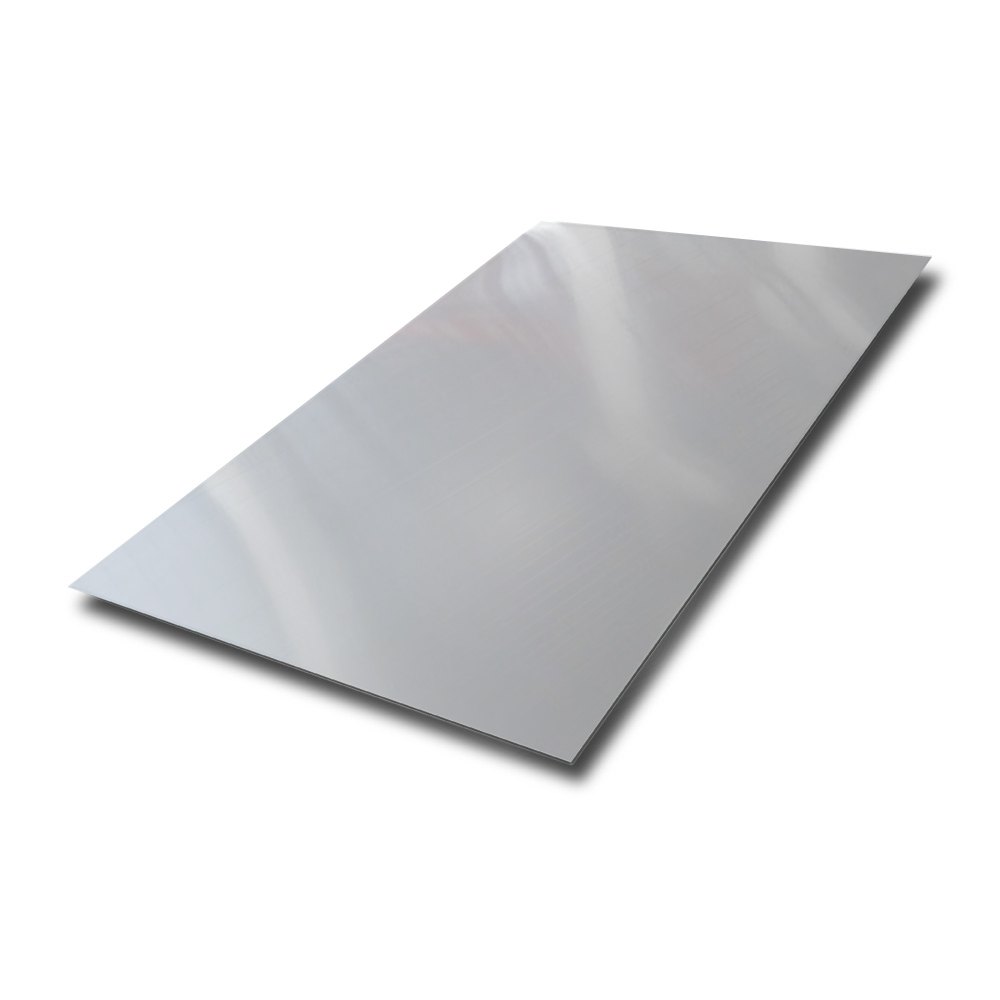

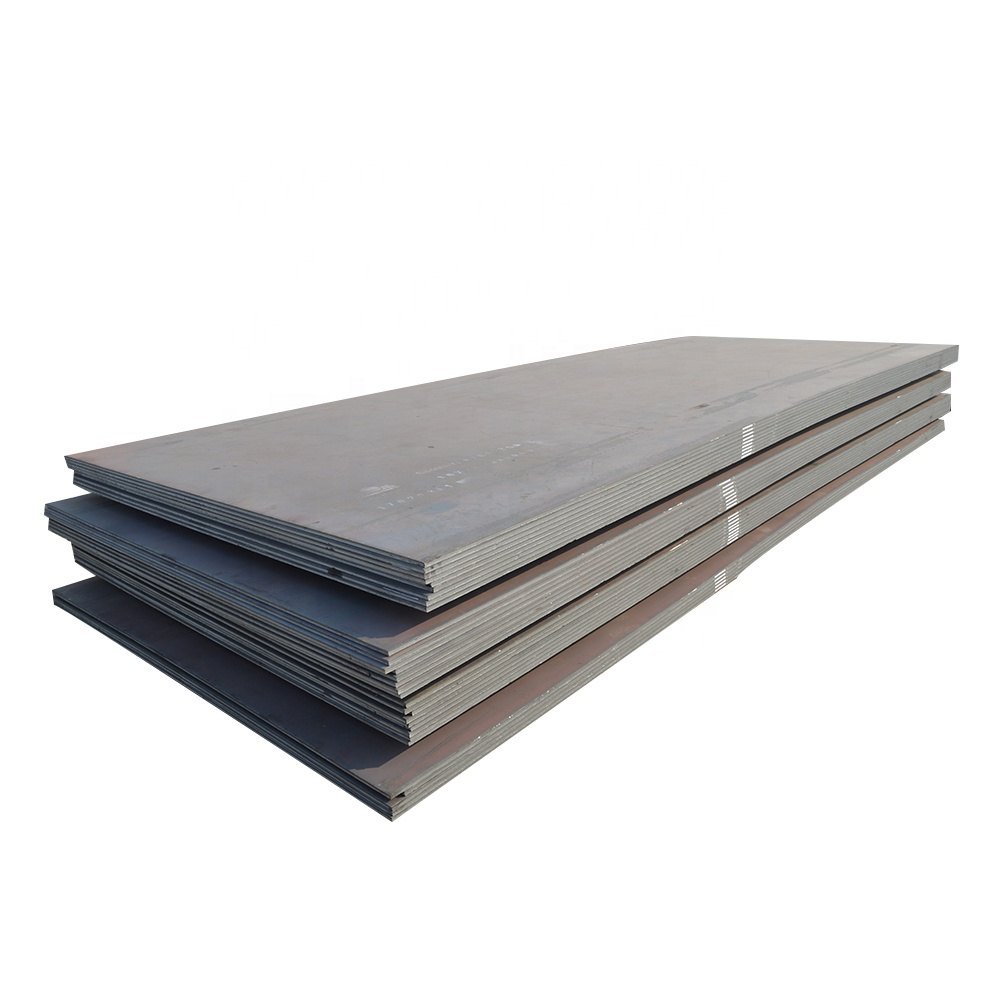

Monel K500 Plates

Name: Monel K500 Plates
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Monel K500 Plates Specification

Purity
High Nickel Content (63%-70% Ni)

Grade
Monel K500

Temper
Soft Annealed, Hard, Quarter Hard, Half Hard, Spring Temper

Standard
ASTM B127, ASME SB127

Width
Up to 2000 mm

Hardness
165-375 HB (annealed to hardened)

Surface
Bright, Smooth, Matte finish

Strength
Yield Strength: 690 MPa (min), Tensile Strength: 965 MPa (min)

Thickness
2 mm - 100 mm or as required

Product Type
Industrial Plate / Sheet

Material
Monel K500

Alloy
Nickel-Copper Alloy w/ Aluminum & Titanium

Shape
Plate, Sheet

Moisture
Nil (Non-absorbent, corrosion resistant)

Chemical Composition
Nickel (Ni): ~65% min, Copper (Cu): 27-33%, Iron (Fe): 2.0%, Manganese (Mn): 1.50%, Aluminum (Al): 2.3-3.15%, Titanium (Ti): 0.35-0.85%

Application
Corrosion Resistant Components, Marine Engineering, Valve and Pump Parts

Dimension (L*W*H)
Customized, Standard (2000mm x 4000mm, 1250mm x 2500mm, etc.)

Color
Silver/Grey

Magnetic Properties
Nonmagnetic to slightly magnetic in annealed condition

Form
Hot Rolled, Cold Rolled

Edge
Mill Edge, Slit Edge

OEM Service
Available

Density
8.44 g/cm3

Finish
2B, BA, No.1, No.4, Custom

Machinability
Good (Better than Monel 400)

Melting Point
1288C - 1343C

Processing
Cutting, Shearing, Polishing, Fabrication Available

Stock Availability
Ready Stock/Custom Cut Available

Weldability
Good, suitable for various welding methods

Delivery Condition
Solution Annealed, Pickled, Polished or as required

Corrosion Resistance
Excellent resistance to seawater and chemical environments

Monel K500 Plates Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Monel K500 Plates About

Monel K500 plates have some unique characteristics. They are mainly made of nickel and copper with a small percentage of aluminium and titanium; they possess mechanical properties that qualify them for various uses.

Exceptional Corrosion Resistance

Monel K500 Plates are renowned for their superior resistance to corrosive environments, such as seawater and chemical processing settings. The high nickel content, coupled with copper, aluminum, and titanium, grants these plates robust protection against pitting, crevice corrosion, and stress cracking, which are common problems in harsh industrial environments.

Versatile Processing & Customization

Choose from a comprehensive range of processing options including cutting, shearing, polishing, and fabrication services. Monel K500 Plates are available in an array of delivery conditions (solution annealed, pickled, polished) and can be custom-cut to match unique project requirements. Various finishes ensure suitability for both functional and aesthetic applications.

Reliable Strength and Durability

With a minimum yield strength of 690 MPa and minimum tensile strength of 965 MPa, Monel K500 Plates stand out for their mechanical performance, whether in annealed or hardened tempers. High hardness values (165-375 HB) and excellent machinability make them a dependable choice for load-bearing and high-wear applications across industries.

FAQ's of Monel K500 Plates:

Q: How do Monel K500 Plates compare to other nickel alloys for corrosion resistance?

A: Monel K500 Plates offer excellent resistance to seawater, acids, and various chemicals, outperforming many standard nickel alloys in harsh environments. The addition of aluminum and titanium enhances their protective properties against pitting and stress-corrosion cracking.

Q: What processing options are available for Monel K500 Plates?

A: Monel K500 Plates can be processed through cutting, shearing, polishing, and custom fabrication. They are supplied in several delivery conditions, such as solution annealed, pickled, or polished, depending on the specific requirements of your application.

Q: When is Monel K500 preferred over Monel 400?

A: Monel K500 is favored when higher strength and hardness are necessary, as it offers better mechanical properties and machinability compared to Monel 400, making it ideal for heavy-duty components and marine engineering parts.

Q: Where are Monel K500 Plates commonly used?

A: These plates are extensively used in marine engineering, valve and pump manufacturing, and any application requiring corrosion-resistant components, especially those exposed to seawater or aggressive chemical environments.

Q: What benefits do the various plate finishes provide?

A: Different finishes like 2B, BA, No.1, and No.4, along with custom finishes, allow for an optimized balance of aesthetics and performance. Finishes improve appearance, enhance surface smoothness, and can add a layer of ease regarding maintenance and cleaning.

Q: How are Monel K500 Plates delivered to clients?

A: Plates are available from stock or custom cut to dimensions, and can be delivered in solution annealed, pickled, or polished conditions according to project needs. Standard sizes and custom dimensions ensure a tailored fit for every requirement.

Q: What is the machinability and weldability of Monel K500 Plates?

A: Machinability of Monel K500 is rated as good and is notably better than that of Monel 400, while its weldability supports various welding techniques, ensuring ease of installation and fabrication.
