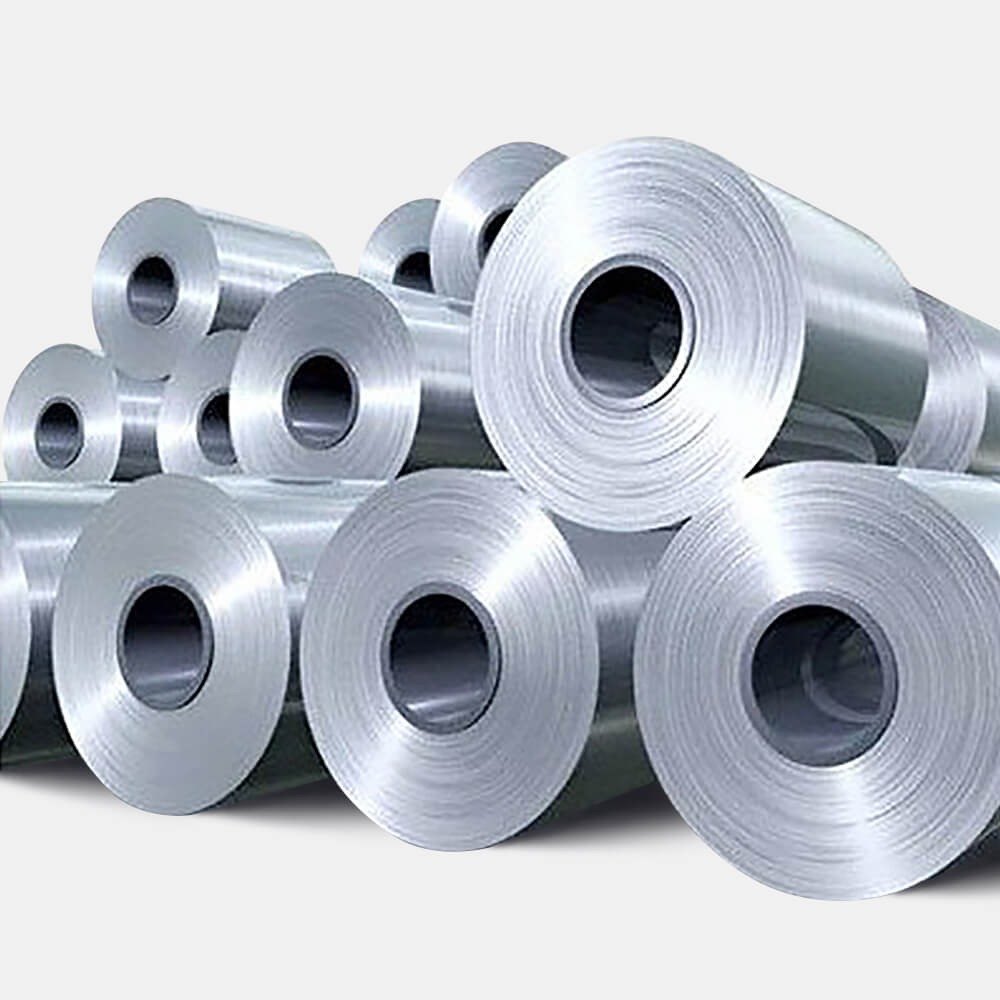

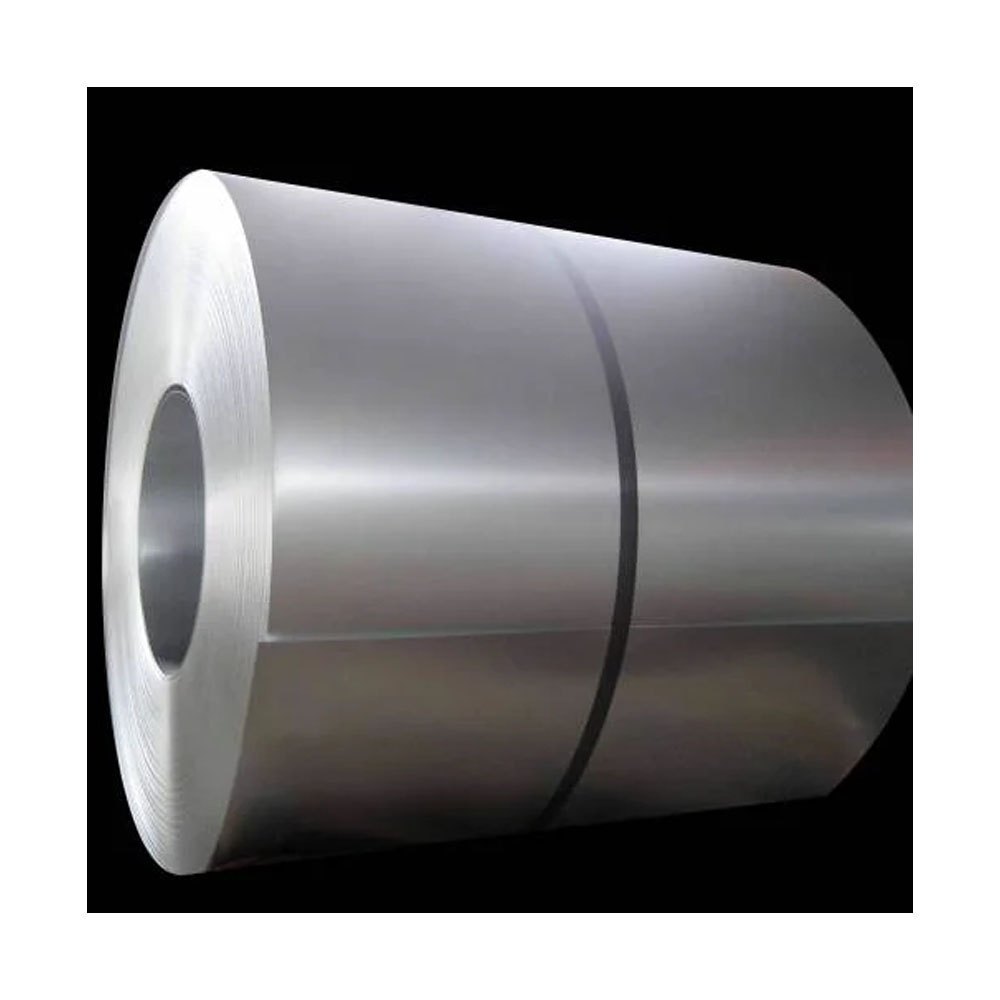

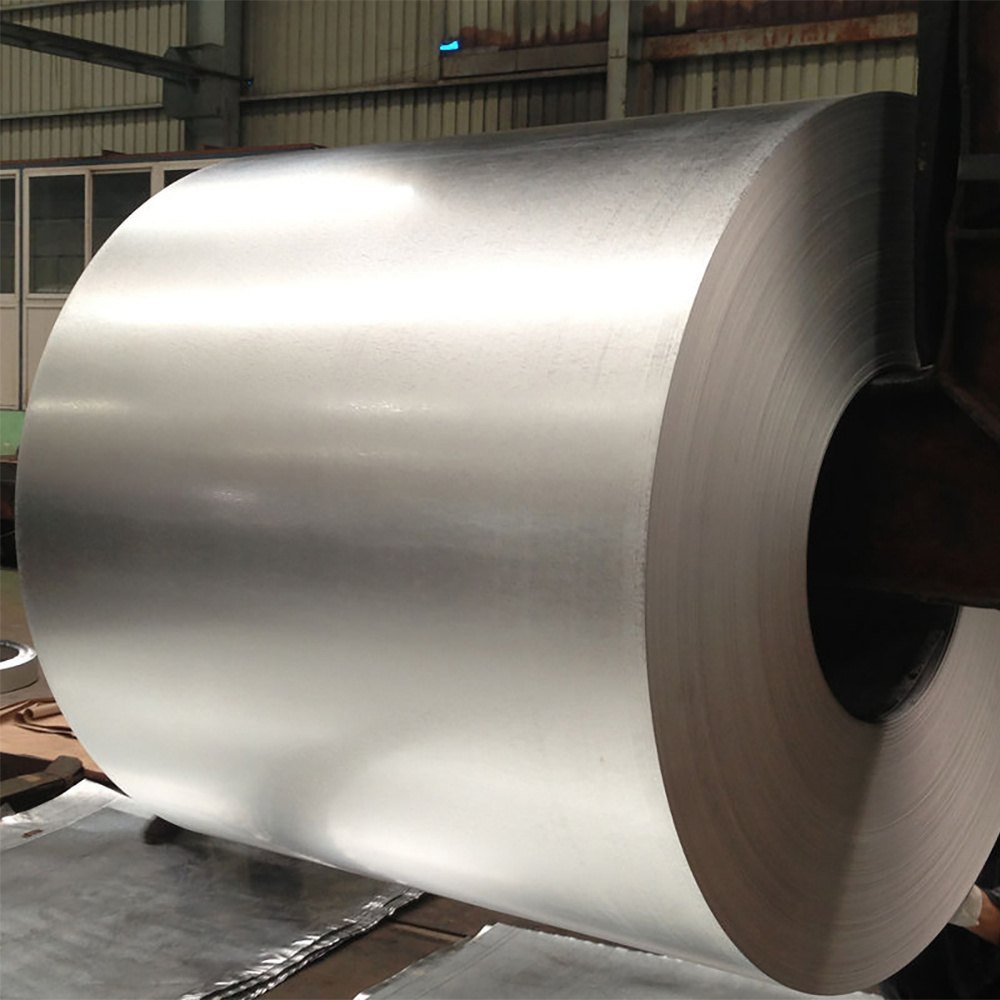

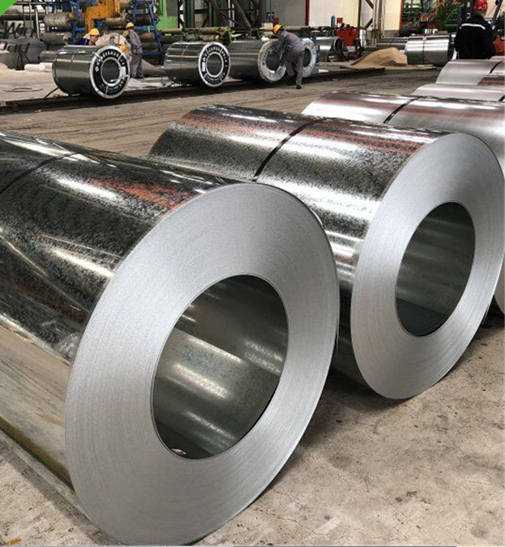

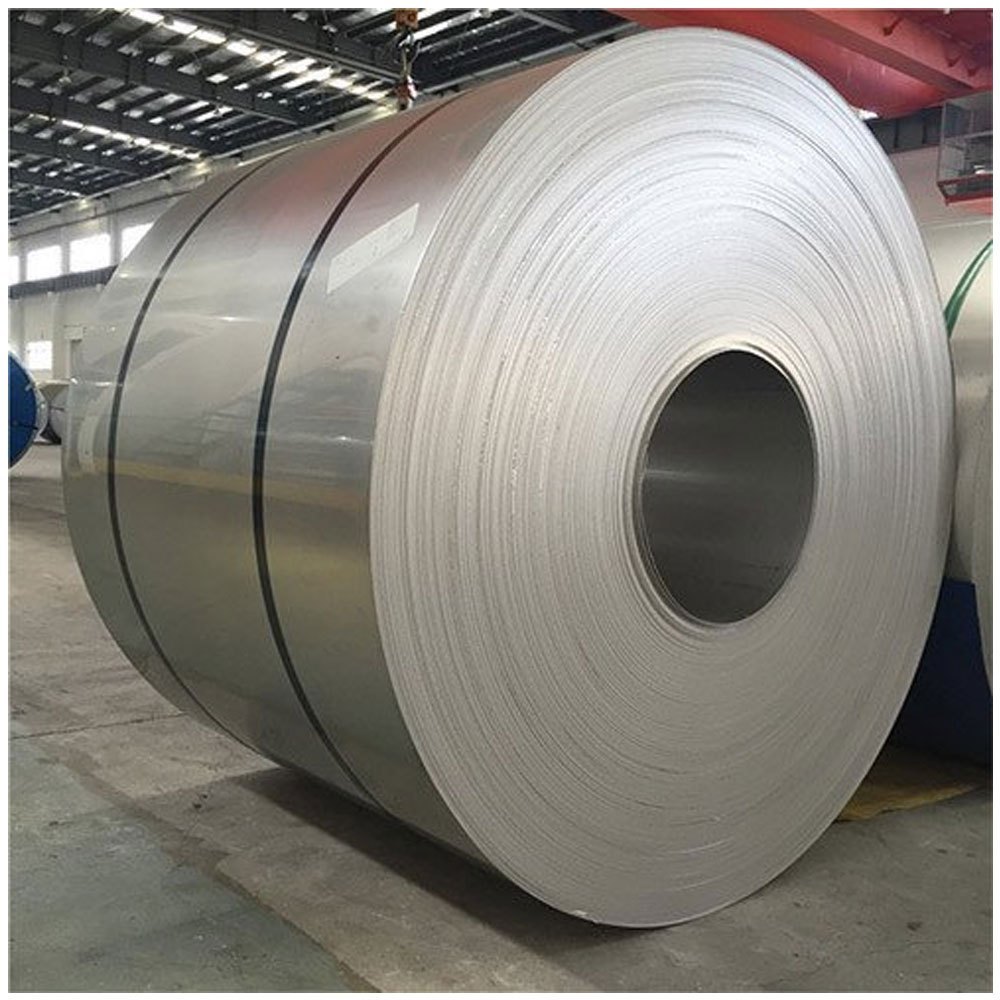

Monel k500 Coil
Monel k500 Coil
Monel k500 Coil
Monel k500 Coil
Monel k500 Coil
Monel k500 Coil
Monel k500 Coil
Monel k500 Coil
Monel k500 Coil
Monel k500 Coil
Monel k500 Coil
Monel k500 Coil

Monel k500 Coil

Price 500.0 INR/ Kilograms

MOQ : 1 Kilograms

Monel k500 Coil Specification

  • Hardness
  • Rockwell B75 - C35 (Depends on temper)
  • Grade
  • Monel K500
  • Purity
  • 99% Min
  • Standard
  • ASTM B127, ASTM B163, ASTM B164
  • Surface
  • Bright, Polished, Smooth
  • Thickness
  • 0.1 mm - 3 mm
  • Temper
  • Soft, Hard, Quarter Hard, Half Hard, Spring Hard
  • Width
  • 10 mm - 2000 mm
  • Strength
  • Ultimate Tensile Strength: 850 - 1100 MPa
  • Product Type
  • Industrial Coil
  • Material
  • Monel K500 (UNS N05500)
  • Alloy
  • Nickel-Copper-Aluminium Alloy
  • Shape
  • Coil
  • Moisture
  • Nil (Dry Condition)
  • Chemical Composition
  • Ni: 63% Min, Cu: 27-33%, Al: 2.3-3.15%, Ti: 0.35-0.85%, Fe: 2% Max, other elements: trace
  • Application
  • Corrosion Resistant Components, High Strength Fasteners, Pump Shafts, Marine and Oilfield Equipment
  • Dimension (L*W*H)
  • Custom as per requirement
  • Color
  • Silver/Grey Metallic
  • Melting Point
  • 1315C
  • Yield Strength
  • 690 MPa
  • Edge Type
  • Slit Edge / Mill Edge
  • Elongation
  • 20%
  • Density
  • 8.44 g/cm3
  • Magnetic Permeability
  • Non-magnetic (when annealed)
  • Finish
  • 2B/Polished/No.1/Custom
  • Corrosion Resistance
  • Excellent in acidic and alkaline environments
  • Condition
  • Annealed/Cold Rolled
  • Packing
  • Wooden Case / Pallet / Customized
  • Thermal Conductivity
  • 17 W/(mK) at 20C


Monel k500 Coil Trade Information

  • Minimum Order Quantity
  • 1 Kilograms
  • Delivery Time
  • 7 Days


Monel k500 Coil About

Monel K500 is a high-strength material mainly made of nickel and copper. It also contains small proportions of iron and other ingredients like manganese and aluminium. This alloy is well known for its good properties in different conditions.

Outstanding Corrosion Resistance

Monel K500 Coil demonstrates superb resistance against both acidic and alkaline environments, making it highly suitable for marine, chemical, and oilfield applications. Its superior strength and corrosion protection ensure reliable performance under harsh conditions, minimizing maintenance and extending material life.


High Strength and Versatility

With yield strengths up to 690 MPa and ultimate tensile strengths reaching 1100 MPa, Monel K500 offers substantial mechanical performance across a wide spectrum of demands. Available in multiple tempers and finishes, it can be tailored for applications ranging from fasteners to complex pump shafts.


Customizable to Application Needs

Offered in thicknesses from 0.1 mm to 3 mm and widths up to 2000 mm, Monel K500 Coil is fully customizable for specific project requirements. Finish options include 2B, polished, No.1, or custom surfaces, delivered in protective wooden cases or pallets for secure transportation and storage.

FAQ's of Monel k500 Coil:


Q: How does Monel K500 Coil achieve its excellent corrosion resistance?

A: Monel K500 Coil's exceptional corrosion resistance is primarily due to its chemical composition, which includes a high percentage of nickel and copper, as well as additions of aluminium and titanium. These elements together provide resilience against both acidic and alkaline environments, making the alloy suitable for marine and chemical industries.

Q: What are the main benefits of using Monel K500 Coil in industrial applications?

A: The coil offers a combination of high strength, excellent corrosion resistance, non-magnetic properties when annealed, and durability. These characteristics make it ideal for critical components like high-strength fasteners, pump shafts, and parts exposed to corrosive conditions in marine and oilfield environments.

Q: When should I choose annealed versus cold rolled Monel K500 Coil?

A: If your application requires higher ductility and non-magnetic properties, annealed Monel K500 is preferable. For increased strength and hardness, cold-rolled or various tempered (quarter, half, spring hard) options are recommended, depending on the mechanical demands of the intended use.

Q: Where are typical places Monel K500 Coil is utilized?

A: Monel K500 Coils are commonly used in environments demanding high strength and corrosion resistance such as offshore platforms, shipbuilding, high-pressure pump shafts, chemical processing equipment, and oil & gas industries.

Q: What is the standard process for manufacturing Monel K500 Coil?

A: Monel K500 Coils are produced by alloying pure nickel, copper, aluminium, and titanium, followed by melting, hot rolling, and either annealing or cold rolling to achieve desired tempers. The coils are then slit, finished, and packed as per the client's specifications.

Q: How is Monel K500 Coil typically packed and shipped?

A: The coil is securely packed in wooden cases or on pallets, or customized according to specific requirements, ensuring the material remains dry and protected from environmental damage during transportation and storage.

Q: What is the advantage of the available surface finishes for Monel K500 Coil?

A: Surface finishes such as bright, polished, 2B, No.1, or customized coatings not only enhance the coil's appearance but also improve its resistance to surface corrosion and facilitate easier cleaning and fabrication for end-use applications.
