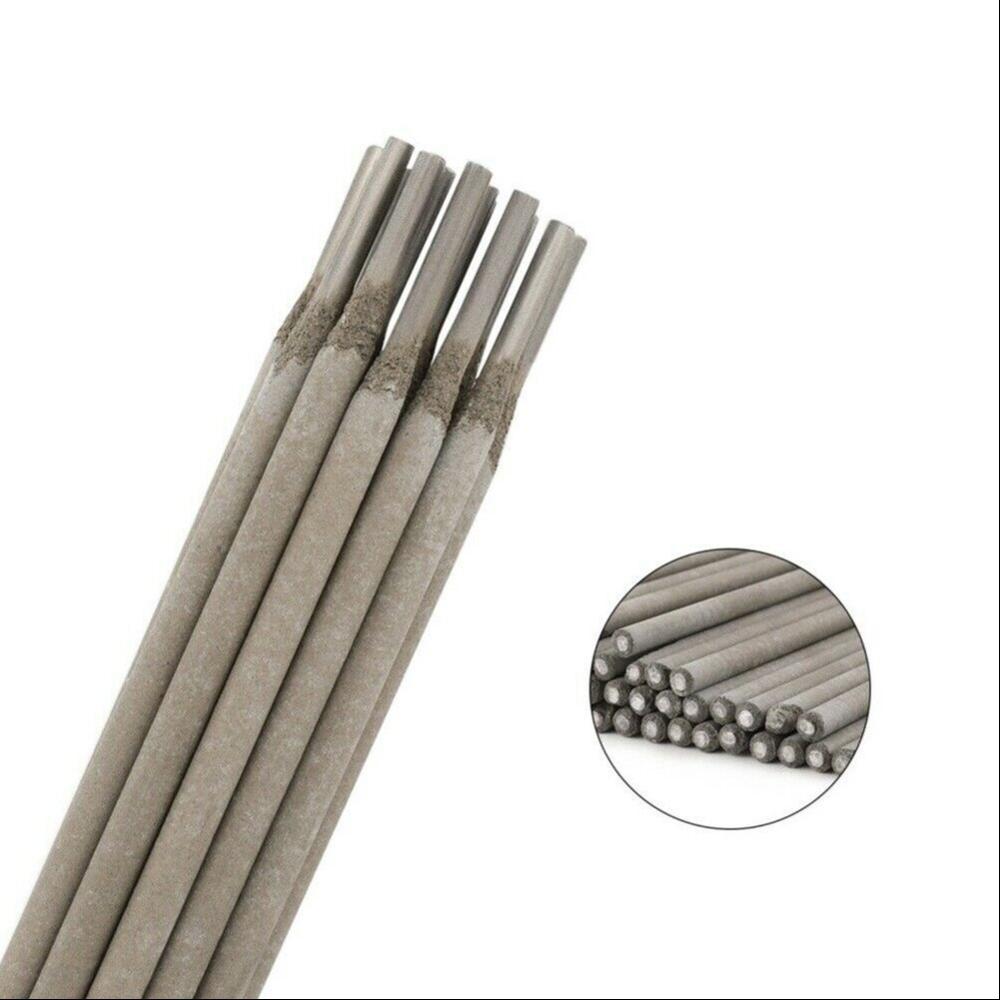

Monel 400 Electrodes

Name: Monel 400 Electrodes
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Monel 400 Electrodes Specification

Surface
Smooth, Bright, Clean

Strength
Tensile strength: 480 MPa

Purity
99%

Grade
Monel 400

Hardness
80-90 HRB

Width
Round (diameter as per thickness)

Temper
Annealed

Standard
ASTM B164, ASME SB164

Thickness
2mm - 6mm

Product Type
Welding Electrode

Material
Nickel-Copper Alloy

Alloy
Monel

Shape
Rod / Electrode

Moisture
0.1%

Chemical Composition
Ni ~63%, Cu ~30%, Fe 2.5%, Mn 2%

Application
Shipbuilding, Heat Exchangers, Chemical Plants, Oil & Gas

Dimension (L*W*H)
350mm (Length) Diameter

Color
Grey Metallic

Pack Type
Box or Bundle

Melting Point
1300C - 1350C

Operating Temperature
Up to 550C

HS Code
831190

Density
8.80 g/cm3

Current Type
AC/DC

Main Feature
Resistant to Seawater and Steam at High Temperatures

Corrosion Resistance
Excellent in Acidic and Alkaline Environments

Coating Type
Rutile or Basic Coating

Elongation
35%

Monel 400 Electrodes Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Monel 400 Electrodes About

Monel 400 electrodes are welding rods specifically used to weld nickel-copper alloy, which has some of the best characteristics, especially when used in marine environments, chemicals, and situations where reduction is likely to occur.

Exceptional Corrosion Resistance

Monel 400 Electrodes deliver outstanding corrosion resistance, particularly in harsh acidic and alkaline environments. This makes them a preferred choice for industries where exposure to corrosive agents is frequent, offering long-lasting durability and reduced maintenance requirements.

Versatile Application Range

Thanks to their robust chemical composition and resilient mechanical properties, Monel 400 Electrodes are suitable for use in shipbuilding, chemical processing, heat exchangers, and oil & gas sectors. Their ability to perform under high temperatures and in seawater or steam environments ensures versatile utility.

Reliable Performance and Quality

Manufactured to stringent standards like ASTM B164 and ASME SB164, these electrodes ensure consistent performance. Their smooth, clean finish and standard diameters make handling and usage efficient in various welding tasks. Packaged conveniently in boxes or bundles, they cater to the diverse needs of industry professionals.

FAQ's of Monel 400 Electrodes:

Q: How should Monel 400 Electrodes with rutile or basic coating be stored to maintain quality?

A: Store Monel 400 Electrodes in a dry environment to preserve their low moisture content (0.1%) and prevent surface contamination. Keeping them in boxes or bundles, away from damp conditions, ensures longer shelf life and sustained welding performance.

Q: What are the main benefits of using Monel 400 Electrodes in seawater applications?

A: Monel 400 Electrodes are highly resistant to corrosion and stress cracking in seawater, even at high temperatures up to 550C. This makes them particularly effective in marine structures, shipbuilding, and offshore oil & gas applications.

Q: When is it recommended to use Monel 400 Electrodes with a rutile or basic coating?

A: These electrodes are recommended when high weld quality, excellent corrosion resistance, and superior mechanical strength are required, especially in industries dealing with chemicals, seawater, or elevated temperatures.

Q: Where are Monel 400 Electrodes commonly used?

A: Common applications include shipbuilding, heat exchangers, chemical processing plants, and oil & gas facilities. They are chosen for environments where robust corrosion resistance and strength are essential.

Q: What is the welding process for Monel 400 Electrodes and which current types are suitable?

A: Monel 400 Electrodes are suitable for stick welding processes and can be used with either AC or DC current. Ensure proper electrode selection and settings for optimal weld integrity and surface finish.

Q: How does the chemical composition of Monel 400 Electrodes contribute to performance?

A: The high nickel (about 63%) and copper (about 30%) content, along with trace elements like iron and manganese, endows these electrodes with exceptional corrosion resistance and mechanical properties, ensuring longevity and reliability in demanding environments.
