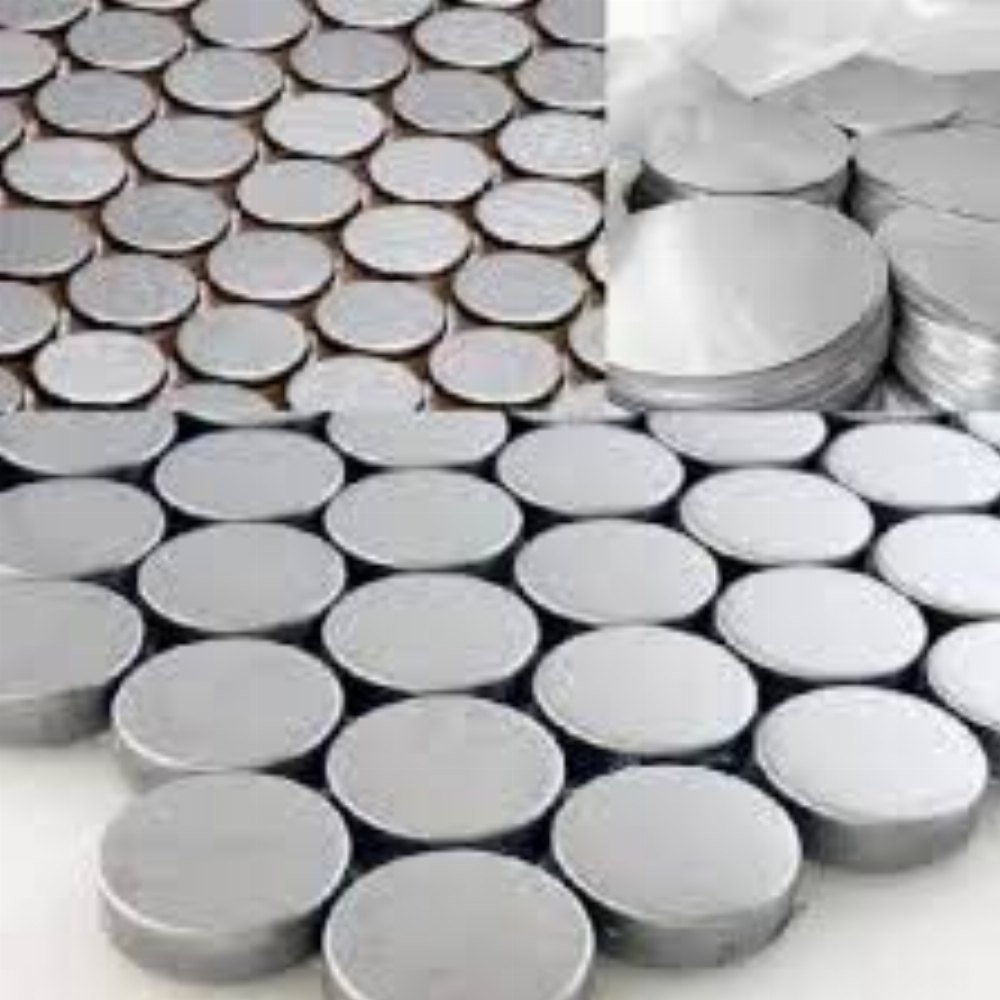

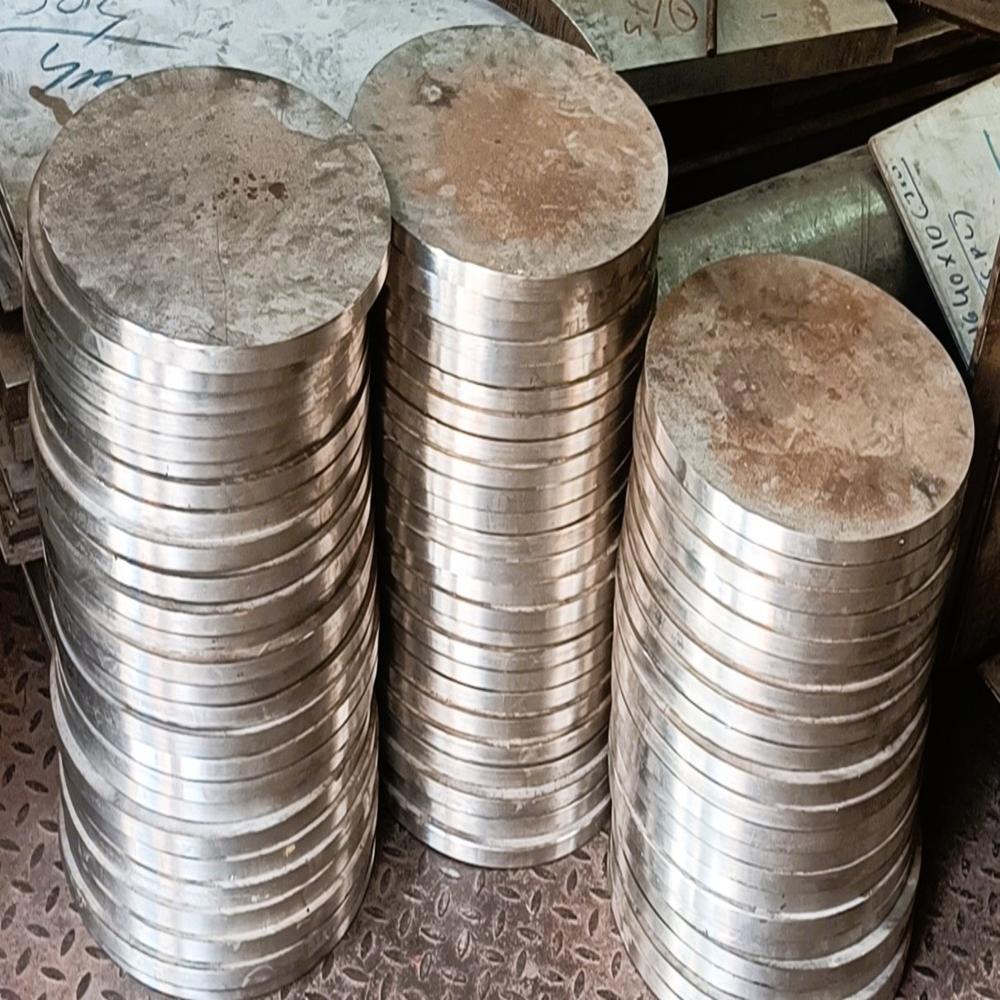

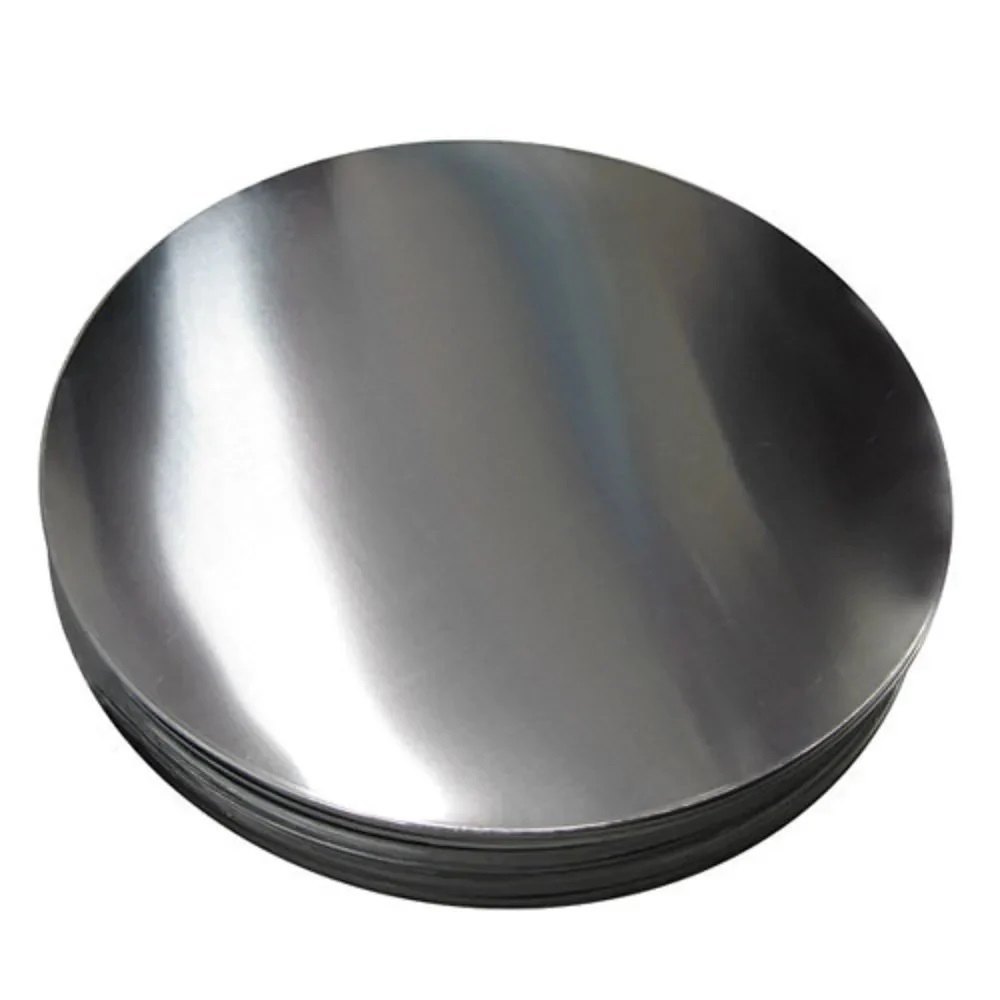

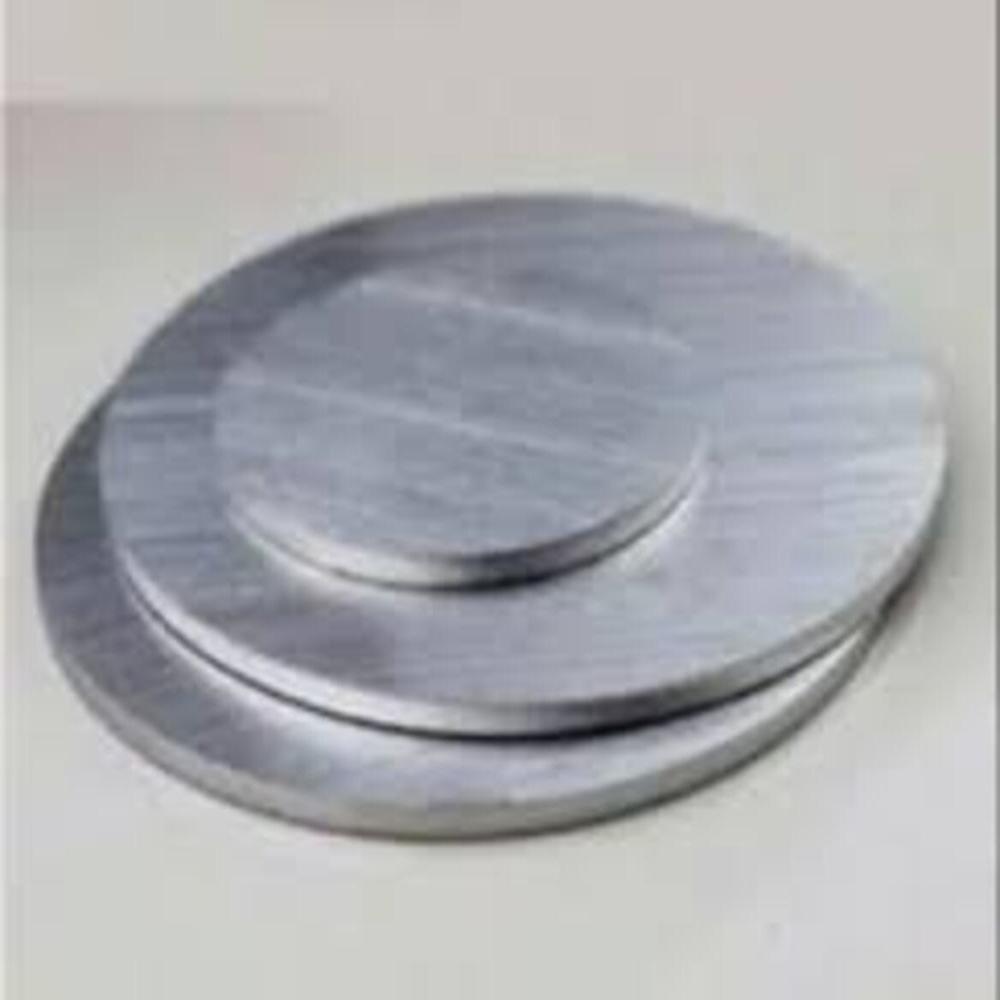

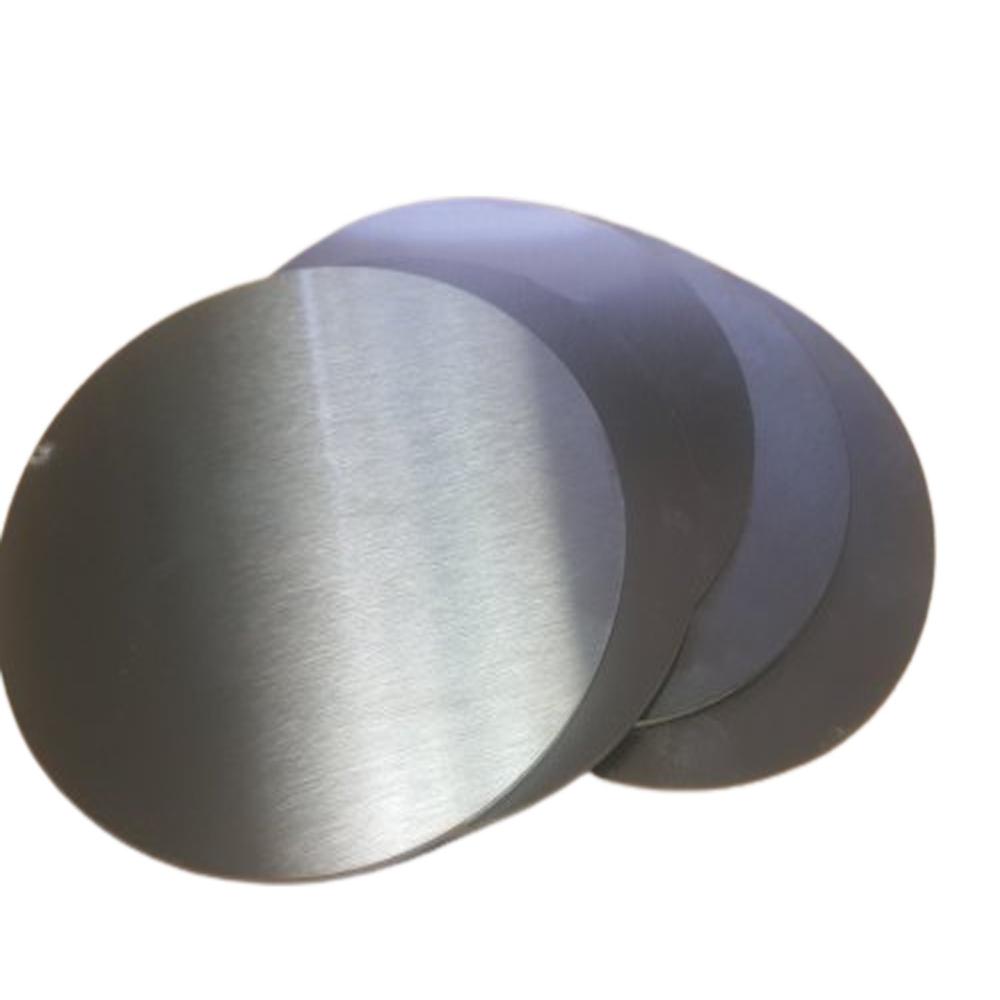

Monel K500 Circles

Name: Monel K500 Circles
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Monel K500 Circles Specification

Standard
ASTM B865, ASME SB865

Temper
Annealed, Hardened, Custom as per order

Surface
Bright, Polished

Width
Custom as per order; standard up to 1200 mm diameter

Purity
99% (Typical for engineering applications)

Thickness
0.5 mm to 50 mm (custom sizes available)

Hardness
120-320 HB (Depending on temper and condition)

Strength
Ultimate tensile strength 860 MPa min, Yield strength 600 MPa min

Grade
Monel K500

Material
Monel K500 (Nickel-Copper Alloy with Aluminum & Titanium)

Alloy
Nickel-Copper Alloy (K500)

Shape
Other

Moisture
Nil (Solid Metal Product)

Chemical Composition
Ni: 63%, Cu: 27-33%, Al: 2.3-3.15%, Ti: 0.35-0.85%, Fe: 2.0%

Application
Heat exchangers, Fasteners, Shafting, Pump & Valve, Seawater service

Dimension (L*W*H)
Custom circle; Diameter and thickness as per requirement

Color
Silver/Metallic

Operating Temperature Range
-196C to +650C

Magnetic Property
Non-magnetic in annealed condition; becomes magnetic when cold worked

Packaging
Wooden crates or customized packaging for damage-free delivery

Finish Options
Smooth, Unpolished, Satin, or Mirror as specified

Melting Point
Approx. 1350C - 1400C

Density
8.44 g/cm3

Corrosion Resistance
Excellent in marine and chemical environments

Weldability
Good, may require post-weld heat treatment

Thermal Conductivity
17 W/mK at 20C

Machinability
Good; requires rigid tools due to work hardening nature

Monel K500 Circles Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Monel K500 Circles About

Monel K500 Circle is a hardenable nickel-copper alloy, and it is commonly referred to as UNS N05500. It has the features of Monel 400 with other properties acquired from incorporating aluminum and titanium for precipitation hardening. Monel K500 generally contains about 63% nickel, 28% copper, and lesser proportions of aluminum and titanium. This alloy is widely known for its high strength, hardness and ability to withstand corrosive conditions of various types.

Superior Corrosion Resistance

Monel K500 Circles are engineered for harsh environments, excelling in both marine and chemical sectors. Their unique nickel-copper-aluminum-titanium composition ensures minimal degradation when exposed to seawater and corrosive chemicals. This resistance makes them ideal for use in offshore, chemical processing, and saltwater applications that require parts to maintain integrity and longevity over time.

Mechanical Strength and Machinability

With an ultimate tensile strength of at least 860 MPa and excellent yield strength, Monel K500 Circles provide reliable durability in demanding conditions. The material maintains non-magnetic properties when annealed, but can become magnetic after cold working. Good machinability is assured-with the recommendation of using rigid tools to manage its work hardening nature-facilitating precise fabrication for diverse engineering uses.

FAQ's of Monel K500 Circles:

Q: How does Monel K500 maintain its corrosion resistance in marine environments?

A: Monel K500 Circles derive their excellent corrosion resistance from a balanced chemical composition of nickel, copper, aluminum, and titanium. This alloy structure prevents rapid deterioration, even when exposed to seawater, brine, and aggressive chemicals, making them reliable for marine and chemical processing applications.

Q: What finish and sizing options are available for Monel K500 Circles?

A: These circles come in a wide range of finishes, including smooth, unpolished, satin, and mirror, depending on customer specifications. Thickness can be customized from 0.5 mm up to 50 mm, and diameters can reach up to 1200 mm or as required for your project.

Q: When is post-weld heat treatment recommended for Monel K500 Circles?

A: Post-weld heat treatment is typically advised to relieve stresses and restore properties that may alter during the welding process. This ensures the welded sections match the corrosion resistance and mechanical strength of the parent material, especially in critical service conditions.

Q: Where are Monel K500 Circles commonly used?

A: These circles are widely used in the fabrication of heat exchangers, fasteners, pump and valve parts, shafting, and components exposed to seawater. Their combination of strength, corrosion resistance, and customizable options make them suitable across multiple industrial sectors.

Q: What benefits do Monel K500 Circles offer over other alloys for engineering applications?

A: Monel K500 Circles provide a superior combination of high mechanical strength, excellent corrosion resistance, and versatility in fabrication. They exhibit remarkable performance in extreme environments and are non-magnetic in the annealed state, offering advantages over standard stainless steels and other alloys.

Q: How are Monel K500 Circles packaged to ensure safe delivery?

A: To prevent damage, Monel K500 Circles are securely packed in wooden crates or customized packaging solutions. This approach not only safeguards the product during transit but also accommodates specific delivery and handling requirements for international and domestic shipments.
