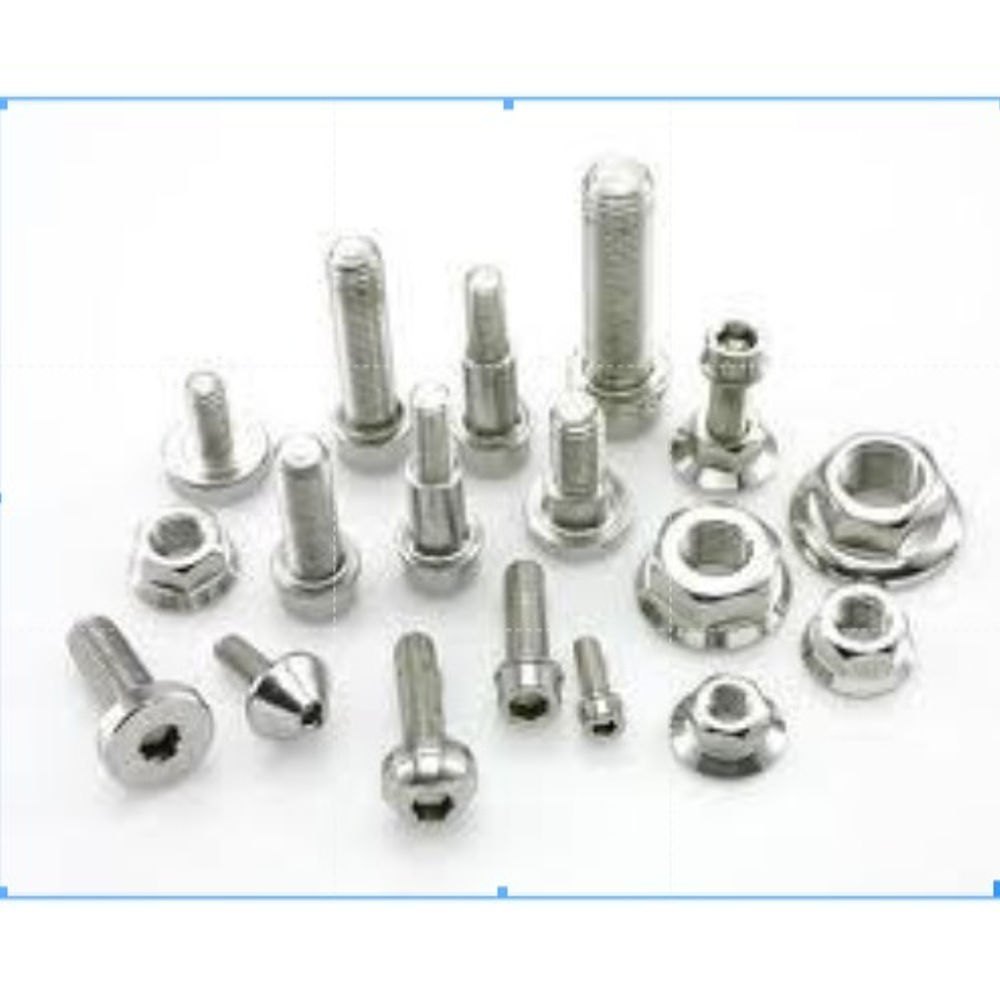

Monel K500 Fasteners

Name: Monel K500 Fasteners
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Monel K500 Fasteners Specification

Strength
Yield Strength up to 125 ksi (862 MPa)

Grade
Monel K500

Width
Custom and Standard Sizes Available

Hardness
Rockwell B 100 - C 35 (Annealed to Age-Hardened)

Purity
>99% Nickel-Copper Alloy

Thickness
M1 - M100 (varies by product type)

Surface
Bright/Polished/Passivated

Temper
Annealed, Age Hardened

Standard
ASTM B865, ASME SB865 / DIN / EN / JIS / ISO

Product Type
Fasteners, Bolts, Screws, Nuts, Washers

Material
Monel K500 Alloy

Alloy
Nickel-Copper-Aluminium

Shape
Hex Head, Socket Head, Pan Head, Flat Head, Nuts, Bolts, Screws, Washers

Moisture
0% (dry metal fasteners)

Chemical Composition
Ni (63-70%), Cu (27-33%), Al (2.3-3.15%), Ti (0.35-0.85%), Fe (2.0%), C (0.25%)

Application
Harsh Environments, Saltwater, Corrosive Atmospheres

Dimension (L*W*H)
Customized as per requirement

Color
Silver / Metallic Grey

Fabrication
Machinable & Weldable by Standard Methods

OEM Service
Customization as per client drawings

Corrosion Resistance
Excellent in Seawater, Acids, Alkalies

Temperature Resistance
-200C to 650C

Thread Type
Metric, UNC, UNF, BSW, BSF, Custom

Magnetic Properties
Non-magnetic (in annealed condition)

Density
8.44 g/cm3

Tensile Strength
Ultimate Tensile Strength up to 160 ksi (1100 MPa)

Delivery Condition
Solution Annealed & Age Hardened

Monel K500 Fasteners Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Monel K500 Fasteners About

Monel K500 Fasteners are threaded and non-threaded fixing components manufactured from UNS N05500, a nickel-copper alloy strengthened by aluminium and titanium additions through age hardening. The alloy contains nickel (6370%), copper (2733%), aluminium (2.33.15%), and titanium (0.350.85%), delivering yield strengths two to three times higher than Monel 400 while retaining the same excellent corrosion resistance in seawater, acids, and alkalis.

Outstanding Corrosion and Temperature Resistance

Monel K500 fasteners excel in harsh environments due to their remarkable resistance to corrosion from seawater, alkalies, and acids. Capable of withstanding temperatures from -200C up to 650C, they remain structurally stable and dependable, making them suitable for marine, offshore, and chemical processing industries. Their non-magnetic characteristics in annealed conditions further enhance their adaptability.

Precision Engineering and Flexible Customization

Manufactured from high-purity nickel-copper alloy, these fasteners are available in an array of forms including hex head, socket head, pan head, bolts, nuts, and washers. OEM customization services cater to specific client requirements, offering diverse thread types (Metric, UNC, UNF, BSW, BSF, custom) and finishing options such as polished, passivated, or bright surfaces. Each product meets international specifications for consistency and quality.

FAQ's of Monel K500 Fasteners:

Q: How do Monel K500 fasteners perform in corrosive environments?

A: Monel K500 fasteners provide excellent resistance to corrosion, especially in seawater, acids, and alkaline mediums. Their chemical composition ensures longevity and reliability when deployed in marine, chemical, or other harsh settings.

Q: What shapes and thread types are available for Monel K500 fasteners?

A: These fasteners are available in numerous shapes such as hex head, socket head, pan head, flat head, nuts, bolts, screws, and washers. Thread options include Metric, UNC, UNF, BSW, BSF, and custom threads to match diverse requirements.

Q: When should Monel K500 fasteners be chosen over standard stainless steel fasteners?

A: Monel K500 fasteners are preferred when exceptional corrosion resistance, high strength, and temperature stability are required, such as in marine, offshore, and chemical processing industries where standard stainless steel may fail.

Q: Where are Monel K500 fasteners commonly used?

A: These fasteners are widely utilized in harsh environments like offshore platforms, shipbuilding, chemical plants, and areas exposed to saltwater or aggressive chemicals due to their superior corrosion and temperature resistance.

Q: What is the process for customizing Monel K500 fasteners as per client requirements?

A: We offer OEM services where fasteners can be fabricated according to client-supplied drawings, including custom dimensions, thread styles, finishes, and mechanical properties, ensuring a perfect fit for unique applications.

Q: How can users benefit from the unique magnetic and mechanical properties of Monel K500 fasteners?

A: In their annealed condition, these fasteners are non-magnetic, making them ideal for applications sensitive to magnetism. Additionally, their high tensile (up to 160 ksi) and yield strength (up to 125 ksi) support use in critical structural components.
