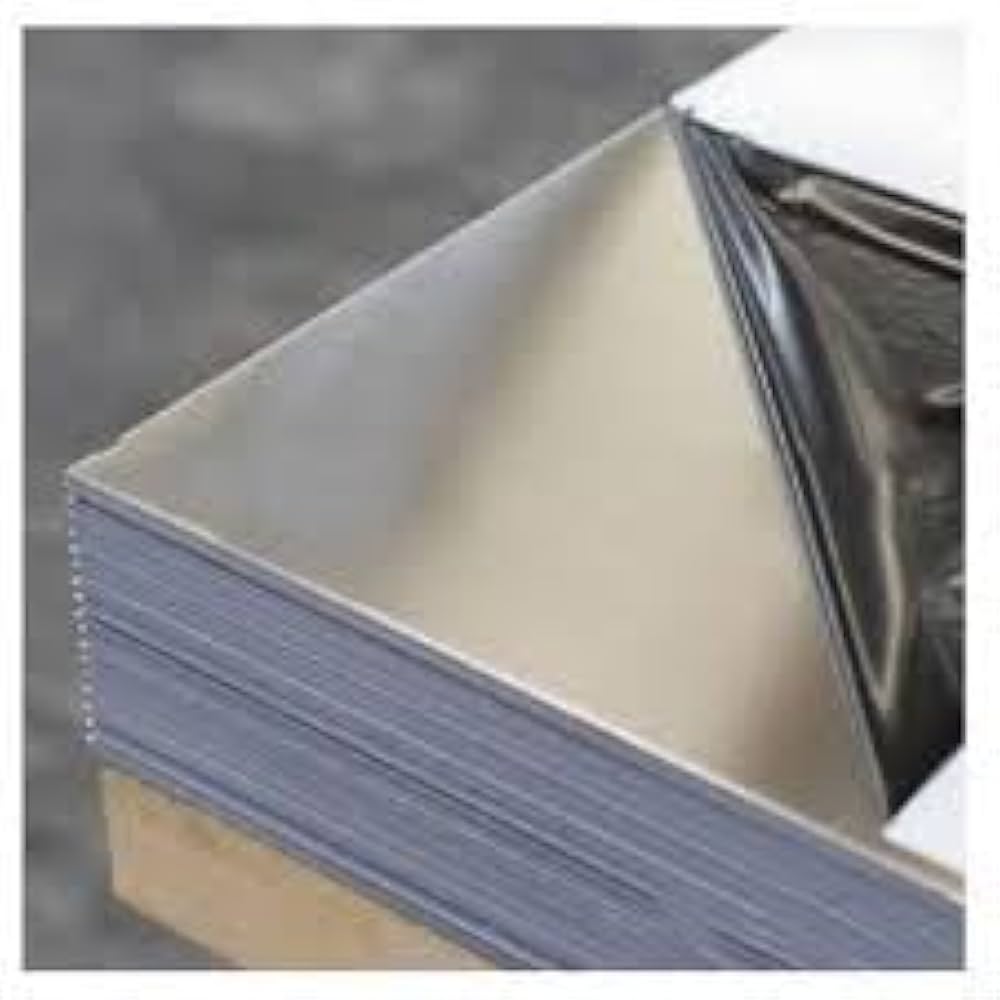

Super Duplex Steel Ferralium 255 Sheet

Name: Super Duplex Steel Ferralium 255 Sheet
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Super Duplex Steel Ferralium 255 Sheet Specification

Diameter
Not applicable (Sheet)

Chemical Composition
Cr 24-26%, Ni 5.5-7.5%, Mo 3-4%, Cu 1.5-2.0%, N 0.20-0.30%, Mn 1.5%, Si 0.7%, C 0.02%, Fe Balance

Recyclable
Yes

Heat Resistance
Yes

Coating Type
Uncoated, but available with PVC coating on demand for protection

Corrosion Resistant
Excellent - Highly resistant to pitting, crevice, and stress corrosion

Temper
Annealed

Hardness
Max 290 HB

Tensile Strength
Minimum 790 MPa (115 ksi)

Material Composition %
Refer to chemical composition (Cr, Ni, Mo, Cu, N percentages listed above)

Width
Customizable (commonly 1000mm, 1250mm, 1500mm, or as per requirement)

Size
Custom or standard dimensions as needed

Product Form
Flat Sheet/Plate

Product Name
Super Duplex Steel Ferralium 255 Sheet

Steel Type
Super Duplex Stainless Steel

Steel Product Type
Sheet

Grade
Ferralium 255 (UNS S32550)

Thickness
Range: 1 mm to 50 mm or as per customer requirement

Shape
Sheet / Plate

Steel Standard
ASTM A240 / EN 10088-2

Surface
Hot Rolled, Cold Rolled, 2B, BA, No. 1, No. 4, or as specified

Composition
Duplex microstructure with high-chromium, nickel-molybdenum alloy content

Application
Chemical processing, marine engineering, pulp & paper, desalination, oil & gas industries, and structural components demanding high strength and corrosion resistance.

Dimension (L*W*H)
As per order, typical sizes: 2000mm x 1000mm, 2500mm x 1250mm, custom sizes available

Weight
Depends on dimensions and thickness

Color
Metallic Silver

Material Grade
Ferralium 255

Finish Type
Smooth, Mirror, Matte, Brushed (as required)

Usage
Industrial, Construction, Marine, Oil & Gas, Chemical Process Equipment

Elongation
25% in 50 mm

Yield Strength
Minimum 550 MPa (80 ksi)

Packing Details
Wooden pallet/box, plastic film, as required for export

Weldability
Excellent with suitable fillers and practices

Modulus of Elasticity
200 GPa

Machinability
Moderate, improved over other duplex grades

Density
~7.8 g/cm3

Edge Condition
Mill Edge, Slit Edge (as specified)

Impact Toughness
High, even at low temperatures

Magnetic Properties
Slightly magnetic due to duplex structure

Formability
Good (bendable, weldable with correct procedures)

Super Duplex Steel Ferralium 255 Sheet Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

About Super Duplex Steel Ferralium 255 Sheet

Super Duplex stainless steel Ferralium 255 is an alloy composed of high chromium (25%), nickel (3.7%) and molybdenum (3.7%). It also contains small amounts of phosphorus, silicon and nitrogen, making it incredibly strong with good corrosion resistance to seawater and chloride environments. It is often used in applications such as boat hulls, chemical processing, food production equipment, flue gas desulphurisation plants, etc.

Superior Mechanical and Corrosion Resistance

Ferralium 255 Super Duplex Steel Sheet brings together high tensile (min. 790 MPa) and yield strengths with outstanding resistance to pitting, crevice, and stress corrosion. Its duplex structure-featuring elevated chromium, nickel, and molybdenum content-ensures durability even in aggressive environments, making it a trusted component in critical industrial sectors.

Versatile Applications and Tailored Solutions

This sheet is customizable in width, length, and thickness, meeting specific application needs across industries. Its versatile nature lends itself to use in marine, chemical, construction, and oil & gas sectors, among others. Available edge conditions, surfaces, and coatings enable precise configuration for every project requirement.

FAQ's of Super Duplex Steel Ferralium 255 Sheet:

Q: How is Super Duplex Steel Ferralium 255 Sheet typically used?

A: Ferralium 255 sheets are widely used in demanding applications requiring high strength and corrosion resistance, such as chemical processing plants, marine engineering, desalination systems, oil and gas facilities, and pulp & paper industries. Their durability and flexibility make them suitable for both structural and process equipment.

Q: What are the main benefits of choosing Ferralium 255 over other stainless steel grades?

A: Ferralium 255 offers a unique combination of high yield (min. 550 MPa) and tensile (min. 790 MPa) strengths, excellent corrosion resistance-especially against pitting and stress corrosion-and high impact toughness, even at low temperatures. Its duplex structure allows for better weldability and moderate machinability compared to standard duplex grades.

Q: How can Super Duplex Steel Ferralium 255 Sheets be fabricated and processed?

A: These sheets are known for good formability and can be bent or welded effectively using the right procedures and suitable fillers. They are available in both mill and slit edge conditions, and various surface finishes such as hot rolled, cold rolled, or polished. Moderate machinability enables easier processing compared to other duplex steels.

Q: Where can Ferralium 255 sheets be installed for maximum performance?

A: Optimal performance is achieved in corrosive and high-stress environments such as marine structures, offshore platforms, chemical processing units, and desalination plants. Their corrosion and impact resistance make them reliable for both indoor and harsh outdoor installations.

Q: What surface finishes and protective coatings are available for these sheets?

A: Ferralium 255 sheets are offered with surface finishes including 2B, BA, No.1, No.4, mirror, and brushed as required. While typically uncoated, optional PVC film protection is available for safeguarding surfaces during handling and export, delivered on wooden pallets or boxes according to export standards.
