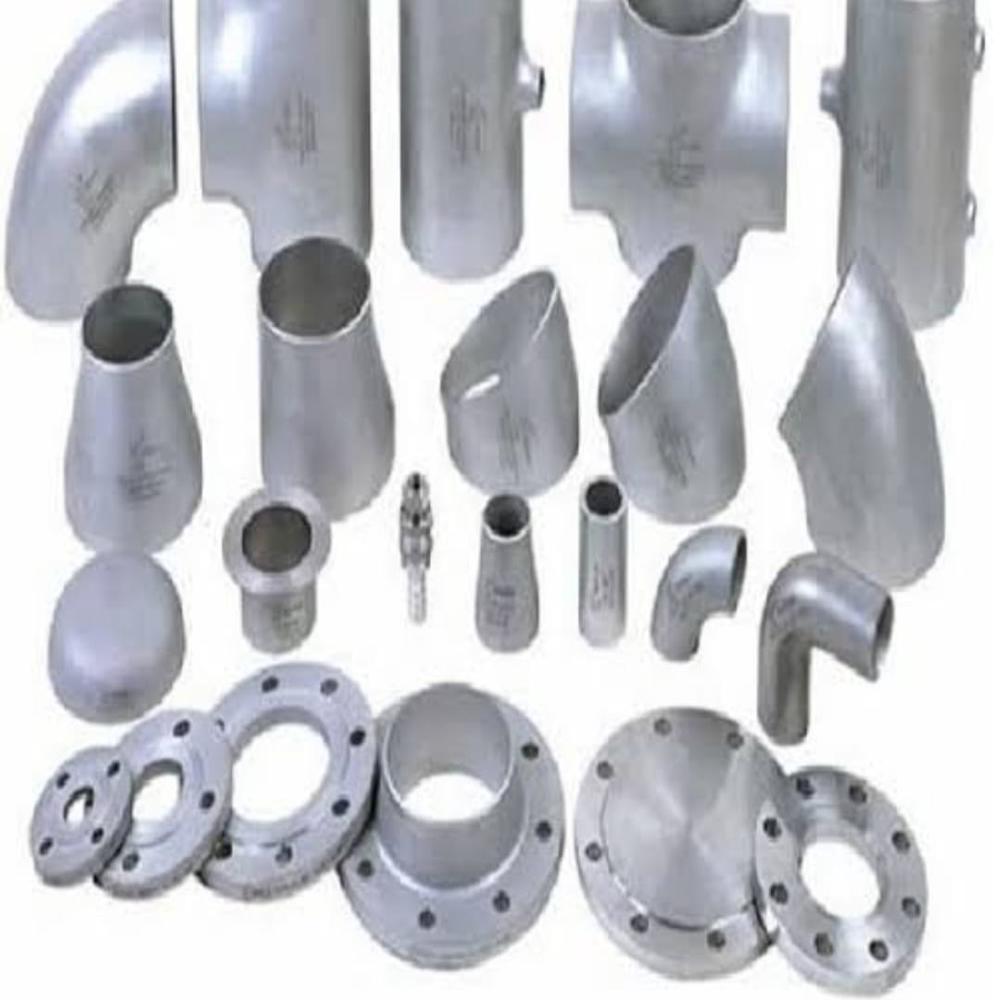

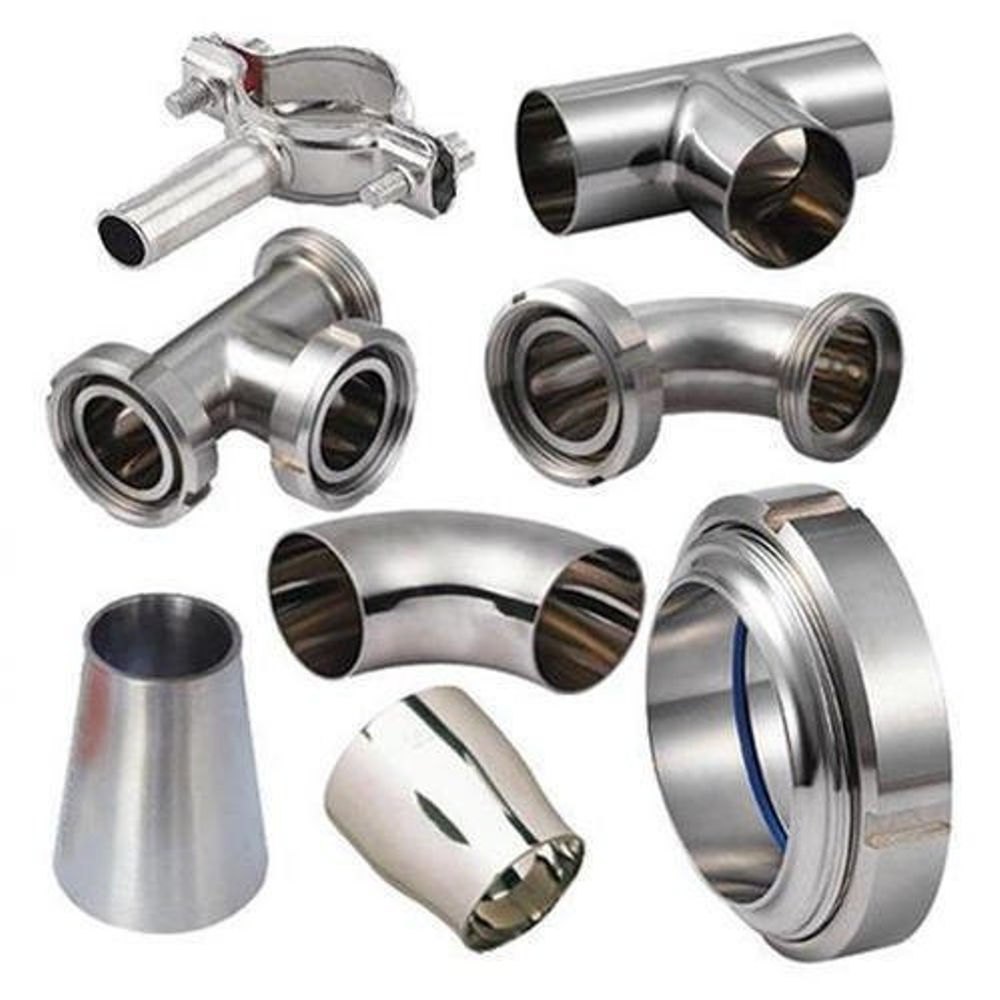

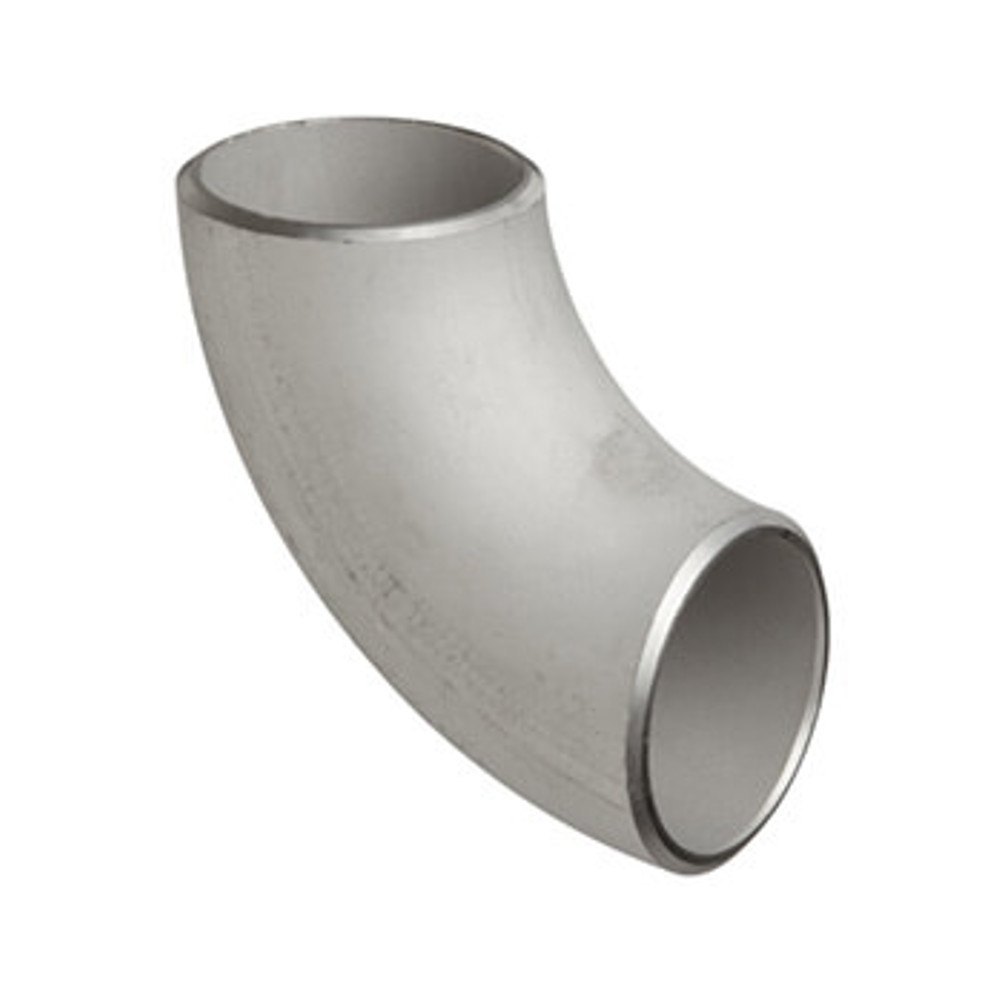

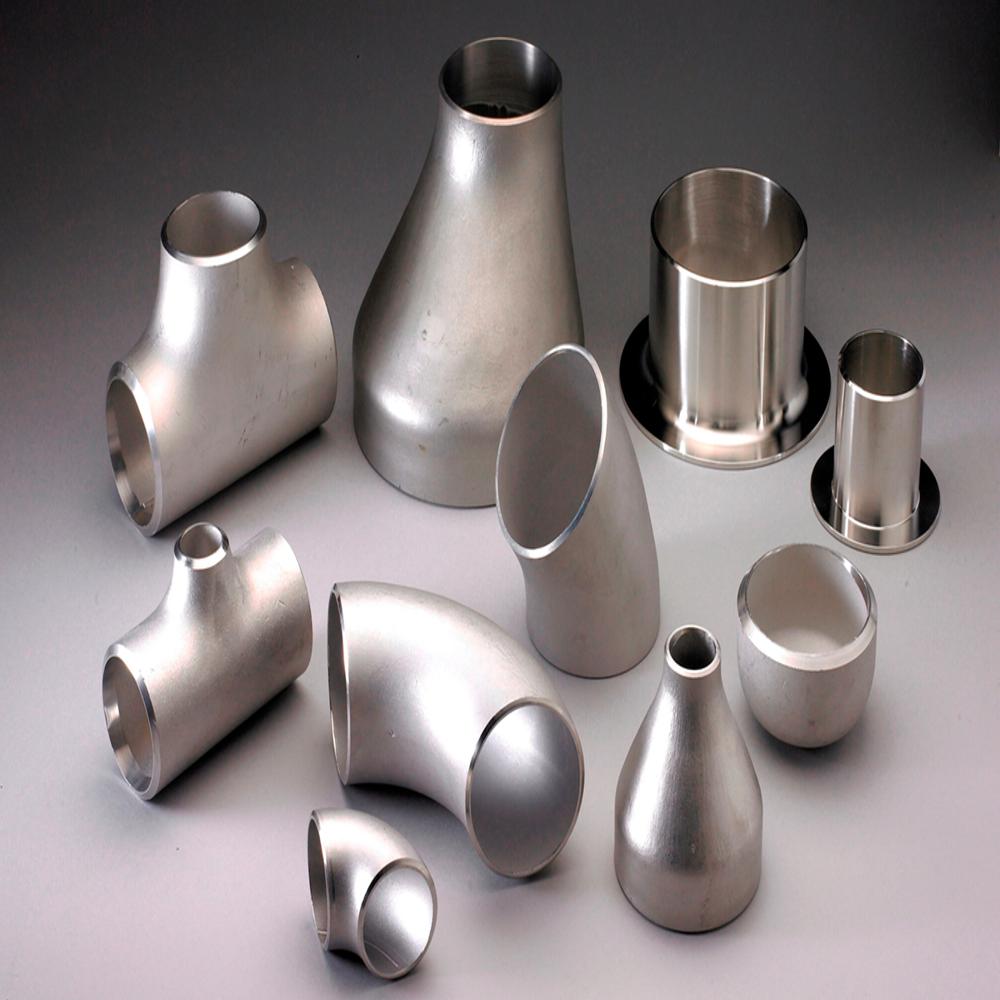

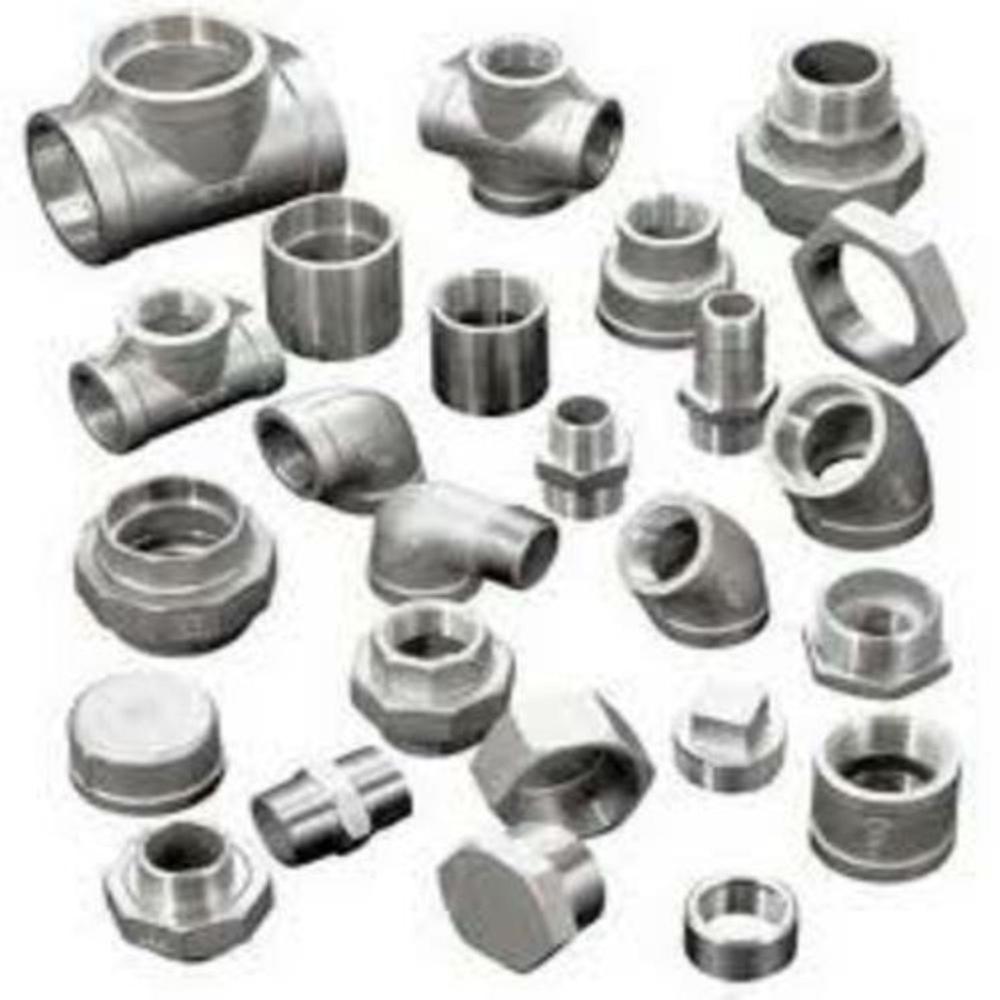

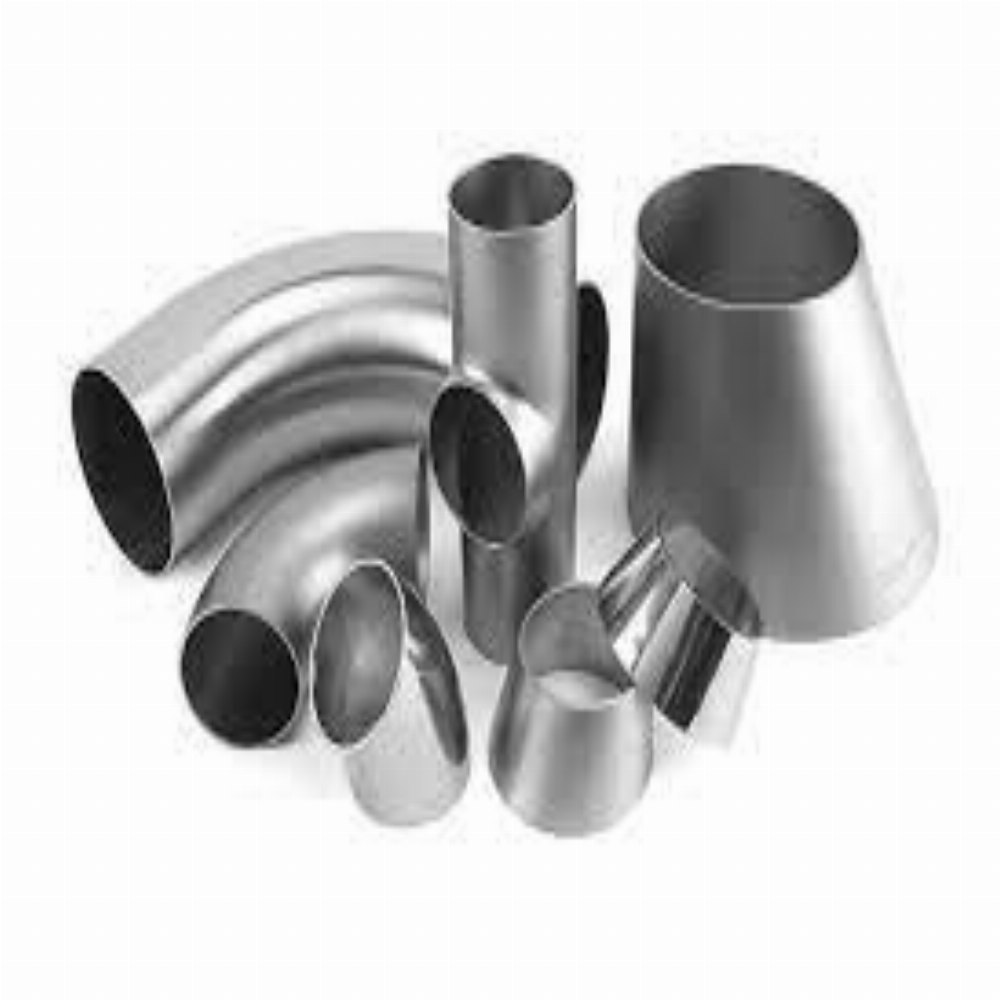

Super Duplex Steel S32760 Pipe Fittings

Name: Super Duplex Steel S32760 Pipe Fittings
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Super Duplex Steel S32760 Pipe Fittings Specification

Chemical Composition
Cr 24-26%, Ni 6-8%, Mo 3-4%, W 0.5-1%, N 0.2-0.3%, Fe Balance

Width
Customizable as per requirements

Temper
Annealed

Hardness
Rockwell C 32 max

Heat Resistance
Yes

Tensile Strength
790 MPa min

Coating Type
Uncoated, can be supplied with special coatings as required

Size
Custom sizes available

Corrosion Resistant
High; resistant to pitting and crevice corrosion in chloride environments

Product Form
Seamless, Welded, Fabricated

Material Composition %
Cr: 24-26%, Ni: 6-8%, Mo: 3-4%, W: 0.5-1%, N: 0.2-0.3%, Fe: Balance

Recyclable
Yes

Diameter
1/2 NB to 24 NB or custom specified

Product Name
Super Duplex Steel S32760 Pipe Fittings

Steel Type
Super Duplex Stainless Steel

Steel Product Type
Pipe Fittings

Grade
S32760

Thickness
Schedule 10S, 40S, 80S, or as specified

Shape
Elbow, Tee, Reducer, Coupling, Union, Cross, Cap, Stub End, Flange

Steel Standard
ASTM A815, ASME SA815, EN 10253-4

Surface
Pickled, Passivated, Polished, or Satin

Composition
Super Duplex (UNS S32760)

Application
Oil & Gas, Chemical Processing, Petrochemical, Marine, Power Generation, Desalination Plants

Dimension (L*W*H)
As per ASME/ANSI/ASTM standards or custom sizes

Weight
Depends on size and type

Color
Metallic Silver

Material Grade
S32760

Finish Type
Polished or as specified

Usage
Joining, branching, changing direction, and adapting pipes in industrial piping systems

Wall Thickness
Sch 10 to Sch XXS

End Connection
Plain, Bevel, or Custom Ends

Pressure Rating
ANSI Class 150/300/600/900/1500/2500 LB

Manufacturing Process
Cold/Hot Formed and Machined

Testing
100% Radiography, PMI, Hydro Test, Visual Inspection

Impact Strength
Excellent; suitable for low temperature service

Compliance
NACE MR0175/ISO 15156, PED, CE Marked

Connection Type
Butt weld, Socket weld, Threaded

Super Duplex Steel S32760 Pipe Fittings Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Super Duplex Steel S32760 Pipe Fittings About

Super Duplex Steel S32760 Pipe Fittings are high-performance fittings made from a unique alloy that combines the best properties of both austenitic and ferritic steels. The S32760 is also known for its high mechanical strength, making it an ideal choice for demanding applications

Exceptional Material Performance

Engineered from super duplex stainless steel grade S32760, these pipe fittings offer a remarkable combination of strength and corrosion resistance. The alloy composition-high in chromium, nickel, and molybdenum-provides superior protection against pitting and stress corrosion in aggressive environments, making them ideal for challenging industrial applications.

Versatile Manufacturing and Customization

Pipe fittings are produced through both cold and hot forming processes, followed by precise machining. Options include seamless, welded, and fabricated forms, with a selection of finishes: pickled, passivated, polished, or satin. End connections and dimensions can be tailored to match specific project requirements, conforming to ASME, ANSI, and ASTM standards.

Stringent Testing and International Compliance

Every S32760 fitting is tested for quality and performance via 100% radiography, PMI, hydro testing, and visual inspection. Compliance with NACE MR0175/ISO 15156, PED, and CE standards guarantees suitability for critical applications, providing certification and peace of mind on safety and reliability.

FAQ's of Super Duplex Steel S32760 Pipe Fittings:

Q: How are Super Duplex Steel S32760 Pipe Fittings manufactured?

A: These fittings are manufactured using cold or hot forming methods, followed by precision machining. This process enhances the mechanical properties, ensuring the fittings achieve the desired shape, strength, and durability for industrial use.

Q: What types of end connections are available for S32760 pipe fittings?

A: Available end connections include butt weld, socket weld, threaded, as well as options for plain, bevel, or custom ends. This flexibility enables compatibility with a wide range of piping systems and installation requirements.

Q: Where can Super Duplex S32760 pipe fittings be used most effectively?

A: These fittings are especially suited for industries such as oil & gas, chemical processing, power generation, marine, and desalination plants, where high corrosion resistance and mechanical strength are essential.

Q: What testing procedures ensure the quality and safety of these fittings?

A: Each fitting undergoes extensive testing, including 100% radiography, positive material identification (PMI), hydrostatic testing, and thorough visual inspection. This guarantees structural integrity and compliance with international standards.

Q: What are the benefits of using Super Duplex S32760 pipe fittings over standard grades?

A: S32760 fittings provide significantly higher strength, excellent impact resistance, and superior corrosion resistance, especially against pitting and crevice corrosion in chloride-rich environments, outperforming standard stainless steel fittings.

Q: Can these pipe fittings be customized for specific projects?

A: Yes, fittings can be tailored for size, wall thickness, shape, width, and end connection as per client or project specifications. Customization ensures an ideal fit within standardized or unique piping systems.

Q: How does the compliance with standards like NACE MR0175 and PED benefit users?

A: Adhering to international standards such as NACE MR0175/ISO 15156 and PED reassures end-users of the fittings' suitability for critical service conditions, reducing the risk of failure and meeting mandatory safety requirements in regulated industries.
