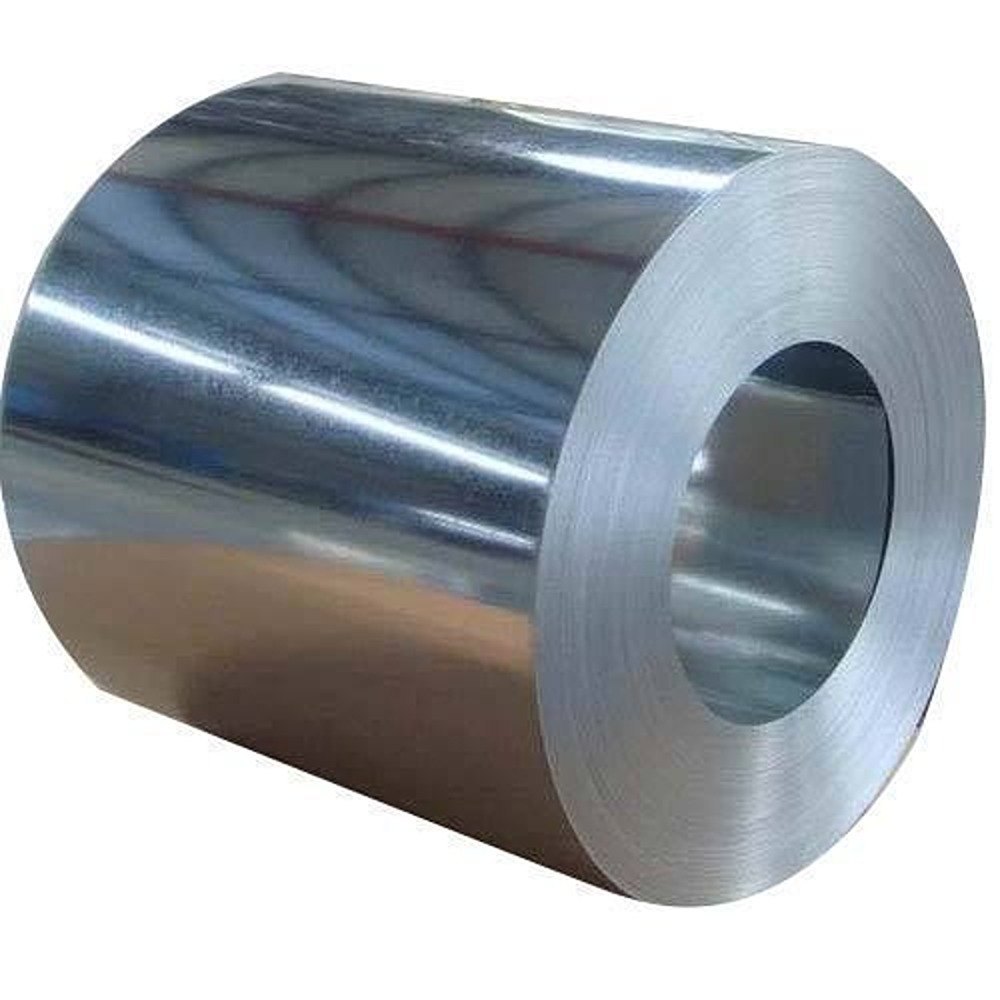

Duplex Steel S32205 Foil

Name: Duplex Steel S32205 Foil
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Kilograms

Duplex Steel S32205 Foil Specification

Diameter
Depends on coil; typically 300 mm to 600 mm inner diameter

Tensile Strength
620 MPa min

Corrosion Resistant
Excellent resistance to pitting, crevice and stress corrosion

Temper
Soft, Half Hard, Hard, Quarter Hard, Spring Hard

Width
10 mm to 1500 mm

Coating Type
Uncoated (can be supplied coated on request)

Hardness
293 HB

Chemical Composition
Cr 21.0-23.0%, Ni 4.5-6.5%, Mo 2.5-3.5%, Mn 2.0%, Si 1.0%, N 0.14-0.20%, C 0.03%, Fe balance

Product Form
Foil / Strip / Coil

Recyclable
Yes

Size
Custom as per order

Material Composition %
Cr 22%, Ni 5.5%, Mo 3%, N 0.18%, balance Fe

Heat Resistance
Yes

Product Name
Duplex Steel S32205 Foil

Steel Type
Duplex Stainless Steel

Steel Product Type
Foil / Strip

Grade
UNS S32205 / 2205

Thickness
0.01 mm to 3.0 mm

Shape
Foil / Strip / Roll

Steel Standard
ASTM A240, ASME SA240

Surface
Bright, Mirror, 2B, BA, Matt, No.1, No.4

Composition
Duplex microstructure (austenite-ferrite)

Application
Chemical processing, Marine, Oil & Gas, Pulp & Paper, Desalination plants

Dimension (L*W*H)
Custom as per requirement

Weight
Varies with dimension (typically supplied in coils of 50-500 kg)

Color
Silver, Metallic

Material Grade
S32205

Finish Type
Polished, Annealed, Pickled

Usage
Industrial, Engineering, Manufacturing, Specialized Fabrication

Magnetic Properties
Slightly magnetic

Density
7.8 g/cm3

Export Packaging
Wooden cases, palletized, foam protection

Elongation
25% min

Yield Strength
450 MPa min

Lead Time
7-15 days (subject to order quantity)

Thermal Conductivity
19 W/mK (at 20C)

Modulus of Elasticity
200 GPa

Weldability
Good, suitable for most welding methods

Duplex Steel S32205 Foil Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Duplex Steel S32205 Foil About

Duplex Steel S32205 Foil has found its application in several industries because of its features and mechanical properties. It falls under the family of duplex stainless steel, which consists of both the austenite and the ferrite phases; hence, it is strong and ductile.

Superior Mechanical & Corrosion Resistance

Duplex Steel S32205 Foil stands out due to its impressive tensile strength of at least 620 MPa and formidable resistance against a variety of corrosive environments. Thanks to its balanced chromium, nickel, and molybdenum composition, it is highly effective in resisting pitting and stress corrosion, making it suitable for applications involving aggressive chemicals or saline water.

Customizable Sizes & Finishes for Multiple Applications

This foil is supplied in custom dimensions, ranging from widths of 10 mm to 1500 mm and thicknesses from 0.01 mm to 3.0 mm. With finishes including bright, mirror, 2B, BA, matt, and No.4, as well as tempers such as soft, half hard, and spring hard, the product can be tailored precisely for diverse requirements across industrial, manufacturing, and fabrication domains.

Reliable Packaging & Prompt Delivery

Each order of Duplex Steel S32205 Foil is securely packaged in wooden cases, palletized with foam protection to minimize transit damage. Lead times typically range between 7-15 days, subject to order quantity, ensuring prompt delivery for critical projects. Compliance with ASTM A240 and ASME SA240 standards highlights its reliability.

FAQ's of Duplex Steel S32205 Foil:

Q: How is Duplex Steel S32205 Foil typically used in industrial applications?

A: Duplex Steel S32205 Foil is commonly used for chemical processing equipment, marine components, oil and gas processing, desalination plants, as well as in pulp and paper manufacturing. Its resistance to various forms of corrosion and high mechanical strength make it ideal for environments exposed to harsh chemicals or saline conditions.

Q: What benefits does the duplex microstructure of S32205 provide?

A: The duplex microstructure, consisting of both austenite and ferrite phases, imparts higher mechanical strength and enhanced corrosion resistance compared to standard stainless steels. This combination ensures durability, even when exposed to aggressive environments or high-stress applications, extending the lifespan of components made from this foil.

Q: When can I expect delivery after placing an order for Duplex Steel S32205 Foil?

A: Delivery lead time typically ranges from 7 to 15 days, depending on the order quantity and customization requirements. Each order is carefully packed in wooden cases with foam protection to ensure safe transportation and arrival.

Q: What welding and fabrication processes can be used with Duplex Steel S32205 Foil?

A: Duplex Steel S32205 Foil is suitable for most standard welding methods, thanks to its good weldability. Common processes include TIG, MIG, and spot welding. It can also be cut, bent, or formed as per application needs, and is supplied in various tempers for different fabrication requirements.

Q: Where is this foil typically supplied and exported from?

A: Duplex Steel S32205 Foil is manufactured and supplied by exporters, importers, manufacturers, and traders globally. It is exported to numerous regions, with packaging designed for international shipping, including sturdy wooden cases and palletizing to prevent damage during transit.

Q: What is the process for customizing the dimensions and properties of Duplex Steel S32205 Foil?

A: Custom orders for S32205 foil involve specifying required thickness, width, temper, finish, and quantity. Manufacturers will then process, slit, and finish coils or rolls accordingly, ensuring compliance with industry standards like ASTM A240 or ASME SA240, and deliver as per the agreed timeline.

Q: How does the product's corrosion resistance benefit specific industries?

A: The excellent resistance to pitting, crevice, and stress corrosion means reduced maintenance and replacement costs in industries such as chemical processing, marine, and desalination. This feature ensures long-term reliability for critical system components exposed to corrosive environments.
