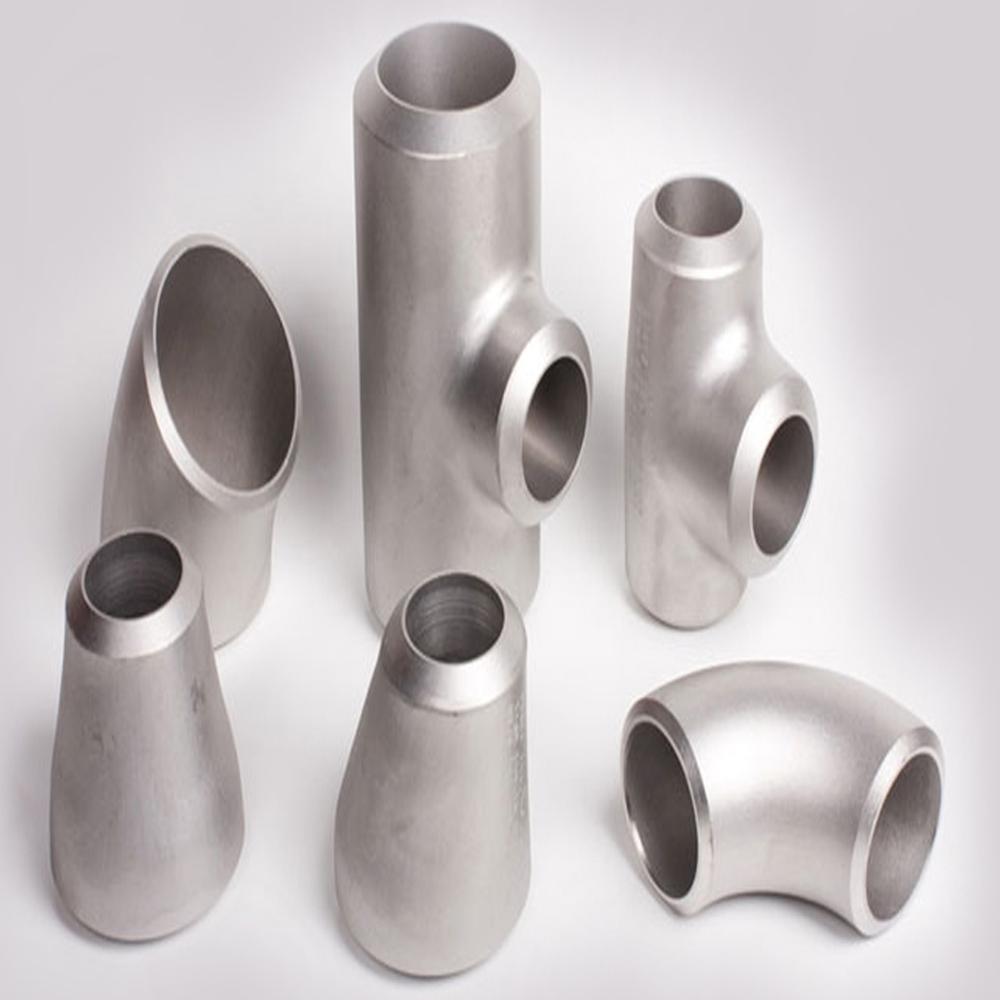

Duplex Steel S32205 Forged Fittings

Name: Duplex Steel S32205 Forged Fittings
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Duplex Steel S32205 Forged Fittings Specification

Tensile Strength
620 MPa min

Width
Varies as per fitting type and size specification

Hardness
Max 290 HB (Brinell)

Heat Resistance
Yes

Coating Type
Uncoated, Pickled & Passivated

Temper
Annealed

Size
Standard & custom sizes available (as per ASME B16.11 & MSS SP-79/83/95/97)

Recyclable
Yes, 100% recyclable

Corrosion Resistant
Excellent resistance to pitting, crevice, and stress corrosion

Product Form
Forged, Machined

Diameter
1/8 NB to 4 NB (NPS), Custom sizes available

Material Composition %
Cr 22.0, Ni 5.5, Mo 3.0, Fe balance, N 0.18, Mn 2.0, Si 1.0, C 0.03 max

Product Name
Duplex Steel S32205 Forged Fittings

Steel Type
Duplex Stainless Steel

Steel Product Type
Forged Pipe Fittings

Grade
S32205 (UNS S32205, ASTM A182 F51, DIN 1.4462)

Thickness
Sch 10S, 40S, 80S, 160S, XXS & Customized

Shape
Elbow, Reducer, Tee, Coupling, Cap, Cross (As displayed)

Steel Standard
ASTM A182 / ASME SA182 / EN 10253 / DIN 1.4462

Surface
Smooth, shot blasted, pickled and passivated

Composition
22% Cr, 5~6% Ni, 3% Mo, balance Fe, with N, Mn, Si, P, S, C

Application
Chemical processing, Oil & Gas, Power generation, Petrochemical, Marine, Pulp & Paper Industries

Dimension (L*W*H)
Customized as per standard or drawing

Weight
Depends on fitting type and size; provided on request

Color
Metallic Silver/Grey

Material Grade
Duplex S32205

Finish Type
Machined, Smooth

Usage
Industrial piping, connections, high pressure and corrosive environments

Marking
Grade, size, heat number, manufacturer's logo

Service Life
Long operational life with minimal maintenance

End Connection
Bevelled, threaded, or plain ends

Pressure Rating
Class 2000/3000/6000/9000 LBS

Production Technique
Hot Forged, Machined, Heat-treated

Types Available
Socket Weld Forged Fittings, Threaded Forged Fittings

Testing
100% PMI, Hydro tested, NDT (as per requirement)

Compliance
ROHS, REACH, AD 2000 Merkblatt W0 (if specified)

Connection Type
Socket weld (SW), Screwed (Threaded) BSP/BSPT/NPT

Duplex Steel S32205 Forged Fittings Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Duplex Steel S32205 Forged Fittings About

Duplex Steel S32205 forged fittings are the critical connecting elements for application in industrial pipelines. These fittings are made from duplex stainless steel S32205; the balanced ferrite-austenite structure gives this material improved strength and resistance to corrosion. Thus, this composition offers forged fittings made of S32205 material that exhibits high mechanical properties for applications involving strength, corrosion, and dependability.

Outstanding Corrosion and Pressure Resistance

Duplex Steel S32205 Forged Fittings are extensively chosen for their excellent resistance to pitting, stress corrosion, and crevice corrosion. This makes them ideal for applications where aggressive media or chloride-rich environments are present, such as in marine, chemical, and petrochemical sectors. Their duplex microstructure also imparts high strength, enabling reliable performance under high pressure (up to Class 9000 LBS).

Versatile Fitting Types and Connection Options

Available in both socket weld and threaded configurations, Duplex S32205 forged fittings offer flexibility for numerous piping systems. They are manufactured in shapes like elbows, tees, reducers, couplings, caps, and crosses, fulfilling a wide range of industrial requirements. Connection options include SW and screwed (BSP/BSPT/NPT), with various end finishes like bevelled, plain, or threaded.

Strict Quality Control and Customization

Every fitting undergoes comprehensive testing such as PMI, hydro testing, and NDT as per customer needs, ensuring full traceability with marking details (grade, size, heat number). Fittings conform to international codes such as ROHS, REACH, and AD 2000 Merkblatt W0 when specified. Custom sizes, thicknesses, and dimensions are available to meet precise project specifications.

FAQ's of Duplex Steel S32205 Forged Fittings:

Q: How are Duplex Steel S32205 Forged Fittings tested for quality and durability?

A: Each fitting is subjected to 100% Positive Material Identification (PMI), hydrostatic testing, and additional non-destructive testing (NDT) upon request. These rigorous testing procedures ensure optimal mechanical strength, leakage safety, and alignment with industry standards, delivering long-term performance even in harsh environments.

Q: What connection types are available for Duplex S32205 forged fittings?

A: They are offered in socket weld (SW) and screwed (threaded) configurations, compatible with BSP, BSPT, or NPT thread standards. End connections can be bevelled, threaded, or plain, making them suitable for diverse installation requirements in piping systems.

Q: Where can Duplex S32205 forged fittings be used?

A: These fittings are ideal for chemical processing, oil & gas, power generation, petrochemical, marine, and pulp & paper industries. Their high-strength, corrosion-resistant properties enable them to handle aggressive fluids, high pressures, and corrosive environments with minimal maintenance.

Q: What types of forged fittings are available in Duplex Steel S32205?

A: The range includes elbows, reducers, tees, couplings, caps, and crosses. Each type is engineered for specific piping functions, and both standard and custom dimensions are available to fit unique system requirements.

Q: What are the main benefits of using Duplex Steel S32205 Forged Fittings?

A: These fittings deliver excellent corrosion and heat resistance (service up to 300C), high tensile strength, and reliability under high pressure. The duplex structure reduces the risk of stress corrosion cracking, while the smooth, passivated surface ensures superior performance in demanding industrial environments.

Q: How can I order customized Duplex S32205 forged fittings for my project?

A: Orders can be placed with specific requirements for size, thickness (such as Sch 10S, 40S, 80S, 160S, XXS), dimension, type, and testing. Manufacturers and suppliers provide assistance to ensure fittings meet relevant standards (ASME B16.11, MSS SP-79/83/95/97) and project specifications.
