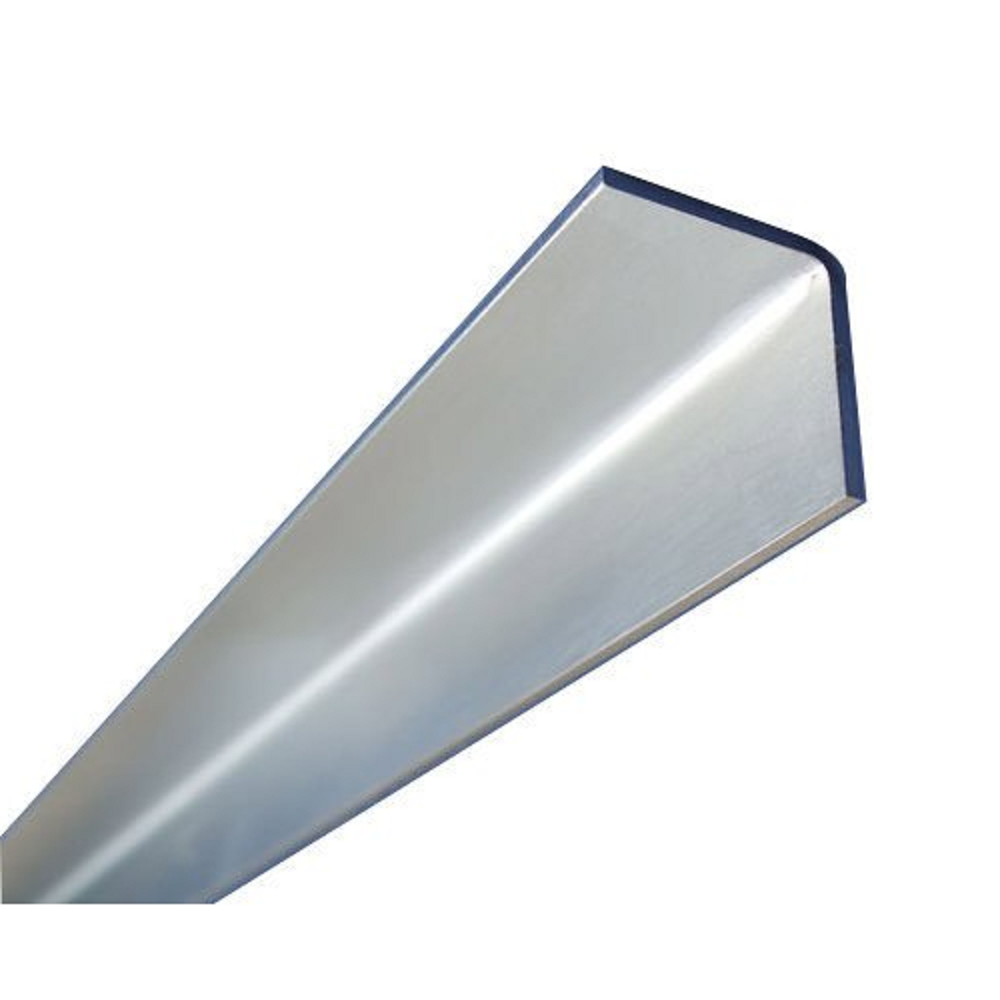

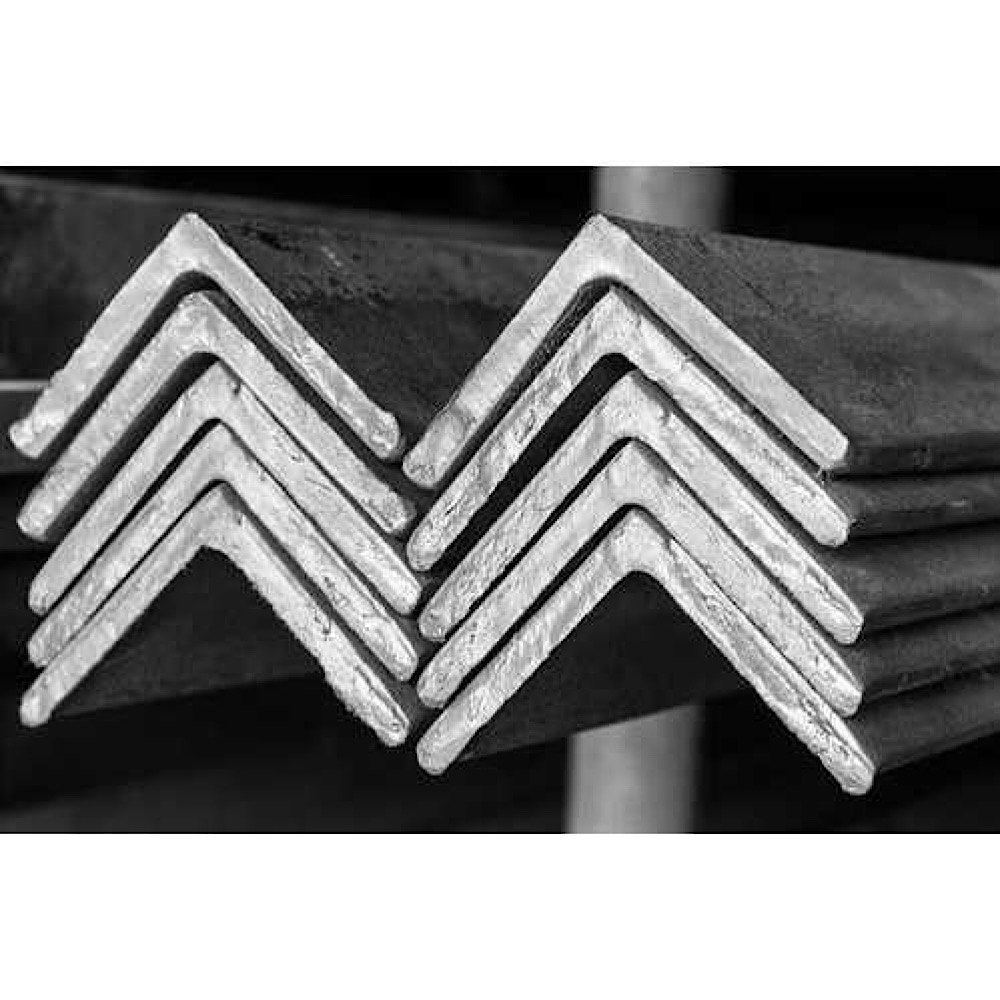

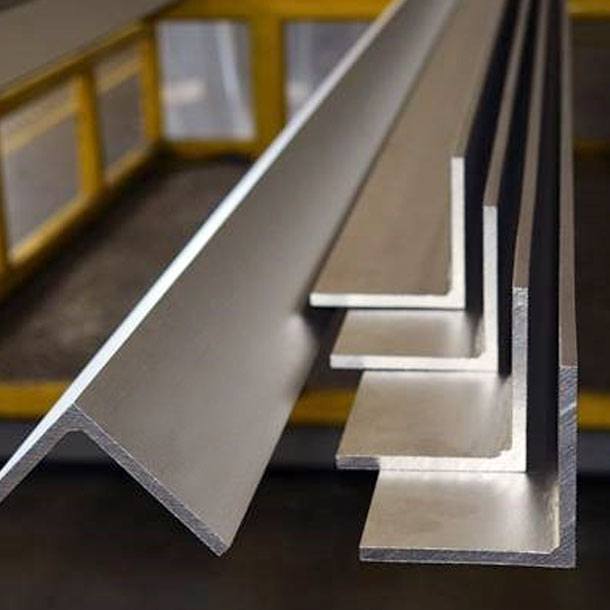

Inconel 690 Angle

Name: Inconel 690 Angle
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Get a Price/Quote

MOQ : 1 Kilograms

Inconel 690 Angle Specification

Standard
ASTM B166 / ASME SB166

Type
Hot Rolled / Cold Rolled Angle

Tolerance
0.5 mm or as specified

Steel Type
Super Alloy

Technics
Hot Rolled, Cold Drawn, Extruded

Material
Inconel 690 (Nickel-Chromium Alloy)

Application
Power Generation, Chemical Processing, Nuclear Reactors, Heat Exchangers, Petrochemical Industries

Dimensions
Custom and standard lengths available, width and leg size as per requirement

Shape
Angle (L-Shaped)

Thickness
3 mm - 20 mm or as required

Grade
Inconel 690

Surface Treatment
Bright, Polished, Annealed

Density
8.19 g/cm3

Magnetism
Non-magnetic

Yield Strength
240 MPa

Edge Type
Sharp edge / Mill Edge

Heat Resistance
Suitable for high-temperature service

Melting Point
1343C - 1377C

Color
Silver/Metallic

Tensile Strength
430 MPa

Corrosion Resistance
Excellent resistance to oxidizing and reducing environments

Length
Up to 6 meters or customized

Elongation
30% min

Inconel 690 Angle Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Inconel 690 Angle About

Inconel 690 Angle is a structural component made from Inconel 690, a nickel-chromium alloy known for its excellent resistance to oxidation and corrosion, particularly in high-temperature environments. This alloy is designed to enhance durability in aggressive conditions, making it suitable for various industrial applications, especially in the nuclear and power generation sectors.

Engineered for Extreme Environments

Inconel 690 Angle is crafted to thrive where ordinary materials falter. Thanks to its superior corrosion resistance and high melting point, this angle is ideal for environments exposed to aggressive chemicals and elevated temperatures, such as chemical plants, nuclear reactors, and heat exchangers. Its robust mechanical properties ensure long-lasting performance.

Versatile Customization and Precise Tolerances

Available in both hot rolled and cold rolled forms, Inconel 690 Angles are offered in thicknesses from 3 mm to 20 mm and customizable lengths up to 6 meters. With tight dimensional tolerance (as close as 0.5 mm), you can specify the width and leg size to suit unique structural or process requirements.

FAQ's of Inconel 690 Angle:

Q: How is Inconel 690 Angle typically manufactured?

A: Inconel 690 Angle is manufactured through processes such as hot rolling, cold drawing, and extrusion, ensuring high dimensional accuracy and consistent metallurgical properties. Depending on application requirements, these angles can be further polished, bright-annealed, or finished to meet specific standards.

Q: What applications benefit most from using Inconel 690 Angles?

A: Industries that operate in high-temperature or highly corrosive settings-including power generation, nuclear reactors, heat exchangers, and petrochemical plants-benefit significantly from the robust performance and longevity provided by Inconel 690 Angles.

Q: When should I choose sharp edge versus mill edge for my project?

A: Sharp edge Inconel 690 Angles offer precise, clean lines ideal for applications requiring exact fit-up or where aesthetics are important, while mill edge is suitable for general structural purposes where edge finish is less critical.

Q: Where are Inconel 690 Angles commonly exported or supplied?

A: As a globally traded superalloy product, Inconel 690 Angles are exported and supplied to industries and facilities worldwide, particularly in regions with strong power, chemical, nuclear, and petrochemical sectors.

Q: What is the advantage of the non-magnetic property in Inconel 690 Angles?

A: The non-magnetic characteristic of Inconel 690 Angles makes them ideal for applications sensitive to magnetic interference, such as certain electronic, nuclear, and scientific equipment or environments.

Q: How does the heat resistance of Inconel 690 Angle benefit industrial use?

A: With a melting point exceeding 1343C, Inconel 690 Angle maintains structural integrity under extreme temperatures, making it highly reliable for components exposed to continuous thermal cycling or high operational heat loads.
