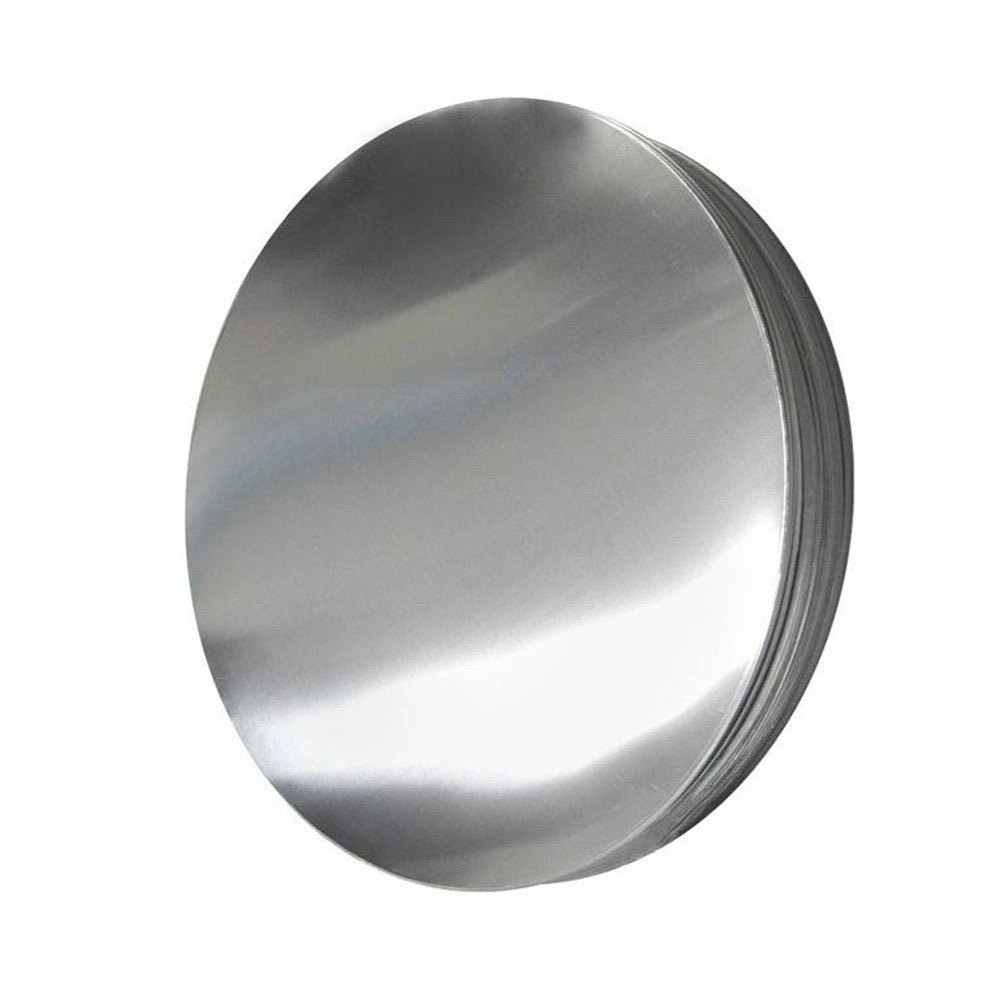

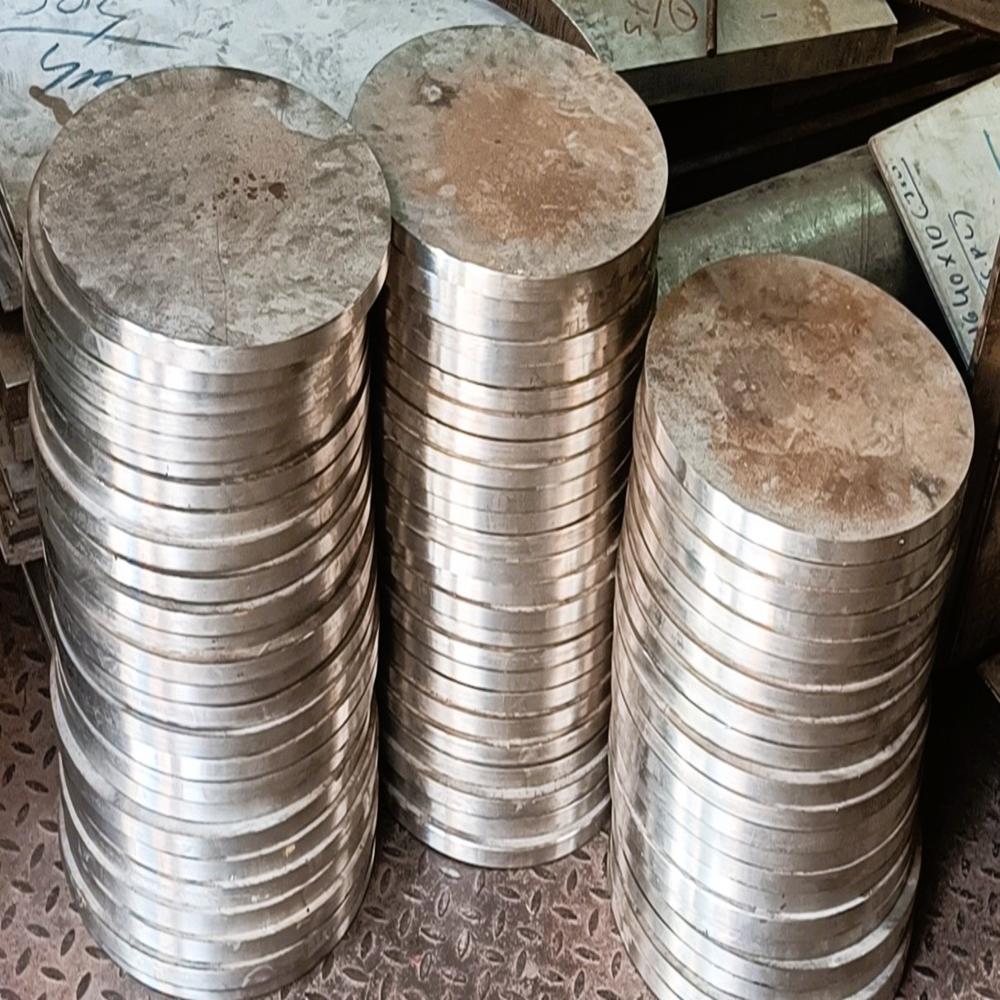

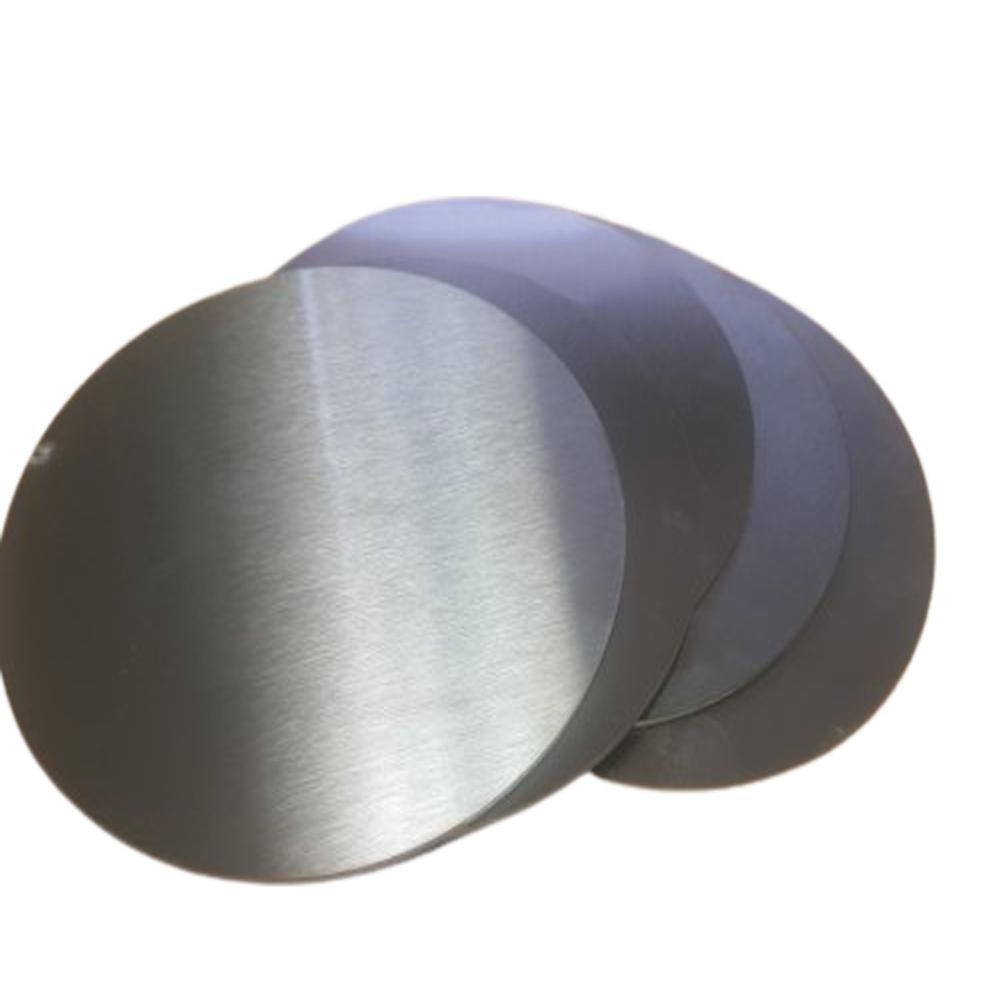

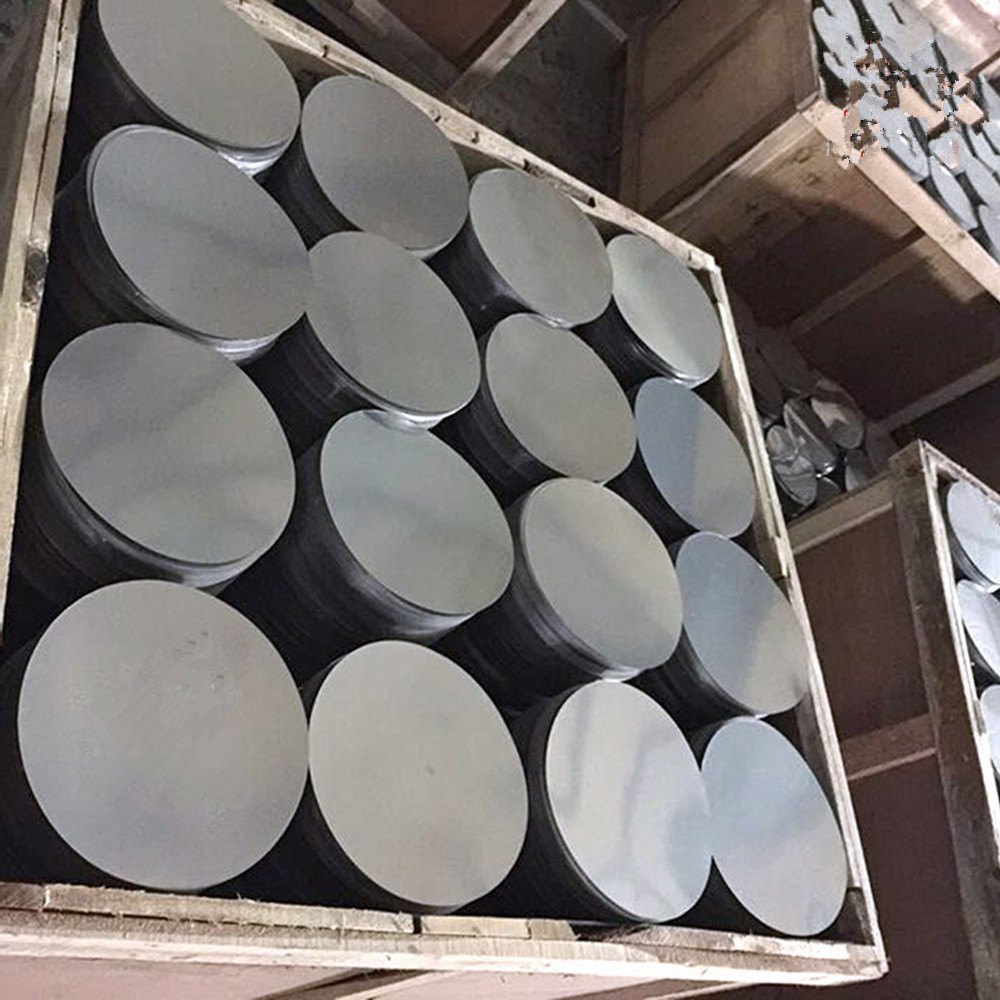

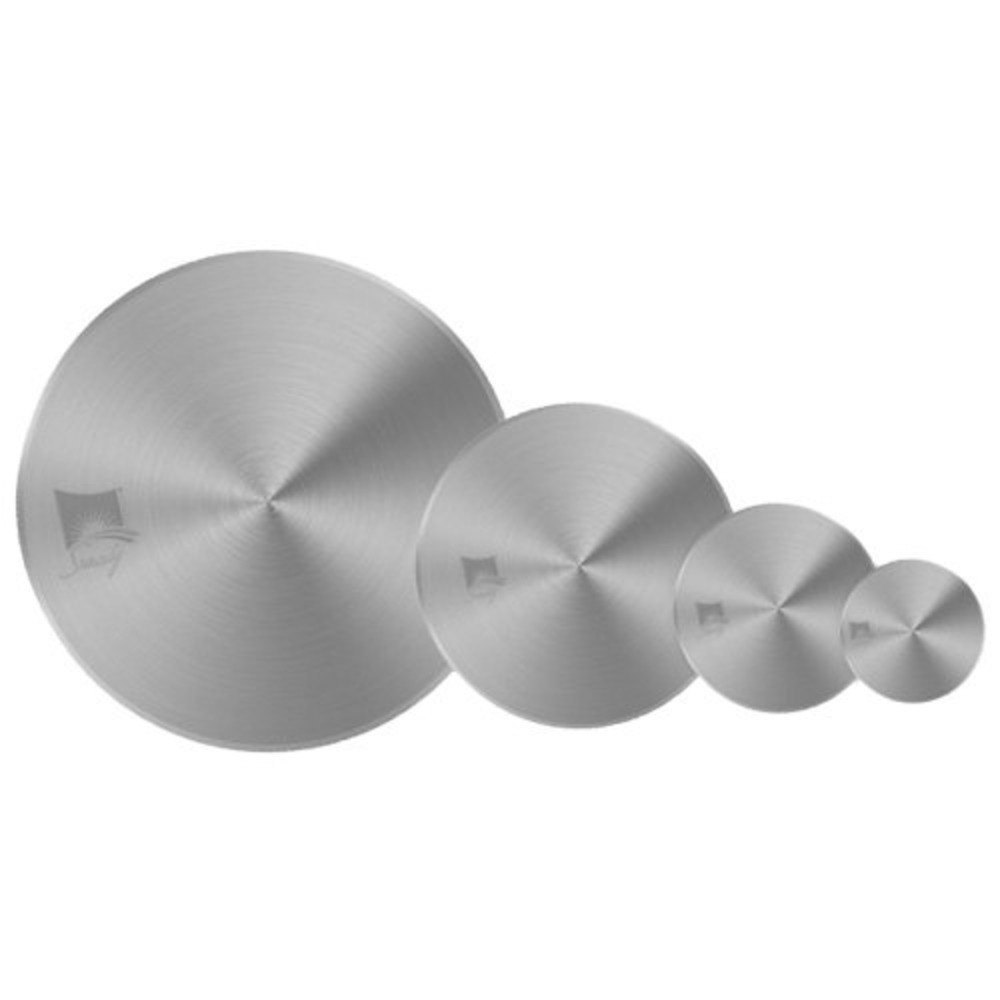

Inconel 690 Circles

Name: Inconel 690 Circles
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.00 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Inconel 690 Circles Specification

Dimensions
Custom sizes & diameters as per requirement

Technics
Hot Rolled, Cold Rolled, Forged

Surface Treatment
Bright, Polished, Matt, No.1, No.4 Finish

Application
Power Generation, Chemical Processing, Heat Exchangers, Nuclear Reactors, Petrochemical Industry

Type
Hot Rolled / Cold Rolled Circles

Grade
Inconel 690

Standard
ASTM B168, ASME SB168

Shape
Circle/Round

Steel Type
Nickel Alloy

Material
Inconel 690 (Nickel-Chromium Alloy)

Tolerance
0.05 mm or as specified

Thickness
0.5 mm to 100 mm or as required

Corrosion Resistance
Exceptional resistance to corrosive environments, especially high-temperature corrosion and oxidizing atmospheres

Melting Point
1343C - 1377C (2450F - 2510F)

Hardness
Rockwell B88 (Annealed)

Heat Treatment
Solution Annealed

Edge Condition
Mill Edge / Sheared Edge / Custom

Tensile Strength
365 MPa Min (Annealed)

Elongation
30% Min (in 50mm)

Density
8.19 g/cm3

Inconel 690 Circles Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Inconel 690 Circles About

Inconel 690 or UNS N06690 is a Ni-Chromium-based high-performance alloy with excellent high temperature oxidation and carburization resistance. The composition of the alloy also includes large proportions of chromium, which is very reactive to several forms of corrosion and hence can be used under several hansons. Machining is the process through which inconel 690 circles are produced, making them appropriate for various industry situations.

Outstanding Corrosion and Heat Resistance

Due to its superior alloy composition, Inconel 690 Circles demonstrate exceptional resistance to oxidizing and high-temperature corrosive environments. This makes them highly dependable in challenging conditions found in petrochemical plants, heat exchangers, and nuclear installations, significantly increasing the service life of components.

Customizable Specifications for Every Requirement

Whether your application demands specific dimensions, edge conditions, or surface treatments, Inconel 690 Circles can be fabricated to order. Thicknesses are available from 0.5 mm up to 100 mm, with tight tolerances of 0.05 mm or as specified, and surface finishes including bright, polished, matt, No.1, and No.4.

Versatile Applications Across Multiple Industries

Inconel 690 Circles are preferred in industries where material reliability under stress is vital. Their robust mechanical properties, coupled with outstanding resistance to corrosion and oxidation, make them ideal for use in power generation, heat exchangers, chemical processing, nuclear reactors, and petrochemical sectors.

FAQ's of Inconel 690 Circles:

Q: How are Inconel 690 Circles manufactured to achieve specific sizes and tolerances?

A: Inconel 690 Circles are produced using processes such as hot rolling, cold rolling, and forging. Advanced techniques and precise tooling enable manufacturers to achieve custom diameters, thicknesses ranging from 0.5 mm to 100 mm, and strict tolerances as small as 0.05 mm or as required by the customer.

Q: What benefits do Inconel 690 Circles provide in high-temperature or corrosive environments?

A: Inconel 690 Circles excel in environments exposed to elevated temperatures and corrosive substances due to their nickel-chromium alloy composition. They offer outstanding resistance to oxidation and high-temperature corrosion, making them an excellent choice for heat exchangers, nuclear reactors, and chemical processing plants.

Q: When should I choose Inconel 690 Circles over other materials for my application?

A: You should select Inconel 690 Circles when your application requires a product that can withstand severe corrosive conditions, high heat, and maintain mechanical integrity. Their durability and corrosion resistance make them particularly suitable for the energy, chemical, and petrochemical industries.

Q: Where are Inconel 690 Circles typically used?

A: These circles are utilized in critical industries such as power generation, nuclear energy, heat exchangers, petrochemical processing, and chemical plants. Their unique properties allow them to perform reliably in challenging and potentially hazardous environments.

Q: What standards do Inconel 690 Circles comply with, and why is this important?

A: Inconel 690 Circles are manufactured according to ASTM B168 and ASME SB168 standards. Adherence to these specifications ensures consistent quality, performance, and compatibility with global industry requirements, offering assurance to engineers and manufacturers.

Q: What edge and surface finish options are available for Inconel 690 Circles?

A: Customers can choose between mill edge, sheared edge, or custom edge conditions, as well as a variety of surface treatments including bright, polished, matt, No.1, and No.4 finishes. These options cater to specific application needs, aesthetic preferences, or fabrication processes.
