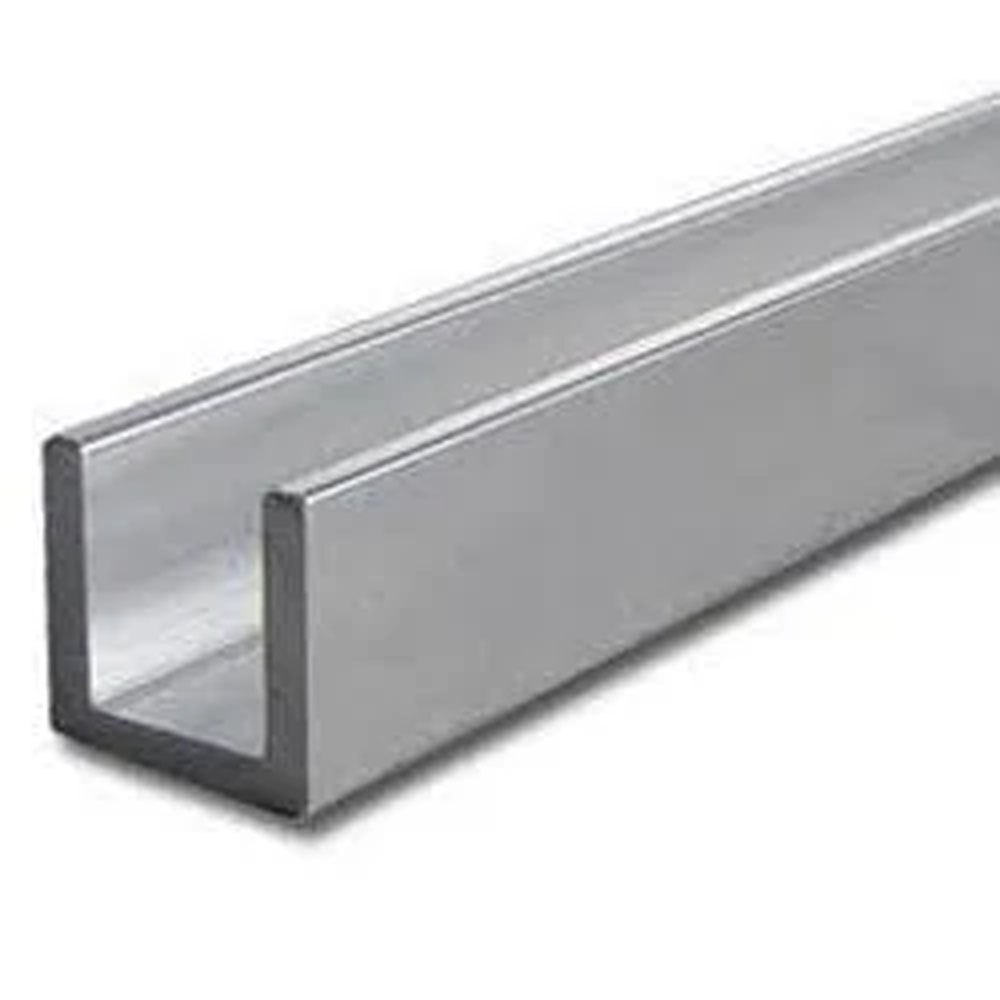

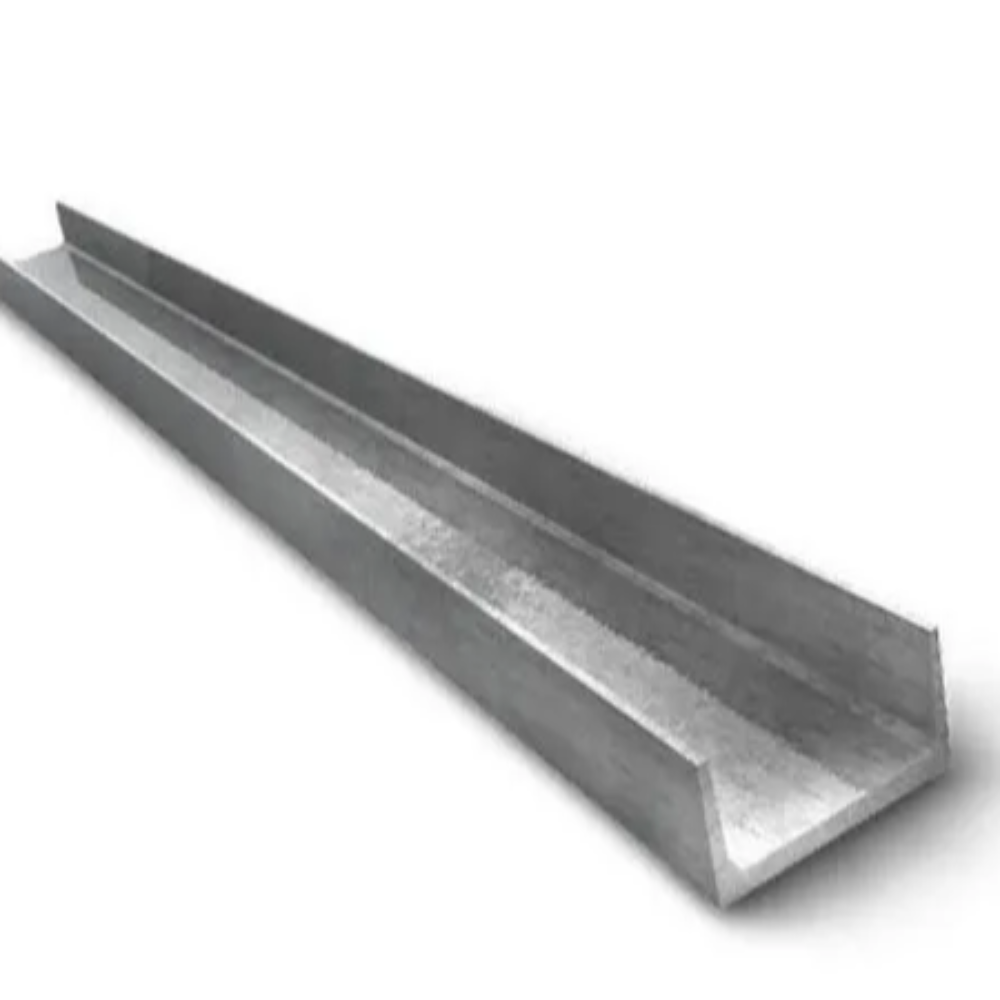

Inconel 718 Channels

Name: Inconel 718 Channels
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Inconel 718 Channels Specification

Tolerance
0.2 mm or as specified

Type
Structural Channel

Surface Treatment
Polished, Bright Annealed, or as per requirement

Thickness
1 mm to 50 mm or Customized

Dimensions
Customizable, as per drawing or requirement

Application
Aerospace, Power Generation, Oil & Gas, Chemical Processing, Marine, High-Temperature Applications

Technics
Hot Rolled, Cold Rolled, Fabricated

Material
Inconel 718 (Nickel-Chromium Superalloy)

Shape
Channel (C, U, Z shapes available)

Steel Type
Nickel Alloy Steel

Grade
Inconel 718

Standard
ASTM B366 / ASTM SB366 / ASME SB366 / AMS 5662/5663

Heat Treatment
Solution Annealed, Age Hardened

Tensile Strength
1240 MPa

Manufacturing Process
Precision Formed & Welded Channels

Density
8.19 g/cm3

Finish
Matte, Mirror, Brushed, Mill Finish

Length
1000 mm to 6000 mm or Customized

Hardness
Rockwell B88 C35 - 45 HRC

Elongation
Min 12% in 50 mm

Yield Strength
1030 MPa

Corrosion Resistance
Excellent in range of corrosive and high-temperature environments

Edge
Straight, De-burred, Customized Edging

Inconel 718 Channels Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Inconel 718 Channels About

Inconel 718 is a nickel based super alloy with very good mechanical strength and other desirable characteristics. It contains high nickel, chromium and niobium with minor contents of molybdenum, titanium, aluminium and other components.

Versatile Sizing and Precise Customization

These Inconel 718 Channels cater to diverse specifications, ranging in length from 1000 mm to 6000 mm and thicknesses from 1 mm to 50 mm. Custom shaping and dimensions can be achieved to match project requirements, supported by precise manufacturing tolerances as low as 0.2 mm. Customers can also select from a variety of finishes and edge treatments for complete adaptability.

Exceptional Mechanical & Corrosion Properties

Engineered for superior strength and endurance, Inconel 718 Channels boast a yield strength of 1030 MPa and tensile strength of 1240 MPa, with a minimum elongation rate of 12% over 50 mm. Their outstanding resistance to corrosion and high temperatures makes them invaluable in the most demanding industrial sectors, especially where durability and reliability are essential.

Advanced Manufacturing & Quality Standards

Produced through hot rolled, cold rolled, or fabricated processes, these channels undergo solution annealing and age hardening for optimal performance. Precision forming and welding ensure structural integrity. Each channel is compliant with recognized international standards (ASTM, ASME, AMS), reinforcing quality assurance for every application.

FAQ's of Inconel 718 Channels:

Q: How are Inconel 718 Channels manufactured to ensure strength and precision?

A: These channels are produced using hot rolling, cold rolling, or fabrication techniques, followed by precision forming and welding. After shaping, they undergo solution annealing and age hardening to enhance mechanical strength, dimensional stability, and resistance to extreme environments.

Q: What applications are Inconel 718 Channels best suited for?

A: Due to their high strength, excellent corrosion resistance, and stability at elevated temperatures, Inconel 718 Channels are preferred in aerospace, power generation, oil and gas, marine, and chemical processing industries. They are ideal for any structural use in harsh or high-temperature environments.

Q: When should I consider specifying customized dimensions or finishes for these channels?

A: Custom dimensions are advisable when you require exact fits for your project designs or need to accommodate specific load conditions. Selecting among matte, mirror, brushed, or mill finishes, as well as specialized edge treatments, is recommended when aesthetic appearance or enhanced surface properties are important.

Q: Where are these Inconel 718 Channels typically sourced from?

A: They are available from reputable exporters, importers, manufacturers, suppliers, and traders specializing in nickel-chromium superalloys, often serving clients globally in high-spec industrial sectors. Always verify that suppliers meet ASTM, ASME, and AMS standards for guaranteed quality.

Q: What is the typical process for ordering customized Inconel 718 Channels?

A: Customers generally provide technical drawings or detailed specifications, including desired length, thickness, shape (C, U, Z), finish, and tolerance. The manufacturing process then adapts to meet exact requirements through advanced forming, welding, and finishing techniques.

Q: How does the corrosion and heat resistance of Inconel 718 benefit its usage in industrial projects?

A: Inconel 718's exceptional resistance to corrosion and high temperatures ensures long-term structural integrity and reliability even in aggressive or variable conditions, significantly reducing maintenance and replacement costs for critical installations.
