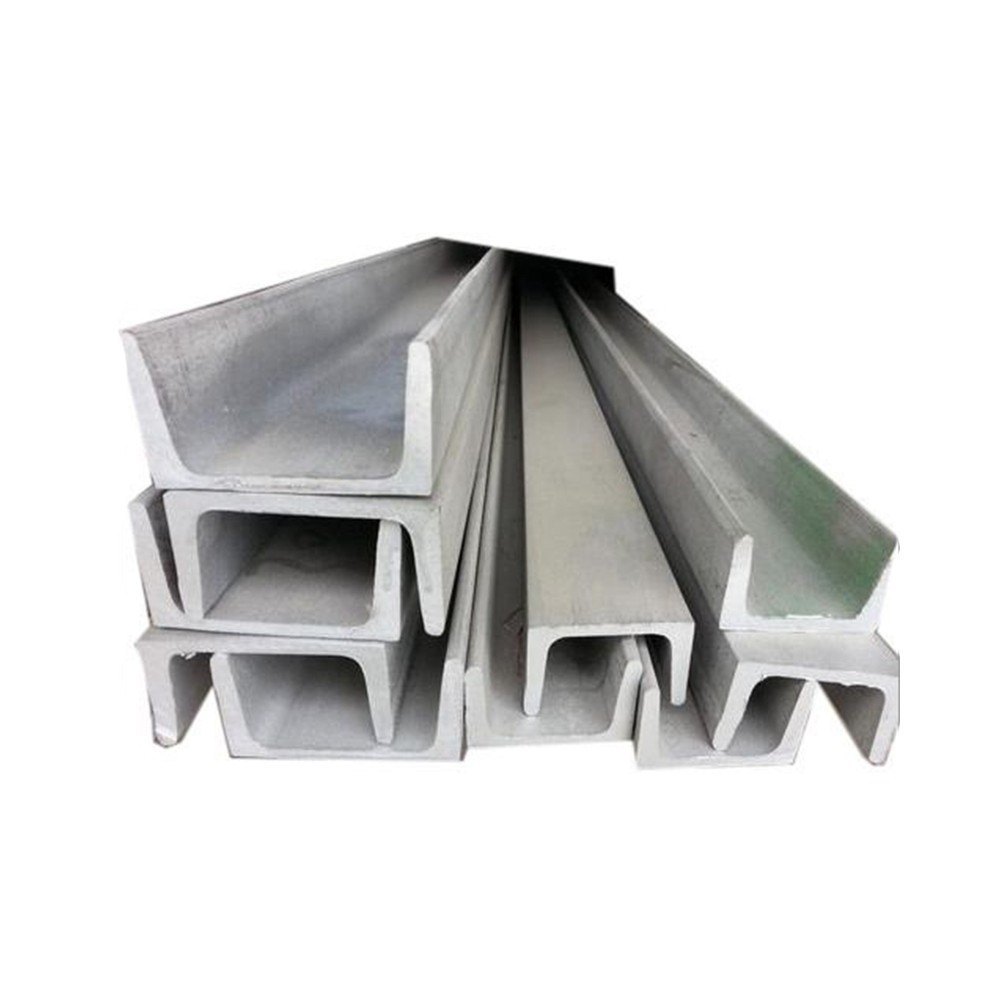

Inconel 800 Channels

Name: Inconel 800 Channels
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Roll

Get a Price/Quote

MOQ : 1 Kilograms

Inconel 800 Channels Specification

Surface Treatment
Hot Rolled, Pickled, Annealed

Thickness
3 mm to 30 mm

Dimensions
Custom sizes, standard channel dimensions available

Grade
Inconel 800

Type
Structural Channel

Tolerance
0.5 mm or as per requirement

Standard
ASTM B408, ASME SB408

Steel Type
Nickel Alloy

Shape
C Channel, U Channel

Material
Inconel 800/800H/800HT (Nickel-Iron-Chromium Alloy)

Technics
Hot Rolled / Extruded / Fabricated

Application
Chemical Processing, Power Generation, Heat Exchanges, Petrochemical

Length
Up to 6 meters or custom lengths

Trade Name
Incoloy 800 Series Channel

Density
7.94 g/cm3

Heat Resistance
Suitable for high temperature service up to 1100C

Corrosion Resistance
Excellent in acids, oxidizing and reducing environments

Hardness
170-220 HB

Ultimate Tensile Strength
450 MPa min

Form
Channel Bar, Section

Elongation
30% min

Yield Strength
205 MPa min

Melting Point
1357-1385C (2475-2525F)

Finish
Bright, Matte, Polished

Inconel 800 Channels Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Inconel 800 Channels About

Inconel 800 channel is a nickel iron chromium alloy well known for its great qualities. It is classified under superalloys and is intended for use in high temperature applications where the material's characteristics are of immense advantage.

Exceptional Heat and Corrosion Resistance

Engineered to withstand harsh environments, Incoloy 800 Series Channels perform exceptionally in both oxidizing and reducing atmospheres at high temperatures up to 1100C. Their resistance to deformation and scaling makes them ideal for use in heat exchangers and chemical processing contexts where stability and longevity are critical.

Custom Solutions for Industrial Applications

With a robust manufacturing process including hot-rolled, extruded, or fabricated techniques, Inconel 800 Channels are available in both C and U profiles. They can be tailored to your specific dimensions, thickness, and tolerance requirements, ensuring precise integration into your projects across industries like power generation and petrochemicals.

FAQ's of Inconel 800 Channels:

Q: How are Inconel 800 Channels manufactured to ensure structural integrity?

A: Inconel 800 Channels are manufactured using advanced hot rolling, extrusion, or fabrication techniques. These processes guarantee a uniform microstructure and mechanical strength, adhering to strict ASTM B408 and ASME SB408 standards. The resulting channels possess robust structural integrity, making them reliable for demanding industrial applications.

Q: What finish options are available for Inconel 800 Channels and how do they benefit the end use?

A: These channels are supplied in bright, matte, or polished finishes, depending on aesthetic and functional requirements. The choice of finish enhances resistance to corrosion, facilitates cleaning, and helps integrate the channels seamlessly into industrial systems with specific visual or surface contact needs.

Q: When should Inconel 800 Channels be chosen over other materials?

A: Inconel 800 Channels are preferred when applications demand exceptional resistance to acids, oxidizing, and reducing environments, as well as elevated temperatures up to 1100C. They are an optimal choice for industries like chemical processing, petrochemical, power generation, and applications requiring long service life and safety under extreme conditions.

Q: Where can Inconel 800 Channels be installed effectively?

A: These channels are used in locations subjected to thermal cycling, corrosive chemicals, or high mechanical loads. Common installations include heat exchangers, chemical reactors, pressure vessels, and power plant structures, where their unique properties mitigate the risk of failure from corrosion or heat.

Q: What is the benefit of the high elongation property (minimum 30%) in Inconel 800 Channels?

A: A high elongation value ensures the channels can deform without fracturing under mechanical stress or thermal expansion. This ductility contributes to superior resilience during installation and operation, allowing the channels to absorb stresses from temperature fluctuations and vibrations without cracking.

Q: How does the material's yield and tensile strength impact its usage in industrial settings?

A: With a minimum yield strength of 205 MPa and minimum ultimate tensile strength of 450 MPa, Inconel 800 Channels provide robust load-bearing capacity and resistance to deformation. This makes them highly suitable for structural support in settings where mechanical strength is essential.
