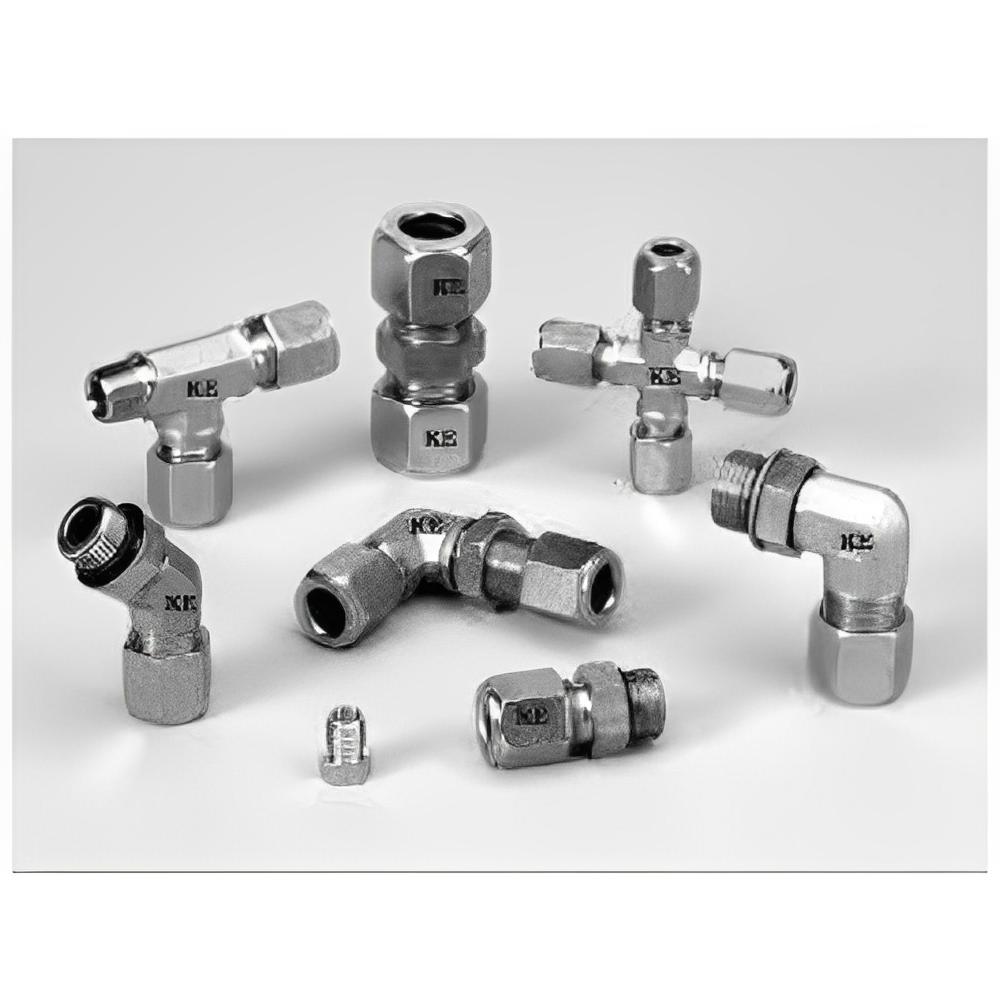

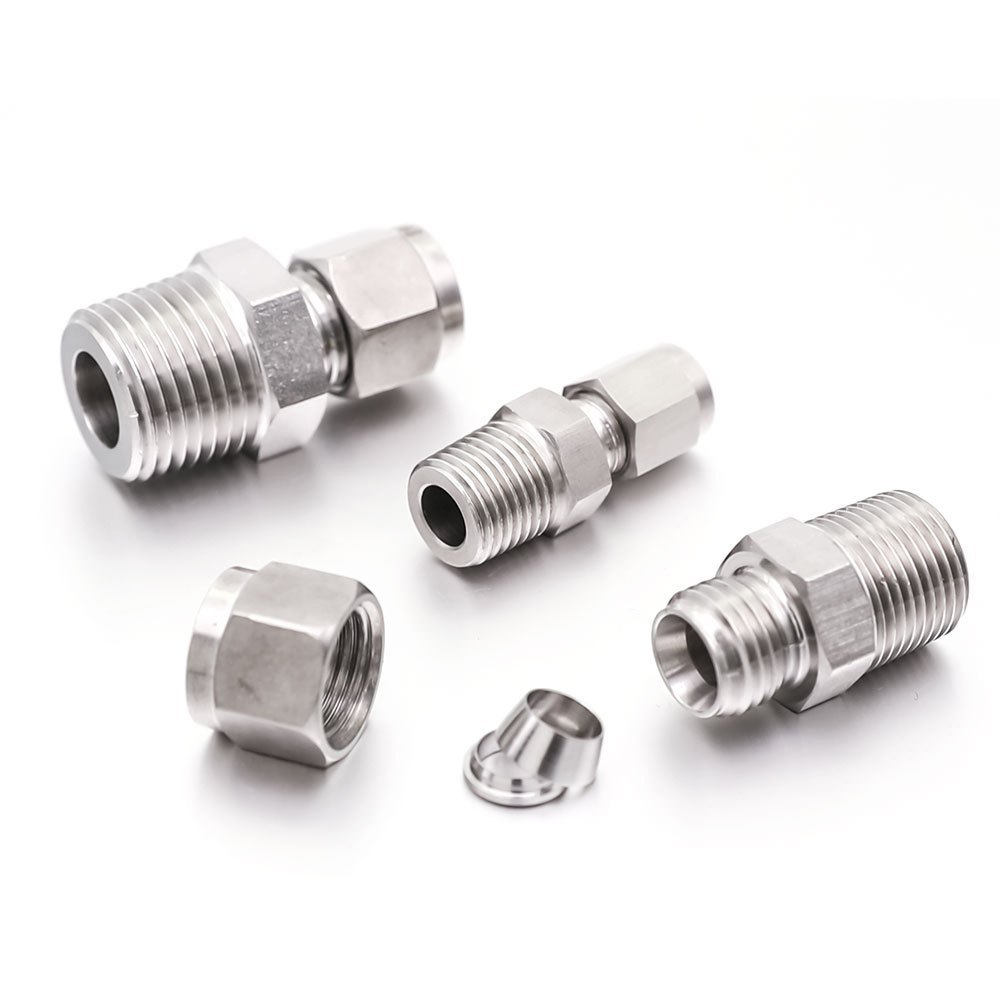

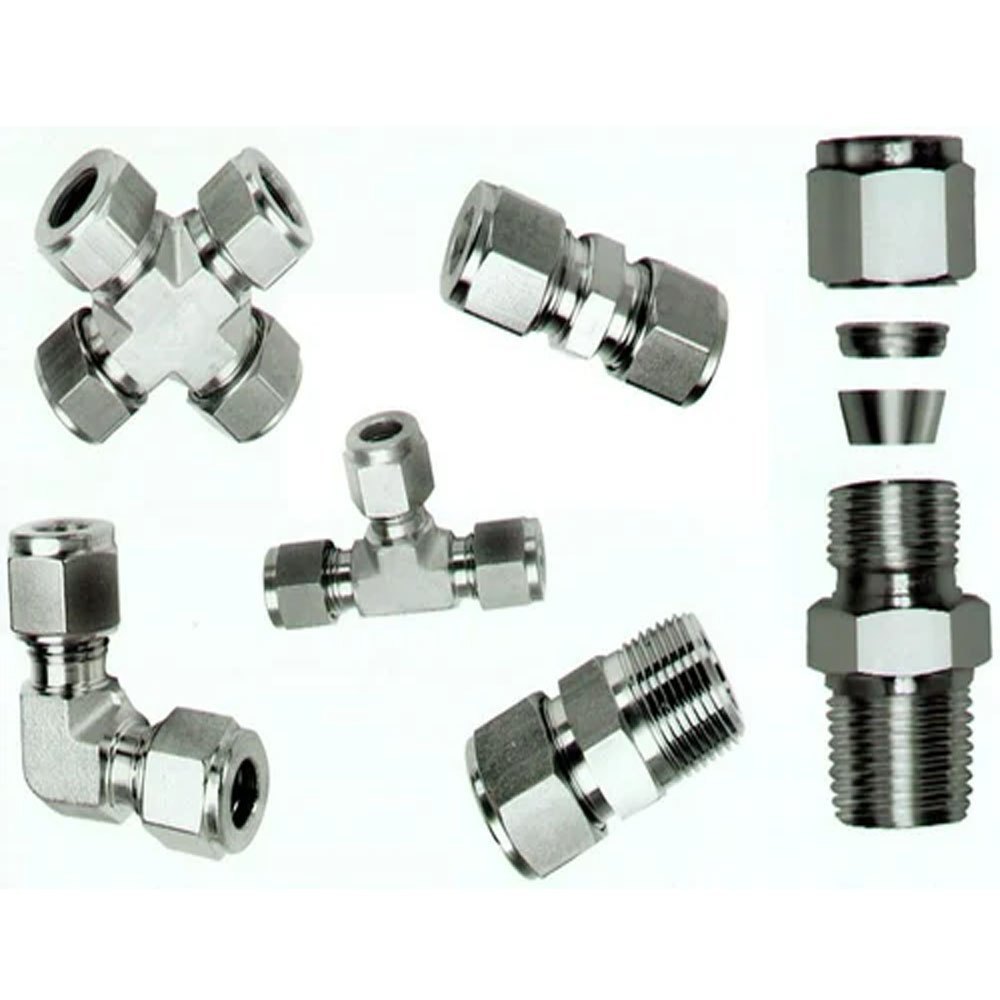

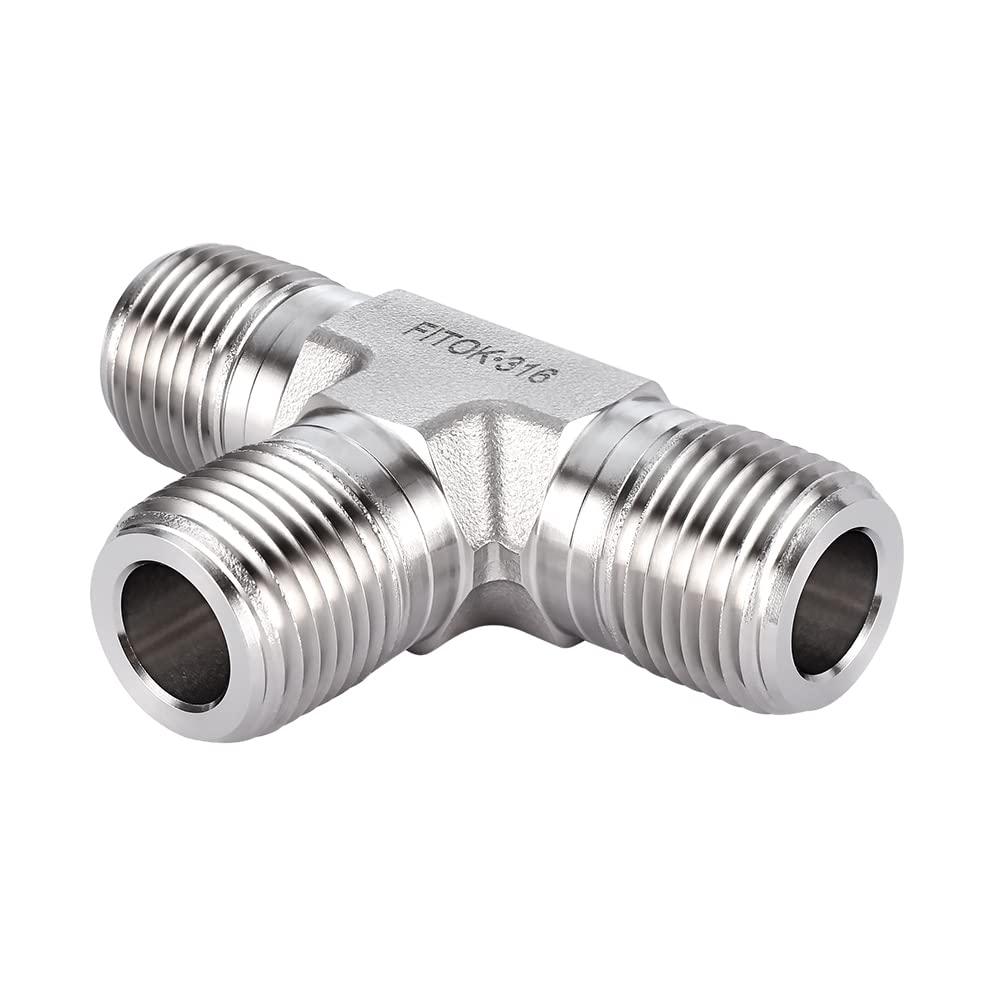

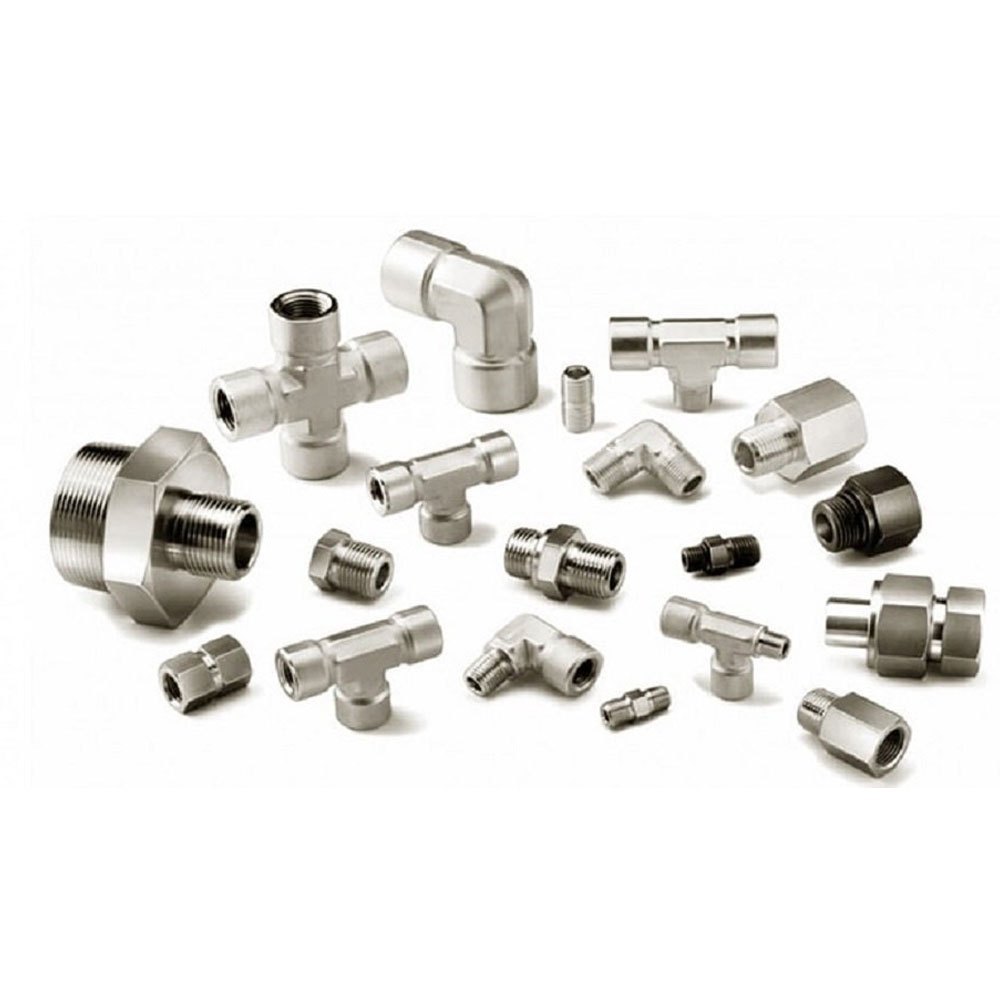

Monel 400 Instrumentation Fittings

Name: Monel 400 Instrumentation Fittings
Brand: Skyland Metal & Alloys Inc.
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Kilograms

Get a Price/Quote

MOQ : 1 Kilograms

Monel 400 Instrumentation Fittings Specification

Temper
Annealed/Soft

Standard
ASTM B564, ASME SB564

Thickness
Custom as per fitting size, Available from 1mm upwards

Grade
Monel 400

Width
Standard fitting widths as per ASME/ASTM standards

Purity
Approximately 63% Nickel, 30-34% Copper (nominal)

Strength
Tensile Strength: 480 MPa (min); Yield Strength: 170 MPa (min)

Surface
Bright, Smooth, Corrosion Resistant

Hardness
Rockwell B75 (Annealed)

Material
Nickel-Copper Alloy

Alloy
Monel 400 (UNS N04400)

Shape
Other

Moisture
Nil (metallic product)

Chemical Composition
Ni: 63%, Cu: 28-34%, Fe: 2.5%, Mn: 2%, Si: 0.5%, C: 0.3%, S: 0.024%

Application
Process control and measurement systems, Piping systems

Dimension (L*W*H)
Custom as per fitting type and specification

Color
Silvery Metallic

Leak-tightness
100% Leak-tested

Temperature Range
-196C to 550C (-320F to 1020F)

Working Pressure
Up to 6000 psi (as per fitting design and size)

Connection Type
Compression, Threaded, Welded

Standards Compliance
ANSI, DIN, JIS (where applicable)

Corrosion Resistance
Excellent in seawater, acid, alkali and chemical environments

Packaging
Sealed plastic bags, Cardboard cartons, as per customer requirement

Size Range
1/16

End Connection
NPT, BSP, BSPT, Socket Weld, Male/Female Ends

Monel 400 Instrumentation Fittings Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
7 Days

Monel 400 Instrumentation Fittings About

Monel 400 Instrumentation fittings are widely used in instrumentation and control systems where accuracy and strength are required. These fittings are made from nickel copper and have several characteristics.

Rugged Performance in Extreme Environments

Monel 400 Instrumentation Fittings are engineered to perform under intense conditions-handling pressures up to 6000 psi and temperatures from -196C to 550C. Their superior corrosion resistance makes them the ideal choice for offshore, chemical, and marine applications, ensuring reliable operation even in the harshest environments.

Versatile Connection Types and Sizes

Choose from compression, threaded, or welded connections to suit your system requirements. These fittings are available in a comprehensive size range from 1/16" to 2", as well as a wide selection of end connections including NPT, BSP, BSPT, and socket weld, ensuring compatibility with diverse piping systems worldwide.

Certified Quality and Secure Leak-tightness

Each Monel 400 fitting is manufactured in compliance with ANSI, DIN, and JIS standards and undergoes 100% leak testing to guarantee fail-safe sealing. They are delivered in sealed packaging to prevent contamination, meeting stringent quality assurance requirements for process-critical industries.

FAQ's of Monel 400 Instrumentation Fittings:

Q: How do Monel 400 Instrumentation Fittings ensure leak-tight performance?

A: Each fitting undergoes rigorous 100% leak testing during manufacturing. The superior design, combined with high-quality Monel 400 alloy, ensures reliable, leak-tight connections even at high pressures up to 6000 psi.

Q: What are the main benefits of choosing Monel 400 Instrumentation Fittings in my process system?

A: Monel 400 offers excellent corrosion resistance, robust mechanical strength, and durability in harsh environments such as seawater and chemicals. The fittings' wide temperature and pressure ratings make them suitable for critical process control and measurement applications.

Q: In which environments are Monel 400 fittings most commonly used?

A: These fittings are widely used in industries where harsh, corrosive environments are prevalent, including marine, offshore oil and gas platforms, chemical processing plants, and other process control systems.

Q: What connection types are available for Monel 400 Instrumentation Fittings?

A: They are offered in compression, threaded (NPT, BSP, BSPT), and welded (socket weld) end connections, with both male and female ends, to match various piping and instrumentation requirements.

Q: Which standards do Monel 400 Instrumentation Fittings comply with?

A: Production strictly follows ASTM B564 and ASME SB564 standards and, where applicable, ANSI, DIN, and JIS specifications for dimensional and material quality.

Q: How are Monel 400 Instrumentation Fittings packaged and delivered?

A: To prevent contamination and ensure product integrity, fittings are sealed in plastic bags and packed in sturdy cardboard cartons. Custom packaging options are available based on customer requirements.

Q: What sizes and shapes can I order for special applications?

A: Monel 400 fittings are available in sizes from 1/16" to 2" (or metric equivalents), and shapes such as elbows, tees, couplings, reducers, and standard tube fittings. Custom dimensions and thicknesses can be supplied as per your project's needs.
